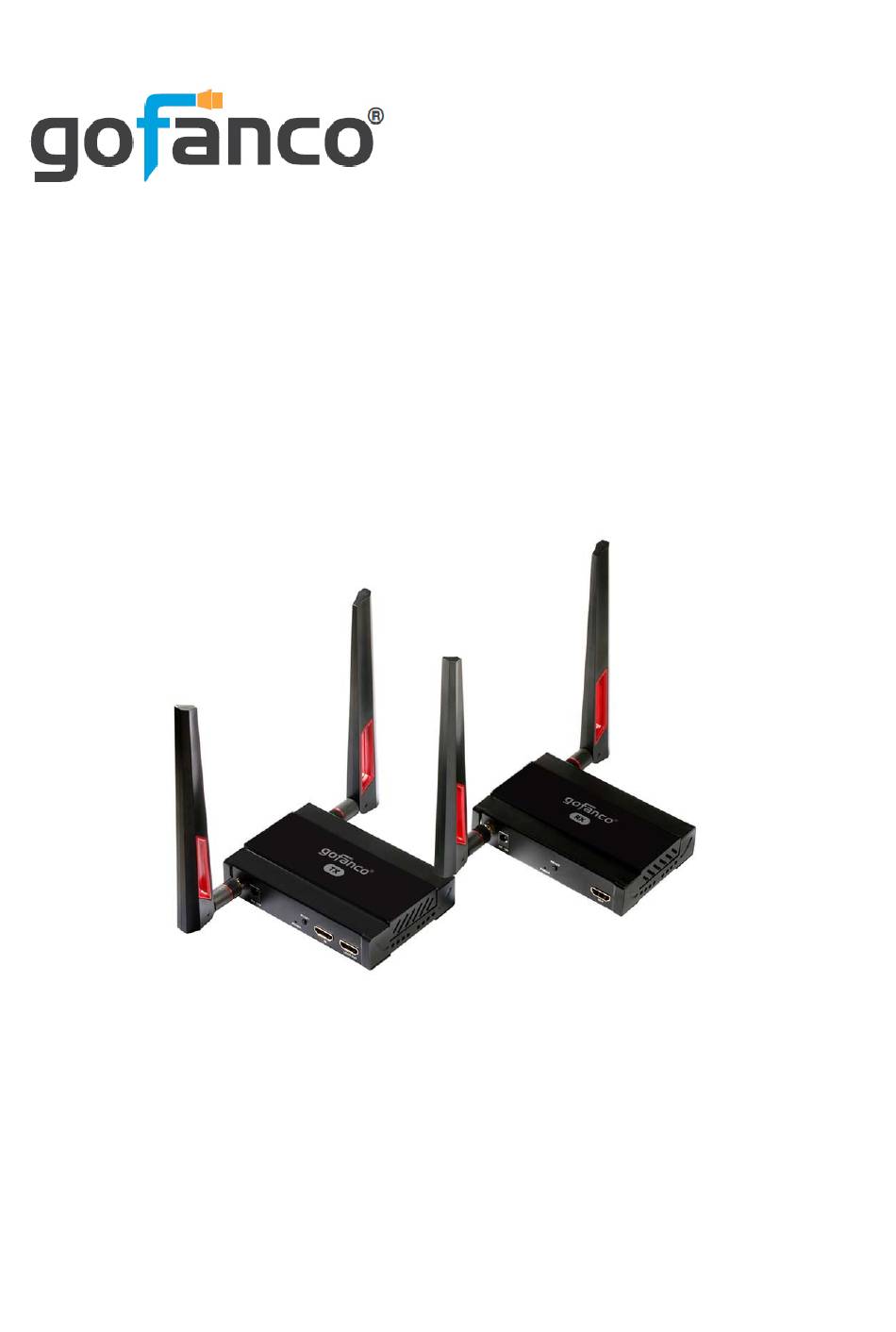

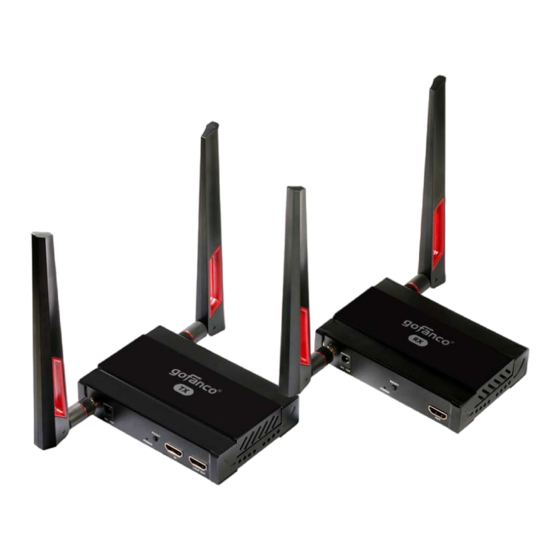

- Page 1 1x4 1080p HDMI Wireless Extender User's Guide P/N: HDwireless1x4 (Kit) HDwireless1x4-RX (Receiver) G4-0130A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 Transmits HDMI signals wirelessly up to 656 feet (200m) with line-of-sight • Supports PCM 2-channel audio • Supports up to four receivers (RX). Additional receivers (part# HDwireless1x4-RX) are sold separately* • Supports up to 1080p @60Hz • HDMI 1.3 and HDCP 1.3 compliant •...
-
Page 4: Installation Requirements
Package Contents • 1x4 1080p HDMI Wireless Extender (1 TX & 1 RX) • IR Emitter cable (1pc) • IR Receiver cable (1pc) • Antennas (4pcs) • Power adapters (2pcs) • User's guide Installation Requirements HDMI source device (DVD player, set top box, PC, etc.) HDMI display device (SDTV/Monitor, HDTV/ Monitor, projector, etc.) - Page 5 Product Layout Figure 1: Transmitter (TX) Power Jack: Connects to the included power adapter Power LED: On when the Transmitter is powered Reset Button: Press and hold down for 5 seconds to restore to factory settings (requires re-pairing to RX) HDMI In: Connects to your HDMI source device HDMI Loopout: Connects to an HDMI display IR Out: Connects to the included IR Emitter cable...
- Page 6 Product Layout Continued Figure 2: Receiver (RX) Power Jack: Connects to the included power adapter Power LED: On when the Receiver is powered on Reset Button: Press and hold down for 5 seconds to restore to factory settings (requires re-pairing to TX) HDMI Out: Connects to your HDMI display IR In: Connects to the included IR Receiver cable Pairing the TX and RX...
- Page 7 Hardware Installation Power off all devices including your HDMI source and HDMI display(s). Install the included antennas to the TX and RX. Connect your HDMI source device to the Transmitter's HDMI In port with an HDMI cable (HDMI cable not included). Optional: Connect an HDMI display to the Transmitter's HDMI Loopout port with an HDMI cable (HDMI cable not included).
- Page 8 Figure 3: One TX to One RX One-to-Many Connection (up to 4 RXs) Supports up to four Receivers (RX). Additional Receivers, part# HDwireless1x4-RX, sold separately. Figure 4: One TX to Two RXs Shown Note: Wireless transmission range is reduced with each added receiver.
- Page 9 FAQ & Solutions Q1: The display is not clear or stable. A1: 1) Please adjust the position of Transmitter and Receiver units and make sure they are within the required signal range. 2) Check the HDMI cable lengths are within 2m. 3) Check the transmission distance is within 200m (line-of-sight).
-
Page 10: Specifications
Specifications... - Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products.
- Page 12 Thank you for choosing gofanco www.gofanco.com...
