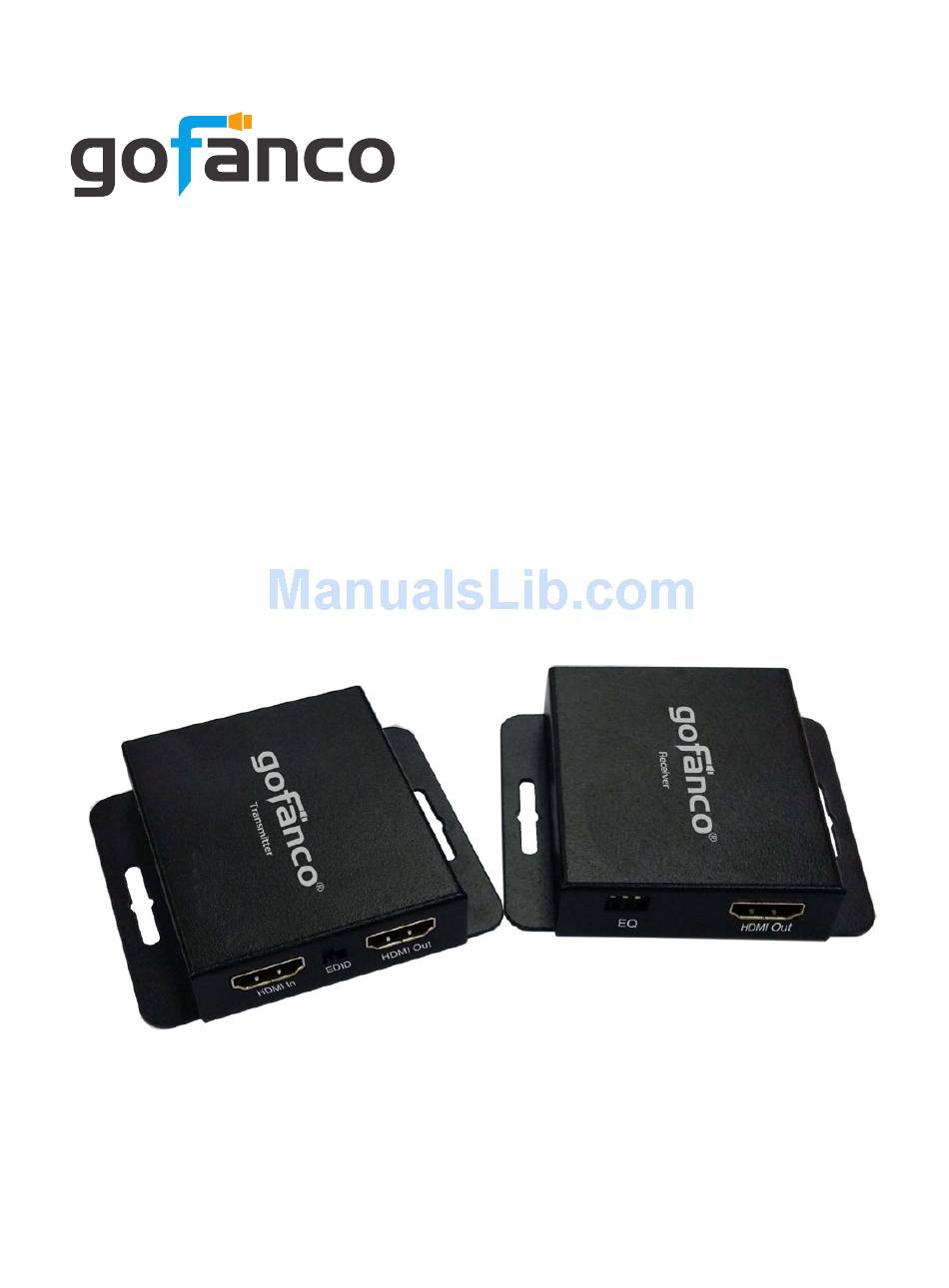

- Page 1 ® HDMI CAT5e/6 Extender with IR - 50m P/N: HDMIExt G4-0013A...
- Page 2 Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: Specifications
Introduction gofanco HDMI CAT5e/6 Extender with IR - 50m (part# HDMI Ext) extends HDMI signals over one Cat5e/6 cable up to 50m (164ft) with an HDMI loop out on the Transmitter (TX) for a local monitor or cascading. Specifications Output Signal... - Page 4 Layout HDMI Out HDMI In EDID Figure 1: Transmitter (TX) - HDMI Device Input • HDMI In: Connect your HDMI source here with an HDMI cable (cable not included) • EDID: EDID learning switch. (Right position: Learn EDID from the display connected to HDMI loop out; Left position: Learn EDID from the display connected to Receiver (RX)) •...
- Page 5 • IR Out: Infrared 3.5mm socket. Plug IR Blaster extension cable here • RJ45: Link to the Receiver's RJ45 via a Cat5e/6 cable • Power Jack: Connect the included 5V DC power adapter here • Power LED: On when the Transmitter is powered •...
- Page 6 Equalizer control HDMI Out Figure 4: Receiver (RX) - HDMI Display Output • Equalizer control: Adjust the 8-level equalization control to the received HDMI signals (0~7: weakest to strongest) • HDMI Out: Connect to your HDMI display here with an HDMI cable (cable not included)
- Page 7 IR Extenders (30KHz - 60KHz) Figure 6: IR Receiver Figure 5: IR Blaster (Connect to Receiver RX) (Connect to Transmitter TX) • IR Blaster: Plug into the Transmitter's IR 3.5 socket to emit IR signals received from the IR Receiver end. •...
-
Page 8: Hardware Installation
Hardware Installation 1. Power off all devices including your HDMI source and display(s). 2. Connect your HDMI source to the Transmitter's HDMI IN connector. 3. Optional: Connect the IR Blaster extension cable to the Transmitter's IR Out. Face the eye towards your HDMI device's IR window. - Page 9 Application Extend HDMI signals from DVD players, game consoles or HDMI-equipped computers up to 50m (164ft). Receiver Transmitter HDMI Monitor-2 HDMI Source HDMI Monitor-1 (Optional) Figure 7: Application * When using the remote control, please make sure its distance to the IR Receiver extension cable is within 5 meters and without obstructions.
- Page 10 Blank Page...
- Page 11 Blank Page...
- Page 12 ® Thank you for choosing gofanco www.gofanco.com...
