gofanco HDMIExtSplit Manual page 4

Layout
EDID
Power Jack
IR Out

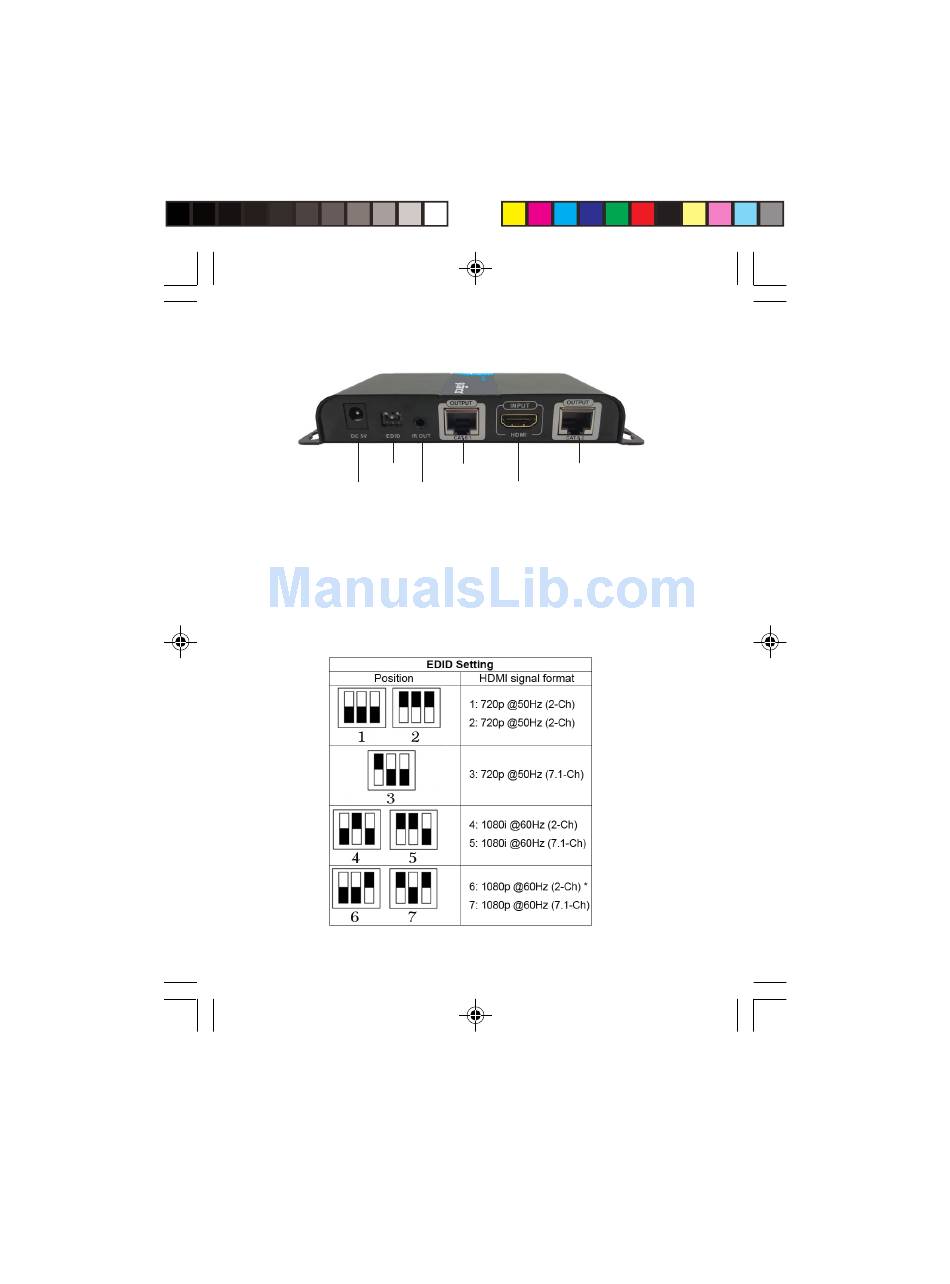

Figure 1: Transmitter (TX)
• Power Jack: Connect the included 5V/1A DC power
adapter here
• EDID : The HDMI source device reads EDID information
from the TX unit, and outputs it to the RXs.
Please refer to the settings below.
4
RJ45
RJ45
HDMI In
* 6: Default setting
