gofanco HDwireless100-LT User Manual

1080p wireless hdmi extender - 100m
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1080p Wireless HDMI
Extender - 100m
User's Guide
P/N:HDwireless100-LT
G4-0107A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDwireless100-LT and is the answer not in the manual?

Questions and answers

Related Manuals for gofanco HDwireless100-LT

Summary of Contents for gofanco HDwireless100-LT

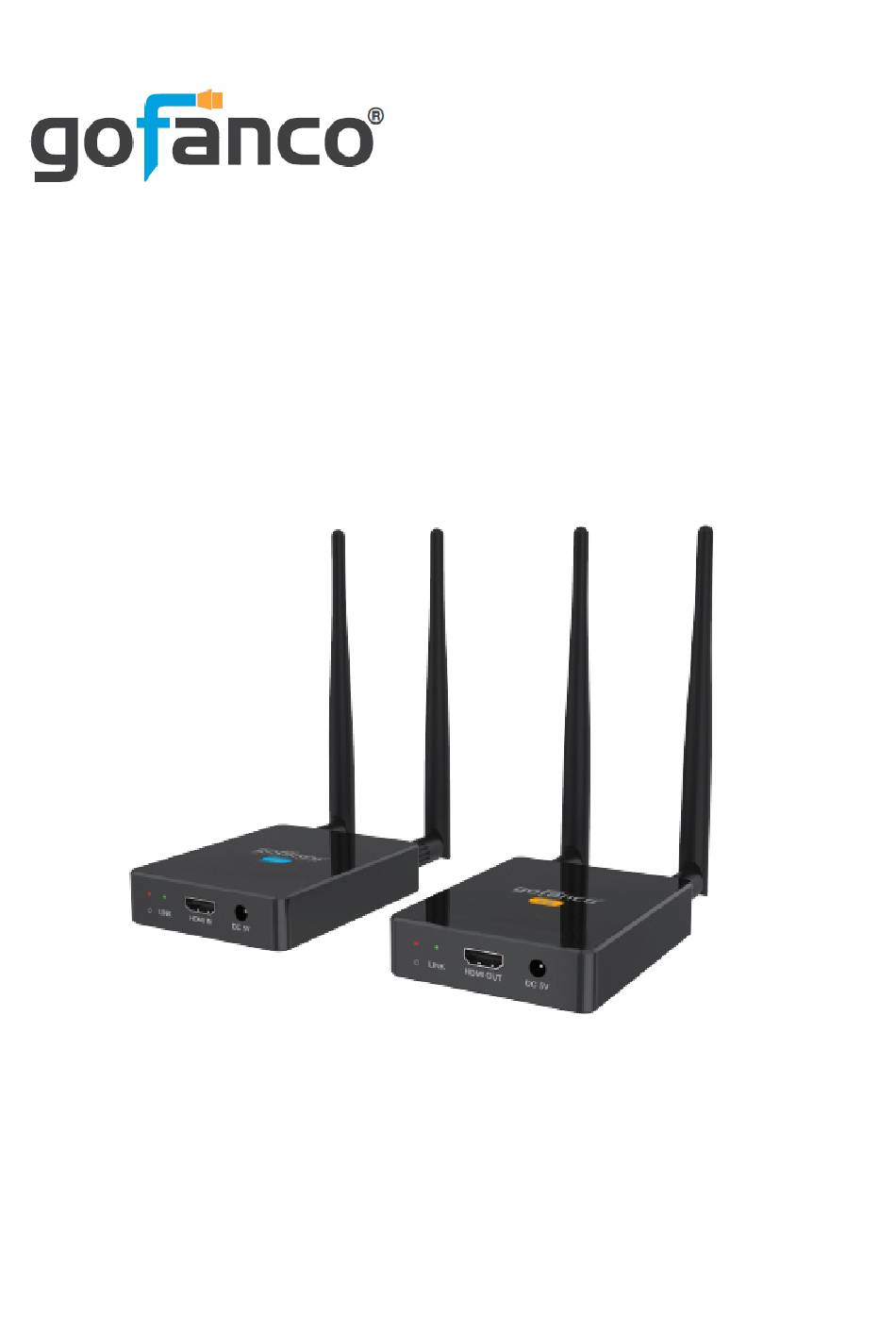

  • Page 1 1080p Wireless HDMI Extender - 100m User's Guide P/N:HDwireless100-LT G4-0107A...

  • Page 2: Important Safety Notices

    Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
  • Page 3 Introduction The 1080p Wireless HDMI Extender - 100m extends HDMI signals wirelessly from a source device to a display device up to 100 meters. It requires no cables between the Transmitter (TX) and Receiver (RX), making the installation easy and clean. Great for homes and offices. Note: Wireless transmission distance will vary due to the environmental conditions.

  • Page 4: Installation Requirements

    Package Contents • 1080p Wireless HDMI Extender - 100m (1 TX and 1 • IR blaster cable (1pc) • IR receiver cable (1pc) • Antenna (4pcs) • Power adapter (2pcs) • User guide Installation Requirements HDMI source device (DVD player, set top box, PC, etc.) HDMI display device (SDTV/Monitor, HDTV/ Monitor, projector, etc.)

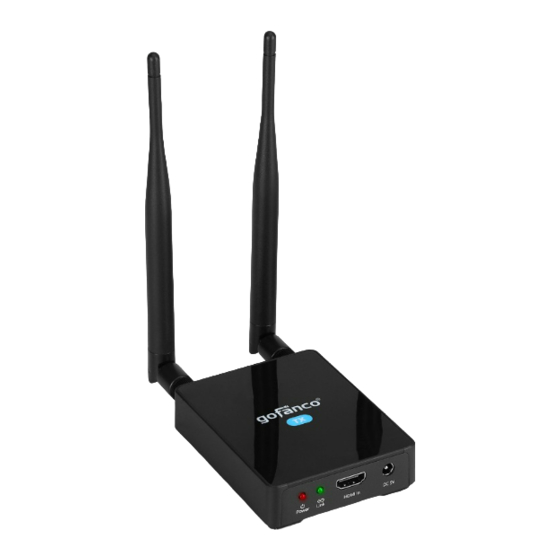

  • Page 5 Product Layout Figure 1: Transmitter (TX) 1. Power LED On when the Transmitter is powered on Quick flash: The TX and RX are pairing Slow flash: The TX and RX are transmitting data 2. Link LED Solid on: The TX is updating firmware Off:The TX and RX are not paired or no signal transmission after successful pairing 3.
  • Page 6 Figure 2: Receiver (RX) 1. Power LED On when the Receiver is powered on Quick flash: The TX and RX are pairing Slow flash: The TX and RX are transmitting data Solid on: The TX and RX are paired successfully or 2.

  • Page 7: Hardware Installation

    Hardware Installation Power off all devices including your HDMI source and HDMI display. Install the included antennas to the TX and RX. Pair the TX and RX. See Pairing Instructions on page 8. Connect your HDMI source device to the Transmitter's HDMI Input connector with an HDMI cable (HDMI cable not included).

  • Page 8: Pairing Instructions

    Pairing Instructions Power on the TX and RX. Place them in close proximity to each other. Simultaneously press and hold down the pairing button on both TX and RX units for 3 seconds. The Link LED on both units will begin flashing quickly, continue holding down both pairing buttons.
  • Page 9 IR Cables Figure 3: IR Cable Specifications...
  • Page 10 Application Diagram The diagram shows the typical devices used with the wireless extender. Transmitter Receiver Figure 4Figure 3: Application Diagram: Application Diagram...
  • Page 11 IR Application Figure 5: IR Application Diagram...
  • Page 12 Notice • Wireless signals transmitted through walls, glass, brick or other solid objects will cause signal loss and decrease the transmission distance • External wireless signals from microwaves, wireless mice and wireless keyboards will interfere with HDMI signal transmission • Keep the unit in a well ventilated environment to prevent it from overheating •...

  • Page 13: Faq And Troubleshooting

    FAQ & Troubleshooting The Wireless Connection LED is on, but no video output on the remote display: 1) Check the HDMI source device is powered on. 2) Check the transmitter's HDMI Signal LED is on. 3) Check the HDMI cables for solid connection. Use different HDMI cables if necessary.

  • Page 14: Specifications

    Specifications Item Description HDMI Compliance HDMI 1.3 HDCP Compliance HDCP 1.4 Video Bandwidth 6.75 Gbps 480i, 480p, 720i, 720p,1080i, Resolution 1080p@60Hz, 1920x1200@60Hz (max) RGB/YCbCr YUV 4:4:4, YCbCr YUV Color Space 4:2:2, YUV 4:2:0 Color Depth 8/10/12-bit (1080p@60Hz) LPCM 2.0CH HDMI Audio 32KHz/44.1KHz/48KHz Input: 100-240VAC 50/60Hz Power Adapter (x2)
  • Page 15 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products.
  • Page 16 Thank you for choosing gofanco www.gofanco.com...
