How It Works - Wilson Electronics SignalBoost Installation Manual

Installation Instructions for the Following Wilson Amplifier:
SiGnalBooSt™ 900/1900 MHz iDEN Amplifier
Model #2B4310, Part #814310
FCC ID: PWO2B4310SM
Patent Pending
The term "IC" before the radio certification number only signifies that
Industry Canada technical specifications were met.

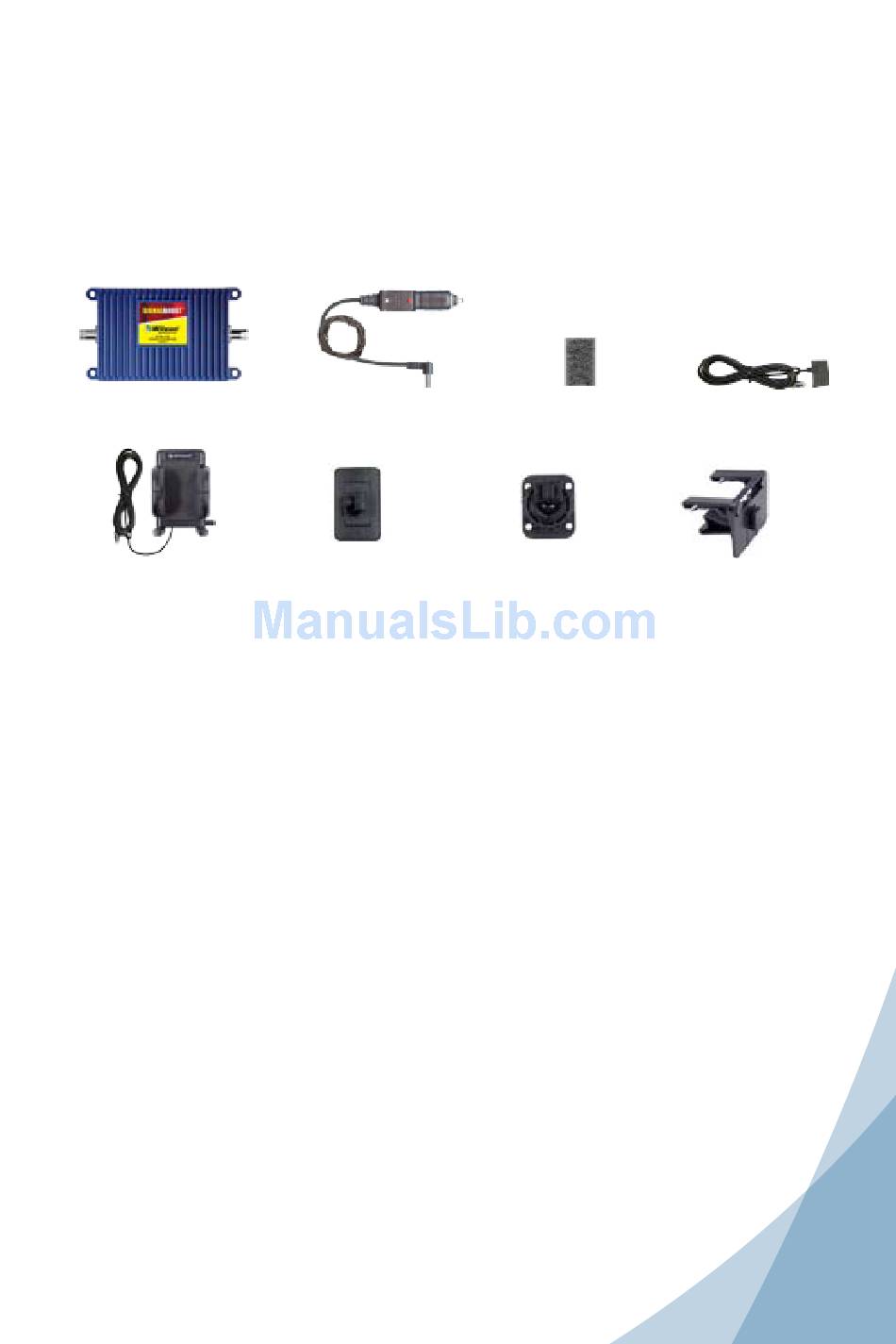

inside this Package
SignalBooST™
amplifier
Cell Phone
Cradle Plus

How it Works

Your new Wilson SignalBooST™ Amplifier has been carefully engineered to significantly
improve the performance of your cell phone or cellular data card. Together with an antenna,
the amplifier's state-of-the-art technology is designed to increase your signal up to 10-15
times, reduce disconnects and dropouts, and increase data communication rates needed
for 3g technologies. The universal connector works with all iDEn data cards.
The antenna will collect the cell tower signal and send it through the cable to the amplifier.
The signal is then boosted and sent through the extension cable to either the universal
connector on your data card or the cradle antenna with your cell phone, which then
communicates with the improved signal. When the cell phone or data card transmits, the
signal goes through either the universal connector or the cradle antenna, is boosted by the
amplifier and broadcast back to the cell tower through the antenna.
notE: Use of this amplifier with an antenna gain higher than 6.12 dBi on a vehicle or within
a building is in violation of FCC regulations. All Wilson mobile antennas have 6.12 dBi or
less gain. Use of this amplifier with an outside fixed building antenna gain exceeding 15 dBi
is in violation of FCC regulations. All Wilson Yagi antennas have gains of 15 dBi or less.
Use of antennas with higher than the above maximum allowable gains is in violation of FCC
regulations for which the offender is fully liable.
IC: 4726A-2B4310SM
12 V DC power
supply (vehicle)
adhesive
adhesive/Screw
Bracket
Swivel Bracket
VElCRo
®
air-vent
Bracket
Universal
connector
