SIGNALBOOST
™
U-Booster

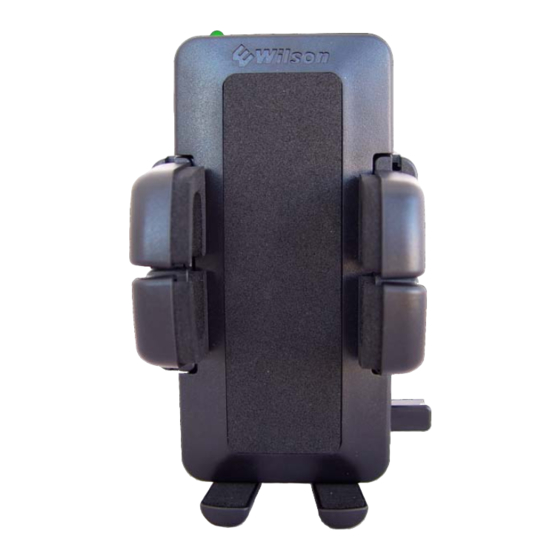

Universal Dual-Band Wireless Cellular / PCS Amplifier with Built-in Antenna
Model # 2B5225 FCC ID: PWO2B5225 IC: 4726A-2B5225*
Contents:
How it Works · · · · · · · · · · · · · · · · · · ·· 2
Install Diagrams - Vehicle · · · · · · · · · · ·2
Powering Up a Wilson Amplifier · · · · · 4
Understanding the Amplifier Lights · · 4
Warnings and Recommendations · · · ·6
About Wilson Electronics · · · · · · · · · · 6
Amplifier Specifications · · · · · · · · · · · · Back Cover
The phone must be placed in the U-Booster cradle at all times.
To achieve the best performance while the phone remains in the cradle, use a Bluetooth® headset for voice communications.
Amplifier
Installation
Guide
™
Warning: This manual contains important safety
and operating information. Please read and follow the
instructions in this manual. Failure to do so could be
hazardous and result in damage to your amplifier.
* The term "IC" before the certification number only signifies
that Industry Canada technical specifications were met.
Wilson
®
Electronics, Inc.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wilson Electronics SIGNALBOOST U-Booster 2B5225
Summary of Contents for Wilson Electronics SIGNALBOOST U-Booster 2B5225
- Page 1 Warnings and Recommendations · · · ·6 that Industry Canada technical specifications were met. About Wilson Electronics · · · · · · · · · · 6 Amplifier Specifications · · · · · · · · · · · · Back Cover The phone must be placed in the U-Booster cradle at all times.
- Page 2 Inside this Package Included: if U-Booster® Kit is purchased U-Booster ™ Mini Magnet-Mount Vehicle Dash DC Plug-In Wireless Amplifier/ antenna Mounting Brackets Power Supply Cradle Wilson Electronics, Inc. ® Accessory Antennas & Mounts Accessory Antenna Options In addition to the convenient mini magnetic roof mount antenna included with your kit, Wilson Electronics offers a wide variety of outside antennas to help you customize your amplifier for a specific application.
- Page 3 General Your Wilson amplifier has been carefully engineered to significantly improve the performance of your phone. Together with an outside antenna, the amplifier’s state-of-the-art circuitry is designed to increase your phones signal to and from the cell site, up to 20 times greater than the phone alone. The U-Booster™...
- Page 4 Vehicle Installation 1. Place Magnetic Roof Top Antenna To receive the best cell signal, select a location for the outside antenna that is preferably in the center of the vehicle’s roof, 12 inches away from any other antennas and free of obstructions, at least 8-12 inches from the rear or side windows or sunroof.
- Page 5 4. Powering up the Wilson U-Booster™ Amplifier Make sure the outside antenna cable is connected before powering up the amplifier. Connect the mini-USB plug on the power cable to the U-Boosters ™ mini USB port located on the bottom of the U-Booster and insert the adapter into the cigarette lighter outlet of your vehicle.
- Page 6 Place the bracket as high on the window as possible for best performance. Suction cup Antenna Window Mount -not included- Available from Wilson Electronics. www.wilsonelectronics.com or call 800-204-4104 Once the bracket is in place, attach the magnet base of the antenna to the flat surface of the bracket.
- Page 7 This prevents the amplifier from oscillating. ABOUT WILSON ELECTRONICS Wilson Electronics, Inc. has been a leader in the wireless communications industry for nearly 40 years. The company designs and manufactures amplifiers, antennas and related components that significantly improve cellular telephone signal reception and transmission in a wide variety of applications, both mobile and in-building.
- Page 8 Amplifiers may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer within the continental United States.
