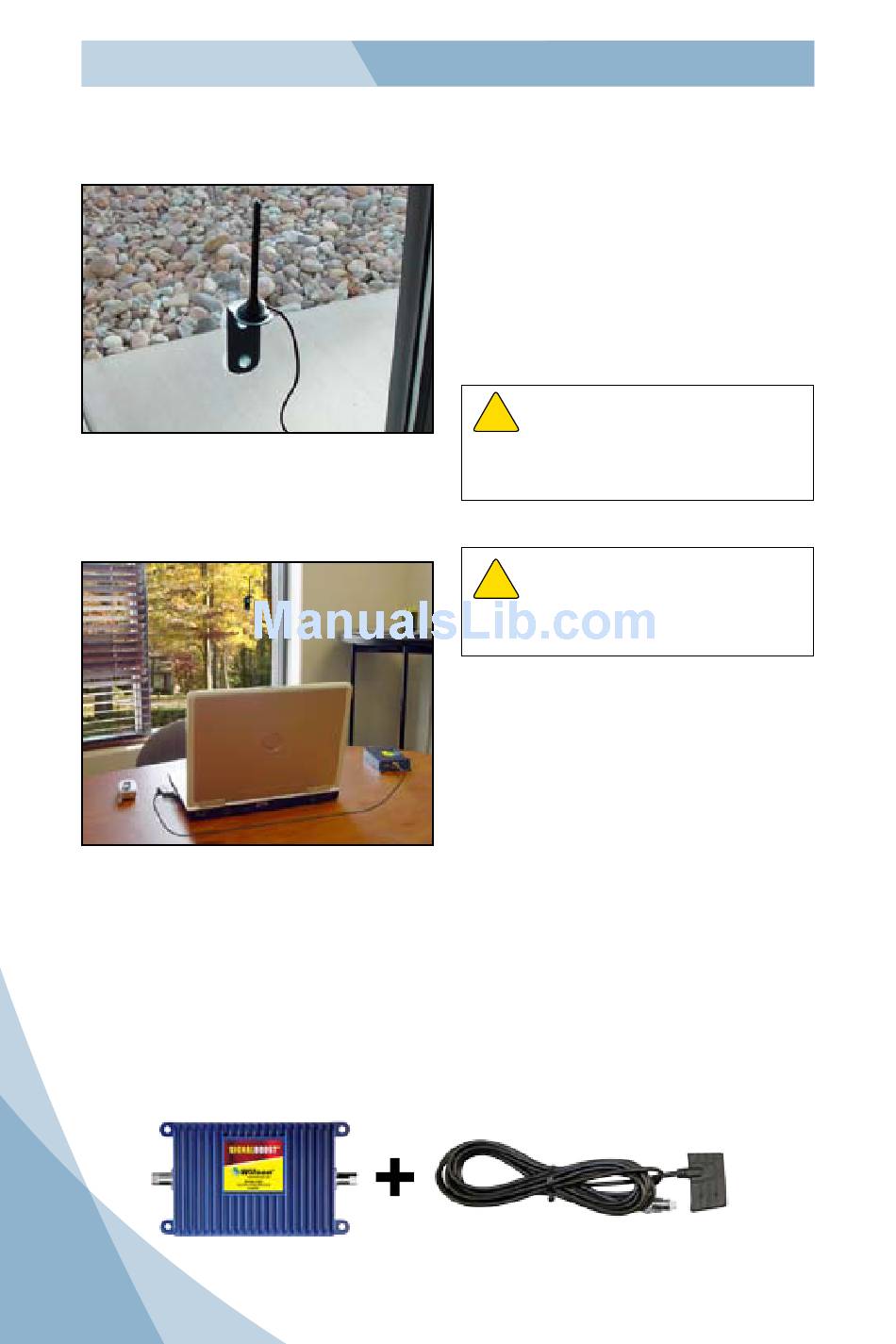

installing the antenna
To receive the best cell signal, select a window location at least 12 inches away from any
radio or television antennas and free of obstructions.
installing the Wilson SiGnalBooSt™ Amplifier
Run the cable from the antenna and attach it to the FME-Male connector labeled "outside
antenna" on the amplifier.
attach the universal connector cable to the extension cable and attach the extension cable to
the FME-Male connector labeled "Universal Connector" on the amplifier.
Then attach the universal connector to your cellular data card.
installing the Wilson Universal Connector

Home/Office Installation
Amplifier
Using the suction cups, position the
optional mounting bracket on the window at
a height convenient to where the amplifier
will be located, then attach the antenna to
the bracket.
The antenna must be installed vertically.
Signal performance will be degraded if the
antenna is not vertical.
!
Warning: The bracket mounted
antennas used with this amplifier must have a
separation distance of at least 8 inches from
all persons.
!
Warning: Do not plug in the aC power
supply until the outside antenna and universal
connector cables are attached to the amplifier.
Select a location to install the amplifier that
is away from excessive heat, direct sunlight
or moisture and that has proper ventilation.
Recommended installation locations are:
• on a desk or table top
• in a bookshelf
• On the floor
Universal
Connector
