Amplifier
Installation
Guide
Contents:
guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · · ·
How it Works · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2
Before getting Started · · · · · · · · · · · · · · · · · · · · · · · · · · 3
installation overview · · · · · · · · · · · · · · · · · · · · · · · · · · · 3
installing the antenna (Vehicle) · · · · · · · · · · · · · · · · · · · 4
Installing the Antenna (Home/Office) · · · · · · · · · · · · · · · 7
Installing the Universal Connector (Cellular Data Card)
Powering Up the Amplifier · · · · · · · · · · · · · · · · · · · · · · · 8
Warnings and Recommendations · · · · · · · · · · · · · · · · · 9
about Wilson Electronics · · · · · · · · · · · · · · · · · · · · · · · · 10
Amplifier Specifications · · · · · · · · · · · · · · · · · · Back Cover

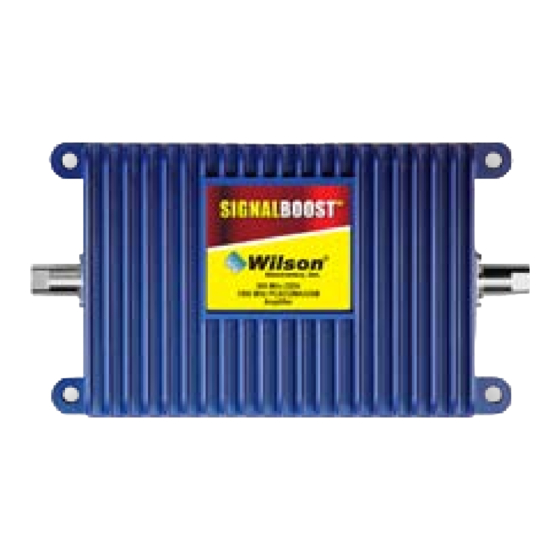

SignalBooST™
900/1900 MHz
iDEn
Amplifier
!
Warning: This manual contains
important safety and operating information.
Please read and follow the instructions
in this manual. Failure to do so could be
hazardous and result in damage to your
amplifier.
1
7
Wilson
®
Electronics, Inc.
Advertisement
Table of Contents
Related Manuals for Wilson Electronics SignalBoost
Summary of Contents for Wilson Electronics SignalBoost
-
Page 1: Table Of Contents
Warnings and Recommendations · · · · · · · · · · · · · · · · · 9 about Wilson Electronics · · · · · · · · · · · · · · · · · · · · · · · · 10 Amplifier Specifications ·... - Page 2 Returned Material authorization (RMa) number supplied by Wilson Electronics. Wilson shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer.
-
Page 3: How It Works
Bracket How it Works Your new Wilson SignalBooST™ Amplifier has been carefully engineered to significantly improve the performance of your cell phone or cellular data card. Together with an antenna, the amplifier’s state-of-the-art technology is designed to increase your signal up to 10-15 times, reduce disconnects and dropouts, and increase data communication rates needed for 3g technologies. -
Page 4: Before Getting Started
Before Getting Started This guide will help you properly install Wilson’s dual-band, SignalBooST™ amplifier. it is important to read through all of the installation steps for your particular application prior to installing any equipment. Read through the instructions, visualize where all the equipment will need to be installed and do a soft installation before mounting any equipment. -
Page 5: Installing The Antenna (Vehicle)
Vehicle Installation installing the antenna To receive the best cell signal, select a location in the center of the vehicle’s roof at least 12 inches away from any other antennas and free of obstructions. The antenna must be installed vertically. Signal performance will be degraded if the antenna is not vertical. -
Page 6: Installing The Signalboost™ Amplifier (Vehicle)
Vehicle Installation installing the Wilson SiGnalBooSt™ Amplifier Warning: Do not plug in the DC power supply until the antenna and other cables are attached to the amplifier. Select a location to install the amplifier that is away from excessive heat, direct sunlight or moisture and that has proper ventilation. - Page 7 option 2 - adhesive Bracket Clean the area where the bracket is to be mounted with rubbing alcohol and a soft cloth. allow to dry. Peel the backing to expose the adhesive and press the bracket onto the desired location in the vehicle. note: be sure the bracket is positioned vertically, not horizontally.
-
Page 8: Installing The Antenna (Home/Office)
8 inches from all persons. installing the Wilson SiGnalBooSt™ Amplifier Warning: Do not plug in the aC power supply until the outside antenna and universal connector cables are attached to the amplifier. -
Page 9: Powering Up The Amplifier
(not included) cables are attached to the amplifier. notE: The aluminum casing of the SignalBooST™ amplifier will adjust very quickly to the ambient temperature of its environment. For example, in the summer, when the inside of a car can reach 140 degrees Fahrenheit, the amplifier temperature may be 150 degrees or higher. -
Page 10: Warnings And Recommendations
Warnings and Recommendations Warning: Do not plug the amplifier directly into the cell phone or cellular data card using an antenna adapter. it will damage the cell phone or cellular data card. Warning: Do not plug in the power supply until the antenna other cables are attached to the amplifier. -
Page 11: About Wilson Electronics
Wilson Electronics Wilson Electronics, inc. has been a leader in the wireless communications industry for nearly 40 years. The company designs and manufactures amplifiers, antennas and related components that significantly improve cellular telephone signal reception and transmission in a wide variety of applications, both mobile and in-building. -
Page 12: Amplifier Specifications
Amplifier Specifications Dual Band 900/1900 MHz Specifications Model number 2B4310 Connectors FME-Male impedance (input/output) 50 Ohms Dimensions 5 x 3.5 x 1.2 inch or 12.7 x 8.9 x 3 cm Weight 1.03 lbs or 0.468 kg Frequency 896-940 MHz / 1850-1990 MHz Passband Gain (nominal) 25 dB typical, 30 dB maximum 20 dB Bandwidth (nominal)
