Installation Instructions for the Following Wilson Amplifi er:
SIGNALBOOST
Part # 801240
FCC ID: PWO271220SA
The term "IC" before the radio certifi cation number only signifi es that Industry Canada
technical specifi cations were met.

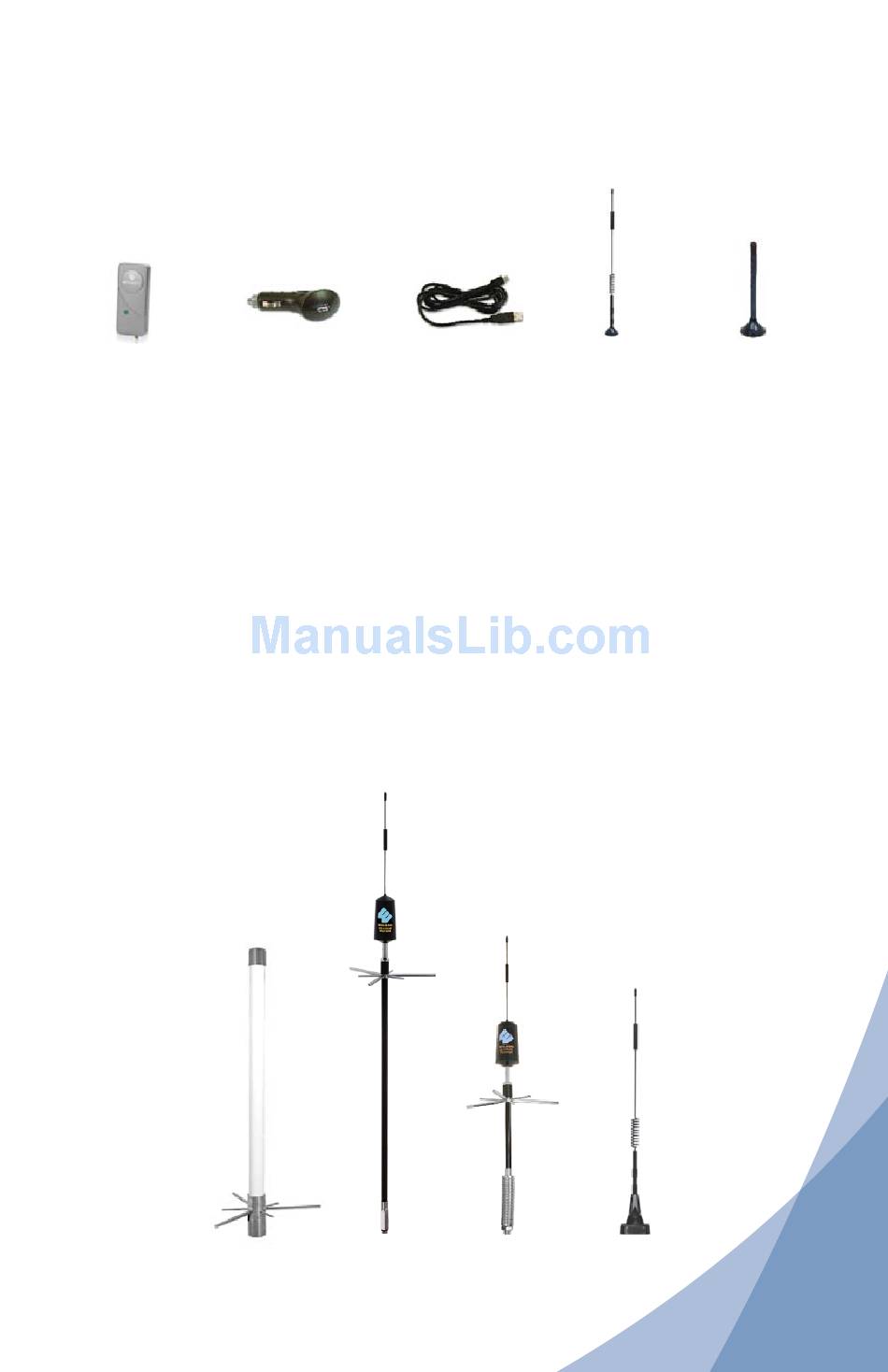

Inside this Package
Cigarette lighter
Wireless
amplifi er power supply with
USB connection

How it Works

Your new Wilson amplifi er has been carefully engineered to signifi cantly improve the
performance of your cell phone or cellular data card in mobile and in-building applications.
Together with an outside antenna, the amplifi er's state-of-the-art technology is designed
to increase your signal up to 6 times, reduce disconnects and dropouts, and increase data
communication rates needed for 3G technologies.
The outside antenna will collect the cell tower signal and send it through the cable to the
amplifi er. The signal is then boosted and sent through the built-in inside antenna. Your cell
phone or data card then communicates with the improved signal. When the cell phone or
data card transmits, the signal goes through the inside antenna, is boosted by the amplifi er
and broadcast back to the cell tower through the outside antenna.
Wilson Electronics manufactures a wide variety of outside antennas to help you customize
your amplifi er for your specifi c application. Several are shown below. See your dealer or visit
www.wilsonelectronics.com.
Marine
Antenna
Dual-Band
™ ™
MobilePro Dual-Band Wireless Amplifi er
Model # 271220
IC: 4726A-271220SA
USB power
Trucker
Mount
Dual-Band
Magnet-
cable mount
antenna
RV / Trucker
Spring-Mount
Antenna
Dual-Band
Mini Magnet-
mount
antenna
(some kits)
NMO
Mount
