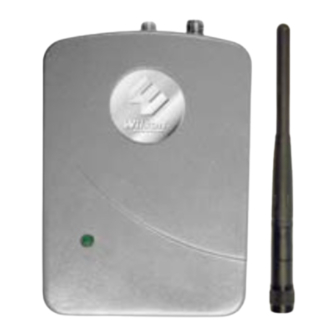

Wilson Electronics SIGNALBOOST DT Installation Manual
Dual-band cellular/pcs amplifier system
Hide thumbs
Also See for SIGNALBOOST DT:
- Installation manual (16 pages) ,
- Installation manual (8 pages) ,
- Installation manual (5 pages)
Table of Contents
Advertisement
Quick Links
SIGNALBOOST
D
D
D
D
D
D
D
D
D
D
D
DT
T
DESKTOP
SIGNALBOOST™ DT
Dual-Band
Cellular/PCS
Amplifi er System
Installation Guide
™
Contents:
Guarantee and Warranty · · · · · · · · · · · · · ·
Package Contents · · · · · · · · · · · · · · · · · · ·
Tools Required for Installation · · · · · · · · · ·
How It Works · · · · · · · · · · · · · · · · · · · · · · ·
Before Getting Started · · · · · · · · · · · · · · · ·
Reasons for Weak Cellular Signals · · · · · ·
Installing the Cradle Antenna · · · · · · · · · · ·
Installing the Amplifi er Unit · · · · · · · · · · · · ·
Powering Up the Amplifi er · · · · · · · · · · · · ·
Understanding the Indicator Light · · · · · · ·
Warnings and Recommendations · · · · · · ·
Frequently Asked Questions · · · · · · · · · · ·
About Wilson Electronics · · · · · · · · · · · · · ·
Amplifi er Specifi cations · · · · · · · Back Cover
1
2
2
3
4
4
5
9
10
10
11
11
12
Advertisement
Table of Contents
Related Manuals for Wilson Electronics SIGNALBOOST DT
Summary of Contents for Wilson Electronics SIGNALBOOST DT
-
Page 1: Table Of Contents
Frequently Asked Questions · · · · · · · · · · · About Wilson Electronics · · · · · · · · · · · · · · Amplifi er Specifi cations · · · · · · · Back Cover... -
Page 2: Guarantee And Warranty
Electronics will pay for delivery of the repaired or replaced product back to the original consumer. This warranty does not apply to any amplifi ers determined by Wilson Electronics to have been subjected to misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties. -
Page 3: Package Contents
Welcome to the Wilson Electronics Family of Products! Thank you for purchasing the Wilson SIGNALBOOST™ DT amplifi er system. You are just minutes away from enjoying improved performance from your cellular phone and/or laptop data card. When installed properly, the SIGNALBOOST™ DT will signifi cantly reduce dropped calls and improve both voice and data signal quality. -
Page 4: How It Works
How it Works Your new Wilson SIGNALBOOST™ DT amplifi er system has been carefully engineered to enhance the performance of your cell phone or cellular data card. Its advanced technology is designed to signifi cantly improve voice and data signal quality and reduce disconnects and drop-outs. The SIGNALBOOST™... -
Page 5: Before Getting Started
Before Getting Started This guide will help you properly install Wilson’s SIGNALBOOST™ DT. It is recommended that you read through all of the installation steps and familiarize yourself with the product. Read the instructions and visualize where you want to place the components before mounting any equipment. If you do not understand the instructions in full, please contact Wilson Technical Support at 866-294-1660. -
Page 6: Installing The Cradle Antenna
Installation Options - Cradle Antenna The SIGNALBOOST™ DT comes with all necessary parts for installation of the cradle antenna in three alternative locations: • Inside on a window (suction cups or double-sided adhesive strip) • Outside on a wall (screws, washers and anchors) •... - Page 7 Installing the Cradle Antenna Window Mount (Packet A) 1. Select a location on the inside of the window at least 5 feet up from the fl oor, at least 20 feet Antenna away from any other amplifi er or antenna and Cradle at least 20 feet from where the amplifi...
- Page 8 Wall Mount (Packet B) 1. Select a location on an outside wall at least 5 feet up from the ground, at least 20 feet away from any other amplifi er or antenna and at least 20 feet away from where the amplifi er will be Cell Antenna Tower...
- Page 9 Pole Mount (Packet C) 1. The supplied pole-mount bracket is designed to accomodate a pole diameter of 1 to 2 inches. Antenna Install the pole in the desired location using Cradle your own hardware. Cell Tower Warning: RF Safety: The cradle antenna, when used with the included cable, must have a separation distance of at least 8 inches from all persons.
-
Page 10: Installing The Amplifi Er Unit
Installing the Amplifi er Unit Desk or Table Mount 1. Attach the on-board antenna by screwing it Warning: The amplifi er unit is designed for use in an indoor, temperature-controlled environment. It is not intended onto the threaded connector on the amplifi er. for use in attics or similar locations subject to temperatures in Position the antenna vertically by rotating it on excess of 120 degrees Fahrenheit. -
Page 11: Powering Up The Amplifi Er
Powering Up the Amplifi er 1. Ensure that the distance between the amplifi er and the cell phone or cellular data card does not exceed 4 feet. 2. Important: Ensure that any other cell phones and cellular data cards are turned off unless they are at least twice the distance from the amplifi... -
Page 12: Warnings And Recommendations
Warnings and Recommendations Warning: Connecting the amplifi er directly to the cell phone with use of an adapter will damage the cell phone. Warning: Attach the on-board antenna and connect the cradle antenna before powering up the amplifi er. Warning: Use only the power supply provided in this package. Use of a non-Wilson product may damage your equipment. -
Page 13: About Wilson Electronics
435-673-5021, or send an email to tech@wilsonelectronics.com. About Wilson Electronics Wilson Electronics, Inc. a leader in the wireless communications industry for over 40 years, designs and manufactures amplifi ers, antennas and related components that signifi cantly improve cellular telephone signal reception and transmission in a variety of applications, both mobile and in-building. -
Page 14: Amplifi Er Specifi Cations
Amplifi er Specifi cations Dual-Band Wireless 800/1900 MHz Specifi cations Model Number 271247 Connectors To onboard antenna: TNC Female To cradle antenna: F Female Impedance Onboard antenna: 50 ohms Cradle antenna: 75 ohms Dimensions 6.2 x 4.2 x 1.5 inch (15.7 x 10.7 x 3.8 cm) Weight 0.64 lbs (0.29 kg) Frequency...
