RETOX TIG torch (12-pole)

These accessory components can be retrofitted as an option .
Figure
Functions
Welding current on/off
Secondary current
Secondary current (tapping function)
Increase welding current (up function)
Decrease welding current (down function)
Modes 2 and 3 are not used in this torch type or are not useful.
Welding current on/off
Secondary current
Secondary current (tapping function)
Increase welding current in steps (setting of the 1st step)
Decrease welding current in steps (setting of the 1st step)
Switching between Up/Down and JOB use
Increase JOB number
Decrease JOB number
Gas test
Welding current on/off
Secondary current
Secondary current (tapping function)
Increase welding current continuously (up function)
Decrease welding current continuously (down function)
Switching between Up/Down and JOB use
Increase JOB number
Decrease JOB number
Gas test

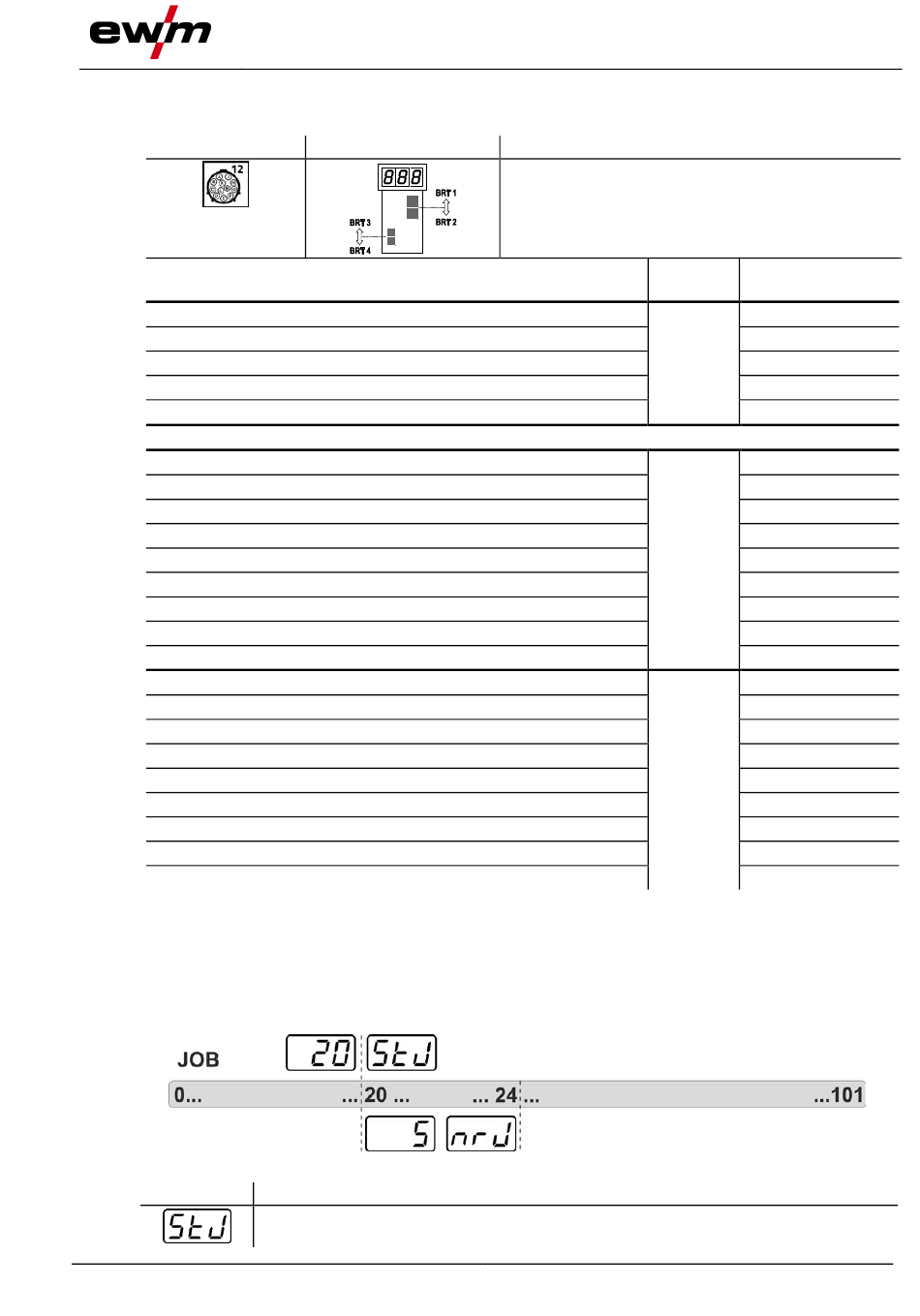

5.1.9.10 Specifying max. no. of accessible JOBs

This function allows the user to define the maximum number of retrievable JOBs in free memory. The fac-
tory setting is 101 JOBs that are retrievable with the welding torch; this value can be reduced if required.
The first JOB is factory-set to JOB 0. The first JOB can be set as desired. The following graphic shows an
example with the settings max. retrievable JOBs = 5 and first retrievable JOB = 20. This results in the ret-
rievable JOBs 20 to 24.
Display
099-00T401-EW501
01.02.2022
Operating elements
Setting/selection
Start JOB
Set the first retrievable JOB (setting: 0 to 101, factory-set to 0).
Functional characteristics
Explanation of symbols
BRT = torch trigger
Figure 5-27
TIG welding
Mode Operating ele-
ments
BRT 1
BRT 2
1
BRT 1 (tapping)
(ex works)
BRT 3
BRT 4
BRT 1
BRT 2
BRT 1 (tapping)
BRT 3
4 BRT 4
BRT 2 (tapping)
BRT 3
BRT 4
BRT 2 (3 s)
BRT 1
BRT 2
BRT 1 (tapping)
BRT 3
6 BRT 4
BRT 2 (tapping)
BRT 3
BRT 4
BRT 2 (3 s)
