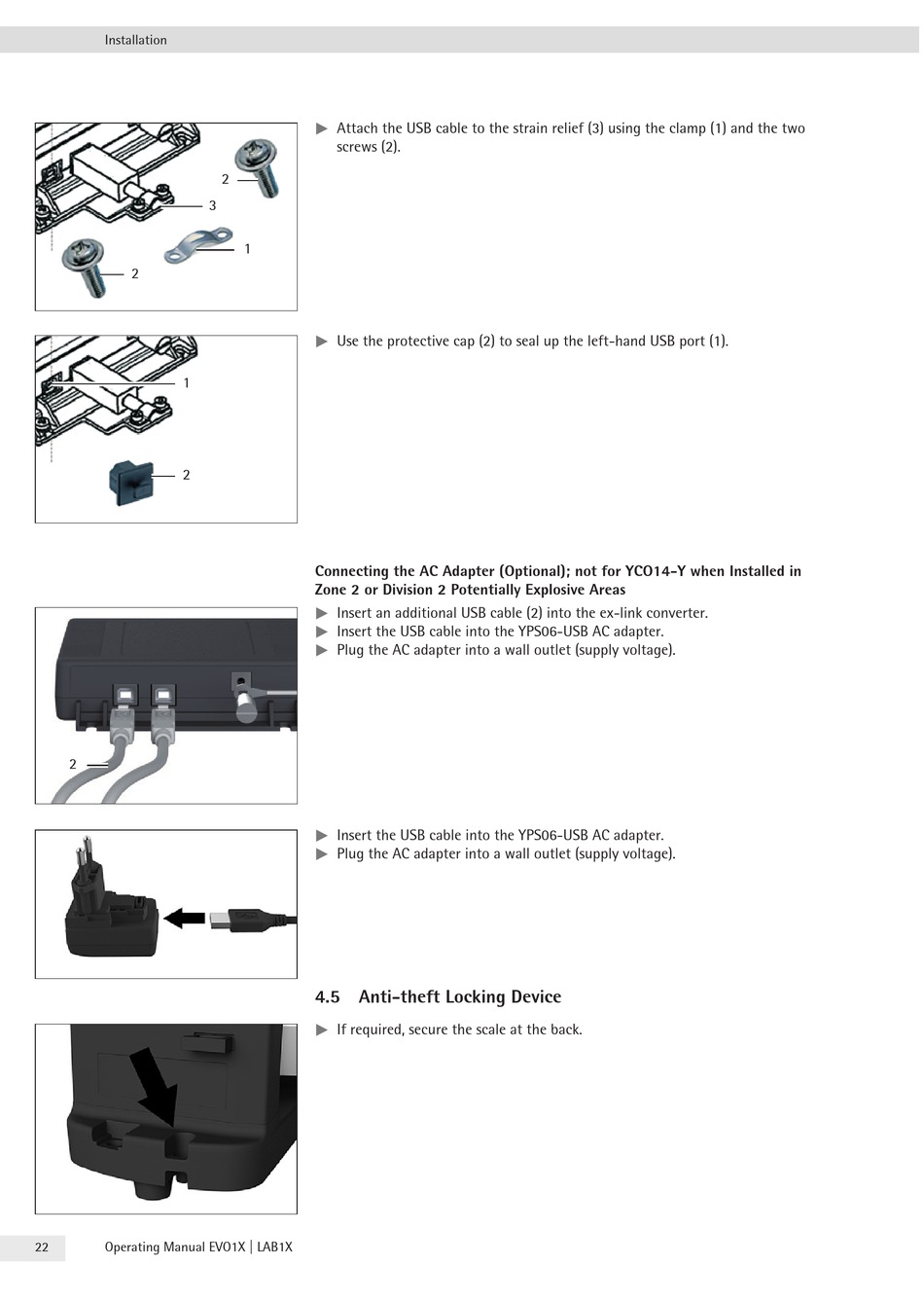

Anti-Theft Locking Device - Sartorius PMA.Evolution Operating Manual

Installation
2
1
2
2
22 Operating Manual EVO1X | LAB1X
Attach the USB cable to the strain relief (3) using the clamp (1) and the two
t
screws (2).
2
3
1
Use the protective cap (2) to seal up the left-hand USB port (1).
t
Connecting the AC Adapter (Optional); not for YCO14-Y when Installed in
Zone 2 or Division 2 Potentially Explosive Areas
Insert an additional USB cable (2) into the ex-link converter.
t
Insert the USB cable into the YPS06-USB AC adapter.
t
Plug the AC adapter into a wall outlet (supply voltage).
t
Insert the USB cable into the YPS06-USB AC adapter.
t
Plug the AC adapter into a wall outlet (supply voltage).
t

4.5 Anti-theft Locking Device

If required, secure the scale at the back.
t
