- Page 1 Installation Instructions Sartorius PMA.Economy Model PMA5000 | PMA5000-000U Electronic Paint-mixing Scales 98648-016-10...
-
Page 2: General View Of The Equipment

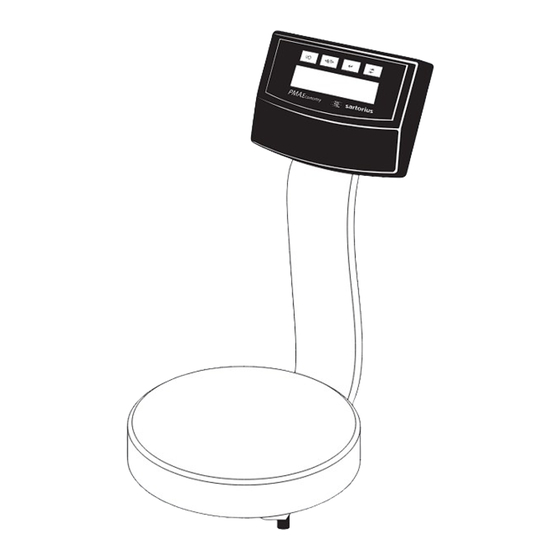

General View of the Equipment Model PMA5000 | PMA5000-000U (PMA.Economy) 1 Display and control unit The following symbols are used in these 2 Display/readout instructions: 3 Q key (On/Standby) § Indicates required steps 4 U key: Zero/Tare $ Indicates steps required only under... -
Page 3: Table Of Contents
(PMA.Economy) has been specially 3 Intended Use designed for use in the paint-mixing sector. Due to its easy operability and 3 Warnings and Safety Precautions upright display, the PMA.Economy is an ideal dose scale. 5 Getting Started Note: 7 Operation –... - Page 4 AC power before for any connections of cables or equip- performing any installation, cleaning, ment not supplied by Sartorius and must maintenance or repair work on the scale. check and, if necessary, correct these To avoid forfeiture of all claims under the manufacturer’s warranty, all repair and...
-
Page 5: Getting Started
Getting Started § Remove the scale from its packaging. § After unpacking the scale, check it immediately for any visible damage as a result of rough handling during shipment. Equipment Supplied – Scale – Weighing pan – AC adapter or power supply –... - Page 6 (mains supply). If it does not match your local voltage rating or if the plug design differs from your local standard, contact your Sartorius office or dealer. Use only original Sartorius AC adapters. The use of AC adapters from other manufacturers,...
-
Page 7: Operation
Operation conomy conomy conomy Turn on the scale using the After the scale has been If a different readout is Q key (3). turned on, it will automati- displayed, zero or tare the cally run a self-test. scale using the tare key U (4). -
Page 8: Calibration/Adjustment
Calibration/Adjustment You can calibrate/adjust the scale by pressing the tare key U (4). After connection to AC power and before each calibration/adjustment, allow the scale to warm up for approximately 30 minutes. § Hold down the tare key U (4) for 2 sec. When 5000 is displayed, release the key. -
Page 9: Menu Settings
Menu Settings Navigating the SETUP Menu § Hold down the L key [ENTER] for longer than 2 sec. Key Functions in the Setup Menu: Press Briefly Press Longer L key Menu level: scroll to the right (cyclic) Confirm setting I key Menu item: scroll upwards –... - Page 10 Parameter Settings for the Optional Interface Port o Factory Settings 5. Interface Baud rate 5.1.2 300 baud 5.1.3 600 baud 5.1.4 1200 baud 5.1.5 2400 baud 5.1.6 4800 baud 5.1.7 9600 baud 5.1.8 19200 baud Parity 5.2.3 5.2.4 Even 5.2.5 None Number of stop bits 5.3.1...
-
Page 11: Troubleshooting
“Specifications“ weighing pan The weight readout – Scale is not calibrated – Calibrate scale is obviously wrong – Scale was not tared – Zero/tare scale prior to weighing Contact your Sartorius Customer Service Center if any other error messages occur. -
Page 12: Care And Maintenance
In this case, notify your nearest Sartorius Service Center or the Interna- $ Storage temperature: –20°C to +75°C tional Technical Support Unit based in Goettingen, Germany. Maintenance and $ Permissible moisture level for storage of repair work may only be performed by the packaged scale: 90% max. -
Page 13: Recycling
In Germany and many other countries (see www.sartorius.com, Service Down- dealers or distributors are located, please load area for details), Sartorius AG or the contact your local authorities or a com- mercial disposal operator. organization contracted by us takes care... - Page 14 Installing the Interface Port The following instructions are valid only for the PMA 5000. The PMA 5000-000U comes equipped with an integrated interface port. § Disconnect power supply: Unplug the AC adapter. § Turn the scale onto its side. § Slide off the plate located on the back of the display and control unit.
- Page 15 System Requirements for the Example: YDO01PMA-USB Adapter On a PC with 4 COM ports, the virtual interface is added as COM5 (shown in the – Computer (PC) running the Windows 2000® or Windows XP® operating system Device Manager). – Available USB port (Type A, 4-pin, female) If you use the USB interface with Configuring the USB Interface a program that limits the number of COM...
-
Page 16: Interface Port
Specifications Model PMA5000 | PMA5000-000U Weighing range 5000 Readability Stabilization time (average) digit 0.25 to 4 (can be defined in the menu) Moisture-proof rating Non-condensing Allowable ambient operating temperature range °C 0 to +40 d mm Weighing pan Scale housing (W + D + H) 233 + 372 + 382 Net weight, approx. - Page 17 C Marking...
- Page 18 Sartorius AG Weender Landstrasse 94–108 37075 Goettingen, Germany Phone +49.551.308.0 Fax +49.551.308.3289 www.sartorius.com Copyright by Sartorius AG, Goettingen, Germany. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior written permission of Sartorius AG.
