- Page 1 Installation Instructions Sartorius PMA.World | PMA.Net Models PMA7501-Y00G | -Y00GL Electronic Paint-mixing Scales for Use in Hazardous Areas Zone 2 98648-015-13...
-
Page 2: General View Of The Equipment

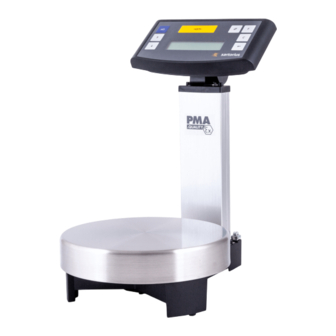

General View of the Equipment PMA7501-Y00G | -Y00GL (PMA.World | PMA.Net ) Electronic Paint-mixing scales for Use in Zone 2 Hazardous Areas Display and control unit 10 Graphic display Q key (On/Standby) 11 Weighing pan R key: Upwards 12 Interfaces (D-Sub plug, 9-contact, PMA. -
Page 3: Table Of Contents
3D equipment and are suitable for carried out via the data interface. operation in potentially explosive atmos- If required, Sartorius can supply you with pheres (Zone 2) in accordance with the DOS- or WINDOWS®-based device drivers KEMA05ATEX1248X EC type-examination to generate application programs. - Page 4 – Installation of the PMA7501-Y... in a Sartorius before connecting the cable to potentially explosive atmosphere must be Sartorius equipment, and disconnect any performed by a certified electrician who is wires that are assigned differently.
- Page 5 – Use original Sartorius spare parts only! – Never use a hammer to close the lid of a paint can while it is still on the weigh- ing pan.
-
Page 6: Getting Started
Getting Started § Remove the scale from its packaging. § After unpacking the scale, check it immediately for any visible damage as a result of rough handling during shipment. Equipment Supplied – Scale – Weighing pan – AC adapter or power supply –... - Page 7 Customer Service for information on the legal regu- lations applicable in your country. Use only original Sartorius AC adapters! The use of AC adapters from other manufacturers, even if these units have a reg- istered approval rating from a national testing labo- ratory, requires the approval of a certified technician.
-
Page 8: Operation
Operation Turn on the scale using the After the scale has been If a different readout is dis- Q key (2). turned on, it will automati- played, zero or tare the scale cally run a self-test. At the using the U key (5). end of this test, 0.0 g is displayed. - Page 9 Weighing with Two Decimal Places Note: To weigh using two decimal places, you must first adapt the settings (refer to the chapter on “Menu Settings”) Press the I key (6). The display shows “0.00 g.” Place an empty paint can on the weighing pan (11). Press the U key (5).
-
Page 10: Applications
Applications Formulation Mode (Calculation by a Factor) This mode enables you to weigh in amounts that are smaller or larger than that of your basic formula for a specific paint color (e.g., 250 ml of a 1-l formula). You can select various factors (amounts) by pressing the K formulation key (7): 0.25 0.5 0.75 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0. - Page 11 3. “.25” is displayed next to the weight 4. Slowly pour in the first component, “250 g” until the display shows “250 g.” 5. Pour in the second component, “250 g” until the display shows “500 g.” 6. Pour in the last component, “500 g” until “1000 g” is displayed.
- Page 12 Example (cumulative): Place an empty paint can Pour in the first component. Press the key (5) on the weighing pan (11). + 50.0 g 0.0 g + 118.0 g Pour in the second Press the key [MEM] (9). Press the key [MEM] (9).
-
Page 13: Calibration/Adjustment
Calibration/Adjustment You can calibrate/adjust the scale by pressing the U key (5). Calibration weight: 5,000 g; accuracy: + 0.075 g. After connection to AC power and before each calibration/adjustment, allow the scale to warm up for approx. 30 min. Hold down the U key (5) for 2 sec. When 5000 is displayed, release the key. -
Page 14: Menu Settings
§ Press the c key (Clear) several times to exit the menu. Note: To obtain a detailed list of the menu codes, please ask your nearest Sartorius office. Please note that the English screens are available for the scale even if they are shown in German. - Page 15 Important Menu Settings § Hold down the key [ENTER] for approx. 2 sec. "SETUP" will appear on the display (Level 1). Level 1 SETUP Language Settings Level 1 Level 2 Level 3 Level 4 § R key: select “LANGUAGE” LANGUAGE §...
- Page 16 Assigning the I Toggle Key By pressing the toggle key (6), the scale toggles between the basic setting (see page 15) and the settings defined under “SETUP- APPLICATION – UNIT” and “SETUP- APPLICATION – DECIMALS” Level 1 Level 2 Level 3 Level 4 §...
- Page 17 Note: Keep the numeric code in a safe place! The scale can only be accessed by entering the correct code! Level 1 Level 2 Level 3 Level 4 § Press the RS keys to select “INPUT” INPUT § Press the L key [ENTER] PASSWORD §...
- Page 18 § Press the L key [ENTER]; “o” will appear: etc. the new code is set § Press the c key (Clear) several times o CODES to exit the menu Note: To obtain a detailed list of the menu codes, please ask your nearest Sartorius office.
-
Page 19: Troubleshooting
Troubleshooting Guide Causes Solution o segments appear – No AC power available – Check the AC power supply on the weight display Weight display shows – The weighing pan is – Position the weighing pan “Low” is not in place Weight display shows –... -
Page 20: Care And Maintenance
$ Storage temperature: –20°C to +75°C In this case, notify your nearest Sartorius $ Permissible moisture level for storage of Service Center or the International Tech- nical Support Unit based in Goettingen, the packaged scale: 90% max. -
Page 21: Recycling
EU: 1) Go to http://www.sartorius.com. 2) Select the summary under “Service.” 3) Then select “Information on Disposal.” 4) Addresses for local Sartorius disposal contacts can be found in the PDF files given on this webpage. -
Page 22: Interface Description
Data Interface (PMA.Net) RJ-45 10Base-T/100Base-TX Factory setting: IP address: 192.168.140.016 Gateway: 192.168.140.001 Subnet mask: 255.255.255.000 Port: 21554 Specifications Model PMA7501-Y00G | -Y00GL Weighing range 999.95/7500 Readability 0.05/0.1 Tare range (subtractive) -999.95/-7500 Max. linearity <±0.2 Stability range digit 0.25 to 4 Moisture-proof rating... -
Page 23: Accessories
Accessories In-use dust cover YDC01PMA RS-232 data cable (SBI) (2m) YCC01-0027M2 RS-232 data cable (BPI) (2m) YCC01-0028M2 RS-232 data cable (BPI) (20m) YCC01-0028M20 USB/RS-232 data cable (SBI) (1.80m) YCO12 USB/RS-232 data cable (BPI) (1.80m) YCO13 Important Note: Only plug in or disconnect the data cables (YCO12 | YCO13) when no power is being supplied to either end of the respective cables. -
Page 24: Documents
