Preparing to use your phone

Connecting the base

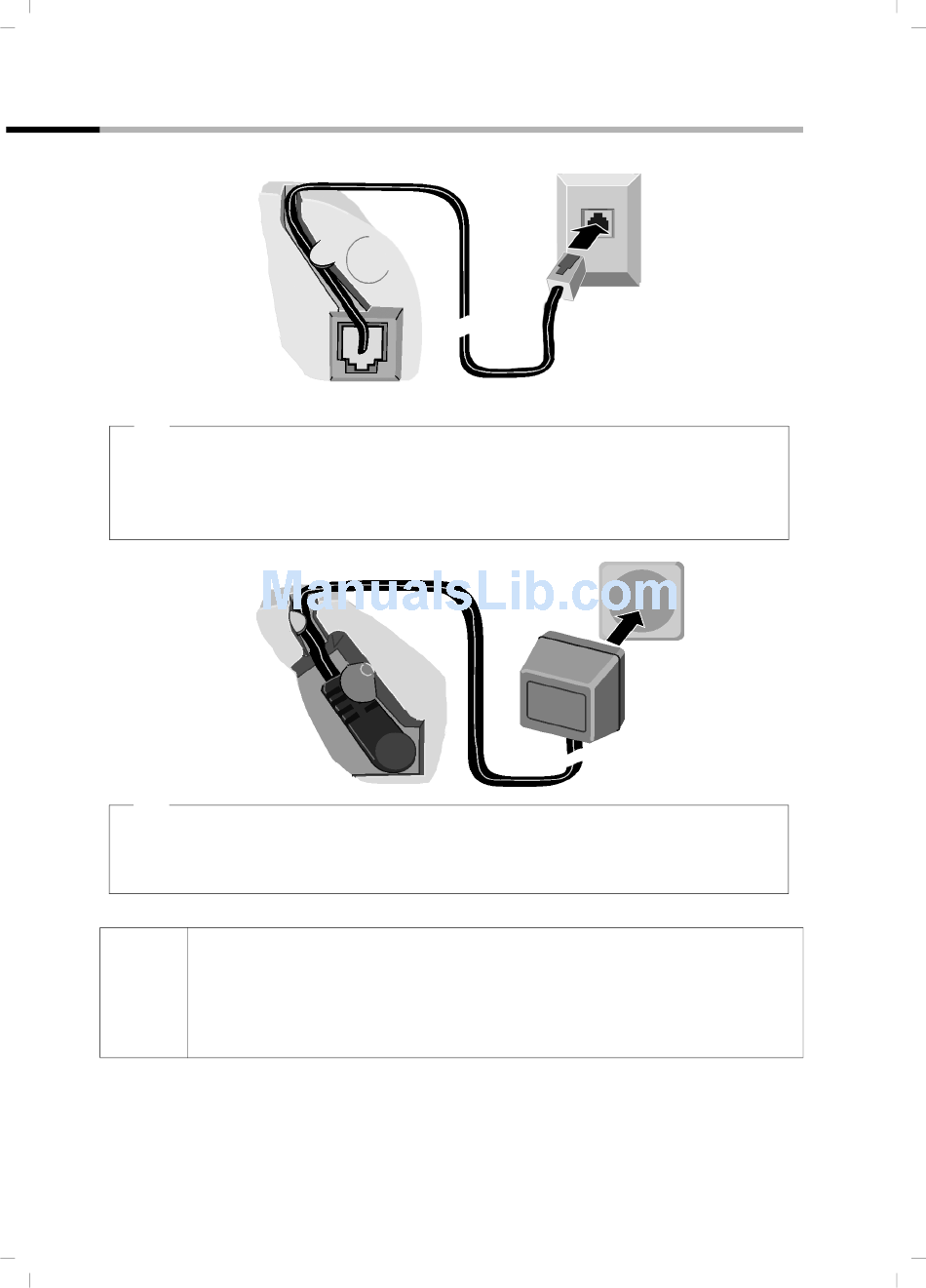

Underside of
base (enlarged
view)
1.
Plug in the small plug on the ISDN cable into the socket (it clips into place),
Place cable in the cable duct,
Insert second plug of the ISDN cable into the NTBA (ISDN connection)
.
Underside of
base (enlarged
view)
2.
Insert the small jack on the power cord into the socket on the underside of the
base,
Place cable in the cable duct,
Keep the mains unit plugged in at all times to ensure your phone is
ready for use whenever you need it.
i
The base and the registered handset are not operational if there is
power failure. However, all settings and stored items (messages,
directory entries, etc.) are retained indefinitely.
8
Cable duct
Cable duct
ISDN connection
(NTBA)
1.
Telephone plug
with ISDN cable
Socket
2.
Mains unit with
mains cable
