Wds Ap Status - Draytek VigorAP 902 User Manual

Encryption
Authentication
Mode
Ch. Width
Scan
Channel Statistics
AP's MAC Address
AP's SSID
Add
3 . 8 . 7 W D S A P S t
3 . 8 . 7 W D S A P S t

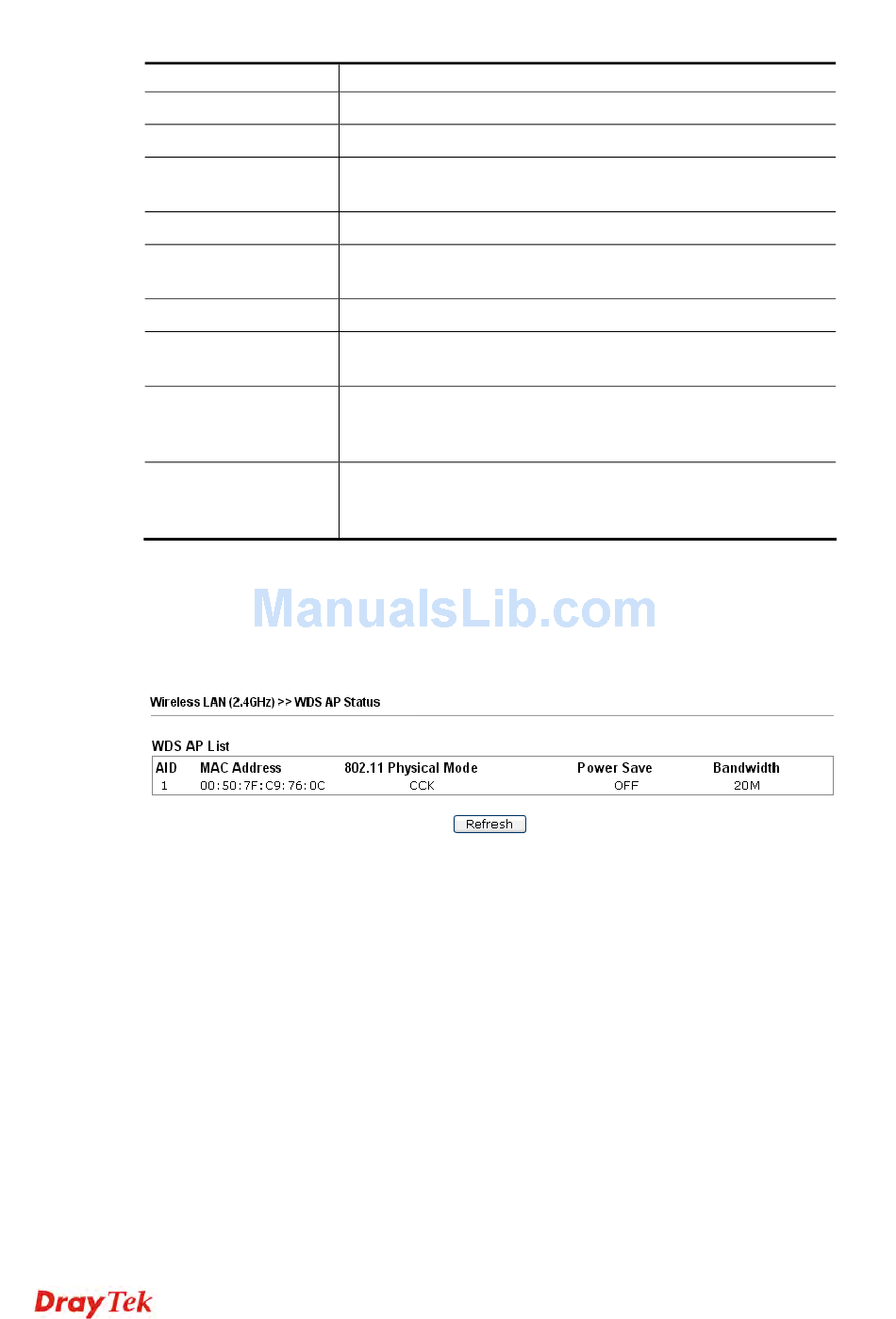

VigorAP 902 can display the status such as MAC address, physical mode, power save and
bandwidth for the working AP connected with WDS. Click Refresh to get the newest
information.
VigorAP 902.
Display the encryption mode for the scanned AP.
Display the authentication type that the scanned AP applied.
Display the wireless connection mode that the scanned AP
used.
Display the channel width that the scanned AP used.
It is used to discover all the connected AP. The results will be
shown on the box above this button
It displays the statistics for the channels used by APs.
If you want the found AP applying the WDS settings, please
type in the AP's MAC address.
To specify an AP to be applied with WDS settings, you can
specify MAC address or SSID for the AP. Here is the place
that you can type the SSID of the AP.
Click Repeater for the specified AP. Next, click Add. Later,
the MAC address of the AP will be added and be shown on
WDS settings page.
