line where it coincides

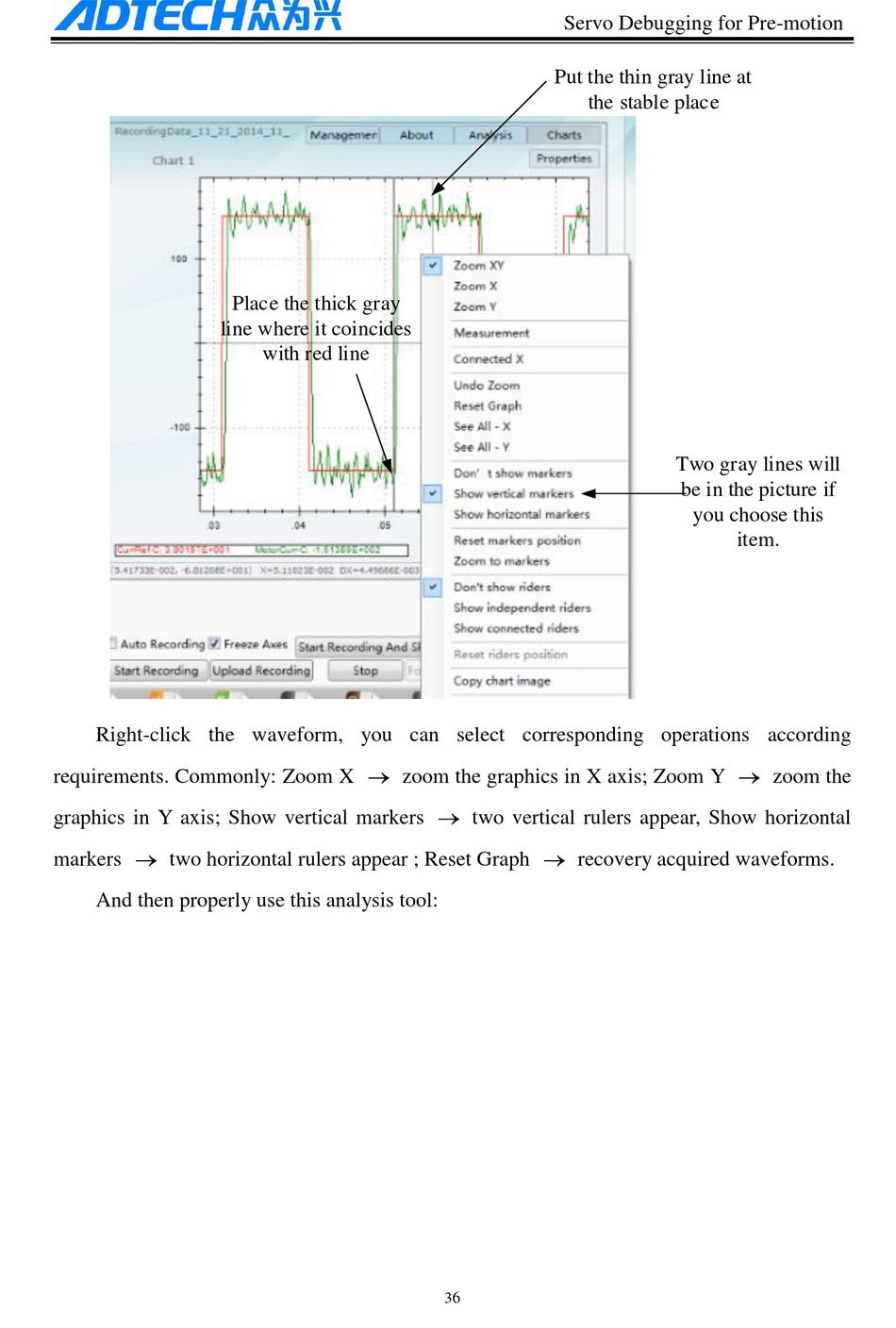

Right-click the waveform, you can select corresponding operations according
requirements. Commonly: Zoom X zoom the graphics in X axis; Zoom Y zoom the
graphics in Y axis; Show vertical markers two vertical rulers appear, Show horizontal
markers two horizontal rulers appear ; Reset Graph recovery acquired waveforms.
And then properly use this analysis tool:
Place the thick gray
with red line
Servo Debugging for Pre-motion
Put the thin gray line at
the stable place
36
Two gray lines will
be in the picture if
you choose this
item.
