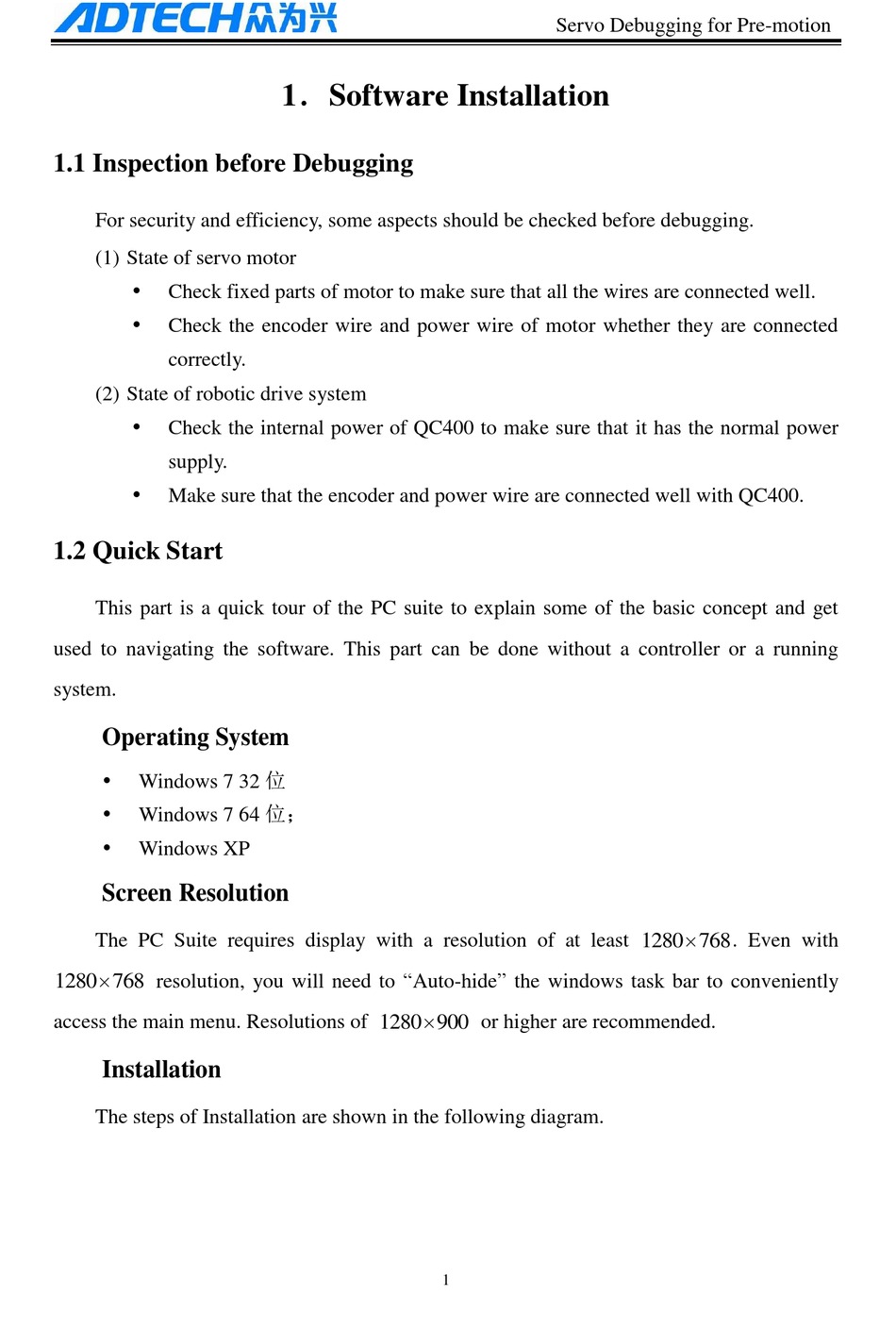

1Software Installation; Inspection Before Debugging; Quick Start - Adtech ADT-RC400 User Manual

1.1 Inspection before Debugging

For security and efficiency, some aspects should be checked before debugging.
(1) State of servo motor

Check fixed parts of motor to make sure that all the wires are connected well.

Check the encoder wire and power wire of motor whether they are connected
correctly.
(2) State of robotic drive system

Check the internal power of QC400 to make sure that it has the normal power
supply.

Make sure that the encoder and power wire are connected well with QC400.

1.2 Quick Start

This part is a quick tour of the PC suite to explain some of the basic concept and get
used to navigating the software. This part can be done without a controller or a running
system.
Operating System

Windows 7 32 位

Windows 7 64 位；

Windows XP
Screen Resolution
The PC Suite requires display with a resolution of at least 1280 768

resolution, you will need to "Auto-hide" the windows task bar to conveniently
1280 768
access the main menu. Resolutions of 1280 900
Installation
The steps of Installation are shown in the following diagram.
1．Software Installation

1
Servo Debugging for Pre-motion
or higher are recommended.

. Even with
