Table B-1 lists the electrical, mechanical, and environmental specifications for the
RCM3720 Prototyping Board.
Table B-7. RCM3720 Prototyping Board Specifications
Parameter
Board Size
Operating Temperature
Humidity
Input Voltage
Maximum Current Draw
(including user-added circuits)
Prototyping Area
Mounting Holes
B.2.3 Power Supply
The RCM3700, RCM3710, RCM3720, and RCM3750 operate from a regulated 4.75 V to
5.25 V DC power source. The RCM3720 Prototyping Board only has an onboard +5 V
linear power regulator.
The RCM3720 Prototyping Board itself is protected against reverse polarity by a Shottky
diode at D1 as shown in Figure B-13.
J1
1
DCIN
2
3

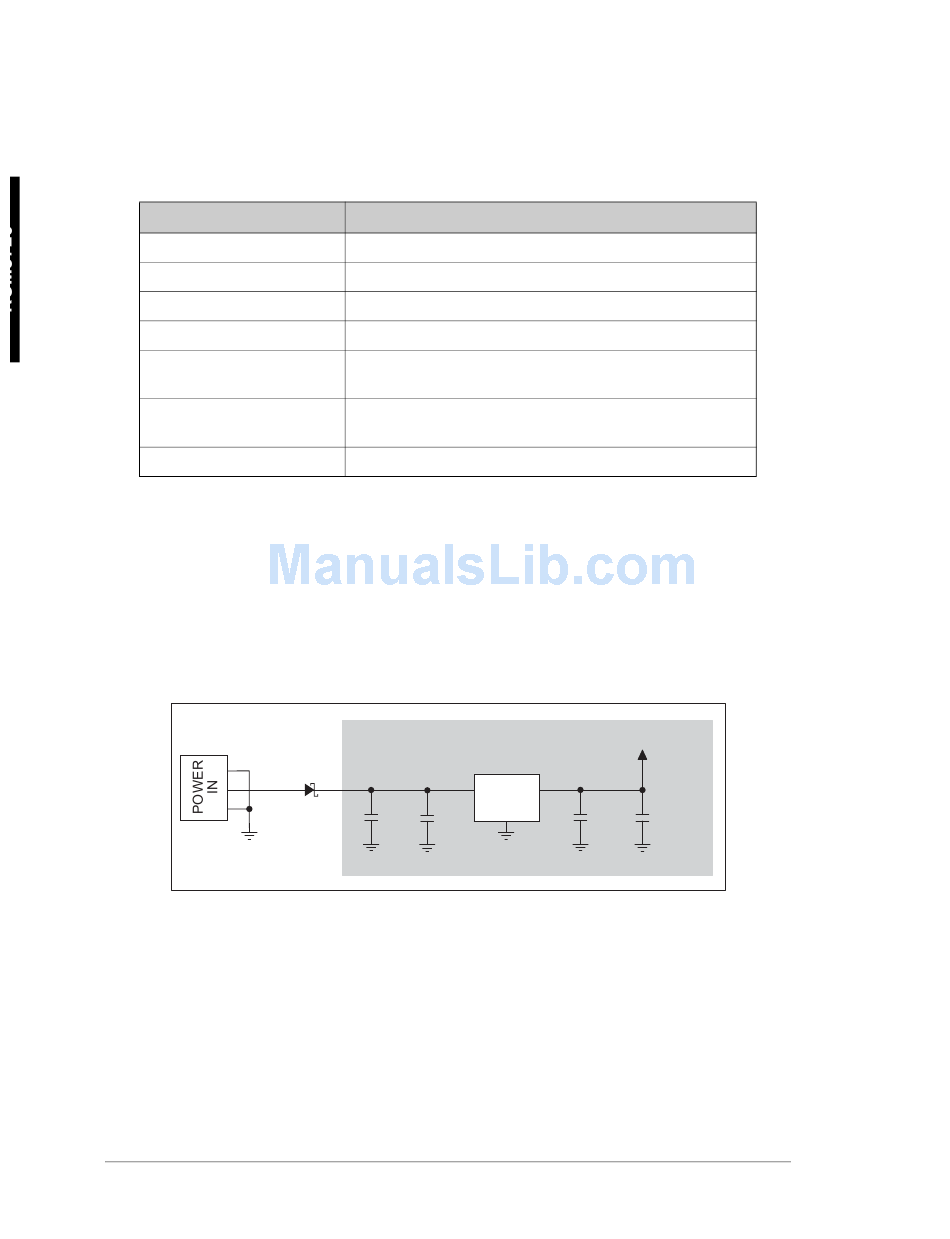

Figure B-13. RCM3720 Prototyping Board Power Supply
112
3.856" × 4.400" × 0.37" (114 mm × 165 mm × 9 mm)
–20°C to +60°C
5% to 95%, noncondensing
7.5 V to 15 V DC
225 mA max.
1.8" × 2.4" (46 mm × 61 mm) throughhole, 0.1" spacing,
additional space for SMT components
4, 0.156" (4 mm) diameter, accept 6-32 screws and #6 spacers
LINEAR POWER REGULATOR
D1
1
1N5819 C1 C9
47 µF 10 µF
Specification
+5 V
LM13405-5
U2
3
C2
C7
2
10 µF
330 µF
RabbitCore RCM3750
