Figure 6 shows the use of the Rabbit 3000 microprocessor ports in the RCM3750 modules.
PC0, PC2
PC1, PC3
PG2–PG3
PG6–PG7
PC6
PB1, PC7, /RESET,
STATUS,
SMODE0, SMODE1
4 Ethernet signals
The ports on the Rabbit 3000 microprocessor used in the RCM3750 are configurable, and
so the factory defaults can be reconfigured. Table 2 lists the Rabbit 3000 factory defaults
and the alternate configurations.
User's Manual
PB0, PB7,
PA0–PA7
PB2–PB5
Port A
Port B
Port C
(Serial Ports C & D)
Port G
(Serial Ports E & F)
Real-Time Clock
Programming
Port
Watchdog
(Serial Port A)
11 Timers
Ethernet
Slave Port
Port
Clock Doubler
Backup Battery
RAM
Support

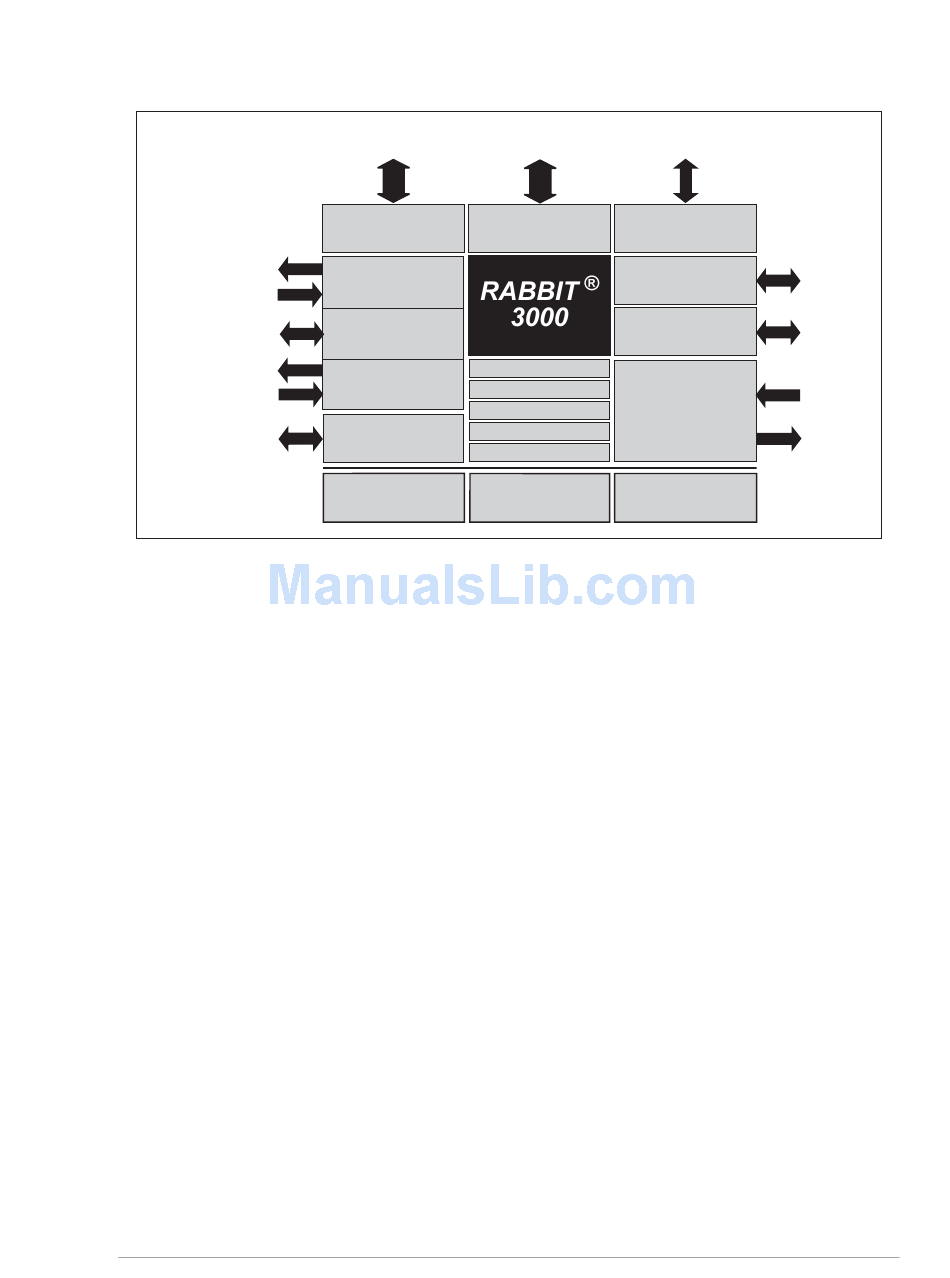

Figure 6. Use of Rabbit 3000 Ports
