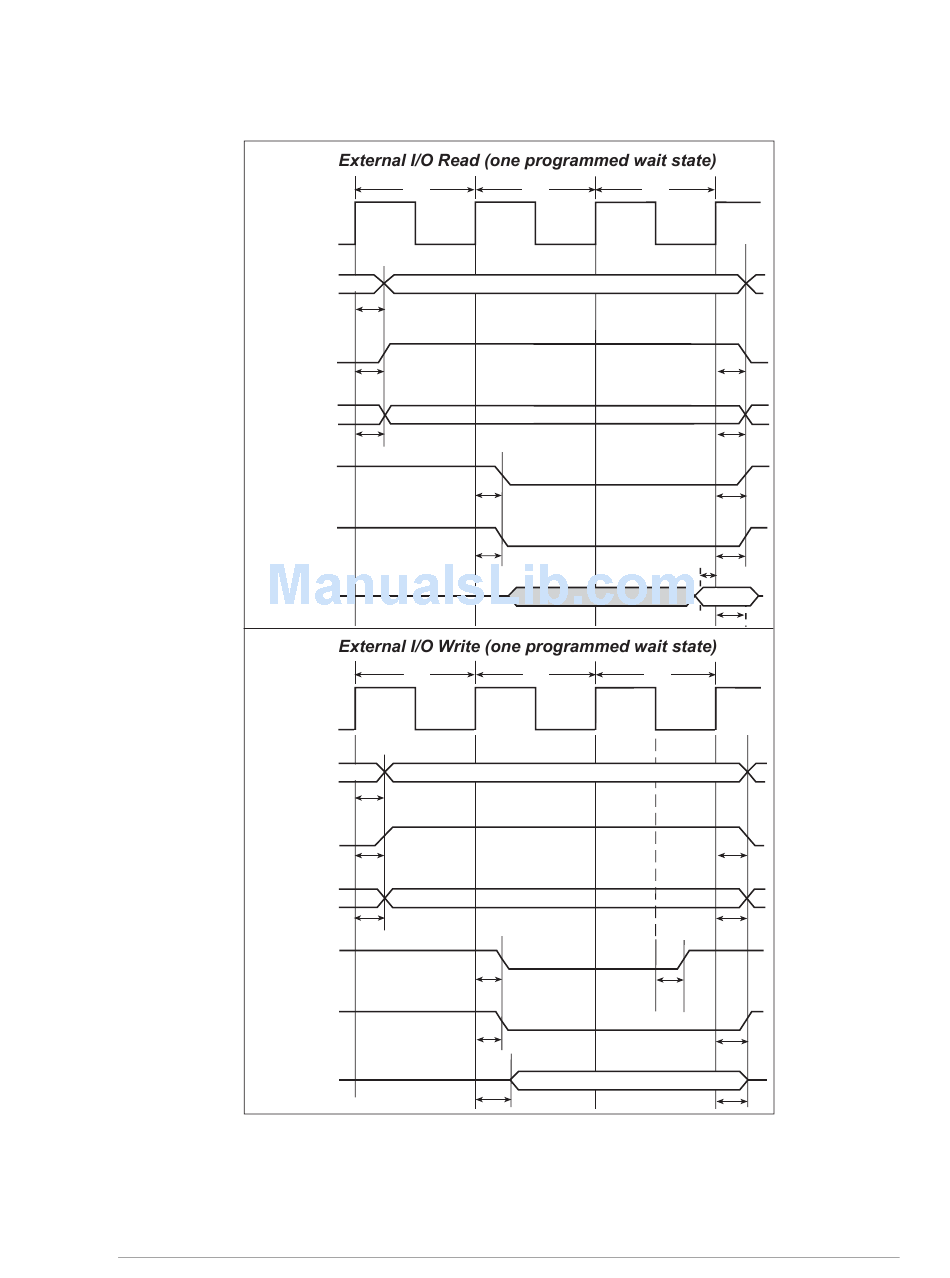

Figure A-4 shows a typical timing diagram for the Rabbit 3000 microprocessor external I/O
read and write cycles.
CLK
A[15:0]
/CSx
/IOCSx
/IORD
/BUFEN
D[7:0]
CLK
A[15:0]
/CSx
/IOCSx
/IOWR
/BUFEN
D[7:0]
Figure A-4. I/O Read and Write Cycles—No Extra Wait States
NOTE: /IOCSx can be programmed to be active low (default) or active high.
