It is recommended that you allow for an "exclusion zone" of 0.04" (1 mm) around the
RCM3750 in all directions when the RCM3750 is incorporated into an assembly that
includes other printed circuit boards. An "exclusion zone" of 0.16" (4 mm) is recom-
mended below the RCM3750 when the RCM3750 is plugged into another assembly using
the shortest connectors for header J1. Figure A-2 shows this "exclusion zone."
2.950
(74.9)
0.04
0.04
(1)
(1)
0.04 0.04
1.200
(1) (1)
(30.5)

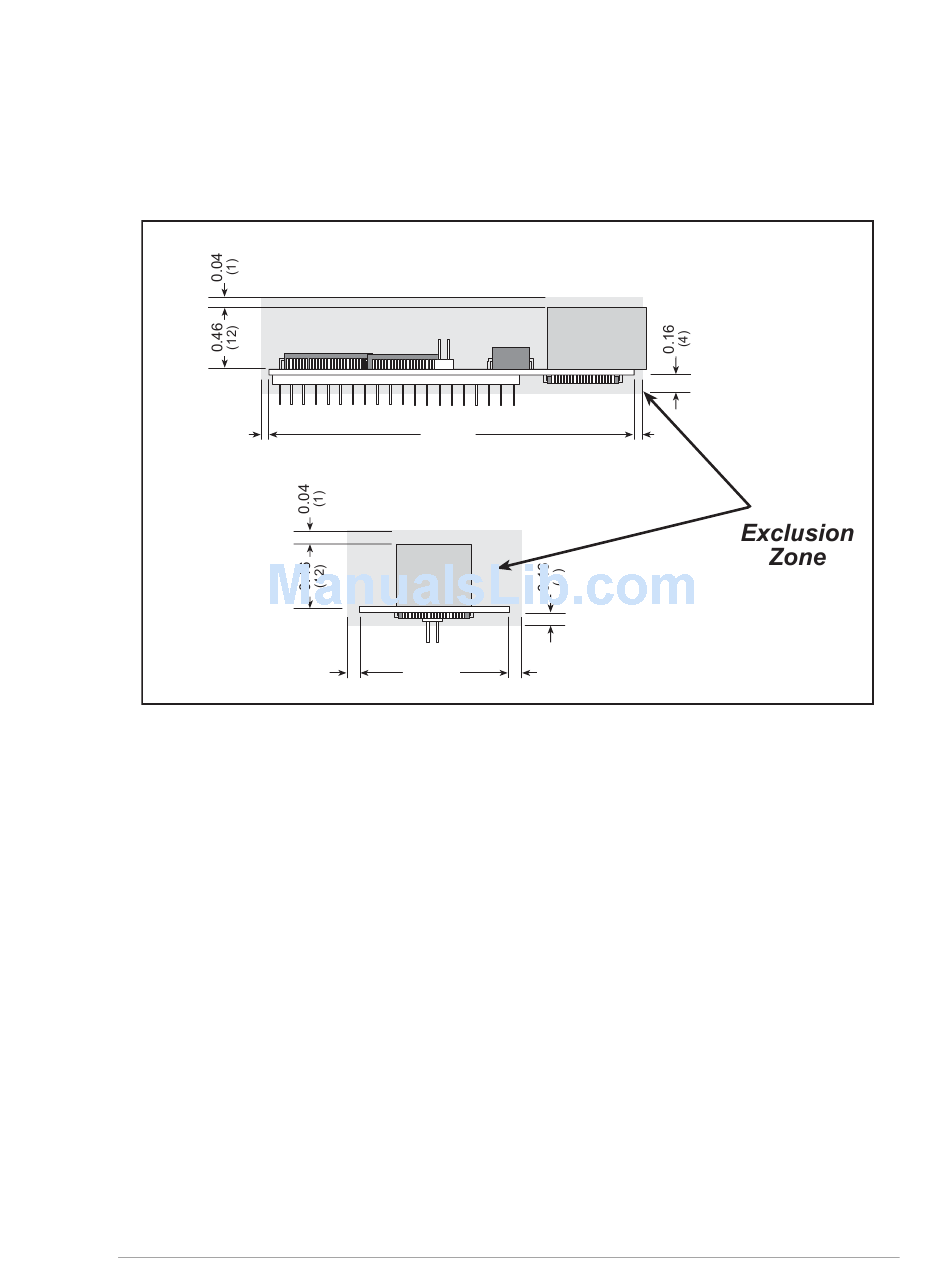

Figure A-2. RCM3750 "Exclusion Zone"
User's Manual 77
