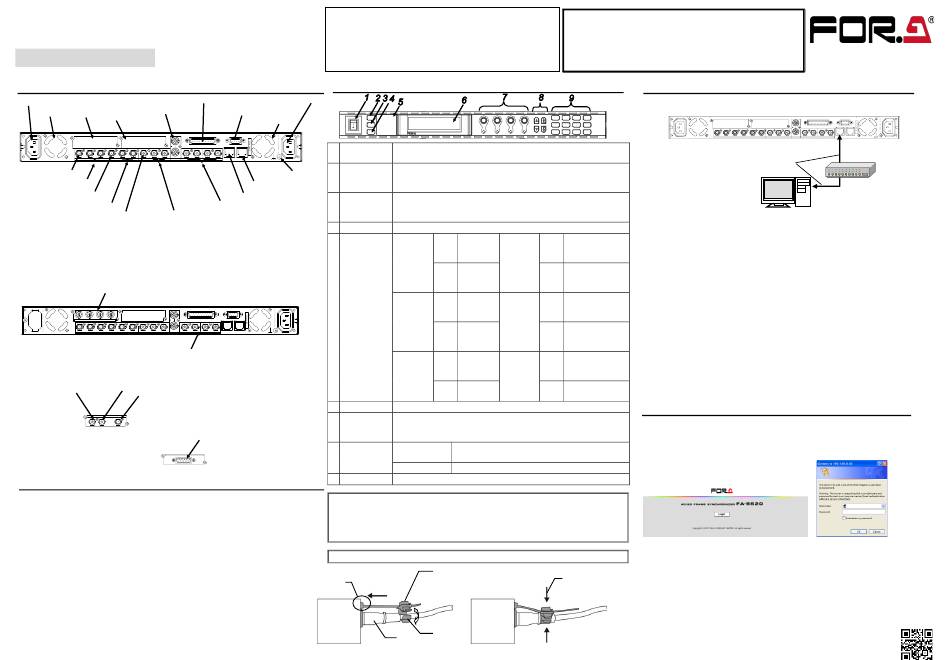

FOR-A FA-9520 Quick Setup Manual

FA-9520
Quick Setup Guide

1. Rear Connectors

Analog audio Input/output connector *1
AC Power connector 2
Genlock input connector
FAN1 SLOT A SLOT B
A B
FAN1
IN1 OUT1 OUT2 IN2 OUT3 OUT4 IN OUT1 OUT2
GENLOCK IN
SDI COMPOSITE
HD/SD-SDI input connector 1
HD/SD-SDI output connector 1, 2
HD/SD-SDI input connector 2
HD/SD-SDI output connector 3, 4
Analog composite input connector Analog composite output connector
*1 Refer to the Operation Manual section 12. "Analog Audio Connection" for details on the
Analog audio connector.
*2 Refer to the Operation Manual section 14. "REMOTE" for details on the Remote control
connector.
◆ FA-95DACBL option
Digital audio output connectors
A B
1/2 3/4 5/6 7/8
FAN1 DIGITAL AUDIO OUT
IN1 OUT1 OUT2 IN2 OUT3 OUT4 IN OUT1 OUT2
SDI SDI COMPOSITE COMPOSITE GENLOCK IN
Digital audio input/output connectors
(Will be input connectors when the FA-95DACBL is installed.)
◆ FA-95D-D/DE-E option
Digital audio input connector Digital audio output connector
Reference signal input connector
◆
FA-95AIO option
Dolby E
IN OUT REF IN
Analog component input/output connector（use with the
supplied PC-3307-1 cable.)
Refer to sec. 16. FA-95AIO Option for details on connectors.
ANALOG COMPONENT I/O

2. Installing the AC Cord Retaining Clip

After connecting the AC cord, secure the AC cord with the supplied ladder strap/retaining
clip assembly to prevent accidental removal from the FA-9520. Be sure to install the AC
cord retaining clip before mounting the unit into a rack.
1) Wrap the retaining clip around the AC cord. (with the anchor of the ladder strap toward
the unit.)
2) Insert the anchor into the hole next to the AC IN socket.
3) Lightly fasten the clip around the AC cord.
4) Plug in the power cord.
5) Slide the clip on the ladder strap toward the plug.
6) Fasten the clip tightly.
7) Gently pull on the AC cord to ensure it is secured.
FA9520-SETUPGUIDE-E-1.DOCX
Packing list: FA-9520 (1), Quick Setup Guide (1) CD (including
Operation Manuals), AC cord (1), AC cord retaining clip (1 set),
Rack mount bracket set (1 set)
Option items: FA-95RU, FA-95PS (with AC cord, AC cord retaining
clip (1 set), FA-10DCCRU, FA-95DACBL (installed before
shipment), FA-95D-D, FA-95DE-E, FA-95AIO (with PC-3307-1
cable), FA-95ALA, Software option: FA-95CO

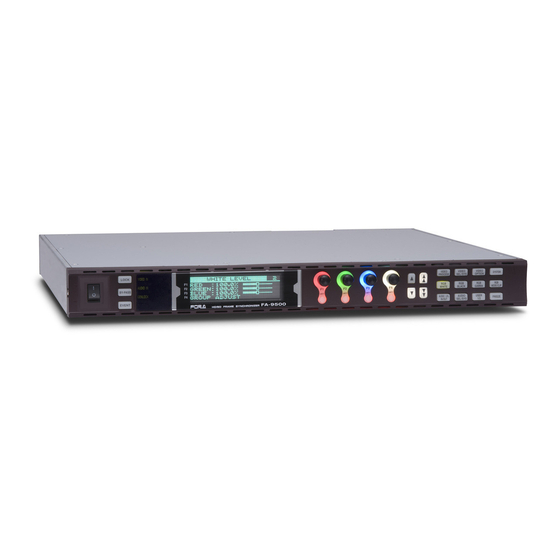

3. Front Operation Panel

AC Power connector 1
Remote control connector*2
POWER
FAN2
O N
O FF
ANALOG AUDIO REMOTE
LAN1 LAN2
FAN2 POWER
1 / 2 3 / 4 5 / 6 7 / 8
1
switch
DIGITAL AUDIO IN / OUT
FS1/LOCK
Ground terminal
2
button
Ethernet port (for future use)
Ethernet port
FS2/LOCK
Digital audio input/output connector 3
button
4 EVENT button Used to save and load events.
ANALOG AUDIO REMOTE
Status
5
LAN1 LAN2 LAN2
FAN2 indicator
1/2 3/4 5/6 7/8
DIGITAL AUDIO IN/OUT
6 Menu display
Controls
7 (F1-F4) UNITY
buttons
8 Arrow buttons
9 Menu buttons Used to select menus.
Make sure that the FS1/LOCK and FS2/LOCK button LEDs are lit green or unlit before
starting an operation. If FS1/LOCK and/or FS2/LOCK button LED(s) are lit orange, all
operations on the front panel for FS1 and/or FS2 except the LOCK button(s) are
disabled. Press and hold the FS1/LOCK and/or FS2/LOCK button(s) that are lit orange to
unlock the operations.
* Complete connections before turning the power of the unit on.
2)
PS1/LOCK VIDEO IN FAN ALARM
F 1
AUDIO IN DC PO W ER
DISPLAY
F 2
PS2/LOCK F 4
F 3 F 1 F 2 F 3
G ENLO CL
F 4
UN ITY UN ITY UN ITY UN ITY
EVENT REMO TE
F A - 9 5 2 0
H D / S D F R A M E S Y N C H R O N I Z E R
Pressing the "｜" side turns on the power.
Used to select FS1. Press and hold down to lock the front panel
operation. Press and hold down again to unlock. In the FA-9520 mode,
locks only the operation for FS1.
Used to select FS2. In the FA-9520 mode, locks the front panel
operation for FS2 when pressed and held down. Press and hold this
button down again to unlock.
Input signal
green present in green
FS1/FS2
VIDEO IN REMOTE
No input
Unlit signal in Unlit
FS1/FS2
Assigned
green audio signal Red
present
DC
AUDIO IN
POWER
No
Unlit assigned Unlit
audio signal
Genlock
green signal Red
FAN
present
GENLOCK
ALARM
No genlock
Unlit Unlit
signal input
Used to display menus and make operational settings
Used to change operational settings. Turn and select values.
The Unity buttons return the settings to the default values.
Used to move between parameters. (lights if
Single-arrow
accessible)
Double-arrow Used to move between menus. (lights if accessible)
5)
3)
4)
The FA-9520 has 2 operational modes; FA-9500 mode, in
which the unit operates/functions almost the same as the
former FA-9500, and FA-9520 mode with 2 independently
operational frame synchronizers. This quick setup guide mainly
describes operation in FA-9520 mode. To change the mode,
see Operation Manual section 7-2. "MU OPERATION".

4. Connecting a Computer

◆
Connection using a hub
PROCESS C C CONV1 CONV2 A
SDI AUDIO AE S AUDIO ANALOG MAST ER
A V O CLIP IN SEL OUT SEL
MAPPING DELAY DO WNMIX M O D E
FAN1
IN1 OUT1
VIDEO OP VIDEO S YS ST AT US VIDEO
AUDIO OP AUDIO S YS OT HER AUDIO
Direct connection using a crossover LAN cable is also possible.
The FA-9520 network settings must be adjusted for your network after
CONTROL
purchase.
SETTING is set to
・
The FA-9520's LAN1 IP address is set to 192.168.0.10 at the factory.
REMOTE
・
Set the IP address and subnet mask of the computer as follows:
CONTROL
IP address: 192.168.0.1 to 192.168.0.254 (except 192.168.0.10)
SETTING is set to
Subnet mask: 255.255.255.0
LOCAL
In Windows, open the Local Area Connection Properties dialog box, and
Power failure
open the Internet Protocol (TCP/IP) Properties window. The network settings
must be made in the window. See the user's manual of your computer for
Normal power details.
See section 9-8 "Network Settings" for details on changing the FA-9520's IP
supply
address.
The FA-9520's IP address can be checked in the NETWORK INFO menu
Fan failure
(menu page 197). To go to the NETWORK INFO menu, press the
STATUS/OTHER button, then a single-arrow button.
All fans normal

5. Connecting via a WEB Browser

Open a web browser on your computer, and enter the address as
http://192.168.0.10/ (factory default setting) in the address bar.
Press the [Enter] key to connect to the FA-9520.
The login page is displayed.
Click Login.
The authentication dialog appears.
Enter your user name and password. (The default user name and password are
6)
set at the factory.)
User name: fa9520
Password: foranetwork
See section 9. "Control via WEB Browser" for details on Web browser control
screens.
You can download manuals and other documents by registering your email address.
