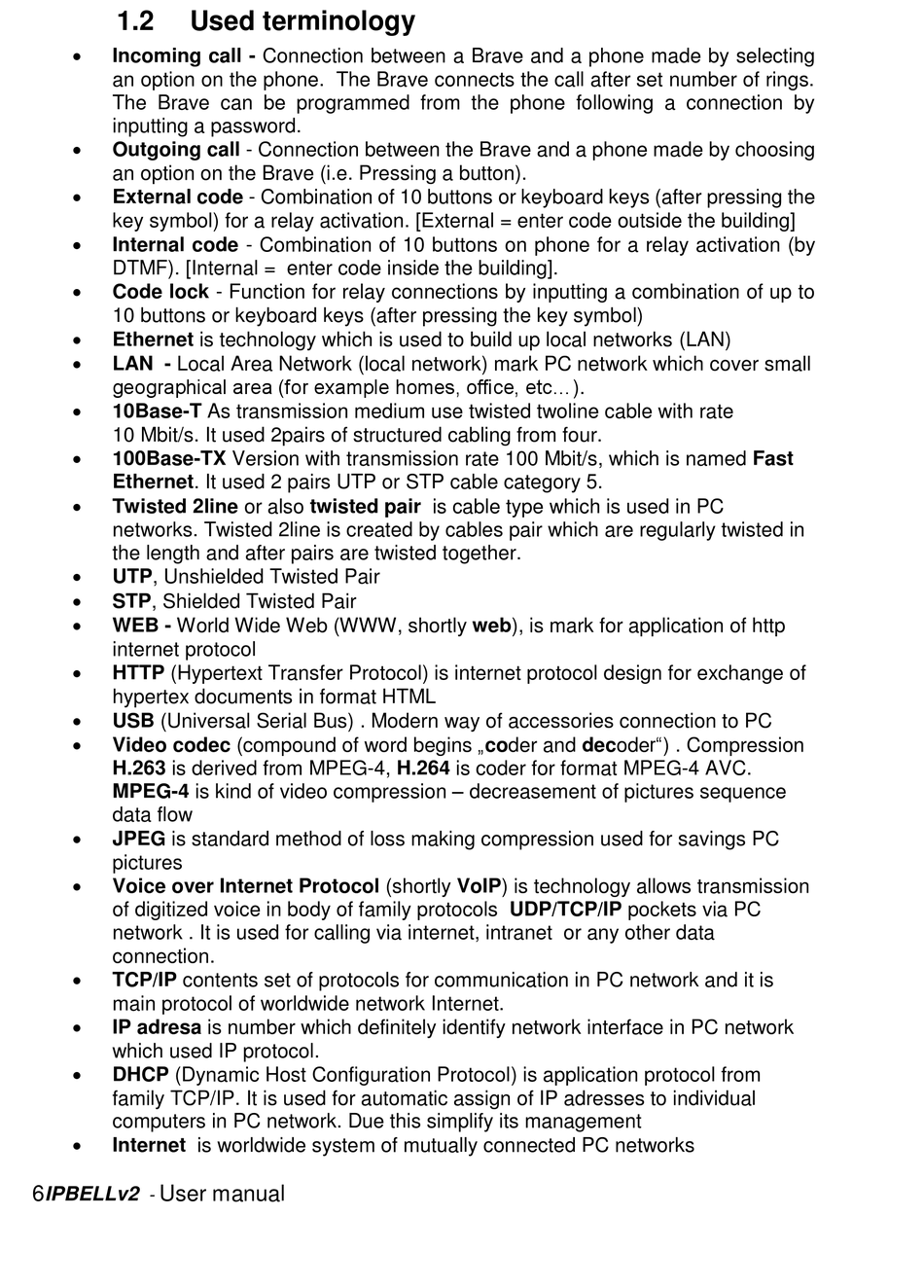

1.2

Used terminology

Incoming call - Connection between a Brave and a phone made by selecting
an option on the phone. The Brave connects the call after set number of rings.
The Brave can be programmed from the phone following a connection by
inputting a password.
Outgoing call - Connection between the Brave and a phone made by choosing
an option on the Brave (i.e. Pressing a button).
External code - Combination of 10 buttons or keyboard keys (after pressing the
key symbol) for a relay activation. [External = enter code outside the building]
Internal code - Combination of 10 buttons on phone for a relay activation (by
DTMF). [Internal = enter code inside the building].
Code lock - Function for relay connections by inputting a combination of up to
10 buttons or keyboard keys (after pressing the key symbol)
Ethernet is technology which is used to build up local networks (LAN)
LAN - Local Area Network (local network) mark PC network which cover small
geographical area (for example homes, office, etc...).
10Base-T As transmission medium use twisted twoline cable with rate
10 Mbit/s. It used 2pairs of structured cabling from four.
100Base-TX Version with transmission rate 100 Mbit/s, which is named Fast
Ethernet. It used 2 pairs UTP or STP cable category 5.
Twisted 2line or also twisted pair is cable type which is used in PC
networks. Twisted 2line is created by cables pair which are regularly twisted in
the length and after pairs are twisted together.
UTP, Unshielded Twisted Pair
STP, Shielded Twisted Pair
WEB - World Wide Web (WWW, shortly web), is mark for application of http
internet protocol
HTTP (Hypertext Transfer Protocol) is internet protocol design for exchange of
hypertex documents in format HTML
USB (Universal Serial Bus) . Modern way of accessories connection to PC
Video codec (compound of word begins „coder and decoder") . Compression
H.263 is derived from MPEG-4, H.264 is coder for format MPEG-4 AVC.
MPEG-4 is kind of video compression – decreasement of pictures sequence
data flow
JPEG is standard method of loss making compression used for savings PC
pictures
Voice over Internet Protocol (shortly VoIP) is technology allows transmission
of digitized voice in body of family protocols UDP/TCP/IP pockets via PC
network . It is used for calling via internet, intranet or any other data
connection.
TCP/IP contents set of protocols for communication in PC network and it is
main protocol of worldwide network Internet.
IP adresa is number which definitely identify network interface in PC network
which used IP protocol.
DHCP (Dynamic Host Configuration Protocol) is application protocol from
family TCP/IP. It is used for automatic assign of IP adresses to individual
computers in PC network. Due this simplify its management
Internet is worldwide system of mutually connected PC networks
6
User manual
IPBELLv2
-
