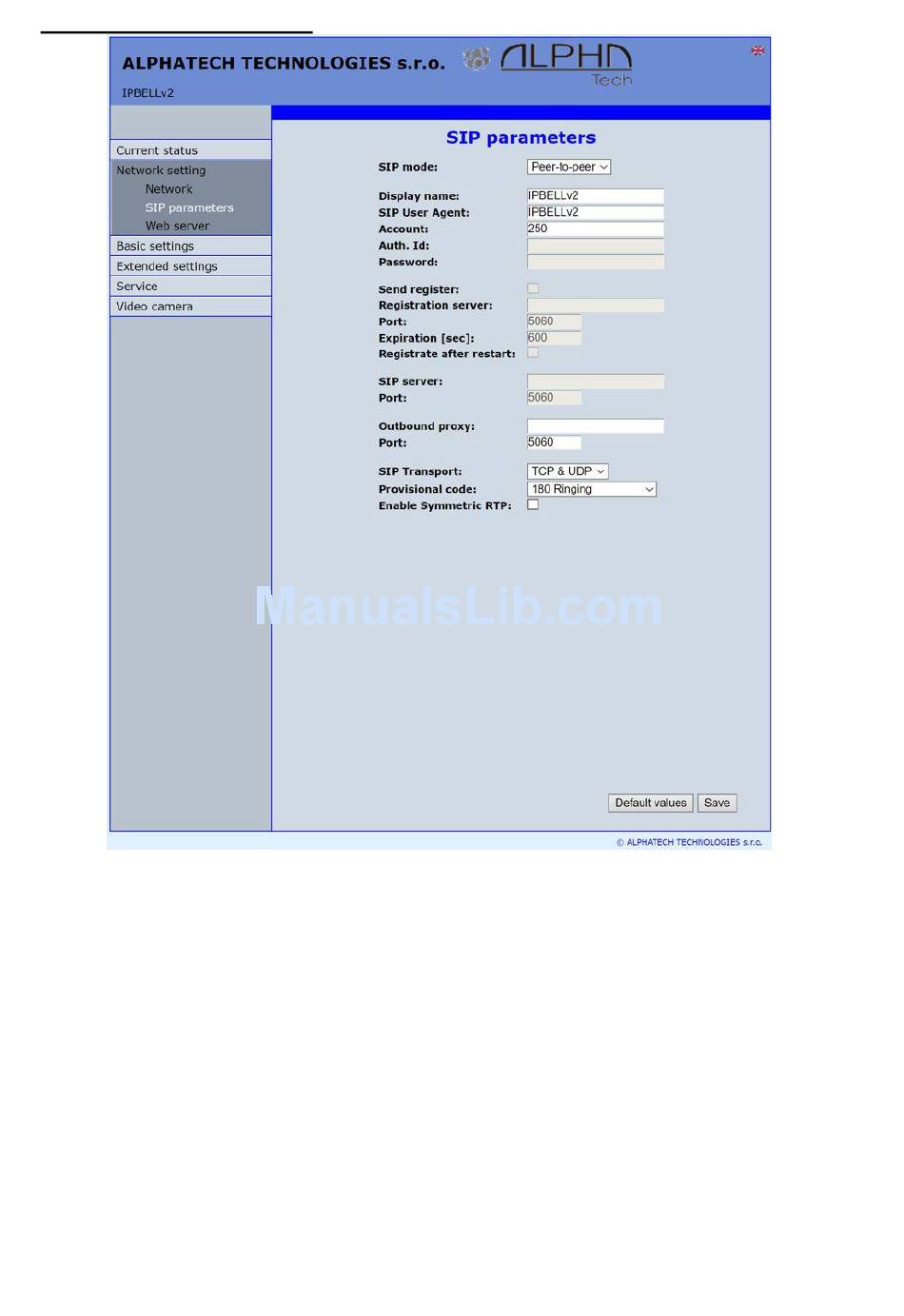

Peer to Peer mode (P2P)
After performing of changes please don't forget click on „Save changes".
Display name – name by which is device presented in network (for example
will display as door entry name in programms UDV panel,
UDVguard)
SIP User Agent – for easy inastallation is possible use the
syntax of this string is not defined, but a common practise is „device
name + version".
Account -
unit name in SIP protocol (usually line number), it is recommended
to keep filled.
Outbound proxy - IP adress or proxy name where is determine where will be
sends door entry requests. If outbound proxy is setup will be
INVITE regest sends to outbound proxy adress. Outbound proxy is
used due NAT. When is not used dont fill up.
Port -
SIP port is usually 5060 or 5061
User manual
IPBELLv2
-
SIP user agent. The
37
