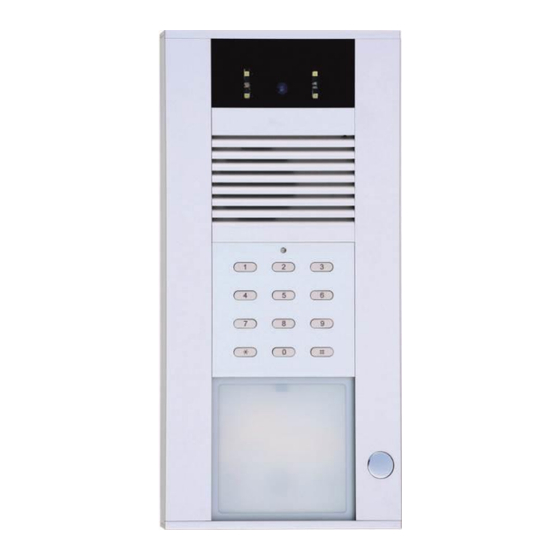

IP BOLD - Door Phone
IP BOLD – Tx
IP BOLD – TxC
IP BOLD – TKx
IP BOLD - TKxC
Installation and operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP BOLD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alpha Technologies IP BOLD

Summary of Contents for Alpha Technologies IP BOLD

  • Page 1 IP BOLD - Door Phone IP BOLD – Tx IP BOLD – TxC IP BOLD – TKx IP BOLD - TKxC Installation and operating instructions...
  • Page 3 To each button you can assign 5 phone numbers with possibility of progressive or simoultaneous dial. The door entry IP BOLD is offered with 1, 2 or 4 button with or without full colour camera as same as with or without keypad.

  • Page 4: Table Of Contents

    ..................7 SED TERMINOLOGY ................9 ODULES COMPOSITION IP BOLD ................12 CONNECTION 1.4.1 IP BOLD basic board ................12 1.4.2 Relays connection ................... 15 1.4.3 PoE ......................19 1.4.4 Usage of door contacts ................19 IP BOLD ................ 21 NSTALLATION OF 1.5.1...
  • Page 5 IDEO PARAMETRES 4.3.1 Requests ....................86 GENERAL INSTRUCTIONS AND CAUTIONS ........... 87 ................87 ENERAL INSTRUCTIONS ......87 ANDLING OF ELECTRICAL WASTE AND SPENT BATTERIES (GPL) ........88 OTES ON SING OURCE OFTWARE IP BOLD - installation and operating instructions...

  • Page 6: Basic Description

     USB connection of integrated webcamera. Video transmission to webbrowser - JPEG, video transmission to VoIP phones - stream H.263, H.264  SIP connection P2P or PBX (SIP server) system,switchable in web interface  SIP 2.0 protocol , define RFC3261 IP BOLD - installation and operating instructions...

  • Page 7: Used Terminology

    TCP/IP contents set of protocols for communication in PC network and it is main protocol of worldwide network Internet.  IP adresa is number which definitely identify network interface in PC network which used IP protocol. IP BOLD - installation and operating instructions...
  • Page 8 SIP User Agent - every SIP user agent (phone, software, device) identifies itself with a string. The syntax of this string is not defined, but a common practise is „device name + version“ IP BOLD - installation and operating instructions...

  • Page 9: Modules Composition

    Door entry IP BOLD includes modern technology, timeless design and user friendly installation and service. Door entry IP BOLD is equiped by 2 relays and PoE feeding. Basic models are different by using of keypad or full colour wideangle camera.

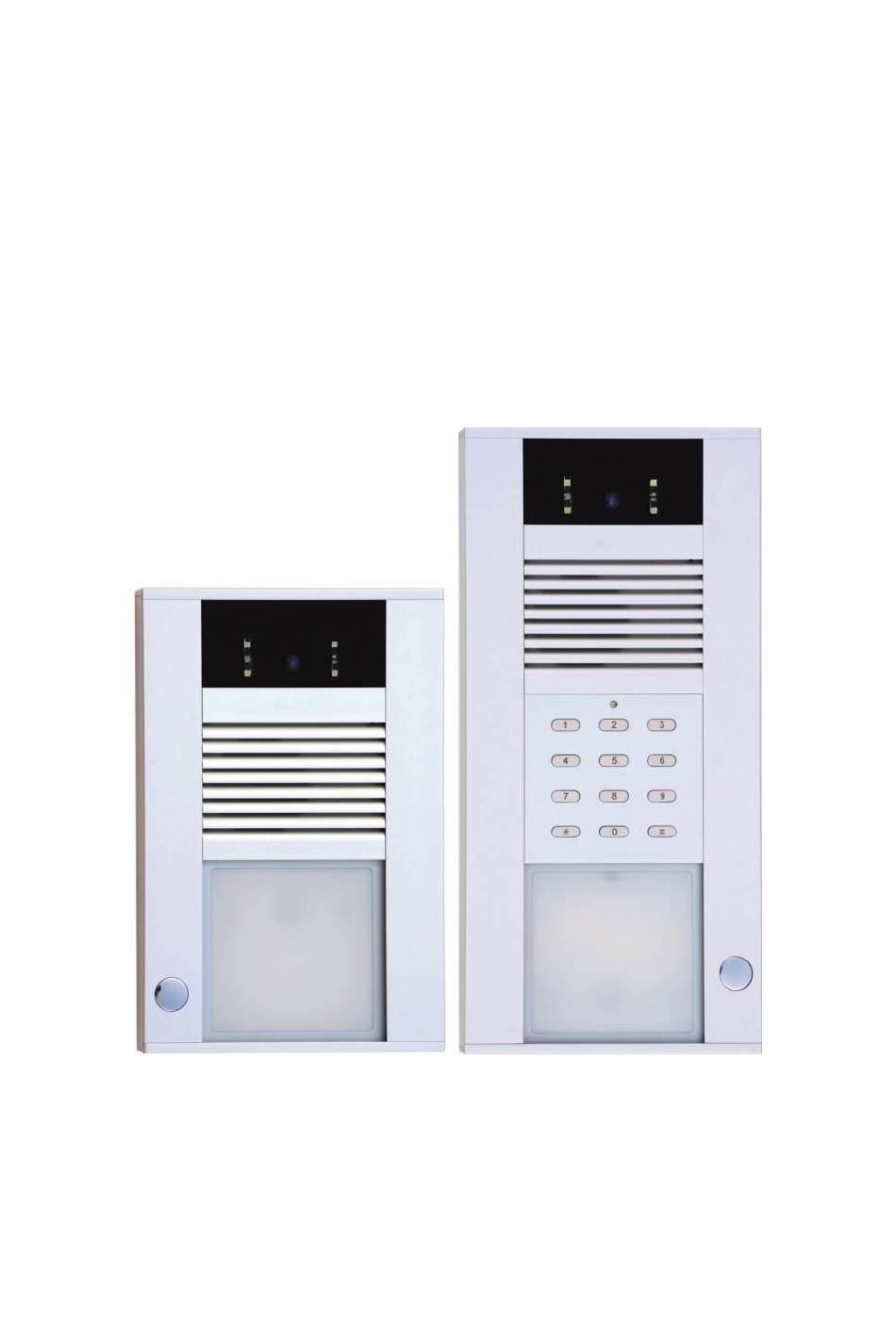

  • Page 10 IP BOLD-TK1C IP BOLD-TK4C IP BOLD - installation and operating instructions...
  • Page 11 Next is possible IP BOLD equipt by roof For short model without keyboard Roof small (BOLD Shield S) Roof big B - Tx (BOLD Shield B) For long model with keyboard Roof small (BOLD Shield S) Roof big K - TKx (BOLD Shield K)

  • Page 12: Ip Bold Connection

    TK. 1.4.1 IP BOLD basic board The basic board is the same for all models of IP BOLD door entry. The difference is just camera module ( with or without). The PoE modul is in standard (according directive IEEE802.3af) as same as connectors for button...
  • Page 13 Never not overcome greater resistance when shunting the speaker grid and prefer to carefully look under the cover, where it holds! IP BOLD - installation and operating instructions...
  • Page 14 IP BOLD - installation and operating instructions...

  • Page 15: Relays Connection

    It is recommended use for IP BOLD PoE powering (according directive IEEE802.3af) or AC voltage min.11V - max.15V or DC voltage min.12Vss - max.18Vss. which is connected to screw "12V". The IP BOLD consumption is max.300mA. This powering is possible simultaneously use for electrical lock(s) feeding.
  • Page 16 Possibilities of relays connection are at following pictures: IP BOLD - installation and operating instructions...
  • Page 17 IP BOLD - installation and operating instructions...
  • Page 18 IP BOLD and module COSW (code switch). Therefore we recommend place COSW module close to electrical lock. For correct operation is necessary setup in IP BOLD door entry and COSW module the same code (via follow). The A electrical lock is in standard connection.

  • Page 19: Poe

    1.4.3 PoE The IP BOLD is equiped by circuit for powering via UTP cable – PoE. When you have IP switch with PoE, or you have PoE PSU (box of adapter size inserted into UTP cable input – according directive IEEE802.3af) then you dont need extra 12V PSU for door entry powering.
  • Page 20 IP BOLD - installation and operating instructions...

  • Page 21: Installation Of Ip Bold

    1.5 Installation of IP BOLD 1.5.1 Wall mounting installation Installation place To reach good video quality the camera must not point directly to • sun lighting • strong light sources • light orstrongly reflective walls Installation height Installation height of outdoor video station should be selected according camera scan range (via picture).

  • Page 22: Montage Dimension (Model Without Keyboard)

    1.5.2 Montage dimension (model without keyboard) IP BOLD - installation and operating instructions...

  • Page 23: Montage Dimension (Model With Keyboard)

    1.5.3 Montage dimension (model with keyboard) IP BOLD - installation and operating instructions...

  • Page 24: Montage Dimension With Roof (Model Without Keyboard)

    1.5.1 Montage dimension with Roof (model without keyboard) IP BOLD - installation and operating instructions...

  • Page 25: Montage Dimension With Roof (Model With Keyboard)

    1.5.2 Montage dimension with Roof (model with keyboard) IP BOLD - installation and operating instructions...

  • Page 26: Open And Close Of Cover

    To dont demage the unit please use enclosed screw driver. Pay attention: • dont put cable under lighting diod to disturb name cards lifting • dont squeeze cable under setting block on back side of unit IP BOLD - installation and operating instructions...

  • Page 27: Name Cards Changing

    4. Slide name cards from side to spaces in name plexi * We recommend print out the name cards to special resistant foil. This foil you can directly order from us: Polyester foil for name cards DIN A4 IP BOLD - installation and operating instructions...

  • Page 28: Micro Sd Card

    When you select users tone and microSD will not be inserted then tones of basic signalling will be used. Never take out SD card during door entry operation! 1.5.6 Button numbering IP BOLD - installation and operating instructions...

  • Page 29: Service Of Ip Bold

    2 Service of IP BOLD 2.1 Signalling overview The door entry IP BOLD signalling acustically stages which occurs during operation. Further signalling is by 2 colour LED (placed right under black plexi). Acustical signalling for each status mentioned in bellow table might be switched off or might be used default tones “beeping”...

  • Page 30: Button Press - Code Lock

    Caution: code might be done from available buttons only (for example model IP IP BOLD-T4 has available 1,2,3,4). At models TKx is code for lock avalaible on keyboard. When button number is first digit o any code then dialling from this button is delayed about “time between button press”...

  • Page 31: Call

    Incoming call is call to door entry (start by person inside building). After dial of extension number or IP adress where is connected door entry IP BOLD the door entry is ringing and after preprogrammed number of rings picks up the call.

  • Page 32: Video

    Stream video for IP phones: H.263 and H264 is established by IP BOLD door entry and IPvideo phone over SIP/SDP protocol on standard SIP port. The video (as same as sound) then runs by RTP protokol on ports agreed over SIP (usually 9078).

  • Page 33: Parametres Programming

    If you get into a situation that you do not know the IP address set in IP BOLD or have forgotten your password, so there is reason to use the DIP2 switch, switch it to the ON position and restart IP BOLD. Then you change the settings eg.

  • Page 34: Login

    IP address you have return setting in PC back. Then you can setup parameters of door entry including IP address and after restart of IP BOLD door entry you can login to door entry WEB page on new IP adress.

  • Page 35: Current Status

    3.2 Current status Current status display basic data about IP BOLD door entry status. It displays Firmware version,door entry model, options connection (camera, keypad), SD card, MAC adresses, current time, network setting, door entry mode (P2P or SIP server), registration status and small calls statistic.

  • Page 36: Language Settings

    On the right top corner is display flag of current used language in whole WEB interface. After click on flag accessible language will be displayed. After language selection please don’t forget click on „Save changes“ otherwise language selection wont be performed. IP BOLD - installation and operating instructions...

  • Page 37: Ip Network Setting

    IP adress, Network mask – IP adress setting, mask. In case of emergency please contact your network administrator Network gateway – Router IP adress (Internet connection) DNS server 1 and 2 – IP adresses of primary and secondary domain server IP BOLD - installation and operating instructions...
  • Page 38 DHCP – by mark of this checkbox as same as saving and restart will be assigned to door entry IP BOLD - IP adress by DHCP. NAT policy - there is the choice of what kind of translate IP addresses used...
  • Page 39 WEB browser. Therefore this dynamically assigned IP address might be changed due for example power failure we recommend use dooe entry IP BOLD with fix IP adress. IP BOLD - installation and operating instructions...

  • Page 40: Sip Setting

    3.3.2 SIP setting The door entry IP BOLD might operates in 2 basic SIP modes. It is either SIP server – door entry registration is performed to SIP server and then you call to phone numbers assigned by SIP server or Peer to Peer (P2P) –...
  • Page 41 RTP called party, but wait for called party to send RTP. After sends data to same adress:port from which message arrived. It is trick used for bridging NAT Registration status display on page as visible on picture. IP BOLD - installation and operating instructions...
  • Page 42 If outbound proxy is setup will be INVITE regest sends to outbound proxy adress. Outbound proxy is used due NAT. When is not used dont fill up. Port - SIP port is usually 5060 or 5061 IP BOLD - installation and operating instructions...
  • Page 43 P2P mode, as well as applications for iOS - Apple. The principle of setting SIP phones and iBell office, iBell office with IP BOLD: 1. Mode of phone is SIP server registration is IP address IP BOLD (registration or SIP server = IP address IP BOLD) 2.

  • Page 44: Web Server

    When video is OFF it is accessable after login with password only). Protect video by password – further protection is secure access by password to http://ipaddress/video.jpeg (camera picture). CAUTION! this option caused non working video on SNOM phones ! IP BOLD - installation and operating instructions...
  • Page 45 ON / OFF access from telnet (name: root, pass: 8765). telnet is not recommended, in practice, this possibility has caused a lot of problems. Damage Doorphone IP BOLD unprofessional intervention via Telnet warranty will be void Doorphone IP BOLD.

  • Page 46: Basic Setting

    After performing of changes please don’t forget click on „Save“. The phone book contents 999 subscribers. For first 99 subscribers agree subscriber number with button number. In this version of door entry – IP BOLD is max = 4 button. Therefore first 4 subscribers are most important.
  • Page 47 5. call number- is phone number which is dial as fifth (when is used progressive dial mode). 5th phone number will be dialled with compliance to selected time plan and when is filled only. IP BOLD - installation and operating instructions...
  • Page 48 Fifth phone number is „Group end“ – Those four phone numbers ringing in office together where are picked up by other subscribers when operator is busy. In offices phones start ringing after adjustable time. IP BOLD - installation and operating instructions...

  • Page 49: Relays

    In relays setting are accessible 4 relays. The relays 1 and 2 is output of relays contacts directly in IP BOLD door entry. Next 2 relays (3 and 4) is possible use for remote relays (IP relays via follow) or as virtual relay usefull for synchronization to allows creation of more difficult functions of relays.
  • Page 50 1 is monostable, closing time 1 sec, synchronization with relay 4 and synchronization delay 7 sec. Codes for relay 1 closing are 55 and 56. The relay 4 we setup as monostable, closing time 1 sec, closing code 55. IP BOLD - installation and operating instructions...
  • Page 51 IPaddress / relay_control?r=on where r = number of relays 1-4 E.g. http://192.168.1.250/relay_control?1=on - switches on relay 1 (doorphone to the default IP address) command to releasing relay: IPaddress / relay_control?r=off where r = number of relays 1-4 IP BOLD - installation and operating instructions...
  • Page 52 Caution – do not fill code when electrical lock without COSW is connected. It can demage relay in door entry IP BOLD! Direct ON button – when you fill up button number then this number will work as departure button only.
  • Page 53 8: 00-15: 00. You will use code 10 at 14:00. It is also possible to extend working hours on Friday by dialing code 11 after 13:00. But IP BOLD - installation and operating instructions...
  • Page 54 Note: In the "Activate on call" setting, you can choose whether the switch is switched on every time you make a call, or only when you receive a call or just when you make an outgoing call. IP BOLD - installation and operating instructions...
  • Page 55 (door contact closed) Caution: When changing the switch setting (eg. switching from bistable mode to monostable), it is recommended to restart the doorphone to initialize the switch according to the last setting! IP BOLD - installation and operating instructions...

  • Page 56: Door Sensors

    3.4.3 Door sensors Door sensors are special functions of door entry IP BOLD which is optional. It is HW option which is different according button number of each model – inputs for door sensors. There is created information in the system about close/open the door.
  • Page 57 Input door sensor 1 / 2 Exit button – relay 1-4 – because the use of door sensors not found so wide usage, so these can be used as two inputs to the function Exit button. When the input connections (short) so activates the corresponding relay (switch monostabil) . IP BOLD - installation and operating instructions...

  • Page 58: Setting Snmp

    Variables in MIB tree – is designed for identification of none sense numeral chain OID OID is numeral identificator which definitely identify every value in SNMP communication. OID is created by number sequence separand by dot. Every dot represent exact level of tree structure into IP BOLD - installation and operating instructions...

  • Page 59: Time Profiles

    Yes /No) . In example on the picture it is Saturday or whole day setup on active – in example i tis sunday. To use correctly this feature is necessary to setup correct time in the unit (via Date and time setting) IP BOLD - installation and operating instructions...
  • Page 60 (according to the times in the table) or switch to another state using DTMF. Active – display current profile status Switch – by click you change profile status IP BOLD - installation and operating instructions...

  • Page 61: Date And Time Setting

    Time zone – selection of installation time zone Network time server – IP adress or domain name of NTP server. When you dont know then by inserted * will IP BOLD find NTP server automatically according own selection. Condition is setup in network setting start gate and DNS.

  • Page 62: E-Mail

    When you want inform subscriber about missed calls from door entry you can setup IP BOLD to sent out email after every missed call. You can setup own subject and text of email. When you have door entry with camera you can automatically add to email one or more pictures from camera.
  • Page 63 $DialNumber$ = dialled phone number $User$ = name of SMTP subscriber Send test message – when you want verify correct functionality of email sending then control message will be sent to default email IP BOLD - installation and operating instructions...

  • Page 64: Extended Setting

    (E-mail setting).Setting range is 5 to 300sec (6min.) caution: it might happen that ringing time will not be limited but it is limited by time parametres of SIP protocol and it is IP BOLD - installation and operating instructions...
  • Page 65 - ignore and nothing happens Active button by HTTP – if checked, so is possible use http request for remote activation button (like as press the button. This feature is for easy check the installation IP BOLD. Example: http:// IPaddress /button_control?btn=1...
  • Page 66 (range 1-1021) ATTENTION The lower limit must always be less than the upper limit, as the difference between the two values is the hysteresis (recommended to maintain approximately 50) IP BOLD - installation and operating instructions...

  • Page 67: Audio Setting

    Delay of returning signal is adjustable by samples amount. Tone – here you select acoustical signalling of different door entry status. Options are: - None, this status will not be signalling IP BOLD - installation and operating instructions...

  • Page 68: Audio Codecs

    Priority – setting of codecs priority for usage. Some audio codecs requires payable license (for example G729) – codec permission you perform in Servis – license management. Jitter compensation - jitter means fluctuation of packet delay during network running IP BOLD - installation and operating instructions...

  • Page 69: Video Setting

    Further setting is standard image parametres petting and reset is immediatelly visible in Windows screen. Auto exposure - a choice between three balancing exposure image. Manual mode – you set the exposure manually using the slider Exposure at the bottom IP BOLD - installation and operating instructions...

  • Page 70: Video Watching (Popup Programm)

    For Android operating system you can download programm iBell office on Google Play for free. For iOS (Apple) operating system you can download programm iBell office on AppleStore for free. IP BOLD - installation and operating instructions...

  • Page 71: Video Codecs

    Compatibility – Due some of VOIP phones producers specialities you have to use in certain cases extra setting: Yealink – phonesYealink SNOM – it is script sending for showing JPEG video. It is unique for SNOM phones IP BOLD - installation and operating instructions...

  • Page 72: Streaming

    After changes performing please don’t forget click on „Save“. Enable streaming – permitted / prohibited to provide video (H.263 and H264) by door entry IP BOLD (server) protocol RTSP on port 554. To receive such video you need some standard stream video players (IP TV or for example Grandstream, MPlayer, VLC etc…).
  • Page 73 Multicast adress – by inserting IP adress you permit sending RTP packets to selected multicasting adress. JPEG image quality – you insert percentage of video coding quality IP BOLD - installation and operating instructions...

  • Page 74: Service

    3.6 Service This part contents service functions. 3.6.1 Restart By click on „Restart“ button you make door entry reset. IP BOLD - installation and operating instructions...

  • Page 75: Configuration

    3.6.2 Configuration The door entry IP BOLD allows saving of current setting to PC or other repositury. From this saved file you can later restore this setting in a few levels – for example phone book only. It helps for example during installation of door entry in more entries to the building.

  • Page 76: Language And Style

    HTML directive for show the logo) loaded /*.html/. File with customization use from firmware V3.4.2 on this place for change the style (design) of WEB pages in doorphone /*.custom/. IP BOLD - installation and operating instructions...

  • Page 77: Style And Language Preparation

    This is part of style file with logo include – red is required, green is optional … </style> <div class='container-div'> <div class='header-div'> <div class='header-sub'> <h2>ALPHATECH &nbsp; <img src="/logo.gif" align="center" width="190" height="55" alt="Alphatech spol. s r.o."></h2> VoIP doorphone IP BOLD <div class='header-right'> INCLUDE_FLAG </div> … IP BOLD - installation and operating instructions...
  • Page 78 Further codes are according directive ISO-3166-1 alpha-2 Code examples of most often used languages: czech dutch english italian slovac german spanish polish french hungarian greek portuguese Further language codes are according directive ISO 639-1 IP BOLD - installation and operating instructions...

  • Page 79: Firmware Upgrade

    3.6.5 Firmware upgrade Firmware version – display present firmware version in door entry IP BOLD Choose firmware file – by click to empty field select file with firmware (for example apt.firmware it is not file *.zip, but already unzip file – on website are firmware files packed to archive *.zip)

  • Page 80: Logfile

    „Make”. You save like this record of extended log file into file which you send to info@alphatech.cz for further analyses (see procedure. below). IP BOLD - installation and operating instructions...
  • Page 81 Syslog server – IP adress or server name of syslog server where will be sent records about IP BOLD door entry operation (do not forget setup NTP server for setting of internal door entry clocks otherwise records will be saved with incorrect date and time) The procedure to download Enhanced LOG file.

  • Page 82: License

    This page allows extend door entry features about payable functions via licenses.For example audio codec G729. After payment you receive license number by email License validity shows if license is working correctly. The license code is connected to MAC number of door entry. IP BOLD - installation and operating instructions...

  • Page 83: Sound Files

    „Play“ will be played currently active sound file (selection is permormed on page „Audio setting“ eventually sound of relay closing on page „Relays“). Attention files are recorded on a microSD card! Audio files: WAV – 8Kbit – mono – 16bit PCM IP BOLD - installation and operating instructions...

  • Page 84: Technical Parametres

    Max. switching current by relays when U < 30 V - 20 to + 80°C Temperature range 4.2 Mechanical dimensions IP BOLD model dimensions HxWxD [mm] IP BOLD Tx 205 x 135 x 20 IP BOLD TxC 205 x 135 x 20...

  • Page 85: Video Parametres

    Stream video for IP phones: H.263 and H264 is established by IP BOLD door entry and IPvideo phone over SIP/SDP protocol on standard SIP port. The video (as same as sound) then runs by RTP protokol on ports agreed over SIP (usually 9078).

  • Page 86: Requests

    4.3.1 Requests VIDEO: http:// IPaddress /video.jpg MJPG - http:// IPaddress /video.mjpg H.263 - rtsp:// IPaddress /video.263 H.264 - rtsp:// IPaddress /video.264 RELAYs: http:// IPaddress /relay_control?1=on http:// IPaddress /relay_control?1=off http:// IPaddress /relay_control?2=on http:// IPaddress /relay_control?2=off http:// IPaddress /relay_control?3=on http:// IPaddress /relay_control?3=off http:// IPaddress /relay_control?4=on http:// IPaddress /relay_control?4=off BUTTONs:...

  • Page 87: General Instructions And Cautions

    5 General instructions and cautions 1.1 General instructions Before using this product, please read these operating instructions carefully and follow the instructions and recommendations contained therein. If the product is used in a manner other than that specified in the manual, the product may be malfunctioning or damaged or destroyed.

  • Page 88: Notes On Using Open Source Software (Gpl)

    1.3 Notes on Using Open Source Software (GPL) This product is partly free software distributed under the GNU General Public License version 1, version 2 and version 2.1. Free software release is "as it is" WITHOUT ANY WARRANTY and our LIABILITY. The list of free software and a copy of the license that is used in this product can be downloaded from our website: http://www.alphatech.cz/english/gpl-code-center.html...
  • Page 89 Guarantee conditions: The product was shop-checked. The producer guarantees that this product will keep the features described in these operating instructions in the course of guarantee provided that the user will be handled with it as described in the operating manual. Particularly the warranty does not cover damage from improper intervention via Telnet.
  • Page 90 © Alphatech spol. s r.o. 2014-2019 version V1.7...
