Summary of Contents for Alpha Technologies PDP – 00

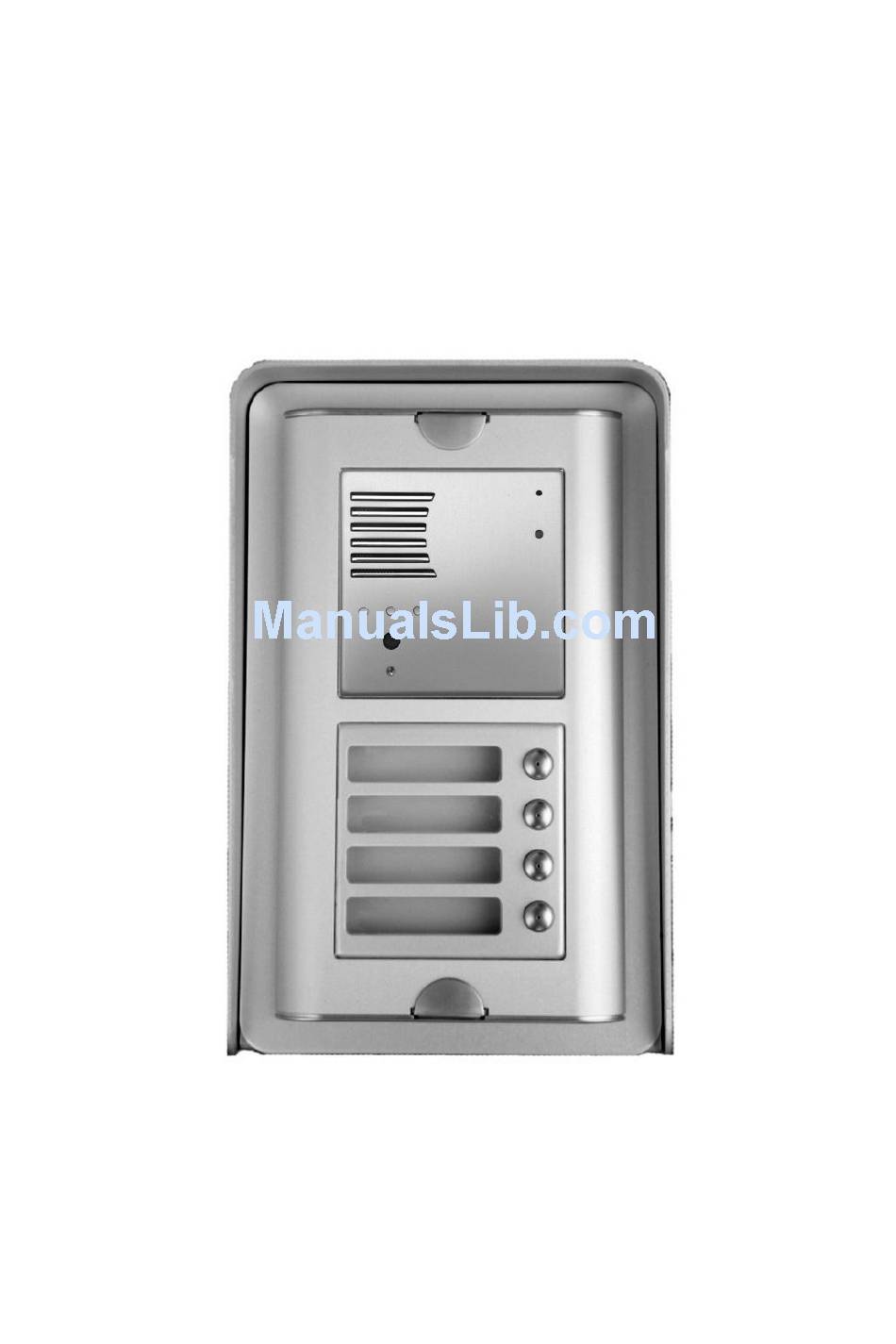

- Page 1 DoorPhone VoIP IPDP – 00 IPDP – 00C IPNC1 - mod IPNC2 - mod IPNC4 - mod Installation and Operating Instructions...
- Page 3 Welcome We congratulate you on purchase of “DoorPhone VoIP” (VoIP = Voice over IP), which is the improved version of successful “New DoorPhone” (NUDV). This DoorPhone VoIP will widely manage to satisfy your needs of communication with persons at the building front door or your company entry, or family house doorway.
-
Page 4: Table Of Contents
Table of Contents BASIC DESCRIPTION ......................5 ........................5 EATURES .........................6 ERMINOLOGY ......................7 ODULE SSEMBLY ......................8 ODULE EATURES 1.4.1 IPDP Basic Module ....................8 1.4.2 Extending Module IPNCx-mod, NC-mod4 and NM-mod4 ........11 1.4.3 NKLA Keyboard Module ..................13 IP A ............14 NSTALLATION OF HONE SSEMBLY 1.5.1 Installation on Plaster .....................14... -
Page 5: Basic Description
Basic Description 1.1 Features Modular system allows to connect 1 to 64 buttons Possibility to connect a numerical keyboard this way that the guard can include 1 – 24 standard buttons Two 25digit numbers (IP adress) with each button ... -
Page 6: Terminology
1.2 Terminology Ethernet is a family of frame-based computer networking technologies for local area networks (LANs). A local area network (LAN) is a computer network covering a small physical area, like a home, office, or small group of buildings, such as a school, or an airport ... -
Page 7: Module Assembly
1.3 Module Assembly The IPDP structural elements are the basic modules with color camera IPDP-00C or without camera IPDP-00 and extending button modules IPNC1-mod with one button, IPNC2-mod with two buttons, IPNC4-mod, NC-mod4 and NM-mod4 with four buttons. Further it is possible to provide the assembly with numerical keyboard. -
Page 8: Module Features
1.4 Module Features 1.4.1 IPDP Basic Module The IPDP basic module assembling from modulus IP and motherboard. Positioning setting elements and connectors is on Pict. 1. Pict. 1 Basic module - motherboard The “14 pin black conector” serves the connection of extending modules by means of flat cable. - Page 9 Pict. 2 Connect to the basic module IPDP receives power through the PoE (Power over Ethernet - IEEE802.3af Altern. A+B) technology. No additional cabling is necessary. If your Ethernet is not equipped with the PoE technology it is possible to use a PoE adaptor.
- Page 10 Pict. 3 Examples of relays connections Pict. 4 Example connection lock with power by PoE ATTENTION! electrical lock must be low power consumption, max 350mA IPDP - installation and operating instructions...
-
Page 11: Extending Module Ipncx-Mod, Nc-Mod4 And Nm-Mod4
Setting voice communication – position trimmers presetting from manufacture and in majority case agree with, therefore changes setting altering only in necessary case Basic position trimmers, sense of rotation and meaning trimmers are illustration on Pict. 55. Pict. 5 Setting of trimmers DIP switch setting basic operation and default setting. - Page 12 The connection is not prepared and should be done by conductors – see on Pict. 7. Pict. 7 Connection of (IP)NC-mod4 and NM-mod4 The flat cable connection is facilitated by connector locks, preventing from rotation, but to keep the connection routing is imperative. “To IP DoorPhone”...
-
Page 13: Nkla Keyboard Module
Pict. 8 IPNC4-mod module 1.4.3 NKLA Keyboard Module The keyboard module is only connected by flat cable as well as NC-mod4 module. The only difference is that keyboard module is always the last in row (no other module can be connected behind it). Connect on the first place (to output of the IPNCx-mod) or the second (to output of the first NC-mod4) positions or third place. -
Page 14: Installation Of Doorphone Voip Assembly
Attention when programming – the position of keyboard connected must be correctly specified. The choice is entered by gradual pressing of buttons with digits. Firstly the key symbol must be pressed to enter a password. When pressing X, the DoorPhone will hang up or cancel your dial. -
Page 15: Change Of Nameplates
1.6 Change of nameplates The first step is dismantling of a fixing frame from module, where we want to change a nameplate. It can be executed by unscrewing of two screws under plastic covers on fixing frame. When removing the fixing frame we can see two independent modules. -
Page 16: Features Of Color Camera
Features of color camera Camera place under fore panel (disassembly panel is described in chaps 1.6 Change of nameplates) camera is fixation that way, that her to it is possible incline in vertical direction (up-down) so, that picture take optimum space before entrance, in some case obliged installation for disabled person. -
Page 17: Doorphone Voip Operation
2 DoorPhone VoIP Operation 2.1 Signaling Overview The all-purpose guard signals an acoustic conditions they may occur during operation. Another signaling can be done by means of red LED (placed under microphone hole). You can listen the signaling samples in Nset setting program. -
Page 18: Doorphone With Keyboard
temporary manual switch, which cancels the first passage of the next automatic switching interval. mode two number group = first press – it always dials a number set in table 1. By repeated press of the same button or detection of busy tone after dialing the DoorPhone will select the number from the second group (table 2). -
Page 19: Person Inside Object
Person Inside Object The person inside object is considered a person that is in phone contact with DoorPhone. 2.3.1 Outgoing Call The outgoing call is the call from DoorPhone (caused by visitor). After guard choice the telephone is ringing inside object and the pickuping up will allow speaking to the visitor at door. -
Page 20: Programming Of Parameters
3 Programming of Parameters 3.1 Basic VoIP settings 3.1.1 Choosing a mode and login It is important to choose a DoorPhone mode first. The DoorPhone can work in the PeerToPeer mode or SIP server mode. The mode setting can be made by a relevant switch (DIP switch see on Pict. - Page 21 In your web browser enter IP address of the DoorPhone, default is 192.168.1.250. See picture 11. Pict. 11 First site - video from camera Enter user name and password. User name is „admin“, default password is „1234“. See picture 12. Pict.
-
Page 22: Language Option
3.1.2 Language option Language setting can be made in a menu on the left panel. Adding language is description on page 32 IPDP - installation and operating instructions... -
Page 23: Network Settings
3.1.3 Network settings Network settings are located in the Network seting menu item. It is possible to use DHCP service (1) or you can enter IP addresses manually. Manual configuration: After making changes click on a save and restart button. 1. - Page 24 DHCP configuration: After making changes click on a save and restart button. 1. Hostname – name of doorphone for resolution in nets (e.g . while using more doorphones – more entrance) 2. Enable/disable ethernet settings via DHCP 3. DHCP client ID is name, which using for assigning two IP address to only thing the MAC address (in IPDP porter has meaning as far as will be including internal SIP server) 4.
-
Page 25: Peer To Peer Or Sip Server Connection
3.1.4 Peer to peer or SIP server connection The DoorPhone can be set to the peer to peer (P2P) mode or to the SIP server mode by DIP switch (page 20). In P2P mode DoorPhone calling IP adress – in memory buttons (page 40Chyba! Záložka není definována.). After making changes use the save changes button. - Page 26 If you setting SIP server mode by DIP switch, so change site of SIP parameters After making changes use the save changes button. 1. SIP proxy server IP address or SIP server name and port (usually 5060/5061) - via the server connection is made 2.
-
Page 27: Audio Codec Setting
3.1.5 Audio codec setting After making changes use the save changes button. 1. There is choosing only priority using audio codecs, used codec is selection automatically at make audio connection in SIP protocol. 2. Default value – presetings to the firm settings. After making changes use the save changes button. -
Page 28: Setting Video
3.1.6 Setting video After making changes use the save changes button. 1. Resolution display video 2. Number picture per second (frequency restoring picture) 3. Setting next parameters of camera 4. Default value – presetings to the firm settings. After making changes use the save changes button. -
Page 29: Viewing The Video (Programme Popup)
3.1.7 Viewing the video (programme PopUp) Video in doorphone IPDP is capture by USB WEB camera. Picture from camera is sending partly like series JPEG pictures to the environment WEB browser (first page on IP address IPDP doorphone) and second method is, that IPDP sending stream video in coding H.263 and in future H.264. -
Page 30: Day Intervals
3.1.8 Day intervals Display only if you check automatic switch Day/Night mode on Basic parameter - page 35. Function with firmware V2.8 and higher. After making changes use the save changes button. 1. Display actual internal time (you must setting in "Service" time server) 2. -
Page 31: User Interface
3.1.9 User interface After making changes use the save changes button. 1. Possibility switch off displaying videos on start page - safety device 2. Additional security is password protection to secure access to http://ipaddress/video.jpeg (image from the camera). ATTENTION: this option has the effect that stops function the program PopUp and videos on the SNOM phone ! 3. -
Page 32: Service Settings
3.1.10 Service settings 1. display current version of firmware in module VoIP and in module doorphone. Button "Basic LOG" or "Extended LOG" displays to the what state LOG switch, it means you see "Extended LOG" so they switch to the basic LOG and back to, in short switch you have such LOG, which don't see writing on button. -
Page 33: Restart
Show register log - here’s displayed action registration and result - successful/unsuccessful 4. Click on "Show VoIP log" start VoIP monitor - log file which is running in new browser window - online displays events. 5. Time server is IP adress of NTP server with time data (actual time in module VoIP is displayed in "Day intervals") if doesn't know address of NTP, you use * and system automatic choose acceptable (to the little window write * and click on save). -
Page 34: Preparation Style, Language Support
Preparation style, language support 3.1.12 File of style consist of three files packaged to the archive ".TAR".To unpacking file "tar" use e.g . programme "PowerArchiver". First file "upload_fw.sh is header file of style and this please didn't have. Second file is HTML style in syntax HTML, it is possible change font size, fonts, colours character and lines, background colour. -
Page 35: Setting Doorphone Parameters
3.2 Setting DoorPhone parameters 3.2.1 Basic Parameters After making changes use the save changes button. 1. Mode of DoorPhone choice selects number per Day/Night DoorPhone mode or selects numbers of the first and second groups. 2. Sign for call extension * or # (10sec before call end the DoorPhone will send a notice, then the call may be extended) 3. - Page 36 Only 2-digit memory number is entered on keyboard by which the number of called person is stored (memory number corresponds to button number with respect to Day/Night switchover). 7. =0 only NC-module connected to the basic module =1 the keyboard connected on the first position (after IPNCx-mod) =2 the keyboard connected on the second position (after first NC-mod4) =3 the keyboard connected on the third position (after second NC-mod4) explanation of position keyboard is on chapter 1.4.3 (page13).
-
Page 37: All About Relays
3.2.2 All about relays After making changes use the save changes button. 1. Relay mode: =1 switch mode – it will close on command or password for period t (used for electrical locks, gate opening etc.) =2 camera mode – it will close by guard pick up and open by hanging up. =3 lighting mode –... - Page 38 2. password for relay closing from buttons or keyboard [2 to 6 digits]. Total 6 passwords, they are controlled by Day/Night; the combination is entered either by DoorPhone buttons (first 1/2 buttons) or from attached keyboard (after pressing of key symbol). The relay closing influences the set switch mode and Day/Night switchover.
-
Page 39: Time Parameters
3.2.3 Time Parameters After making changes use the save changes button. 1. max. time, for which the DoorPhone is hanging up, this time can be extended during call by sign choice from telephone (* or #) – see page 35. 2. -
Page 40: Direct Dialing - Memories
3.2.4 Direct Dialing – Memories After making changes use the save changes button. 1. telephone number up to 16 digits, we want to store. The numbers are the numbers of the first group or numbers of Day mode. In default setting is table memoirs empty. - Page 41 3. Default value – presetings to the firm settings. After making changes use the save changes button. IPDP - installation and operating instructions...
-
Page 42: Technical Parameters
4 Technical Parameters 4.1 Electrical Parameters Parameter Value Conditions Communication interface Ethernet 10BaseT, 100BaseTx VoIP protocol supported Audio G.711u, G.711a, G.726-32b, GSM série JPEG, MJPG, stream H.263 Video (H.264 in future) Band width 300Hz – 3400 Hz Power supply - adapter 12Vss ±... -
Page 43: Parameters Of Video, Access
4.2 Parameters of video, access Video for WEB: InternetExplorer - (batch JPEG pictures - port 80) is used over and over again repeated http request ADRESA/video.jpg Mozilla, opera, Firefox … and programme PopUp (UDVguard) - (MJPEG stream - port 80) is used http request ADRESA/video.mjpg (sometimes it is necessary reload than it start up).This video is continuous and has smaller load nets. - Page 45 Guarantee conditions: The product was shop-checked. The producer guarantees that this product will keep the features described in these operating instructions in the course of guarantee provided that the user will be handled with it as described in the operating manual. The guarantee will be extended by period of possible guarantee repair.
- Page 46 © JR 2007-11 version V2.01 I/11...
