Alpha Technologies Brave Slim - C User Manual

Door intercom
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Brave – Door Intercom
Brave Slim - C
Brave Slim - LC
Brave Slim - C/C
Brave Slim - LC/C
User guide
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Brave Slim - C and is the answer not in the manual?

Questions and answers

Related Manuals for Alpha Technologies Brave Slim - C

Summary of Contents for Alpha Technologies Brave Slim - C

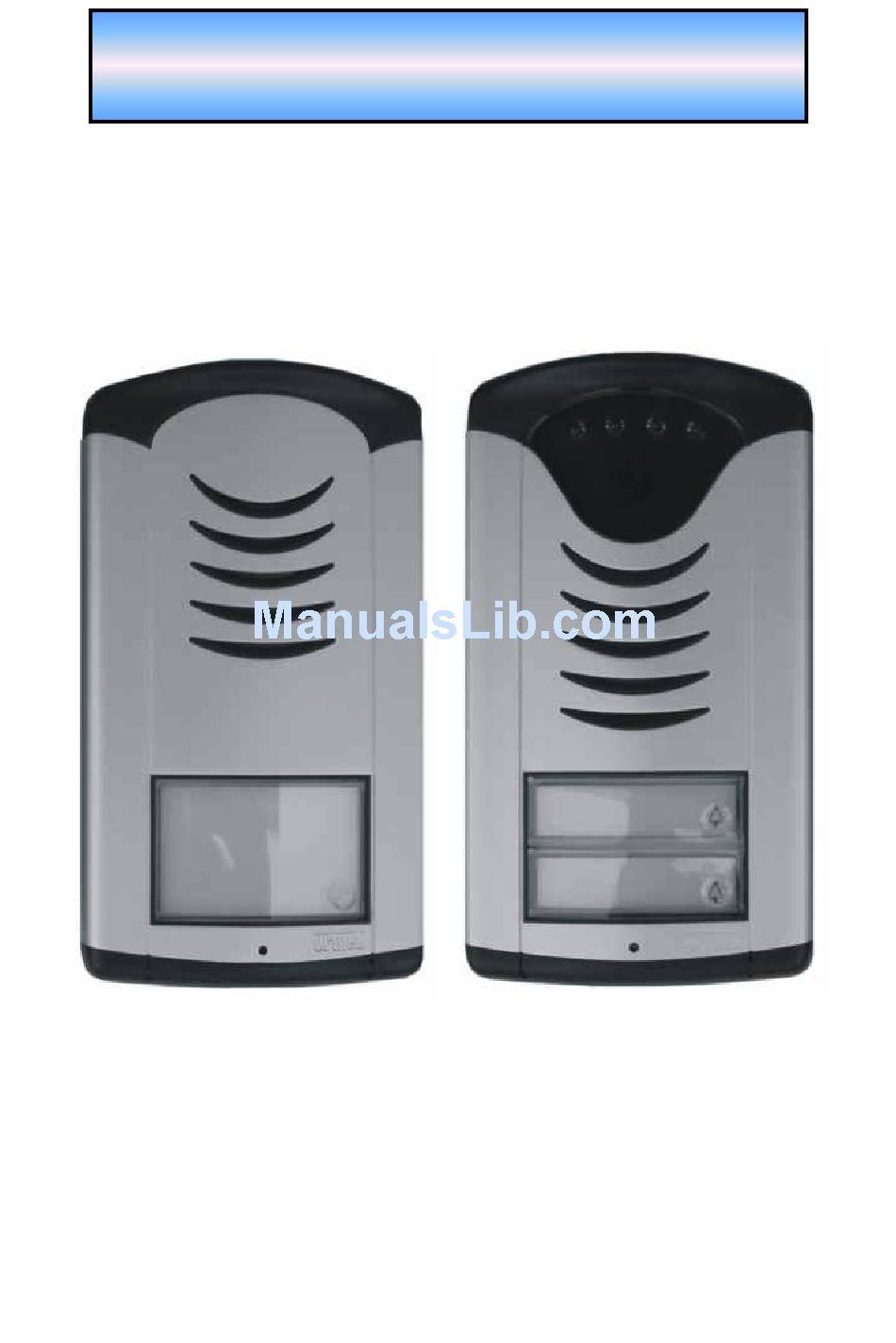

  • Page 1 Brave – Door Intercom Brave Slim - C Brave Slim - LC Brave Slim - C/C Brave Slim - LC/C User guide Version 1.0...
  • Page 3 BRAVE Slim door intercom is designed as universal project to be suitable for different installation on the field and brings more features and possibilities. This manual is designed for SMYLE panel in 4 models with 1 or 2 buttons: Brave Slim - C - Comfort model Brave Slim - C/C...

  • Page 4: Table Of Contents

    Obsah BASIC DESCRIPTION ..................6 ......................6 EATURES ....................7 ERMINOLOGY ........8 IFFERENT ODELS OF RAVE DOOR INTERCOM ............... 8 ODELS OF RAVE DOOR INTERCOM PCB S .................... 9 CHEMATICS INSTALLATION ....................12 ..................... 12 SSEMBLY 2.1.1 Assembly of Brave Slim front panel ............12 2.1.2 Assembly of cards backlighting..............
  • Page 5 ..................39 YSTEM PARAMETRES ............... 42 ANDS REE PARAMETRES SETTING – DAY/NIGHT (C) ..... 45 IME PROGRAMM AUTOMATIC SWITCHING ..............47 EFAULT SETTTING AND ERASING ............... 47 ROGRAMMING TERMINATION 5.10 ................48 ARAMETRES OVERVIEW TECHNICAL PARAMETRES................52 ................52 LEKTRICAL PARAMETRES ................

  • Page 6: Basic Description

    1 BASIC DESCRIPTION 1.1 Features  Voice communication is powered from telephone line only  Tone (DTMF) and pulse dial  Two 24digit numbers with each button (including , #, Flash and Pause)  DAY/NIGHT switching by DTMF code or automatically by integrated real time clocks - RTC (C model) ...

  • Page 7: Terminology

    1.2 Terminology Telephone line analog (2 wires) is way of connection to public network (PSTN line) or connection to PABX – telephone exchange at place of installation ( extension line) begin of call – same like OFF HOOK by handset Line picking up Line hanging up end of call –...

  • Page 8: Different Models Of Slim Brave Door Intercom

    1.3 Different Models of Slim Brave door intercom Brave door intercoms is designed as new generation of door intercom units reflects all experiences collected during last 10 years of succesfull sales of door enry solutions. Features and parametres are different for different models of intercom to provide best balance between price and usage value.

  • Page 9: Pcb Schematics

    1.5 PCB Schematics All functional and connectional elements are marked by red rounded number at bellow picture. Explanation follow on next page. Pict. 1 Brave Slim mother board (1) + (3) + (7) + (11) - version /C only relay 2 version (C) only BRAVE –...
  • Page 10 1. Camera lighting - infra LED. It lights up space before camera when is active. – version for camera only /C It is possible switch off (via. item 7) 2. Connector to PC connection via USB cable 3. Analog colour camera –...
  • Page 11 You can also use 24V DC power supply. It is useful mainly at installations where power supply is already installed and it is used for sliding doors, RFID, etc.. The heating has control element to restrict power. The remaining components are designed for voltage up 24V DC!!! It not depends on polarity.

  • Page 12: Installation

    2 Installation 2.1 Assembly 2.1.1 Assembly of Brave Slim front panel BRAVE – user guide...

  • Page 13: Assembly Of Cards Backlighting

    2.1.2 Assembly of cards backlighting 2.1.3 Wall mounting of Brave Slim Make the mounting by attached pack with screws and plug (drill 5mm). BRAVE – user guide...

  • Page 14: Replacing Of Cards Backlighting After Wall Mounting

    2.1.4 Replacing of cards backlighting after wall mounting 2.1.5 Cards exchange (name cards) Every button has own card ( label) holded by plastic flag ( via picture). You can print out paper labels from special Excel file. BRAVE – user guide...

  • Page 15: Connection

    2.2 Connection The basic functionality of intercom (voice communication) needs connection of telephone line only - LINE (8) on .Pict. 1 Brave Slim. The line is connected by 2 wires (a,b) and in stand by has usually voltage 24V - 60V, short circuit current 20mA - 60mA.
  • Page 16 Relays connection examples are mentiond on following page. It is not all of them but give you an idea how should be connected individual circuits (red rings with numbers = example numbers). 1. Basic connection - 2 elektrical locks and possibility independently control two doors.
  • Page 17 Pict. 2 Examples of relay connection BRAVE – user guide...

  • Page 18: Camera ( /Cversion Only )

    Camera ( /C version only) Technical parametres: - videonorm: PAL-CCIR - sensor: CMOS 1/3'' - picture area: 5,78x4,19mm - resolution: 628x582pixel 380 rows - video output: 1V p-p/75 ohm - automatic profit control: 18dB - minimal lighting: 3LUX - automatic lens shutter: 1/60-1/15000sekund - camera view: 50st.

  • Page 19: Accssesories

    2.4 Accssesories 2.4.1 Weather hood increases intercom protection during raining. It is fixed by adhesive labels from sides. 2.4.2 TimeRelay Time relay allows expansion of relays functionality. It is individual product and detail manual you find on our websites www.alphatechtechologies.cz 2.4.3 DistyBox This optional modul is plastic box allows you to connect analog unit (phone,...

  • Page 20: Power Supply 12V

    2.4.4 Power supply 12V As standard we provide for Brave Slim intercom AC power supply 12V/1A . It is not part of unit packaging. It must be ordered individualy. 2.4.5 Programming cable USB USB cable is not part of packaging. It must be ordered individualy.

  • Page 21: Door Intercom Service

    3 Door intercom service Functionality of Brave Slim door inercom is adjustable by parametres settings (via. Programming parametres capture page 26). 3.1 Signalling overview The Brave Slim door intercom signalling acoustically stages which are happening during operation. Samples of acoustical sounds you can play in BraveSet ( PC programm).

  • Page 22: Visitor At The Door

    3.2 Visitor at the door Door intercom buttons have signs (cards) like usual ring buttons. Visitor find desired name (for example“Scott") and push it. The Brave intercom pick up the line and "play" tone line pick up (when is not switch off by par.62) and dial phone number saved under the button (parametr 1 or 2 up door intercom mode).
  • Page 23 mode m = 1 (parametr 3111 and 3121) Action Note Parametr Relay 3211-3215 Evaluation of correct 3311-3315 According settings external code from DAY/NIGHT 3411-3415 buttons 3221-3225 3321-3325 According settings DAY/NIGHT 3421-3425 321* 331* According settings DAY/NIGHT 341* 322* According settins 332* DAY/NIGHT 342*...

  • Page 24: Person Inside Building

    mode m = 4 Action Note Parametr Relay Button push 3114 Any button different from 311* or 312* 3124 3114 Button setup by 311* or 312* 3124 Mode m = 6 Action Note Parametr Relay Button push 3116 Any button different from 311* or 312* 3126 3116...

  • Page 25: Incoming Call

    3.3.2 Incoming call Incoming call is a call into door intercom (generated by person inside the building). After dialling extension number where is connected door intercom the door interocm line is ringing. After setup number of rings the door intercom picks up (parametr 51) and you can talk. Other possibilities are the same like in case of outgoing call (capture 3.3.1).

  • Page 26: Parametres Programming

    4 Parametres programming 4.1 Programming by phone 4.1.1 Programming enter You can enter programming mode by following ways: 1. password – incoming call only! – pick up the phone and dial phone number where is door intercom connected (either extension number when door intercom is connected to PBX or PSTN line number of building where is door intercom installed and let operator connect you to appropriate door .

  • Page 27: Pc Programming - Braveset Programm

    4.2 PC programming – BraveSet programm For PC programming of door intercom you have to purchase special USB cable USB-KAB and programm BraveSet ( free on every CD). Then you have to connect door intercom into the line or at version /C or (C) switched ON and connected power supply 12V - DIP3 and 4.

  • Page 28: Descriprion Of Programmable Parametres

    (C) this mode switch up current time (when this feature is activated - parametr 084) Note: at version Brave Slim - C and Brave Slim - LC are available max. 2 buttons - tt=01-02 BRAVE – user guide...

  • Page 29: Relay(S)

    Settings examples: first button should dial at DAY number 358 and in NIGHT 0_603441296 , you programm it - 101358 and wait for ♫, next 2010 *0 603441296 and wait for ♫ 2. second button should dial at DAY and NIGHT 123#1*2Flash3, you programm 102123#1 ** 2 *# 3 and wait for ♫, next 202123#1 ** 2 *# 3 and wait for ♫...
  • Page 30 m=7 permanent closing / opening – usable at versions /C and (C) only, if switching (DIP 3,4)+par.64. By command for pulse 1 is closed and for pulses2 is opened. This stage stays in door intercom even after power/line disconnection. This mode you can use for potting, glasshouse opening, heating activation etc..
  • Page 31  Caution on numbers identity of password. When one password includes other, for example:password for relay1 is 1234 and for relay 2 12345, then always after pushing button 4 relay 1 will be activated and relay 2 wont be never acivated. When you select password for relay 2 234, then after button 4 pushing both relays will be activated.
  • Page 32 Example: command to activate relay1 with 1 pulse *8, command to hang up *8 and command for activation relay2 with 2 pulses *9. Dial: 352*8 ♫ , 432*8 ♫ , 362*9 ♫. You are in communication with door intercom unit. Dial command for open sliding gate 9. First pulse starts sliding the gate and second pulse stop it.
  • Page 33 Parametr Value Description Default time ss [sec] activation relay r for time t1/t4 r ss 105 205 (01-99) – relay number [1-2] ss – time t1 / t4 for which is relay closed 1 / 2 [2 digits 00-99], where time 00 means 0,5sec Parametr Value...

  • Page 34: Basic Parametres

    5.3 Basic parametres Parametr Value Description Default Dial type v – tone / pulse (0/1) v – dial type v=0 is DTMF tone dial, v=1 pulse dial Parametr Value Description Default Character to prolong the call (* / #) z – character to prolong the call * or # (10sec before call termination door intercom sends notification then you can prolong the call) Parametr Value...
  • Page 35 Parametr Value Description Default Command to switch into DAY mode (00-99,*0-*9) Command to switch into NIGHT mode (0099,*0-*9) dd – command to switch into DAY mode [2 digits] / nn – command to switch into NIGHT mode [2 digits] / - command has always 2 digits but if you want use 1 digit then you have possibility insert "...

  • Page 36: Time Parametres

    5.4 Time parametres Parametr Value Description Default Number of rings before door intercom picks up incoming call (1-9) q – number of incoming call rings . Door intercom picks up between rings and 2 sec after detection of q – th rings. Number is adjustable from 1 to 9. Parametr Value Description...
  • Page 37 Parametr Value Description Default Hanging up time during REDIAL (1-5) z – time [sec] for which door intercom hangs up before pick up for REDIAL (button push during call, busy tone detection) [range 1-5] Parametr Value Description Default Time before start dialling (1-5) z –...
  • Page 38 Time of tone duration DTMF (tone) dial 10 (100ms) (04-16) Time of space duration between DTMF 10 (100ms) tones (04-16) 1 (100ms) Time of Flash duration (1-6) Time of pause duration / pause between 4 (800ms) numbers (1-0) –Time of tone duration DTMF (tone) dial is calculated up: (inserted number) x 10 = tone duration time [ms] [range 04-16 tj.
  • Page 39 5.5 System parametres Parametr Value Description Default Acoustic signalling (confirmation, error, empty (0/1) memory, call termination...) In default the stages of door intercom are acoustically signalling. By parametr „z“ you can switch off this signalling. Possible values are z=0 – signalling is off z=1 –...
  • Page 40 Parametr Value description Default Acustic signalling of relay activation (0/1) In default the activation is off z=0. Usually you can use this fetaure for DC power supply 12V. Then when el.lock is released you dont hear „buzzing“ so visitor doesnt know that el.lock is released. When you activate this feature z=1 then during relay activation you hear special sounds simulating relay activation.
  • Page 41 Parametr Value Description Default delay start for PBx´s with line testing (Siemens) (0/1) In default is switch off t=0. By activation this feature t=1 is processor going to „sleep mode“ after line connection and after 3sec the door intercom makes initialization.
  • Page 42 5.6 HandsFree parametres setting Parametr Value Description Default Reception loudness 01-16 (16 is highest) (TRH) Transmission loudness 01-16 (16 is highest) (MIC) Speaker loudness 01-16 (16 is highest) (SPK) gg / ff / rr – numbers are inserted always by 2 digits in range [01-16] After reception of confirmation ♫...
  • Page 43 Parametr Value Description Default Level of microphone start 1-4 (4 is highest) On the line is simultaneously signal from microphone and speaker. In handsfree circuit is a few functional blocks to suppress acoustic shock. The basic one is circuit of semiduplex operation when incoming signal decrease microphone amplificatio as same as signal from microphone decrease incoming signal.
  • Page 44 Parametr Value Description Default Compemsation of wires losses depends on line current (0/1/2) Door intercom Brave includes circuit which during long distance installations (100m and more from PBX) can compensate losses on wiring. In default the feature is off k=0. You can setup in two levels depending on line current of PBX (short circuit current I PBX current I k - dial...
  • Page 45 5.7 Time programm – automatic DAY/NIGHT switching (C) (C) version only ! Parametr Value Description Default ON / OFF automatic DAY/NIGHT switching and setting time control (0/1/#) When door intercom Brave includes RTC circuit - (C) version then you can activate automatical switching from real time a=1.
  • Page 46 Parametr Value Description Default sunday – time setting hours hh and minutes hhnnkkjj 00000000 nn starts day and hours kk and minutes jj starts night monday - time setting hours hh and minutes hhnnkkjj 00000000 nn starts day and hours kk and minutes jj starts night tuesday - time setting hours hh and minutes hhnnkkjj...

  • Page 47: Programming Termination

    5.8 Default settting and erasing Parametr Value Description Default execute Default This setting doesnt change parametres 1 and 2 (numbers saved in memories) Parametr Value Description Default Erase all numbers in group 1 (Day mode) Erase all numbers in group 2 (Night mode) 3 only..
  • Page 48 5.10 Parametres overview Parametr Value Description Default tt nn… number nn under button tt tt nn… number nn under button tt 11 21 relay r works in mode m (1-8) button tt activate relay closing r in mode r* tt (01-99) In mode DAY + NIGHT password hh...
  • Page 49 Number of rings before door intercom pick up incoming call (1-9) Maximal call duration (0-9,*,#) Time between button push (1-9) Hang up time before REDIAL (1-5) Time before dial start (1-5) Number of ringing before hang up (04-99) Middle frequency of tone detector (1-0) (375-475Hz) Number of busy tones...
  • Page 50 (SPK) Soft pass of switching (0/1) Depression of background sound (0/1) Level of microphone start 1-4 (4 is highest) Fast switching voice automatic 1-4 (4 is slowest) VoltAmper (VA) charakteristic of line connection (0/1) Compemsation of wires losses depends on line current (0/1/2) Transmission signalling level in [-dBm] (04-...
  • Page 51 Erase all numbers in group 2 (NIGHT mode) 3 only.. Default setting for parametres 3x only 4 only.. Default setting for parametres 4x only Default setting for parametres 5x only 5 only.. 6 only.. Default setting for parametres 6x only 7 only..

  • Page 52: Mechanical Dimensions

    6 Technical parametres 6.1 Elektrical parametres Parametr Value Conditions Minimal line current 18mA Line OFF HOOK Minimal line voltage Line ON HOOK Line voltage during OFF HOOK < 8V I = 20mA (VA characteristic) < 12V I = 60 mA Downlead during ON HOOK <...

  • Page 53: Table For Easy Programming

    7 Table for easy programming Into empty parts of table write values which you desire to programm. In double linked part are mentioned programming commands for easy programming. Moreover the programmed values stay in manual for future changes. Description Programming sequence digits description detail...
  • Page 54 3212 password relay 1 Day/Night (1pulse) 3213 password relay 1 Day/Night (1pulse) 3214 password relay 1 Day/Night (1pulse) 3215 password relay 1 Day/Night (1pulse) 321* password relay 1 Day/Night (2pulses) 3221 password relay 2 Day/Night (1 pulse) 3222 password relay 2 Day/Night (1 pulse) 3223...
  • Page 55 311* Button selection for relay 1 312* Button selection for relay 1 Relay 1 activation by phone 1 pulse 1 pulse Relay 2 activation by phone Relay 1 activation by phone 2 pulses 2 pulses Relay 2 activation by phone Time of closing for relay 1 [sec] [sec]...
  • Page 56 Space betweeni DTMF nn x 10 tones Flash duration n x 100 pause/ space between n x100+400 numbers DTMF transmission level 04-16 -dBm preemphase DTMF 0 / 1 Listening in DTMF - level 0 / 1 Acustic signalling Acustic signalling Off hook 0 / 1 /on hook 0 / 1...
  • Page 57 hhnnkkjj Tuesday hhnnkkjj Wednesday thursday hhnnkkjj hhnnkkjj friday hhnnkkjj saturday BRAVE – user guide...
  • Page 58 Producer: Distributor: Sales date: © JR 2011 verze 1.0 V/11...
