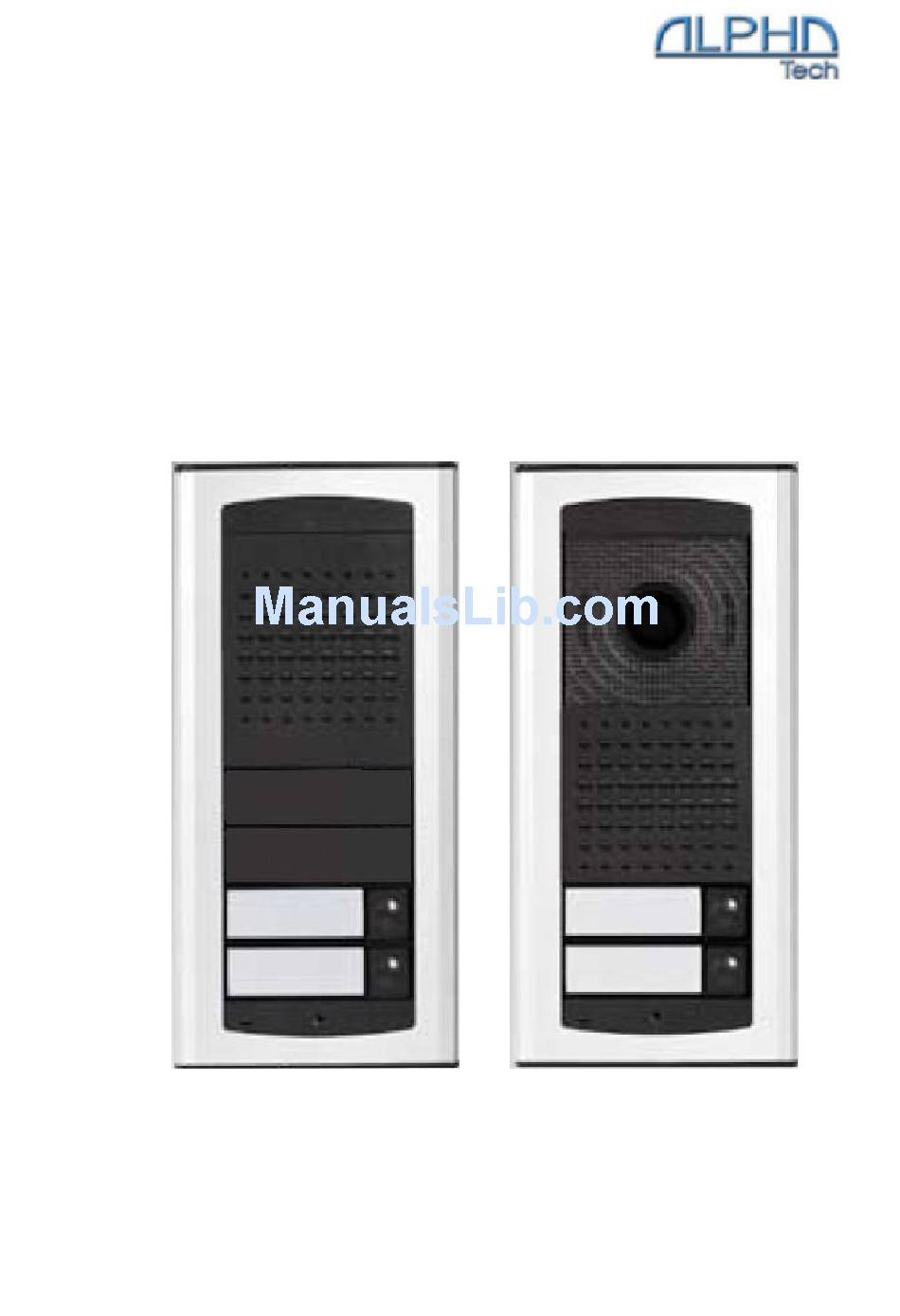

  • Page 1 IP Bell - SIP door entry phone station IP Bell – 01 IP Bell – 02 IP Bell – 01C IP Bell – 02C Bell – 8 (under development) User and installation guide...
  • Page 3 Welcome Congratulations to the purchase of VoIP video/audio door entry phone station IP Bell. This doorphone can meet your requirements for communications with visitors at the door entrance of your house, company or building. The meaning of VoIP is “Voice over Internet Protocol” – this doorphone can be connected to the computer network enabling calls in mode P2P (peer to peer) –...
  • Page 4: Table Of Contents

    Contents BASIC DESCRIPTION ...................5 ....................5 EATURES ..................6 SED TERMINOLOGY ................8 ODULES ARRANGEMENT ................9 EATURES OF MODULES 1.4.1 IP Bell basic module ................9 1.4.2 Description of the main board..............10 IP B ...........16 SSEMBLY OF THE ELL DOORPHONE 1.5.1 Dismounting of the front cover.............16 1.5.2 IP Bell mounting on the wall ..............16 1.5.3...
  • Page 5: Basic Description

    TECHNICAL PARAMETERS..............43 ................43 LECTRICAL PARAMETERS ................44 ECHANICAL DIMENSIONS ................45 ARAMETERS OF VIDEO 1 Basic description 1.1 Features Ø two 25 digit numbers stored at each pushbutton (including * and #) Ø commands for doorhphone can be two or one digit (command 55 can be shortened to one digit 5 by storing *5 replacing the original two digit command 55) Ø...
  • Page 6: Used Terminology

    1.2 Used terminology • Ethernet is a family of frame-based computer networking technologies for local area networks (LANs • LAN - a local area network (LAN) is a computer network covering a small physical area, like a home, office, or small groups of buildings, such as a school, or an airport.
  • Page 7 • IP address is a number, which clearly identifies a network interface in the computer network, which uses IP protocol • DHCP (Dynamic Host Configuration Protocol) is an application protocol from the family of TCP/IP. It is used for automatic assigning of IP addresses to individual personal computers in the PC networks, thus simplyfing their administration •...
  • Page 8: Modules Arrangement

    1.3 Modules arrangement The basic modules of the IP Bell doorphone are supplied in the following variants – video version IP Bell-01C with a camera and one pushbutton, video version IP Bell-02C with a camera and two pushbuttons, audio version IP Bell-01 with one pushbutton, audio version IP Bell-02 with two pushbuttons.
  • Page 9: Features Of Modules

    1.4 Features of modules 1.4.1 IP Bell basic module IP Bell basic module consists of a doorphone board and a VoIP module board, connectors connection and set-up elements are shown on picture 1 (fig. 1). IP Bell should be powered either by PoE technology or min.11VAC - max.15VAC or min.12VDC - max.18VDC which you connect to the "12V"...
  • Page 10: Description Of The Main Board

    1.4.2 Description of the main board 1. trimmer for setting level of surrounding illumination (sensor – 10). During the call, at the set level, camera illumination will be switched on (white LEDs - 9 ) – applies to camera models only 2.
  • Page 11 Fig. 2 The main board of the IP Bell doorphone IP Bell - User guide and installation manual...
  • Page 12 Fig. 3 Connection of the pushbuttons and visit cards illumination Connection of switching contacts terminal is shown on fig. 2. Label "NO" means normally open contact, "COM" means common outlet (middle) and "NC" means normally closed contact. Contacts of both switches are isolated galvanically from each other and also from other circuits of the IP Bell doorphone.
  • Page 13 Fig. 4 Examples of switching contacts connection without PoE power supply IP Bell - User guide and installation manual...
  • Page 14 Fig. 5 Example of switching contacts connection when using PoE power supply Attention – the electrical lock is low-consumption, max. 350mA Camera (Microsoft LifeCam VX700) is mounted on a standalone module which you can find in camera versions only. camera view angle can´t changed in any way.
  • Page 15 Voice communication set-up – the default trimmer positons are factory set as shown on the fig. 2. Change of settings can be done as needed. The meaning of turning works in a standard way, that means by turning to the right the set value increases.
  • Page 16: Assembly Of The Ip Bell Doorphone

    1.5 Assembly of the IP Bell doorphone 1.5.1 Dismounting of the front cover 1.5.2 IP Bell mounting on the wall Mounting is done with wall plugs and screws. We suggest wall plugs with 5mm in diameter, the screw with half-round head, diameter 4mm, length...
  • Page 17: Replacement Of Visit Cards

    1.5.3 Replacement of visit cards Each pushbutton has got its own label held with the white plastic cup (see the figure above). Demounting and inserting of the cap can be done with two fingers along the longer side of the cap by a soft pull / push. 1.5.4 Demounting and mounting of the pushbutton on the front panel IP Bell...
  • Page 18: Closing The Front Cover Of Ip Bell

    1.5.5 Closing the front cover of IP Bell 1.6 Interconnection of two modules (under development) IP Bell - User guide and installation manual...
  • Page 19: Operation Of The Ip Bell Doorphone

    2 Operation of the IP Bell doorphone 2.1 Overview of signalling The IP Bell doorphone signals acustically statuses, which can occur during operation, another signalling is provided with red LED (located next to the camera – valid for camera versions only). Status Tones Tone frequency...
  • Page 20: Person Inside The Building

    for the IP Bell doorphone. In the automatic Day/Nigh switching you can make use of temporary manual switching, which is cancelled by going through the first nearest automatic switching interval. - mode 2 groups of numbers = first pressing – always dials the number set in the 1 column, by repeated pressing of the same pushbutton or when busy tone is detected, or after elapsing the set number of rings...
  • Page 21 doorphone is connected, the doorphone rings (LED is blinking) and after a set number of rings the doorphone answers the call and it is possible to talk. Possibilities are the same as with the outgoing call (chapter 2.3.1). IP Bell - User guide and installation manual...
  • Page 22: Programming Of Parameters

    3 Programming of parameters 3.1 Basic VoIP settings 3.1.1 Choice of mode and login Firstly it is important to choose IP Bell network mode, either P2P (peer to peer) or the doorphone will login to a SIP server. This is done with DIP switch 2 –...
  • Page 23 In your WEB browser write an IP address of the IP Bell doorphone, By default it is 192.168.1.250. as you can see on the fig. 8 below. Fig. 8 First page – video from the camera Enter the user name and password. The user name is always „admin“ and password is „1234“...
  • Page 24: Language Setting

    3.1.2 Language setting The language can be set in the lower part of the menu in the left panel. Languages can be edited and added – see chapter 3.1.12 on page 33. IP Bell - User guide and installation manual...
  • Page 25: Network Settings

    3.1.3 Network settings The network settings can be found in the menu „Network setting“. You can either use a fixed IP address or a dynamic allocated by using DHCP service. Fixed IP address configuration: To enable changes, please do not forget to click on button „save and restart“. 1.
  • Page 26 DHCP configuration: To enable changes, please do not forget to click on button „save and restart“. 1. Hostname – name of doorphone for differentiation in the network (e.g. in case you use more doorphone – more door entrances) 2. enable / disable using DHCP allocation of IP addresses 3.
  • Page 27: Peer To Peer Or Sip Server Connection

    3.1.4 Peer to peer or SIP server connection The IP Bell doorphone can be set to peer to peer (P2P) mode or to SIP server mode with a DIP switch (see chapter 3.1.1 on page 22). In P2P mode IP Bell calls to an IP address stored in memory numbers (see chapter 3.2.5 on page 42).
  • Page 28 If you set the DIP switch to SIP server mode, then the contents of „SIP parameters“ settings menu change. To enable changes, please do not forget to click on button „save changes“. 1. SIP proxy server - IP address or SIP server name and port (usually 5060/5061) - the connection is made via this server 2.
  • Page 29: Audio Codec Setting

    3.1.5 Audio codec setting To enable changes, please do not forget to click on button „save changes“. 1. here you are selecting priority of using audio codecs. Choice of codec for the voice connection is selected automatically. Both parties will agree on using a specific codec in the SIP protocol.
  • Page 30: Video Setting

    3.1.6 Video setting To enable changes, please do not forget to click on button „save changes“. 1. display resolution of video 2. number of displayed images per second 3. setting other camera parameters 4. priority choice of H.263 / H.264 codec. If you do not select any codec, then the video will not be sent during the call.
  • Page 31 (video) of the IP Bell´s camera. After the call has ended, it minimizes back to system tray (pop up function). switching of both IP Bell´s switches – opening the door entrance acoustic connection to IP Bell – if the doorphone calls to the address of the PC with installed and activated UDVguard software, you can receive calls of the IP Bell doorphone via the PC´s sound card.
  • Page 32: Day Intervals

    3.1.8 Day intervals They are displayed only in case you tick on Day/Night automatic switching in the basic parameters menu (Switching between Day/Night – automatic). To enable changes, please do not forget to click on button „save changes“. 1. Displaying of current time of the internal clock – clock setting is done in the menu „Service –...
  • Page 33: User Interface

    3.1.9 User interface To enable changes, please do not forget to click on button „save changes“. 1. Turning on/off of the video on the start page of the WEB interface. For security reasons if you turn off the video on the start page, it is accessible only after login with password.
  • Page 34: Service Setting

    3.1.10 Service setting 1. Actual firmware version in the VoIP module and the basic UDV module of the doorphone. UDV stands for „Universal Door Video“ doorphone. The button „enhanced log“ switches between an option of saving log file history in the basic or enhanced format (more information available, but for a shorter time period) –...
  • Page 35: Restart

    not have the standard ending of lines CR LF, but LF only. For correct viewing of the text file we recommend using e.g. "PSPad". 3. Shows call log – commands only Shows records of registrations – it shows registration process and its result –...
  • Page 36: Preparation Of Style And Language Mutation

    Preparation of style and language mutation 3.1.12 The style file contains three files packed to .“TAR“ archive. For unpacking the ".tar" archive please use "PowerArchiver" program for example. The first file "upload_fw.sh" is the header of the style file. Please do not change The second file is HTML style in HTML syntax.
  • Page 37: Parameter Settings Of The Ip Bell Doorphone

    3.2 Parameter settings of the IP Bell doorphone 3.2.1 Basic parameters To enable changes, please do not forget to click on button „save changes“. 1. mode of choosing numbers – the numbers are either chosen according to Day / Night mode or they are selected from the first or second group – see more in chapter 2.2 on page 20.
  • Page 38: Sensors Of Open Doors

    5. Day/Night switcing can be manual (codes for switching are used from the telephone) or automatic, then the table of day intervals is used. The condition is to set the time server in the „Service“ menu. 6. not used in this doorphone version 7.
  • Page 39: All About Relays

    3.2.3 All about relays To enable changes, please do not forget to click on button „save changes“. 1. Mode of relays: =1 switch mode – it is closed with a command or password for a time period “time of closing” (used for electrical locks, opening gates, etc. =2 camera mode –...
  • Page 40 =4 bell mode – it is closed when the pushbutton is pressed and it opens after a time period “time of closing” (used for connection of external bell or siren/horn) =5 gradual opening mode – in this mode you can set relay 1 only and at the same time relay 2 is set to mode 1.
  • Page 41: Time Parameters

    door closes. Then controlling from the telephone might cause undesired pernament opening of the garage door (the garage door does not close – the vehicle has not passed) 6. time period between closed relay 1 and 2 when set in mode m=5 (gradual opening) [2 digits 01-99] 7.
  • Page 42: Direct Dialling - Memory Numbers

    5. After the dialling is finished, it waits for this set time period. After the time period elapsed and there is no call established or there is a busy tone detected, then the IP Bell doorphone hangs up [range 04-99]. The dialling is repeated is case it is set to mode of dialling 2 groups of numbers.
  • Page 43: Technical Parameters

    2. number of the pushbutton (memory) – the telephone number of up to 16 digits, which we wish to save. The numbers saved in this column are numbers of the second group, or these numbers belong to Night mode. In case you use the P2P mode, then you save into the memory the IP address in the format 192*168*1*231, where „*“...
  • Page 44: Mechanical Dimensions

    4.2 Mechanical dimensions Type of IP Bell Dimensions HxWxD [mm] IP Bell-01 208 x 99 x 30 IP Bell-02 208 x 99 x 30 IP Bell-01C 208 x 99 x 30 IP Bell-02C 208 x 99 x 30 Bell - 8 208 x 99 x 30 IP protection level: IP44 IP Bell...
  • Page 45: Parameters Of Video

    4.3 Parameters of video Video pro WEB: InternetExplorer - (series of JPEG images - Port 80). It is used infinitely repeated http request ADRESA/video.jpg Mozilla, Opera, Firefox, etc. and program PopUp (UDVguard software) - (MJPEG stream - Port 80) – it is used http request ADRESA/video.mjpg (sometimes you need to reload the page before it starts).
  • Page 46 Warranty conditions: The product was shop-checked. The producer guarantees that this product will keep the features described in the operating instructions in the course of warranty provided the user handles the product as described in the manual. The warranty is extended by the period of possible warranty repair. When claiming within the warranty period, kindly contact your dealer who sold you the product.
