Connection IPBELLv2
IPBELLv2 consists of a base plate and a camera module. On the bottom
side, wire terminals for two buttons and lighting cards. The camera module is
equipped with signaling status, sensor lighting, white LED for illumination around
at night for a color camera. We recommend you purchase a model with a camera,
because the audio model is deprived of these functions. The motherboard can
connect additional button modules up to 130 keys. Furthermore, the
motherboard is equipped with two inputs (door sensors or EXIT button) and two
switches (relays).

1.6 IPBELLv2 basic module

The motherboard is the same for all models IPBELLv2 and only differ by
fitting the camera module. It comes standard with PoE module (according to
IEEE802.3af) connector for connecting expansion modules, connectors for
power and connecting electric locks, door sensors, connectors or EXIT button
(depending on settings) and microSD card reader.

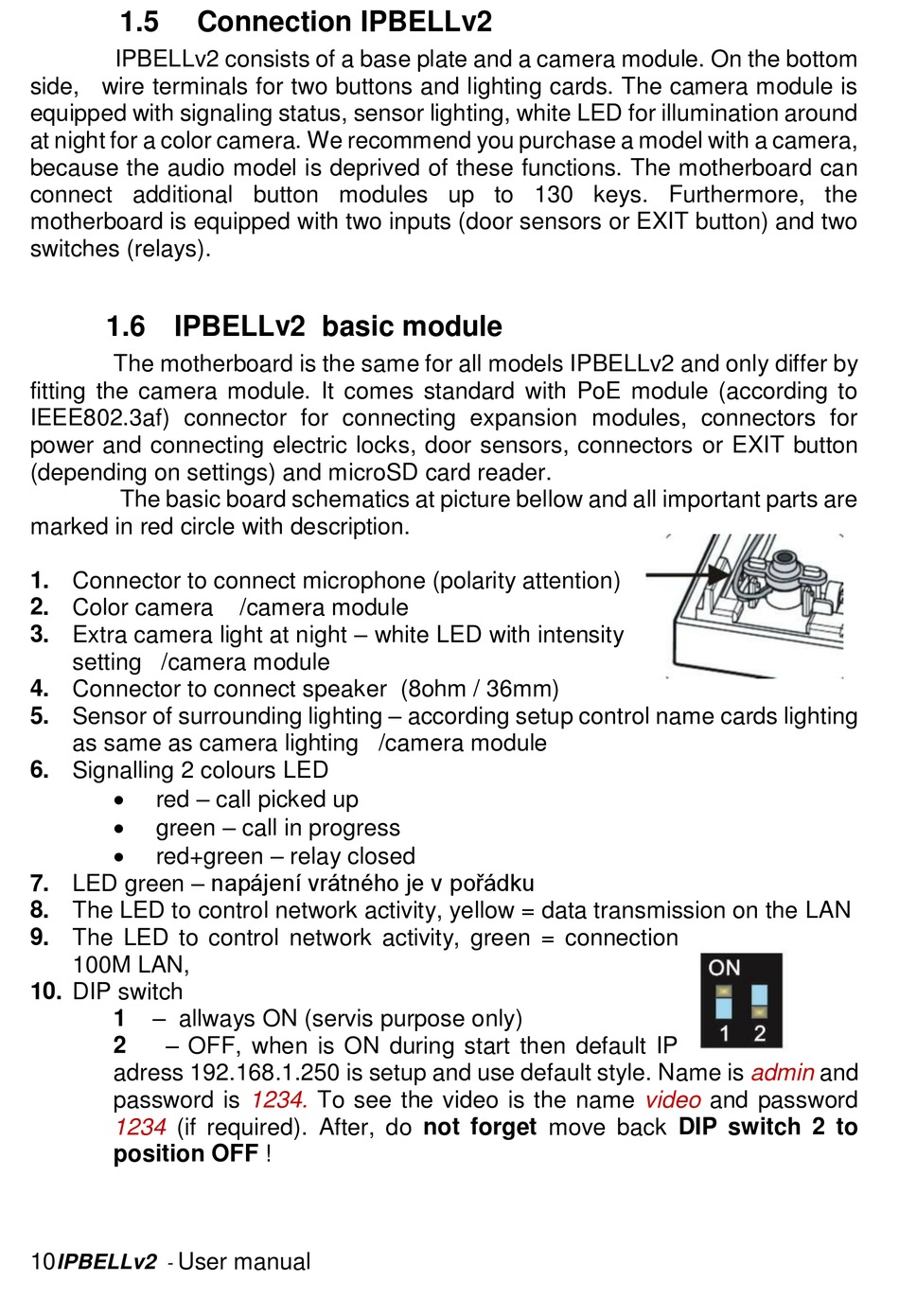

The basic board schematics at picture bellow and all important parts are
marked in red circle with description.
1. Connector to connect microphone (polarity attention)
2. Color camera
3. Extra camera light at night – white LED with intensity
setting /camera module
4. Connector to connect speaker (8ohm / 36mm)
5. Sensor of surrounding lighting – according setup control name cards lighting
as same as camera lighting /camera module
6. Signalling 2 colours LED
red – call picked up
green – call in progress
red+green – relay closed
7. LED green – napájení vrátného je v pořádku
8. The LED to control network activity, yellow = data transmission on the LAN
9. The LED to control network activity, green = connection
100M LAN,
10. DIP switch
– allways ON (servis purpose only)
1
– OFF, when is ON during start then default IP
2
adress 192.168.1.250 is setup and use default style. Name is
password is
1234
(if required). After, do not forget move back DIP switch 2 to
position OFF !
10
User manual
IPBELLv2
-
/camera module
1234.
To see the video is the name
admin
video
and password
and
