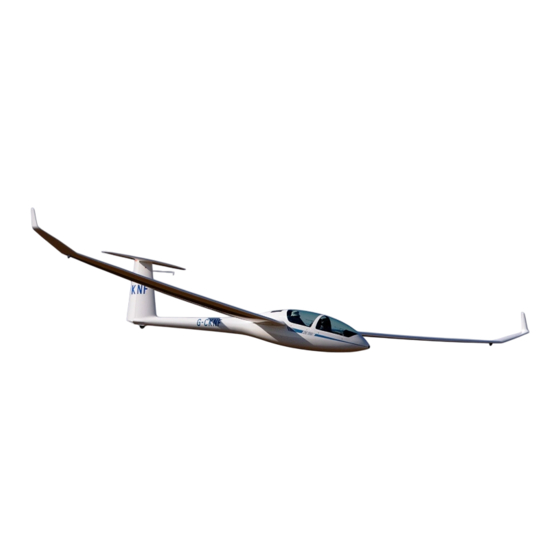

DG Flugzeugbau DG-1000 Flight Manual

Motorglider
Hide thumbs Also See for DG-1000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Repair Manual, Maintenance Manual
DG Flugzeugbau GmbH
Otto-Lilienthal-Weg 2 / Am Flugplatz  D-76646 Bruchsal  Germany
Postbox 1480, D-76604 Bruchsal  Germany
Tel. 07251/3020-100  Telefax 07251/3020-200  eMail: dg@dg-flugzeugbau.de
Spare part and material sales: Tel. 07251/3020-270  lager@dg-flugzeugbau.de
www.dg-flugzeugbau.de
Type:
DG-1000
Variant:
DG-1000T
Data Sheet No.: EASA.A.072
Factory Serial No.:
Registration No.:
Date of Issue:
Pages as indicated by "App." are approved by:
(Signature)
(Authority)
(Stamp)
(Original date of approval)
This motorglider is to be operated in compliance with information and
limitations contained herein.
F L I G H T M A N U A L
F O R T H E
M O T O R G L I D E R
DG-1000T
__________________________
__________________________
July 2005
____________________

Advertisement

Table of Contents
loading

Related Manuals for DG Flugzeugbau DG-1000

Summary of Contents for DG Flugzeugbau DG-1000

  • Page 1 DG Flugzeugbau GmbH Otto-Lilienthal-Weg 2 / Am Flugplatz  D-76646 Bruchsal  Germany Postbox 1480, D-76604 Bruchsal  Germany Tel. 07251/3020-100  Telefax 07251/3020-200  eMail: dg@dg-flugzeugbau.de Spare part and material sales: Tel. 07251/3020-270  lager@dg-flugzeugbau.de www.dg-flugzeugbau.de F L I G H T M A N U A L...
  • Page 2 A list of stations which have experience with DG aircraft may be obtained from DG Flugzeugbau.  Even if no annual inspections are required in your country, have your aircraft checked annually, see maintenance manual section 2.
  • Page 3 Flight manual DG-1000T 0 Revisions 0.1 Record of revisions Any revision of the present manual, except actual weighing data, must be recorded in the following table and in case of approved sections endorsed by the responsible airworthiness authority. The new or amended text in the revised page will be indicated by a black vertical line in the right hand margin, and the under lying document for the revision and the date will be shown on the bottom of the page.

  • Page 4: July

    Flight manual DG-1000T 0.1 Record of revisions continued Rev. Affected Description Issue EASA Inserted Pages/ Date Approval Date section Date Signature 0.3, 0.6, 0.7, Electrically operated Nov. 28. January 9.1-9.12 main landing gear 2008 2009 TN1000/14 0.6, 9.1, 9.2, Special equipment 20.
  • Page 5 Flight manual DG-1000T 0.2 List of effective pages Section page issued replaced replaced replaced replaced July 2005 July 2017 see manual amendments " " " " " July 2005 " " " " Febr. 2011 Febr. 2016 " Jan. 2007 Oct.
  • Page 6 Flight manual DG-1000T List of effective pages (cont.) Section page issued replaced replaced replaced replaced App. July 2005 " " " " Febr. 2011 Febr. 2016 " " " " Febr. 2011 " " Oct. 07 Febr. 2011 Oct. 2014 Febr. 2016 "...

  • Page 7: Table Of Contents

    Flight manual DG-1000T List of effective pages (cont.) Section Page issued replaced replaced replaced replaced July 2005 " " Febr. 2011 " Oct. 2014 " Febr. 2011 " Febr. 2011 July 2017 " Oct. 2014 " Jan. 2007 " 6.10 "...
  • Page 8 Flight manual DG-1000T List of effective pages (cont.) Section Page issued replaced replaced replaced replaced July 2005 " " " " " Nov. 2008 May 2010 " May 2010 " " " " " Febr. 2011 " Oct. 2014 " 9.10 "...
  • Page 9 Flight manual DG-1000T 0.3 Table of contents Section General (a non-approved section) Limitations (an approved section) Emergency procedures (an approved section) Normal procedures (an approved section) Performance (a partly approved section) Mass (weight) and balance (a non-approved section) Motorglider and systems description (a non-approved section) Motorglider handling, care and maintenance (a non-approved section) Supplements Issued: July 2005...
  • Page 10 Flight manual DG-1000T 1 General Section Page Introduction ....................1.2 Certification basis ..................1.2 Warnings, cautions and notes ..............1.3 Descriptive data ..................1.4 Three view drawing ................. 1.6 Issued: July 2005...

  • Page 11: Introduction

    Flight manual DG-1000T 1.1 Introduction The motorglider flight manual has been prepared to provide pilots and instructors with information for the safe and efficient operation of the DG- 1000T glider. This manual includes the material required to be furnished to the pilot by JAR Part 22.

  • Page 12: Warnings, Cautions And Notes

    Flight manual DG-1000T 1.3 Warnings, cautions and notes The following definitions apply to warnings, cautions and notes used in the flight manual. "Warning" means that the non observation of the corresponding procedure leads to an immediate or important degradation of the flight safety.

  • Page 13: Descriptive Data

    Flight manual DG-1000T 1.4 Descriptive data The DG-1000T is a self-sustainer two-place high performance motorglider with retractable powerplant for training and cross country flying and in addition for aerobatic training. The wings of the DG-1000T are made of carbon fibre reinforced plastics with a parting at y= 8,6m, there are four types of wing tips available with different spans: A) Wing elongations with 20 m span with winglets...
  • Page 14 Flight manual DG-1000T Powerplant and powerplant controls  Retractable powerplant with air- cooled Solo 2350C two stroke engine and CFRP-Composite propeller DG-P001-1  Electrical engine extension-retraction, operated automatically with the ignition switch or manually as back-up, electronic safety devices to avoid misoperation.

  • Page 15: Three View Drawing

    Flight manual DG-1000T 1.5 three view drawing (dimensions in mm) Issued: February 2016 TN1000/25...

  • Page 16: Issued: July

    Flight manual DG-1000T 2 Limitations Section Page Introduction ....................2.2 Airspeed ....................2.3 Airspeed Indicator Markings ..............2.4 Power plant ....................2.5 Power plant instrument markings (DEI-NT) ........... 2.5 Fuel ......................2.6 Mass (weight) ................... 2.7 Centre of gravity ..................2.8 Approved manoeuvres ................

  • Page 17: Introduction

    Flight manual DG-1000T 2.1 Introduction Section 2 includes operating limitations, instrument markings and basic placards necessary for safe operation of the glider, its standard systems and standard equipment. The limitations included in this section have been approved by the EASA. Issued: July 2005 EASA app.

  • Page 18: Airspeed

    Flight manual DG-1000T 2.2 Airspeed Airspeed limitations and their operational significance are shown below Speed Remarks km/h (kts.) VNE Never exceed Do not exceed this speed in any operation speed (146) and do not use more than 1/3 of control deflection.

  • Page 19: Airspeed Indicator Markings

    Flight manual DG-1000T 2.3 Airspeed Indicator Markings Airspeed indicator markings and their colour code significance are shown below. Marking (IAS) value Significance or range km/h (kts) Green Arc 88 – 185 Normal operating range (47.5 – 100) (Lower limit is the speed 1,1*V with maximum mass and foremost C.G.

  • Page 20: Power Plant

    (518°F) With Poly-V belt reduction gear 1:2,3 Propeller: Diameter 1.48 m (4.86 ft) Manufacturer: DG Flugzeugbau GmbH, Germany Model: DG-P001-1 2.5 Power plant instrument markings (on DEI-NT, DEI=digital engine indicator) Power plant instrument markings and their significance are shown below:...

  • Page 21: Fuel

    Flight manual DG-1000T Cylinderhead temperature indicator (CHT): On right hand upper side of the DEI-NT display, indication digital with 3 digits, limitation data printed above display: 270°C When exceeding this temperature a full screen warning “CHT overTemp” appears, when this warning has been confirmed (by pushing the selector knob at the right hand side of the display) the CHT display will keep blinking as long as the CHT is above the max.

  • Page 22: Mass (Weight)

    Flight manual DG-1000T 2.7 Mass (weight) Category A „Aerobatic“ Maximum take-off and landing mass: 630 kg 1389 lbs. Category „Utility“: with waterballast: Maximum take and landing off mass: 750 kg 1653 lbs. without waterballast: Maximum take-off and landing mass = W wings = Maximum mass of the non lifting parts (see below) = actual mass of the wings...

  • Page 23: Centre Of Gravity

    Flight manual DG-1000T 2.8 Centre of gravity Centre of gravity range in flight is 200mm (7.87 inch) up to 440mm (17.32 inch) behind datum. Datum = wing leading edge at the root rib. Horizontal reference line = aft fuselage centre line horizontal. C.G.

  • Page 24: Manoeuvring Load Factors

    Flight manual DG-1000T 2.10 Manoeuvring load factors The following load factors must not be exceeded: Category Utility Aerobatic at manoeuvring speed +5,3 -2,65 +7,0 -5,0 at max. speed +4,0 -1,5 +7,0 -5,0 with airbrakes extended +3,5 +3,5 0 2.11 Flight crew a) single seated, only permissible in the front seat max.

  • Page 25: Kinds Of Operation

    Flight manual DG-1000T 2.12 Kinds of operation A) All configurations Flights according to VFR (daylight) Aerotow Winch- and auto-launching B) In addition when flying without waterballast 1. Cloud flying (daylight): permitted when properly instrumented (see section 2.13). 2. Simple aerobatics see sect. 4.5.11.1. Category „Utility“ 3.

  • Page 26: Minimum Equipment

    Flight manual DG-1000T 2.13 Minimum equipment As minimum equipment only the instruments and equipment specified in the equipment list (see maintenance manual) are admissible. Note: The actual equipment list is filed in the enclosures of the maintenance manual. a) Normal operation Airspeed indicator Range: 0-300 km/h (0-165kts.);...

  • Page 27: Aerotow, Winch And Autotow Launching

    Flight manual DG-1000T 2.14 Aerotow, winch and autotow launching 2.14.1 Weak links in towing cables Winch aerotow launching max. 11000 N 11000 N (2425 lbs.) (2425 lbs.) 10000 N + 1000 N (2200 lbs.  220 lbs.) for tow recommended 10000 N + 1000 N behind aeroplanes (2200 lbs.

  • Page 28: Tyre Pressure

    Flight manual DG-1000T 2.16 Tyre Pressure Main wheel 2,5 bar (36 psi) Nose wheel (if installed) 2,5 bar (36 psi) Tail wheel 4,0 bar (58 psi) 2.17 Waterballast (Option) Max. capacity 80 l (21.1 U.S. gal) per wing. Filling the water ballast is only allowed with a filling system which enables determination of the exact amount of ballast filled, e.g.

  • Page 29: Other Limitations

    Flight manual DG-1000T 2.20 Other limitations Approach and landing Landing with the engine extended and running is prohibited, except in an emergency. Always land in the gliding configuration, engine retracted. 2.20.1 Warning: Self-launching is not permitted Issued: January 2007 TN 1000/10 EASA app.

  • Page 30: Limitations Placards

    Flight manual DG-1000T 2.21 Limitations placards DG Flugzeugbau GmbH Other cockpit placards Type: DG – 1000T Serial No.: 10- see section 7 Year of construction: Maximum airspeeds km/h kts. Winch launching Gepäck max. 15 kg Aero-tow baggage max. 33 lbs.
  • Page 31 Flight manual DG-1000T 3 Emergency procedures Section Page Introduction ....................3.2 Canopy jettison ..................3.2 Bailing out ....................3.2 Stall recovery ................... 3.2 Spin Recovery ..................3.3 Spiral dive recovery ................. 3.3 Recovery from unintentional cloud flying ..........3.3 Flight with asymmetric waterballast ............3.4 Defective fin ballast dump ...............

  • Page 32: Introduction

    Flight manual DG-1000T 3.1 Introduction Section 3 provides a checklist and amplification for coping with emergencies that may occur. Emergency situations can be minimized by proper pre-flight inspections and maintenance. Caution: Canopy jettison and bailing out should be practised several times on the ground before flying the aircraft.

  • Page 33: Spin Recovery

    Flight manual DG-1000T 3.5 Spin Recovery Apply full opposite rudder against direction of the spin, pause. Then ease stick forward until the rotation ceases, centralize the controls and carefully pull out of the dive. The ailerons should be kept neutral during recovery. Caution: To prevent unintentional spinning do not stall the motorglider.

  • Page 34: Flight With Asymmetric Waterballast

    Flight manual DG-1000T 3.8 Flight with asymmetric waterballast If you suspect that the waterballast does not dump symmetrically you have to close the dump valves of the wingtanks immediately, to avoid greater asymmetry. Asymmetry can be verified by the necessary aileron deflection in straight flight at low airspeeds.

  • Page 35: Emergency Ground Loop

    Flight manual DG-1000T 3.11 Emergency ground loop If there is the risk of overshooting the landing strip you have to decide at least 40 m (130 ft) before the end of the field to execute a controlled ground loop: - If possible turn into the wind! - At the same time try to lift the tail by pushing the stick forward.

  • Page 36: Fires

    Flight manual DG-1000T 3.14 Fires 3.9.1 In engine on the ground - close fuel cock and switch off ignition if the engine is still running - keep engine extended - switch off main switch - use extinguisher, cloth or suitable external means 3.9.2 In engine in flight - close fuel cock - switch off main switch...

  • Page 37: Loss Of Electrical Power In Flight

    Flight manual DG-1000T 3.15 Loss of electrical power in flight 3.11.1 With the engine retracted: Continue flying as a sailplane. 3.11.2 With the engine extended not running: Look for a landing field to do a safe outlanding. 3.11.3 With the engine extended and running: Don't stop the engine.

  • Page 38: Landing With The Engine Extended And Stopped

    Flight manual DG-1000T 3.18 Landing with the engine extended and stopped Landing with the engine extended and stopped is not a potential risk. However due to the drag from the extended engine, the approach should be made not using airbrakes fully extended. Fully extended airbrakes may result in a heavy and uncomfortable landing.
  • Page 39 Flight manual DG-1000T 4 Normal procedures Section Page Introduction ....................4.2 Rigging and derigging, filling the watertanks ......... 4.2 4.2.1 Rigging ....................4.2 4.2.2 Filling the wing water ballast tanks ........... 4.4 4.2.3 Filling the fin ballast tank ..............4.5 4.2.4 Ballast box in the fin ................

  • Page 40: Introduction

    Flight manual DG-1000T 4.1 Introduction This section provides checklist and amplification procedures for the conduct of normal operation. Normal procedures associated with optional systems can be found in section 9. 4.2 Rigging and derigging, filling the watertanks 4.2.1 Rigging 1. Open the rear canopy. 2.
  • Page 41 Flight manual DG-1000T 4. Rigging of the stabilizer Battery box in the fin: Check if the securing wire 10L35 (made from piano wire) is installed. If a battery is to be installed refer to section 4.2.5, connect the battery. Cautiong: Rigging of the horizontal tailplane is only permitted with nose down trim-setting.

  • Page 42: Filling The Wing Water Ballast Tanks

    Flight manual DG-1000T 4.2.2 Filling the wing water ballast tanks First open the fin tank and then open the right wing tank valve (top handle). Place the right wing tip on the ground. Attach the hose in the water outlet on the lower surface of the wing.

  • Page 43: Filling The Fin Ballast Tank

    Flight manual DG-1000T 4.2.3 Filling the fin ballast tank This tank must be filled after filling the wingtanks. Determine the amount (see section 6.8.6). Connect the transparent funnel equipped filling hose (supplied with the aircraft) via the hose connector GRS 10-12 to the hose which comes out of the left rear end of the fuselage.

  • Page 44: Installation Of A Battery In The Fin

    Flight manual DG-1000T 4.2.5 Installation of a battery in the fin A battery in the fin may be installed optionally. To accomplish the installation the locking bow (part 10L35 made from piano wire) must be removed. The locking bow prevents the installation of a battery and serves as indicator if a battery is installed, as its ends are visible from the outside.

  • Page 45: Daily Inspection

    Flight manual DG-1000T 4.3 Daily Inspection Please bear in mind the importance of the inspection after rigging the glider and respectively each day prior to the first take off. It is for your safety. Caution: After a heavy landing or if other high loads have been imposed on your motorglider, you must execute a complete inspection referring to maintenance manual sect.
  • Page 46 Flight manual DG-1000T Inspection after rigging - Walk around the aircraft All parts of the airframe:- check for flaws such as bubbles, holes, bumps and cracks in the surface; check leading and trailing edges of the wings and control surfaces for cracks;...
  • Page 47 Flight manual DG-1000T C.G. Tow hook:- check the ring muzzle of the C.G. hook for wear and function; check for cleanliness and corrosion; Main landing gear and nose wheel (if fitted):- check the struts, the gear box, the gear doors and the tyre for wear; dirt in the struts can hinder the landing gear from locking over centre the next time!;...
  • Page 48 Flight manual DG-1000T m) check the outlet of the fuel tank ventline for cleanliness, the outlet is located behind the landing gear box. n) check if the propeller-stopper will be pressed forward by its gas-strut, the powerplant must be in the position propeller-stopper extended for this check.

  • Page 49: Pre-Flight Inspection

    Flight manual DG-1000T 4.4 Pre-flight inspection 1. Lead ballast (for under weight pilot)? 2. Parachute worn properly? 3. Safety harness buckled? 4. Front seat: pedals adjusted? Rear seat: seating height adjusted? 5. All controls and knobs in reach? 6. Altimeter? 7.

  • Page 50: Normal Procedures And Recommended Speeds

    Flight manual DG-1000T 4.5 Normal procedures and recommended speeds 4.5.1 Launch Due to the towhook position being in the middle of the fuselage and the excellent effectiveness of the ailerons and rudder, the possibility of wing dropping or ground loops, even on a slowly accelerating aerotow is reduced. Take-off with strong crosswind is possible.

  • Page 51: Free Flight

    Flight manual DG-1000T 3. The DG-1000T pilot should keep his left hand at the throttle handle to enable him to close the throttle immediately in case the tow-plane terminates the tow (This is a standard procedure for powered aircraft pilots). 4.

  • Page 52: Cruise Engine On

    Warning: if there is a problem with the elastic damper element of the propeller adapter, the power plant may oscillate around its vertical axis with low frequency (1-10 Hz). If such oscillations start, switch off the ignition immediately. Report to DG Flugzeugbau prior to next engine use. 4.5.4 Powerplant extension-retraction in flight 4.5.4.1 Extension and starting the engine in flight...
  • Page 53 Flight manual DG-1000T 4.5.4.2 Stopping and retracting the engine in flight 1. Fly at 85-90 km/h (46-49 kts). 2. Bring the throttle back to idle. 3. Switch off the ignition. 4. The powerplant will be automatically retracted a certain distance to reduce the rotational forces on the propeller.
  • Page 54 Flight manual DG-1000T 4.5.4.3 Starting problems The engine is equipped with electric fuel injection (primer) instead of a choke valve. The automatic control of the primer enables engine starting with little risk of misoperation. To inspect the correct functions of the primer the DEI-NT displays a syringe symbol as long as fuel is injected (primer valve open).

  • Page 55: Approach And Landing

    Flight manual DG-1000T 4.5.5 Approach and landing Note: Always land in the gliding configuration, engine retracted, except in an emergency. 4.5.5.1 Normal landing It is recommended to dump the waterballast before landing even on airfields. Dump the ballast before an outlanding in any case. Abeam the landing point extend the landing gear.

  • Page 56: Engine Retraction On The Ground

    Flight manual DG-1000T 4.5.5.2 Landing with the engine extended and stopped See emergency procedures sect. 3.18. Land with the engine extended only if the engine can't be retracted. 4.5.5.3 Landing with the landing gear retracted Wheel-up landing is not recommended see emergency procedures section 3.10. After wheel-up landing check the fuselage belly and the tow hook for damage.
  • Page 57 Flight manual DG-1000T 4.5.7.2 Fin water ballast tank For optimal thermalling performance and handling water ballast in the fin tank should be used to compensate the forward movement of C.G. due to the mass of the wing water ballast. Please refer to section 6.8.6. Warning: It is prohibited to use the fin tank in icing conditions see sect.

  • Page 58: Flight At High Altitude And At Low Temperatures

    Flight manual DG-1000T 4.5.8 Flight at high altitude and at low temperatures With temperatures below 0°C (32°F) for instance when wave flying or flying in winter, it is possible that the control circuits could become stiffer. Special care should be taken to ensure that there is no moisture on any section of the control circuits to minimize the possibility of freeze up.

  • Page 59: Flight In Rain And Thunderstorms

    Flight manual DG-1000T 4.5.9 Flight in rain and thunderstorms With light rain the stall speed and the sink rate increases slightly and the approach speed has to be increased. Warning: Flights and especially winch launches in the vicinity of thunder storms should be avoided.

  • Page 60: Aerobatics

    Flight manual DG-1000T 4.5.11 Aerobatics Caution: The DG-1000T is a high performance motorglider. Therefore the speed increase in the dive, especially in inverted flight is high. Training aerobatics therefore should only be executed after a rating with an experienced pilot, or if you can master the manoeuvres on other motorglider types.
  • Page 61 Flight manual DG-1000T Spins Caution: Prolonged spinning is satisfactorily accomplished with aft C.G. positions. If prolonged spinning is intended, ballast in the ballast box in the fin should be used to achieve an aft C.G. position, see section 6.8.7. It is not necessary to extend the dive brakes during spin recovery. The DG- 1000T displays a large nose down pitch attitude after leaving the spin.
  • Page 62 Flight manual DG-1000T Stall turn To fly a stall turn safely, proceed as follows: Don’t choose an entry speed of less than 200 km/h (108 kts.). During the pull out, when reaching the vertical flight path initiate rotation at min. 150 km/h (81 kts.) with the rudder. Push the rudder quickly, but not abruptly.
  • Page 63 Flight manual DG-1000T 4.5.11.2 Category A, Aerobatic Only approved with 17,2m span or 18m span without winglets, power plant retracted or removed and without water ballast, max. mass 630 kg (1389 lbs.) and with the weight of the rear pilot compensated by ballast in the ballast box in the fin see section 6.8.7 and with the required equipment installed see section 2.13.
  • Page 64 Flight manual DG-1000T Inverted flight The speed in inverted flight should preferably be chosen between 120-200 km/h (65-108 kts.). At speeds greater than 185 km/h (100 kts.) no full control deflections are allowed. Warning: When the speed is reduced below the minimum speed (depending on weight and C.G.
  • Page 65 Flight manual DG-1000T Slow roll After reaching the entry speed of 180 - 200 km/h (97-108 kts.) the nose must be raised slightly above the horizon. After returning the stick to neutral, full aileron has to be applied in the desired direction. When the wing passes the vertical position the rudder must be applied a little in upwards direction.
  • Page 66 Flight manual DG-1000T Flick manoeuvres The flick manoeuvres which have been tested with the DG-1000T should only be executed by experienced aerobatic pilots. The result is dependent as for any other motorglider on several parameters like inducing control speed, C.G. position, control movement during rotation etc.

  • Page 67: Flight With The Engine Removed From The Aircraft

    Flight manual DG-1000T 4.6 Flight with the engine removed from the aircraft The DG-1000T can be flown without the engine when the engine is sent for a major overhaul, or removed to decrease the aircraft empty weight for competition flying or for aerobatics. The following items must be executed: (see sect.
  • Page 68 Flight manual DG-1000T 5 Performance Section Page Introduction ....................5.2 Approved data ..................5.3 5.2.1 Airspeed indicator system calibration ..........5.3 5.2.2 Stall speeds ..................5.4 Additional Information ................5.5 5.3.1 Demonstrated crosswind performance ..........5.5 5.3.2 Gliding performance ................5.5 5.3.3 Flight polar with 20 m wing span ............

  • Page 69: Introduction

    Flight manual DG-1000T 5.1 Introduction This section provides approved data for airspeed calibration, stall speeds and non-approved additional information. The data in the charts has been computed from actual flight tests with the motorglider in good and clean condition and using average piloting techniques. Issued: February 2011 TM 1000/18 EASA app.

  • Page 70: Approved Data

    Flight manual DG-1000T 5.2 Approved data 5.2.1 Airspeed indicator system calibration IAS = indicated airspeed CAS = calibrated airspeed max. upper tolerance max. lower tolerance measurement IAS=CAS IAS [km/h] 1 kts = 1 km/h / 1.852 Caution: The airspeed indicator is to be connected to the static ports and pitot probe in the fuselage nose.

  • Page 71: Stall Speeds

    Flight manual DG-1000T 5.2.2 Stall speeds The given speeds are the minimum achievable speeds during level flight in km/h and (kts.). Airbrakes retracted 20m span mass kg mass lbs. 1036 1102 1213 1323 1433 1543 1653 W/S kg/m² 26,8 28,5 31,4 34,2 37,1...

  • Page 72: Additional Information

    Flight manual DG-1000T 5.3 Additional Information 5.3.1 Demonstrated crosswind performance The demonstrated crosswind velocity is 15 km/h (8 kts) according to the airworthiness requirements. 5.3.2 Gliding performance 1 kts= 1 km/h / 1.852, 1 m/s= 197 ft/min.= 1.94 kts, 1 kg/m²= 0.2048 lbs/ft² Performance data with 20 m span (S = 17,53 m²) wing loading kg/m²...

  • Page 73: Flight Polar With 20 M Wing Span

    Flight manual DG-1000T 5.3.3 Flight polar with 20 m wing span 1 kts= 1 km/h / 1.852, 1 m/s= 197 ft/min.= 1.94 kts, 1 kg/m²= 0.2048 lbs/ft² Issued: January 2007 TN 1000/10...

  • Page 74: Flight Polar With 18 M Wing Span

    Flight manual DG-1000T 5.3.4 Flight polar with 18 m wing span 1 kts= 1 km/h / 1.852, 1 m/s= 197 ft/min.= 1.94 kts, 1 kg/m²= 0.2048 lbs/ft² Issued: January 2007 TN 1000/10...

  • Page 75: Performance Under Power

    Flight manual DG-1000T 5.3.5 Performance under power 5.3.5.1 Rate of climb Measured rates of climb for 15°C (59°F) at MSL. 15°C increase in temperature reduces the rate of climb by ca. 0.2 m/s (40 ft/min.). R/C = climb rate at Vy = 90 km/h (49 kts.) and with flap setting +8° = altitude above sea leve 1 m/s= 197 ft/min.

  • Page 76: Noise Data

    Flight manual DG-1000T 5.3.5.2 Cruising Flight The cruising speed is approx. 127 km/h (69 kts.) with maximum continuous power 6100 RPM. 5.3.5.3 Maximum operational altitude The maximum operational altitude is more than 4000 m (13100 ft) MSL. For continuous operation at higher altitudes, the main nozzles in the carburettors may be set to a smaller fuel flow in accordance with the engine manufacturer.
  • Page 77 6.8.6 Fin ballast tank (Option) ..............6.5 6.8.7 Ballast box in the fin ................6.6 6.8.8 Weighing report (for section 6.3) ............6.7 6.8.9 Empty weight C.G. limits (for 6.4) ............ 6.8 6.8.10 DG-1000 ballast chart (for 6.8.5) ............6.9 C.G. calculation 6.10 Issued: July 2005...

  • Page 78: Introduction

    Flight manual DG-1000T 6.1 Introduction This section contains the payload range within which the motorglider may be safely operated. A procedure for calculating the in-flight C.G. is also provided. A comprehensive list of all equipment available for this motorglider is contained in the maintenance manual.

  • Page 79: Mass Of All Non-Lifting Parts (Wnlp)

    Flight manual DG-1000T 6.5 Mass of all non-lifting parts (WNLP) The max. mass of all non-lifting parts is 554 kg (1221 lbs.). WNLP is to be determined as follows: WNLP = WNLP empty + cockpit load (pilots, parachute, baggage, trim ballast, fuel, waterballast in the fin, removable items of equipment etc.).

  • Page 80: Loading Chart

    Flight manual DG-1000T 6.8 Loading chart 6.8.1 Cockpit load see weighing report section 6.8.8. a) single seated: max. load in the front seat 110 kg (242 lbs) min. load in the front seat see placard in cockpit and weighing report b) two-seated: max.

  • Page 81: Battery In The Fin

    Flight manual DG-1000T 6.8.4 Battery in the fin Only the use of the factory supplied battery Z110 (mass 5.5 kg, 12.1 lbs.) is permitted. Only heavy pilots should install a battery in the fin. The battery in the fin raises the min. front cockpit load by 16 kg (35 lbs.). Note: The fin battery equals (concerning the C.G.) 39 kg pilot mass in the rear cockpit.

  • Page 82: Ballast Box In The Fin

    Flight manual DG-1000T 6.8.7 Ballast box in the fin a) Compensation of the C.G. shift due to the rear pilot: The ballast box can accommodate max. 4 weights of 2,4 kg mass (heavy weight) and 2 weights of 1,2 kg mass (light weight), so the max. mass is 12 kg. The number of weights can be determined by the following table: Mass of rear pilot Number of trim Number of blinks of the lamp in the...

  • Page 83: Weighing Report (For Section 6.3)

    Flight manual DG-1000T 6.8.8 Weighing report (for section 6.3) Distances in mm, masses in kg -- 25.4 mm = 1 inch / 1 kg = 2.2046 lbs. Date of weighing: Executed by: Date of equipment list: wing span Empty mass Empty mass C.G.

  • Page 84: Empty Weight C.g. Limits (For 6.4)

    Flight manual DG-1000T 6.8.9 Empty weight C.G. limits (for 6.4) 1 mm=1 in./25.4, 1 kg= 2.2046 lbs 790,0 785,0 780,0 775,0 770,0 765,0 760,0 755,0 750,0 745,0 740,0 735,0 Load front seat 730,0 725,0 65 kg 70 kg 720,0 75 kg 715,0 80 kg 710,0...

  • Page 85: Dg-1000 Ballast Chart (For 6.8.5)

    Flight manual DG-1000T 6.8.10 DG-1000 ballast chart (for 6.8.5) To determine the max. allowable waterballast in the wing tanks for max. take- off weight 750kg 1 kg = 2.2046 lbs. 3.785 kg (l) = 1 US gal. Issued: July 2005...
  • Page 86 Flight manual DG-1000T 6.9 C.G. calculation The actual C.G. can be determined as follows: For each item, the moment mass x C.G. has to be determined and to be added up and divided by the total mass. See the following example: 1 kg = 2.2046 lbs.
  • Page 87 Flight manual DG-1000T If the actual pilot C.G. is not known, you have to take the values from the following table: flight: v = near the forward C.G. h = near the aft C.G. Pilot C.G. lever [m] Pilot mass [kg] Front cockpit Rear cockpit -1,388...
  • Page 88 Flight manual DG-1000T 7 Motorglider and systems description Section Page Introduction ....................7.2 Airframe ....................7.2 Cockpit, cockpit controls and placards ............ 7.3 DEI-NT Operation ................. 7.10 Flight controls ..................7.17 Airbrakes ....................7.17 Landing gear ..................7.18 Tow hooks ....................7.18 Seats and safety harness .................

  • Page 89: Introduction

    Flight manual DG-1000T 7.1 Introduction This section provides description and operating of the motorglider and its systems. M.M. = Maintenance manual Refer to section 9 "Supplements" for details of optional systems and equipment. 7.2 Airframe The DG-1000T is a two-place high performance motorglider, either with 18 m span or with 20 m span and permanently installed winglets Construction...

  • Page 90: Cockpit, Cockpit Controls And Placards

    Flight manual DG-1000T 7.3 Cockpit, cockpit controls and placards Issued: July 2005...
  • Page 91 Flight manual DG-1000T 1) Control column The rear control stick is removable. First open the snap shackle at the trim release lever to disengage the trim cable. Pull out the stick after unscrewing the cap nut. 2) Release lever for the trim mechanism - green Operation see section 7.5 elevator control 3) Trim position indicator and trim preselection lever 4) Tow release knob - yellow...
  • Page 92 Flight manual DG-1000T 10) Undercarriage retraction - extension handle - black back = retracted, front = extended, The undercarriage is locked in the extended position by an overcentre locking arrangement and an additional safety catch. The handle is to be turned towards the cockpit wall, so that the locking catch will engage.
  • Page 93 Flight manual DG-1000T 17) Canopy emergency release handle - red towards the nose = closed into cockpit = open For emergency release also handle 16 has to be operated! 18) Water ballast dump handles - silver lever on top of the handles = fintank Rotate backward to dump.
  • Page 94 Flight manual DG-1000T 24. DEI-NT with integrated ignition switch: Switching up the ignition (the toggle has to be pulled out for switching). raises the powerplant to its operating position automatically Switching off the ignition: First the powerplant will be retracted to the position for stopping the propeller from turning.
  • Page 95 Flight manual DG-1000T 29. Throttle handle with integrated Throttle starter button The starter button is only activated when the engine is extended and the ignition switch is in the "on" position. Starter With the engine running the starter motor will be blocked automatically. Aligning the propeller for retraction with the starter button If after stopping the propeller is not in the retraction position, it is possible to turn the propeller slowly with the starter motor into retraction position...
  • Page 96 Flight manual DG-1000T 35. DEI-NT in the rear cockpit (Option) with integrated ignition switch: The ignition is only on and the powerplant will be extended, if the ignition switches in both cockpits are in the on position. As soon as 1 ignition switch will be switched off, the ignition is off and the powerplant will be retracted.

  • Page 97: Dei-Nt Operation

    Flight manual DG-1000T 7.4 DEI-NT Operation ignition switch selector knob After turning on the main switch the DEI-NT shows a screen with operating times. Then the screen changes to the gliding screen (powerplant retracted) or to the powered flight screen (powerplant not retracted). You may change to other screens by pushing the selector knob (right hand side) until the DEI_NT beeps twice.
  • Page 98 Flight manual DG-1000T 7.4. 1. a) Gliding screen Upper centre: Stall factor, see set up menu. Upper right: Time, instead of the time CHT will be displayed as long as the CHT is above 50°C. 7.4.1. b) Powered flight screen Upper centre: a) With the engine running the engine RPM will be displayed.
  • Page 99 Flight manual DG-1000T c) When starting the engine a syringe symbol will be displayed (primer switch on auto position) whilst the primer valve is open. If the engine will not accelerate when increasing throttle you may press the starter button again to activate the primer again. The syringe symbol will be displayed again.
  • Page 100 Flight manual DG-1000T 7.4.4 Set up screen (menu) On this screen 4 lines are displayed at a time, one of them is displayed negative and may be edited. Choose the line which is to be edited via the selector knob Editing values: Push the selector knob, the DE-NT will beep once and the first value which may be edited will be displayed positive...
  • Page 101 Flight manual DG-1000T CAUTION: If the stall factor is set to 0.89 the stall warning is switched off completely. This setting is only allowed to eliminate a permanent stall warning in case a sensor fails. Send the DEI for repair to the manufacturer as soon as possible.
  • Page 102 Flight manual DG-1000T Warning messages: Upper line displays "Warning " and is blinking, 2. line displays: - "Canopy Open!" = rear canopy not locked - "Spoiler" = airbrakes not locked, this warning is displayed only prior to and during take-off and will not be displayed when airbrakes are unlocked during the flight - "Raise Gear"...
  • Page 103 Flight manual DG-1000T Switch Error: wrong consecution of switches during powerplant extension If the DEI-NT has detected a wrong sequencing of the limit switches during powerplant extension, the powerplant will not be retracted automatically after stopping the engine, but the system switches over to manual operation and „Switch Error“...

  • Page 104: Flight Controls

    Flight manual DG-1000T 7.4.7 DEI-NT in the rear cockpit (Option) The DEI-NT in the rear cockpit is operated as a slave of the front DEI-NT. The functions and screens are similar to the front DEI-NT but no Flight log screen and no Set up screen and their functions are available. Instead of the failure message "Engine Info"...

  • Page 105: Landing Gear

    Flight manual DG-1000T 7.7 Landing gear The DG-1000T is available with 3 different versions of the undercarriage: A) Very high, spring mounted, retractable main wheel with hydraulic disc brake, see diagram 7 M.M, tail wheel. B) High spring mounted retractable main wheel with hydraulic disc brake, see diagram 8 M.M, tail and nose wheel C) Spring mounted, fixed main wheel with disc brake, see diagram 9 M.M., tail and nose wheel.

  • Page 106: Seats And Safety Harness

    Flight manual DG-1000T 7.9 Seats and safety harness The front seat is constructed as an integral inner shell. The rear seat is height adjustable. The adjustment is by means of a strap similar to the shoulder harness. As safety harness only symmetric 4-point harnesses fixed at the given fixing points are allowed.

  • Page 107: Ballast Box In The Fin

    Flight manual DG-1000T 7.12 Ballast box in the fin A box for ballast (trim-weights) is installed in the fin. It can be used to compensate the mass of the rear pilot and as a trim-possibility for heavy pilots. Max. ballast capacity: 12 kg. Filling see section 4.2.4, determination of the permissible amount of ballast see section 6.8.7.

  • Page 108: Electrical System

    To charge the battery to its full capacity a charger with 14.4 V max. charging voltage is necessary (normal automatic chargers charge only up to 13.8V). Such a charger is available from DG Flugzeugbau code no. Z 08. 7.14.4 Wiring All current - carrying wiring confirms to aeronautical specifications.

  • Page 109: Pitot And Static System

    Flight manual DG-1000T 7.15 Pitot and static system see diagram 8 M.M. Pitot probe in fuselage nose, static ports a short distance behind fuselage nose. The airspeed indicator and the altimeter are to be connected to these ports and probe. Probe (PC) for the stall warning device below the fuselage nose.

  • Page 110: Miscellaneous Equipment (Options)

    Z 14 (available at DG-Flugzeugbau GmbH). b) Installation of the oxygen equipment To ensure a safe installation ask DG Flugzeugbau for an installation instruction. For the installation of the Dräger Höhenatmer E 20088 you will find an installation plan 5EP34 in the maintenance Manual.
  • Page 111 Instead of the standard tailwheel with plastic hub S23 a tailwheel with brass hub S27/1 may be installed. The installation kit S27/4 is available at DG Flugzeugbau. The difference in mass between both hubs is 3.1 kg (6.84 lbs.). With the brass hub the min.
  • Page 112 Flight manual DG-1000T 8 Motorglider handling, care and maintenance Section Page Introduction ....................8.2 Inspection period, maintenance ............... 8.2 Alterations or repairs ................8.3 Tie Down, Parking ................... 8.3 Transport ....................8.4 Towing on the ground ................8.4 Cleaning and Care ..................8.5 Issued: July 2005...

  • Page 113: Introduction

    Flight manual DG-1000T 8.1 Introduction This section contains manufacturer's recommended procedures for proper ground handling and servicing of the motorglider. It also identifies certain inspection and maintenance requirements which must be followed if the motorglider is to retain that new-plane performance and dependability. It is wise to follow a planned schedule of lubrication and preventive maintenance based on climatic and flying conditions encountered.

  • Page 114: Alterations Or Repairs

    Flight manual DG-1000T 8.3 Alterations or repairs It is essential that the responsible airworthiness authority be contacted prior to any alterations on the aeroplane, to ensure that the airworthiness of the motorglider is not impaired. It is prohibited to execute the alteration without the approval of the airworthiness authority.

  • Page 115: Transport

    The tow bar and wing tip wheel and the tail dolly may be ordered through the DG Flugzeugbau factory. Issued: July 2005...

  • Page 116: Cleaning And Care

    Flight manual DG-1000T 8.7 Cleaning and Care Exterior surfaces of the fibre-reinforced plastic parts The surfaces are coated by a UP-gelcoat or Polyurethane paint (Option). This surface is protected by a hard wax coating which has been applied during production with a rotating disc ("Schwabbel" procedure). Do not remove the wax, because this would lead to shading, swelling and cracking of the surface.
  • Page 117 Flight manual DG-1000T Plexiglas canopy - Use clean water and a chamois for cleaning. - Stubborn dirt and small scratches can be removed by use of the "Schwabbel procedure" (see maintenance manual sect. 3.1). Metal parts - The pins and bushes for rigging the aircraft are not surface protected and must be covered with grease at all times.
  • Page 118 Flight manual DG-1000T 9 Supplements Section page Introduction List of inserted supplements Electrically operated main landing gear 9.3 – 9.12 Special equipment for very small pilots 9.13 Issued: May 2010 TN1000/17...
  • Page 119 Flight manual DG-1000T 9.1 Introduction This section contains the appropriate supplements necessary to safely and efficiently operate the sailplane when equipped with various optional systems and equipment not provided with the standard sailplane. 9.2 List of inserted supplements Date of Document No.
  • Page 120 Flight manual DG-1000T 9.3 Electrically operated main landing gear Introduction In the following text the changes to those sections of the flight manual which are affected by the installation of the electrically operated main landing gear will be given Section 1 General Descriptive data Subsection amended With landing gear version A) the main landing gear may be operated electrically...
  • Page 121 Flight manual DG-1000T Section 2 Limitations subsections amended 2.2 Airspeed Note: VLO is not changed compared to the manually operated main landing gears Speed Remarks km/h (kts.) VLO Maximum landing Do not extend or retract the landing gear gear operating (100) above this speed.
  • Page 122 Flight manual DG-1000T Section 3 Emergency procedures new subsection 3.19 Emergency extension of the electrically operated main landing gear If extending the landing gear via the electrical system is not possible, the landing gear may be extended manually. The extension force is produced by a gas strut. For emergency extension pull on one of the 2 black-red emergency extension handles (located at the left hand fuselage wall, one in each cockpit), pull the handle until the landing gear is fully extended.
  • Page 123 Flight manual DG-1000T Section 4 Normal procedures 4.2 Rigging and derigging new subsection 4.2.8 Extension and retraction of the electrically operated main landing gear Extension see 4.5.12.1 normal procedures Warning: The main landing gear can only take up the weight of the glider when fully extended and locked.
  • Page 124 Flight manual DG-1000T 4.5 Normal procedures new subsection 4.5.12 Electrically operated main landing gear 4.5.12.1 Extension and retraction in flight Retraction: For retraction switch and hold the toggle switch up and press the press button twice within 2 seconds. With each press on the button a signal will sound.
  • Page 125 2 seconds. b) Hold the press button pressed and switch up the toggle switch 2 times within 2 seconds. Caution: If you leave the DG-1000 unattended switch off the main switch to prevent any operating error. Issued: October 2014...
  • Page 126 Flight manual DG-1000T Section 7 Sailplane and system description 7.3 Cockpit, cockpit controls and placards Subsection amended Controls and control lights for the electrically operated landing gear in front and rear instrument panel (upper left hand side): Toggle switch for extension and retraction of the electrically operated main landing gear retracted and locked down...
  • Page 127 Flight manual DG-1000T 45) Landing gear emergency extension handles black-red The handles are located at the left hand fuselage wall, one in each cockpit at the positions of the handles for the manually operated landing gears, item 10). For emergency extension pull on one of the 2 red emergency extension handles, pull the handle until the landing gear is fully extended.
  • Page 128 Flight manual DG-1000T 7.7 Landing gear Subsection amended D) Very high, spring mounted, electrically operated retractable main landing gear, wheel with hydraulic disc brake, see diagrams 20 and 21 M.M, tail wheel With this version there are no handles and control rods for manual operation of the landing gear like Version A.
  • Page 129 Flight manual DG-1000T 7.14 Electrical system Subsection amended Electrical system with electrically operated landing gear Wiring see wiring plan 10E4 enclosed to the maintenance manual. Fuses: The electrically operated landing gear is protected by an automatically reset fuse in the landing gear control unit. Landing gear warning: A landing gear warning device is integrated into the system.
  • Page 130 Instead of the approx. 70 mm (2.8 in.) thick head cushion a thinner head cushion approx. 40 mm (1.6 in.) thick may be used. f) DG-1000 up to ser. no. 10-18: Remove the head rest from the seat (screwed connection. When removing the seat back reinstall the headrest.
