DG Flugzeugbau DG200 Flight Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

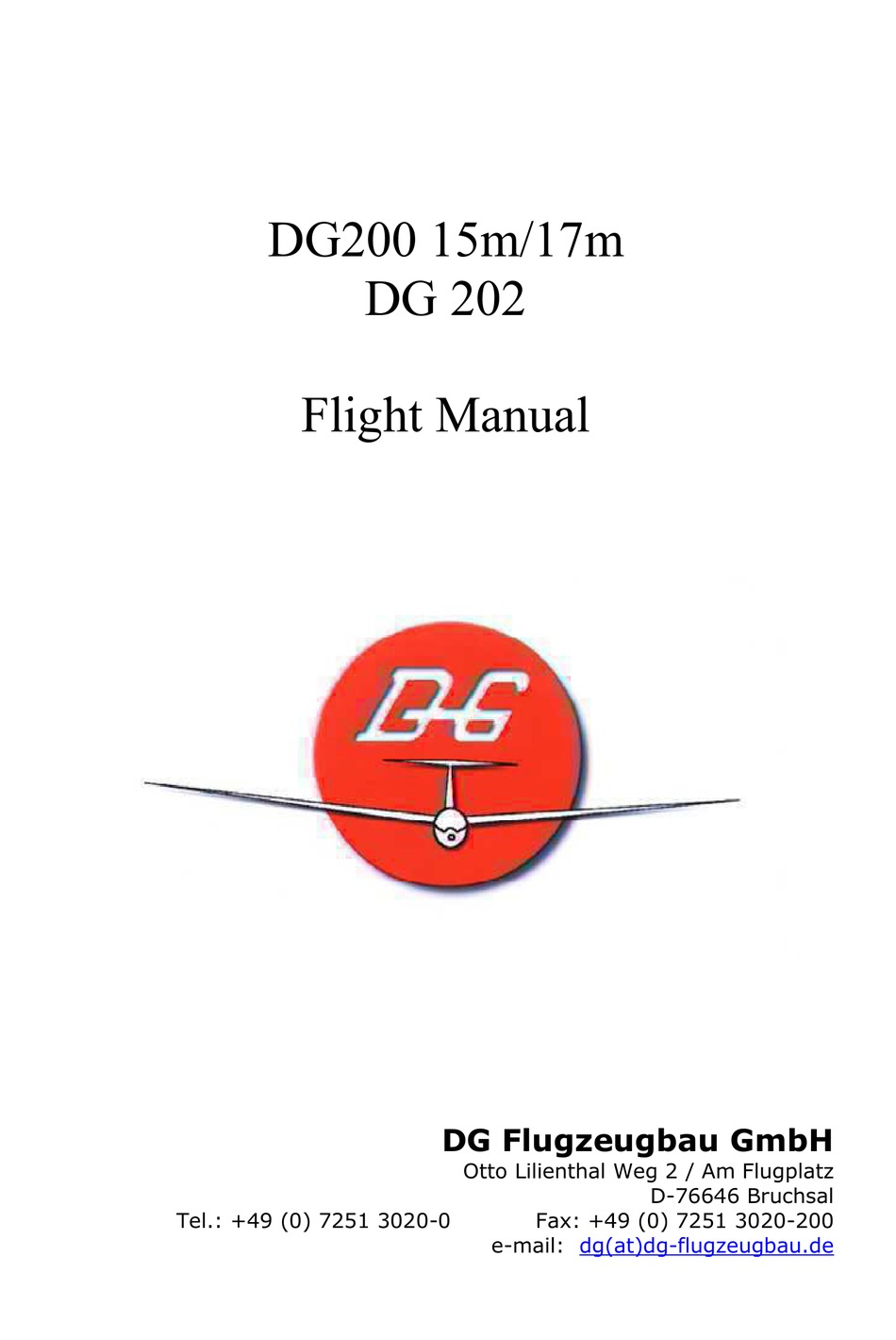

DG200 15m/17m
DG 202
Flight Manual
'* )OXJ]HXJEDX *PE+
2WWR /LOLHQWKDO :HJ
$P )OXJSODW]
'
%UXFKVDO
7HO
)D[
H PDLO
GJ DW GJ IOXJ]HXJEDX GH

Advertisement

Table of Contents
loading

Related Manuals for DG Flugzeugbau DG200

Summary of Contents for DG Flugzeugbau DG200

  • Page 1 DG200 15m/17m DG 202 Flight Manual '* )OXJ]HXJEDX *PE+ 2WWR /LOLHQWKDO :HJ $P )OXJSODW] %UXFKVDO H PDLO GJ DW GJ IOXJ]HXJEDX GH...
  • Page 35 DG-200 Manual Assembly and disassembly 5.1 Assembly Open the canopy and open the access cover with a screwdriver. Clean and lube the pins, bushings and the ball ends of the control rod quick connects. With a helper on the wingtip, lead the wings into place. Sight thru the wing main pin bushings to determine alignment.
  • Page 40 ,QWHQWLRQDOO\ %ODQN...
  • Page 47 DG200 15m/17m DG 202 FLIGHT INSTRUMENTS DG Flugzeugbau GmbH 2WWR /LOLHQWKDO :HJ $P )OXJSODW] %UXFKVDO H PDLO GJ DW GJ IOXJ]HXJEDX GH...
  • Page 49 DG200 15m/17m DG 202 FLIGHT INSTRUMENTS DG Flugzeugbau GmbH 2WWR /LOLHQWKDO :HJ $P )OXJSODW] %UXFKVDO H PDLO GJ DW GJ IOXJ]HXJEDX GH...
  • Page 51 BOHLI COMPASS 46- -MFK- -1 Description page Installation page 10 Edition 01.2007 Page 1 of 16...
  • Page 52 BOHLI MAGNETTECHNIK AG Manual Compass 46--MFK--1 Description Bohli compass for aerial navigation A device, using the magnetic field of the earth for directional orientation, has been known in China as far back as 2000 B.C. It originally consisted of a magnetic iron splinter, floating on top of a small piece of wood in a water container.
  • Page 53 BOHLI MAGNETTECHNIK AG Manual Compass 46--MFK--1 The inclination varies with geographic latitude. Over the magnetic poles the needle would point down vertically; on the magnetic equator it would lie horizontally. One can notice this effect on long flights going North--South or vice--versa. The effect shows on the Bohli compass in this manner: the imaginary circle, which the pointer mark describes on the dial during a circle on the plane, becomes wider in lower latitudes and narrower in higher latitudes.
  • Page 54 BOHLI MAGNETTECHNIK AG Manual Compass 46--MFK--1 Profound knowledge of the basic principle of this instrument is mandatory in order to fully benefit from its possibilities. For easier understanding, let’s have a look at the compass as the pilot sees it. Fig.
  • Page 55 BOHLI MAGNETTECHNIK AG Manual Compass 46--MFK--1 The same thing happens in actual circling flight, when the plane is banked but the compass is tilted so that it will remain parallel to the horizon (the bank angle is visible on the special scale which appears on top of the mirror image.
  • Page 56 BOHLI MAGNETTECHNIK AG Manual Compass 46--MFK--1 Increasing the angle of incidence will displace the circle towards “South”. Any change in pitch will merely move the red mark parallel to the N--S axis. Equally, banking (the compass) will move the red mark parallel to the E--W axis. Banking to the left will displace the circle towards East and vice versa (fig.
  • Page 57 BOHLI MAGNETTECHNIK AG Manual Compass 46--MFK--1 Consequently, the pilot has to bother only with those displacements of the mark which are due to pulling and pushing the stick (dolphin flying) and he must learn to interpret them. The effect is minimized in gliders with flaps since the pitch angle of the fuselage changes little with diffe- rent speeds.
  • Page 58 BOHLI MAGNETTECHNIK AG Manual Compass 46--MFK--1 Some special reflections are necessary in order to correctly determine the angular advance to compensate time lags (fig. 8). Since different flying manoeuvres are applied for shifting to- wards the center, depending on personal preference and type of glider (levelling--out or sli- deslipping with opposite rudder, etc.), the amount of angular lag compensation is to be deter- mined individually by each pilot.
  • Page 59 BOHLI MAGNETTECHNIK AG Manual Compass 46--MFK--1 If the indication of best climb occurs later after a shifting step, this is an indication that roll--out has been initiated too early as shown by L in figure 9. On the other hand, if the relevant hea- ding for best climb is encountered earlier after every step, then roll--out was initiated too late I.
  • Page 60 BOHLI MAGNETTECHNIK AG Manual Compass 46--MFK--1 Installation The specially developed compass 46--MFK--1 offers a number of important advantages over conventional types. In order to benefit fully from its unique information and presentation possi- bilities the following instructions must carefully be followed. Mounting The compass must be mounted at least 15 cm (6 in) away from any ferrous parts.
  • Page 61 BOHLI MAGNETTECHNIK AG Manual Compass 46--MFK--1 The compass may also be mounted off center, but in this case the pilot may have to slightly move his head to the side in order to see the entire dial when circling. In cockpits with central forward canopy locks, it pays to modify the knobs of levers, by--passing the compass.
  • Page 62 BOHLI MAGNETTECHNIK AG Manual Compass 46--MFK--1 By turning the two lower adjustment screws (US), the N--S axis of the compass is now turned to be exactly in line with the center line of the fuselage. For turning the scale to the right screw (US) must be loosened and the left screw (US) tightened and vice--versa.
  • Page 63 BOHLI MAGNETTECHNIK AG Manual Compass 46--MFK--1 By this comparatively simple levelling procedure (which must be done accurately, however) the compass has been adjusted for zero bank and for a pitch angle of the fuselage correspon- ding to a flying speed of 100 to 110 km/h (62 to 70 mph). By the same procedure all stray ma- gnetic fields within the glider have been compensated.
  • Page 64 BOHLI MAGNETTECHNIK AG Manual Compass 46--MFK--1 General hints Experience has shown that after final adjustment the adjusting screws “US” and “OS” and the center screw “ZS” must be secured with lacquer or resin. This is to prevent them from beco- ming loose during trailer transports (which would require a new adjustment).
  • Page 65 BOHLI MAGNETTECHNIK AG Manual Compass 46--MFK--1 Edition 01.2007 Page 15 of 16...
  • Page 66 BOHLI MAGNETTECHNIK AG Manual Compass 46--MFK--1 BOHLI manufacturing programme: Standard program: Magnetic holding devices Dial test indicator holder Selecting magnet Demagnetizer for steel Holding and sticking magnets Rubber magnets Sailplane instruments Ask for our price list BOHLI MAGNETTECHNIK AG Dammstrasse 15 CH - - 4500 Solothurn / Switzerland Phone +41 32 622 04 33 Telefax +41 32 622 14 82...
  • Page 67 Application 2-pointer altimeter for measuring absolute und relative altitudes in 0-10 000 m or 0-20 000 ft range. Indicating range: item No. 4110: 0-1000-10 000 m item No. 4320: 0-1000-20 000 ft Gradations: item No. 4110: large pointer 10 m, small pointer 100 m, 3rd pointer 5000 ft item No.
  • Page 68 Aplication Developed especially for gliding, the instrument shows airspeed on a 510° spiral scale. Gradations for low and average speeds are greatly enlarged, in order to permit speeds in the ranges of primary interest to be read accurately and with ease. Technical data Black plastic housing, white scale on matt black background see scale drawing for installation dimensions, weight 0,205 kg 0 in 6 or 12 o’clock-position (only...
  • Page 69 Airspeed-indicator with Grosskinsky-variable-camberflap ring Application As is generally known, wing load and, in turn, the optimum flap positions for the various speed ranges of a variable-flap glider changes with take-off weight. Until now, selecting the right flap position has ivolved using special tables carried on board or observing a confusingly large number of marks on the airspeed indicator.
  • Page 70 Vane type variometers measure the change in air pressure inherent to changes in altitude. The instrument consists of a cylindrical chamber with a precision-fit baffle plate (vane) rotating on shockproofjewel bearings and centered by a coil spring. The vane divides the chamber in two: one section is open to static pressure, while the other is connected to an expransion tank, in which a volume of air is insulated against the thermal effects.
  • Page 71 Vanetype variometer wi th MacCready ring (preselected flying speed ring) Nowadays, the MacCready type ring is an indispensable aid in cross country flying. The ring is rotatable and is marked with speeds and a white triangle. The chief use of MacCready ring is to achieve the highest possible cruising speed (average cross country flying speed) on thermal cross country flights.
  • Page 72 ,QWHQWLRQDOO\ %ODQN...

  • Page 73: Table Of Contents

    AR 3201 - ( ) Table of contents Section GENERAL INFORMATION Page Introduction Purpose of equipment General description Variants survey Specifications 1.5.1 General data Transceiver 1.5.2 Receiver specifications 1.5.3 Transmitter specifications 1.5.4 Optional functions Certification Accessories Scope of delivery Software DV 28110.03/.04 Issue 04/92...
  • Page 74 AR 3201 - ( ) Blank 1-II DV 28110.03/.04 Issue 04/92...

  • Page 75: General Information

    AR 3201 - ( ) Section GENERAL INFORMATION Introduction The following Handbooks describe the VHF-communications transceiver AR 3201 - ( ). The Handbooks DV 28110.03 (,, Installation and Operation ‘‘) and DV 28110.04 (,,Maintenance and Repair‘‘) contain the following sections : Section DV 28110.03 DV 28110.04...

  • Page 76: General Description

    AR 3201 - ( ) rigid fuselage mounting in all aircraft. The VHF transceiver is designed for compliance with RTCA and EUROCAE airworthiness requirements. General description The VHF transceiver is designed as a single-block unit with dimensions in keeping with 58 mm diameter standard instrument size.

  • Page 77: Variants Survey

    AR 3201 - ( ) The transceiver also contains a stage for monitoring the aircraft supply voltage. This stage is ON as soon as the transceiver is switched on. Should the aircraft supply voltage drop to 11 V - 10.5 V, the readout will commence flashing.
  • Page 78 AR 3201 - ( ) Transceiver AR 3201-( ) Drawing No./ Type Voltage Tamperature Temperature Order No measurement measurement measurement channel channel in deg Celsius in deg. Fahrenheit 28110-00000.000 AR 3201-( ) 389.528-910 28111 -00000.000 AR 3201-(1) 397.156-910 28112-00000.000 AR 3201-(2) 397.164-910 28113-00000.000 AR 3201-(3)

  • Page 79: Specifications

    AR 3201 - ( ) Specifications 1.5.1 General data Transceiver Operating voltage 12,4 V . . . 15,1 V Emergency operation (10,0 V) Intelligible communication Current consumption 14 V without Panel illumination Receive ,, stand by ‘‘ typ. 70 mA Receive ,, stand by ‘‘...

  • Page 80: Transmitter Specifications

    AR 3201 - ( ) Squelch fixed in unit, defeatable with squelch switch AGC characteristic from 5µV . . . 100 mV emf ≤ 6 dB Undesired radiation ≤ 4 x 10 watt Distortion / m = 85% ≤ 10 % Frequency response audio channel relative to 1000 Hz / 0 dB ≤...

  • Page 81: Optional Functions

    AR 3201 - ( ) Frequency response ≤ 6 dB 350 Hz . . . 2500 Hz Distortion / m = 85% / 1000 Hz ≤ 10% m = 85% / 350 - 1000 Hz ≤ 20% Carrier noise level ≥...

  • Page 82: Scope Of Delivery

    AR 3201 - ( ) When the transceiver incorporates the temperature or voltage measurement option, the following items are required : 1 Cable connector complete Order No. 431.036-950 Detail parts 1 Cable connector plug for option Order No. 710.687-277 Temperature sensor - 65°C . . . 150°C Order No.
  • Page 83 AR 3201 - ( ) Table of contents Section INSTALLATION Page General Pre-instailation check 2.2.1 General 2.2.2 Visual inspection Mechanical installation 2.3.1 Mechanical installation VHF transceiver 2.3.2 Mechanical installation of a temperature sensor Installation wiring 2.4.1 General 2.4.2 Microphone connection 2.4.3 Speaker/headphones connection 2.4.4...
  • Page 84 AR 3201 - ( ) Blank 2-II DV 28110.03/.04 Issue 04/92...

  • Page 85: Section 2 Installation Page

    AR 3201 - ( ) Section INSTALLATION General Installation of the VHF communication transceiver and the battery box depends on the type of aircraft and equipment involved, the instructions given in this section thus being only generally applicable. Pre-instailation check 2.2.1 General Prior to fitting the new system in the aircraft, the units must be checked according to the following...

  • Page 86: Installation Wiring

    AR 3201 - ( ) The temperature measuring circuit in the VHF transceiver and the temperature sensor are calibrated in the factory together for optimum temperature measuring accuracy. Should the device o r the temperature sensor develop a fault or should the transceiver need replacing, the device will need recalibrating according to the instructions as given in Section 5, Item 5.7.

  • Page 87: Speaker/Headphones Connection

    AR 3201 - ( ) View showing components side of audio module Standard Mike Dyn. Mike Fig. 2-1 Jumpers location for charging the microphone input from dynamic to standard microphone 2.4.3 Speaker/headphones connection The audio output of the transceiver is compatible with a 4Ω speaker or headphone with an impedance of 300Ω...

  • Page 88: Auxiliary Audio Input (Optional) (Standard As Of Module No. 471)

    AR 3201 - ( ) Fig. 2-2 Panel connection Auxiliary audio input (optional) (standard as of module No. 471) The auxiliary audio input permits audio input from other equipment in the aircraft. This input can only be heard, however, in the RX mode. The possibility of circuiting two units together finds application in aircraft having, for instance, only one transceiver and one NAV receiver.
  • Page 89 AR 3201 - ( ) Fig. 2-4 Dimensions of VHF transceiver DV 28110.03/.04 Issue 04/92 Page 2-5...
  • Page 90 AR 3201 - ( ) Fig. 2-5 Aircraft wiring Page 2-6 DV 28110.03/.04 Issue 04/92...
  • Page 91 AR 3201 - ( ) Fig. 2-6 Wiring diagram AR 3201 - ( ) with Speaker - Junction DV 28110.03/.04 Issue 04/92 Page 2-7...

  • Page 92: Testing After Installation

    AR 3201 - ( ) Testing after installation 2.6.1 Ground testing with engine OFF After installing the transceiver, measure antenna matching between antenna base and antenna feeder by means of a VHF reflection meter (voltage/standing-wave meter). Over the complete frequency range of the transceiver, the voltage/standing-wave ratio must be within the value 3 : 1.
  • Page 93 AR 3201 - ( ) Table of contents Section Operating Instructions Page Control and Indicators Operating instructions for serial no. 0 to serial no. 3999 Operating instructions serial no. 4000 upwards Storing frequencies Setting the emergency frequency 3.5.1 Setting the emergency frequency on models with serial numbers up to 3999 3.5.2 Setting the emergency frequency on models with...
  • Page 94 AR 3201 - ( ) Blank 3-II DV 28110.03/.04 Issue 04/92...

  • Page 95: Operating Instructions Page

    AR 3201 - ( ) Section Operating Instructions Control and Indicators Fig. 3-1 Controls and indicators Controls and indicators Description Function Volume control Potentiometer Turning control clock-wise increases volume continuously. ON/OFF switch combined with 3-position rocker switch Postion OFF : squelch VHF transceiver OFF.
  • Page 96 AR 3201 - ( ) Controls and indicators Description Function Channel selector 5-position rotary switch Position A : When the transceiver is powerd up, a brief test routine is performed for the segments of the display. Afterwards the channel frequency 121,500 MHz appears in the display and the transceiver is ready for operation.

  • Page 97: Operating Instructions For Serial No. 0 To Serial No. 3999

    AR 3201 - ( ) Controls and indicators Description Function Store button Pushbutton Briefly pressing the STORE button causes the display frequency to be stored in one of the four memory locations, provided that the channel selector switch is not in position A, but set to one of the four memory positions (1 - 4).

  • Page 98: Storing Frequencies

    AR 3201 - ( ) selector switch is in position A. If the channel selector switch is set to one of the stored channel frequencies (any one of switch positions 1 through 4), then the channel frequency stored in that memory location will appear in that display.

  • Page 99: Lc Display Blinking

    AR 3201 - ( ) LC display blinking As soon as the operating voltage for the transceiver drops to a value of 10.5 V to 11 V, the display starts blinking to signalize, e.g. in battery operation that the batteries need recharging. The display will start blinking in transmitter operation since this situation involves the highest current drain.

  • Page 100: Precautions

    AR 3201 - ( ) 3.11 Precautions In order to secure a reliable transceiver operation, please note the following precautions: a) Before running-up the engines, ensure that the transceiver is switched off. b) Always conduct a verbal pre-flight check. Note that in the vicinity of a flight control, a broken or shorted antenna cable must not necessarily impair the function.
  • Page 101 Introduction DX 50 FAI DX 50 GPS-Flight information centre User guide LX navigation + 386 3 490 4670 + 386 3 490 46 71 support@lxnavigation.si http://www.lxnavigation.si...
  • Page 102 Introduction Introduction DX-50 represents a GPS-Variometer system of the newest generation. The instrument is the combination of mo- dern GPS technology and tradicional Variometer system. This manual will lead you to know the device, its functions and all the advantages. Please read it cerfully through before you build in the device.
  • Page 103 Contents CONTENTS 1 GENERAL DESCRIPTION...................1 1.1 Technichal data ..............................1 1.2 Variometer system ............................1 1.3 Electronic altitude meter ..........................2 1.4 GPS-Navigation..............................2 1.5 Flight computer..............................3 1.6 Flight route drawer............................3 1.7 Airfield, turnpoint database..........................4 1.8 Coordinates................................ 4 1.9 Aircraft poles..............................
  • Page 104 Contents 4.2 Glider navigation display 2 ..............13Fehler! Textmarke nicht definiert. 4.3 Graphic display ............................... 12 4.4 Arrival display..............................14 4.5 Info display ..............................15 5 OPERATION MODES ....................16 5.1 Airport (APT)..............................17 5.1.1 TEAM ................................ 18 5.1.2 WIND................................. 18 5.1.3 Turning point (TP) .............................

  • Page 105: General Description

    General description Technical data Voltage supply: 9 - 30 VDC Curent input ( volume 0 ): ca. 300 mA bei 12V Operating temperature: -20 to +60 °C Storage temperature: -30 to +80 °C Dimensions: 96x190 mm Total weight: ca. grams GPS receiver: 8-Chanel, parallel Pressure probe:...

  • Page 106: Electronic Altitude Meter

    The following changable parameters influence on the speed command sygnal: x the McCready value x the wing load x the glider polar x ther wind x muddy wings (degradation of the polar in % of the best glide ratio,BUGS in SETUP) The units for wing load can be selcted ( kg/m²...

  • Page 107: Flight Computer

    The following parameters are calculated by the GPS: x Track (TRK) x Bearing to the way pint (BRG) x Groundspeed (GS) x Distance to the way point (DIS) x Estimated time of arrival at the way point (ETA) x Estimated enroute time to the way point (ETE) x Selected course to the way point (DTK, desired track) Flight computer The flight computer in DX 50 calculates the glider’s course deviation drawn on the actual distance from the next...

  • Page 108: Coordinates

    Airport and turning point database The DX 50 is able to store up to 5000 airports, 600 turning points and 100 tasks with 10 turning points each. In the original version already several thousands airports (e.g. in Europe) are stored. These easily can be selected by the user and can be modified or deleted.

  • Page 109: Antena

    Seite 5 Installation Please read the following installation instructions carefully through before mounting the device into the glider. Mechanical fixing For the DX 50 a new fixing method of the instrument in the instrument panel has been developed. The whole instrument can be removed very simply from the front side of the instrument panel. There are special pneumatical connectors which alove to remove the instrument whitout disconnecting the plastic tubes.
  • Page 110 Seite 6 probe. Ptot is allways connected to the total pressure source of the glider (Pitot). See Figure 1 for details. Beachten Sie unbedingt die unterschiedliche Anschlußweise bei Düsen- bzw. elektronischer Kompensation! Versorgung Pst (TE) Ptot Figure 1: pneumatic connection Attemtion: Do not blow into the pressure connectors of the instrument, because the pressure sensors could be damaged.
  • Page 111 Seite 7 The cable labeld NMEA will only be used when the external Moving-Map-System is run on the DX 50. The acurate wiring plan is shown on the beginning of this manual.

  • Page 112: Operation

    Seite 8 Operation The operation of the DX 50 was designed as user friendy and as simple as possible. Flying with the DX 50 is pos- sible without a long faniliarization. Control elements The control panel of the DX 50 is equiped with 14 key keyboard.

  • Page 113: Data Editing And Selection

    Seite 9 The control elements have the following functions: Function: ON switch used to switch the instrument ON Mode selector the device has 7 different modes, which can be easily selected with +/- keys Up and down with this keys you can select the input data (e.g. to scan up and down the alphabet or the cusor keys figures from 0 to 9) Speaker...
  • Page 114 Seite 10 The different figures are then selected by up and down cursor keys; do not forget to confirm every chosen value by pushing ENTER. If the altitude displayed is correct, so you don’t want to change it, then just push ESC to skip the whole figure block or confirm every figure by pushing thr ENTER button.

  • Page 115: Glider Navigation Display 1

    Seite 11 DISPLAY presentation The following figures show the display of the DX 50 and the indicated data: Glider navigation display 1 The navigation display is the most needed information source of the DX 50. All required information for a precise navigation to a certain point are shown on this display.

  • Page 116: Graphic Display

    Seite 12 Graphic display The graphic display serves as a navigation support in a graphic and alphanumerical form in the APT, TP, und TSK modes. The graphic display is second to the navigationt display in the above mentioned modes. The graphic display is cal- led by pushing the AB button.
  • Page 117 Seite 13 4.5.3 Navigation display All the required information for a precise navigation to a certain point are shwn on the navigation display as well as on the glider navigation display described above. Some specific glider information are added to the bottom of a diaplay as a scale which shows the lateral deviation from the selected course.

  • Page 118: Arrival Display

    Seite 14 Arrival display The arrival display informs you about the arrival data of the currently aproached way point in the APT, TP and TSK modes. The following data are displayed: ACT.T current time estimated time of arrival estimated time enroute wind speed and direction battery valtage Traffic Circuit altitude...

  • Page 119: 4.4 Info-Display

    Seite 15 4.4 Info-Display The INFO display shows all necessary data for the approach of an airport. If data for a certain airport are not publis- hed or if they are unknown minus signs (---) will be displayed at the coresponding positions. Name of the airport (APT) ICAO indicator The active mode indicator:...
  • Page 120 Seite 16 5. Menu structure The following figure shows the structure of the different program modes of the DX 50.The program modes can be selected by using the MODE button and short after the “ + ” or “ - ” key (regardless of which mode was selected before).

  • Page 121: Airport (Apt)

    Seite 17 5.1 Airport (APT) program In this mode all the functions related to the airports can be used: the navigation to the airport, maping, airfield in- formation as also the editing of the APT database (e.g. if the frequency of the airport has changed). In the APT mode the type of wind calculation can be determined and it also contains the TEAM function.

  • Page 122: 5.1.1 Team

    Seite 18 Example: Selection of an APT: After selcting the APT program with the MODE button the APT menu is activated by pressing the “ ENTER ” key. With the arrows keys the menu SELCT is selected and with ENTER key activated. Now there are two possibilities for search for the airfields: a) Search for ICAO indicator b) Search for name...
  • Page 123 Seite 19 (in SETUP program you are able to select different units for wind’s speed) The resulted wind component will be considered by all the calculations made. Here the wind is determined over the glider’s ground speed. This enables you to circle with the constant speed (IAS).

  • Page 124: Turning Point (Tp)

    Seite 20 5.2 Turning point (TP) program In principle the TP function is identical to the APT mode. However thr TP mode is only related to programmed TP’s whereas the APT mode is only related to stored airports. Turning points are (TP) selected and edited in the same way as in the APT mode. ENTER AUF-/AB-Tasten Figure 9: TP mode structure...

  • Page 125: 5.2.1 Quick Tp

    Seite 21 If you answer the question “COPY APT DATA” with Y (yes) the same selection appears as in the APT menu when selecting an airport. A now selected and confirmed airport is copied into the TP memory and is then avaialble as normal TP.

  • Page 126: Task (Tsk)

    Seite 22 Task (TSK) program In the TASK (TSK) mode up yo 100 tasks with 10 way point each can be stored in the DX 50. The stored tasks can be displayed graphically on the sreen. All programmed turning points can be used as points for a task. If airports should be programmed into a TASK they have to be copied into the TP memory first.
  • Page 127 Seite 23 There are three different possibilities to display the task graphically: Figure 12: TSK graphic modes By using thr + or - keys the above mentioned graphic modes can be selected as long as the instrument is in the TSK mode.

  • Page 128: Change Of A Task (Tsk Edit)

    Seite 24 5.3.2 Change of a TASK (TSK EDIT) In TSK EDIT menu you can change alredy programmed tasks that means that you have the possibility to change TP’s, to skip or delete one or more TP’s or invert the task as well. The last way point before the finish can also be entered as a check point.
  • Page 129 Seite 25 5.3.3 Programming of a new TASK The programming of a new task can be made also in the TSK EDIT menu, but only with changing the previously programmed and stored task. The menu NEW prevents the overwritng of the programmed task. Das Menü...
  • Page 130 Seite 26 Select a task in a usual way. With copy a selected task can be copied or after N (no) edited. The DX 50 task doesn’t consider the TAKE OFF point as a start point so this should be entered. After pushing ENTER button appears a window with SELECT, INSERT and DELETE now you can edit the selected task if you want.
  • Page 131 Seite 27...

  • Page 132: 5.3.6 Starting Of A Task

    Seite 28 5.3.5 Flying with a TASK When using the TSK mode note the following remarks: x The corresponding task must have been programmed and activated. x It is recomanded to perform a task chech before the flight. This can be done by using the TSK subprogram TSK EDIT.

  • Page 133: Restart Of A Task (Tsk Restart)

    Seite 29 inside outside starting aTSK hold START button hold START button for 1 second for 5 seconds rounding a way point automatic hold START button for 5 seconds After completing the task a TASK END message appears which is dispalyed until the glider stops (the total pressure is relevant factor for determining wheather the glider is moving or not and not the calculated ground speed of the GPS receiver).

  • Page 134: 5.3.8 Setup Program

    Seite 30 If you answer the question RESTART with Y (yes) your task will be reset, that means that first entered point of the task will appear as navigation point on the TSK navigation display. Now the task has to be restarted e.g. by second start when passing the start line or photosector by pushing ENTER button.
  • Page 135 Seite 31 The following diagram shows the structure of the Setup Password menu. All the named functions can be altered only if the password (96990) is entered: ENTER Æ TSK-Mode: selection of the photo sector, radius Å ESC Start-Cylinder 0.1- 9.9 km TP Cylinder 0.1- 9.9 km adjustable...
  • Page 136 Seite 32 INDICATOR Function selection for the LCD vario indicator Selection of the shown glider navigation display 1 or 2 ENTER Æ PAGE 1 Å ESC Navigation display ON/OFF ENTER Æ PAGE 3 Å ESC Figure 18: Structure of the SETUP PASSWORD menu 5.3.8 QNH RES Here the new QNH can be entered (when switching ON the DX 50 the actual QNH was entered) this is needed if during a long flight the QNH changes.
  • Page 137 Seite 33 true track total energy wind direction wind velocty 5.3.10 INIT In the INIT menu you can enter the following parameters: VARIO FILT. Vario filter VARIO INT. The selection of the integration time of the interval integrator (normal value: 20 Sek.) VARIO RNG.
  • Page 138 Seite 34 5.3.14 TSK The selection of the mode of the task start and the radius around the way point inside of which the next leg of the task is started. There are two different modes:: x Cylinder x Fotosektor The cylinder radius can be selected (from 0.1 to 9.9 km).
  • Page 139 Seite 35 x TIZ- Zones All the declared airspace data can be dispalayed separately or togeather. The function AIRSPACE can be complete- ly disabled. 5.3.19 NMEA In the NMEA menu the NMEA0183 data string can be configured. This string is needed for the connection of spe- cial devices such as HandyMap.
  • Page 140 Seite 36 5.3.21 TE COMP. In this submenu the type of electronic compensation and its value can be selected. The default value is set at 0 %. Please pay attention: x By the TE probe compensation the compensation value of 000% should be entered. x If electronic compensation is wanted the desired values can be entered in TE COMP.
  • Page 141 Seite 37 5.3.22 AUDIO This submenu enables you to setup the audio signals for variometer and speed command. You are able to select the frequency, the type of the audio signals as also the dead area. This selections are possible: The dead area by SC mode: Audio signal by positive and negative SC SC POS...

  • Page 142: Near Airport

    Seite 38 Upper digital dispaly SC/VARIO indicator Needle Lower digital display SC permanent The configuration is separated for the two flight phases: VARIO (circling) and Speed command (SC). dist Distance to the TP or APT speed TAS indication legsp Average speed in the curent leg Altitude gldpt Glide deviation...

  • Page 143: Statistic

    Seite 39 x the abbreviated name of the airport (max. 6 signs) x the bearing to the airport x the distance to the airport The number of the calculated airport (max. 10) Name of the Distance to the airport nearest airport BRG to the air- port Figure 19: Near Airport...
  • Page 144 Seite 40 The following parameters are displayed: Start time Duration Variometer (digital averager and portion of circling) After pushing the AB button the leg statistic is displayed TSK 00/1 means that the 1. leg statistic of task 00 is displayed. Time The arrival time (time when the TP was reached).
  • Page 145 Seite 41 In the DX 50 Statistic menu the LOGBOOK will be presented. By using the UP/DOWN keys you are able to select the desired flight. After pushing ENTER the message PLEASE WAIT is dispalyed and after pushing ENTER again the following data are displayed: After selecting the ROUTE option the flight route is displayed (it may take few seconds) The same holds true also for the barogram (ROUTE menu is closed...
  • Page 146 Seite 42 TSK : NOT SPECIFIED means that the task hasn’t been declared (DECLARE TASK) in TSK menu. It the task has been flown but not declared the statistic is surely avaliable but such flights are by FAI regulations not valid and should be announced before the start.

  • Page 147: Pos

    Seite 43 The next legs can be selected by +/- keys. When the desired leg stat. is displayed the UP/DOWN keys are used to operate. XC speed - if two TP’s of the leg were not reached at the same altitude, the average speed is not realistic (especial- ly by the final glide).
  • Page 148 Seite 44 x pushing START again the stop watch will reset By pushing ENTER button the current time is displayed again. Attention: The indication “Last Fix” appears as long as the GPS is not ready for navigation. Meanwhile those coordinates are indicated which the GPS module has stored last.The current position coordinates are only indicated as long as the GPS is in the 2D or 3D mode.

  • Page 149: Appendix

    Appendix Page Appendix Cable connection + 1 2 V S U B D 9 S t e c k e r N M E A S U B D 1 5 S P E A K E R S p e a k e r T E M P .

  • Page 150: Drilling Plan

    Appendix Page Drilling plan 2.7mm ges. 2.7mm ges. 93.5 2.7mm ges. 2.7mm ges. 175.5 Short notes The keyboard: Mode selection : “ Mode ” button plus “ + ” or “ - ” buttons Selection of menus in current mode : UP/DOWN keys ESC: to finish editing or to skip the whole line;...
  • Page 151 ® OPERATING MANUAL FLARM COLLISION WARNING UNIT Status Software Version 4.04 (June 03, 2008) This is a translation of the German manual. © 2003-2008 FLARM Technology GmbH Zurich-Switzerland www.flarm.com info@flarm.com...
  • Page 152 OPERATING MANUAL FLARM COLLISION WARNING UNIT Welcome to the FLARM user community Thank you for purchasing FLARM, a modern low-cost collision-warning unit for sailplanes and light aircraft. The main task for FLARM is to support the pilot, while he scans the airspace ahead with his own eyes. FLARM is simple to use and does not distract the pilot from the main business in hand.
  • Page 153 OPERATING MANUAL FLARM COLLISION WARNING UNIT The operating range is very dependent upon the antenna installation in the aircraft. The normal range is about 2 km. In individual cases the range may be up to 5 km, which can be valuable for fast sailplanes with a speed of up to 250 kt, providing the pilots in both aircraft with a warning enabling visual identification and reaction to the potential hazard.
  • Page 154 OPERATING MANUAL FLARM COLLISION WARNING UNIT Installation and operation must be on the basis of non-interference with and no hazard to the existing suite of other certified equipment necessary for safe flying operation, or installed to comply with official requirements. Installation and operation must comply with official regulations and requirements.
  • Page 155 OPERATING MANUAL FLARM COLLISION WARNING UNIT Front Panel The dark grey front panel of Hardware Versions 1 and 2 has a push-button, four green Status-LEDs, ten red collision warning LEDs and four red LEDs for vertical position indication. 4 green LED 10 red LED 4 red LED Push-button...
  • Page 156 OPERATING MANUAL FLARM COLLISION WARNING UNIT Start-Up FLARM is always switched on if the unit is connected to an adequate power supply. Immediately after it has been switched on there follows a one-second long beep while a start-up pattern might be shown on the LED, followed by a binary presentation of the Hardware-Version installed during the system self-test.
  • Page 157 OPERATING MANUAL FLARM COLLISION WARNING UNIT Fault Finding If a fault should occur during start-up self-test or subsequent operation, then all four green status LEDs will flash in unison for 30 seconds, while the red collision LEDs will give a binary indication of the most serious fault.
  • Page 158 OPERATING MANUAL FLARM COLLISION WARNING UNIT The communications faults itemised above indicate if internal modules within FLARM are not communicating correctly with each other. For reasons associated with the system, reduced radio range cannot be detected by a single unit alone. Software-Versions 4.x will only operate until March 01, 2011.
  • Page 159 OPERATING MANUAL FLARM COLLISION WARNING UNIT Aircraft Anti-Collision Warnings An illuminated red LED indicates the approximate bearing to an aircraft currently posing the biggest threat of collision. The bearing is relative to the track. This indication is inaccurate if there is a strong wind, if the aircraft is in a sideways yaw, or if ground speed is very low (e.g.
  • Page 160 OPERATING MANUAL FLARM COLLISION WARNING UNIT Danger from the rear If the threat is from behind, then the threat level on Hardware Version 1 and 2 is given only by the frequency of LED flashes, not the number of LEDs activated. Flashing Danger from the rear, 5 to 7 o'clock (H/W Version 3 example shows...
  • Page 161 OPERATING MANUAL FLARM COLLISION WARNING UNIT Obstacle Warnings The standard obstacle data bank (as of April 2008) has about 33,000 coordinates locating about 11,000 Alpine obstacles . This data bank is loaded by FLARM at manufacture; subsequently the user may upload but not alter up-dated information via a PC.
  • Page 162 OPERATING MANUAL FLARM COLLISION WARNING UNIT 12. Operating Limitations FLARM is designed and built as a non-essential 'situation awareness only' unit to only support the pilot, and cannot always provide reliable warnings. In particular, FLARM does not give any guidance on avoiding action.
  • Page 163 OPERATING MANUAL FLARM COLLISION WARNING UNIT FLARM indicates the rough position of the aircraft or obstacle that currently represents the biggest threat, in accordance with the algorithmic calculation; FLARM Hardware Version 2 (and onwards) also displays a vertical bearing. In the case of fixed obstacles, the unit does not signal a bearing. FLARM does not indicate where the closest proximity may occur, nor does it signal avoiding action.
  • Page 164 ,QWHQWLRQDOO\ %ODQN...
  • Page 165 Dimensions Hardware v2 and later Note that the bottom-side drawing also shows top-side elements as seen from the bottom side. Bottom-side elements are two M5 windings for easy mounting. Top-side elements are a hole for the mounting of the λ/4 RF antenna (screwed on a normal SMA connector), and seven holes above the buzzer.
  • Page 166 Dimensions Hardware v1 (red shows parts shifted between v1 and later versions) Note that the bottom-side drawing also shows top-side elements as seen from the bottom side. Bottom-side elements are two M5 windings for easy mounting. Top-side elements are a hole for the mounting of the λ/4 RF antenna (screwed on a normal SMA connector), and seven holes above the buzzer.
  • Page 167 DG200 15m/17m DG 202 Maintenance Manual '* )OXJ]HXJEDX *PE+ 2WWR /LOLHQWKDO :HJ $P )OXJSODW] %UXFKVDO H PDLO GJ DW GJ IOXJ]HXJEDX GH...
