3.8.14 On Board PCB WLAN Antenna

The Open-Q 835 carrier board has two on board WLAN PCB antennas that connects to the
WiFi / BT on the 835 Processor board via coaxial cables that attaches to MH4L receptacles.
These antennas connect to the Processor board in the following configuration:
o WLAN0 on the carrier board connects to ANT0 on the WCN3990 WiFi module
o WLAN1 on the carrier board connects to ANT1 on the WCN3990 WiFi module
Signal Pin NO
SPKR_AMP_ J1602[15]
EN1
VREG_S4A_ J1602[17]
1P8
MB_VREG_ J1602[19]
5P0
WIFI CH0
WIFI CH1

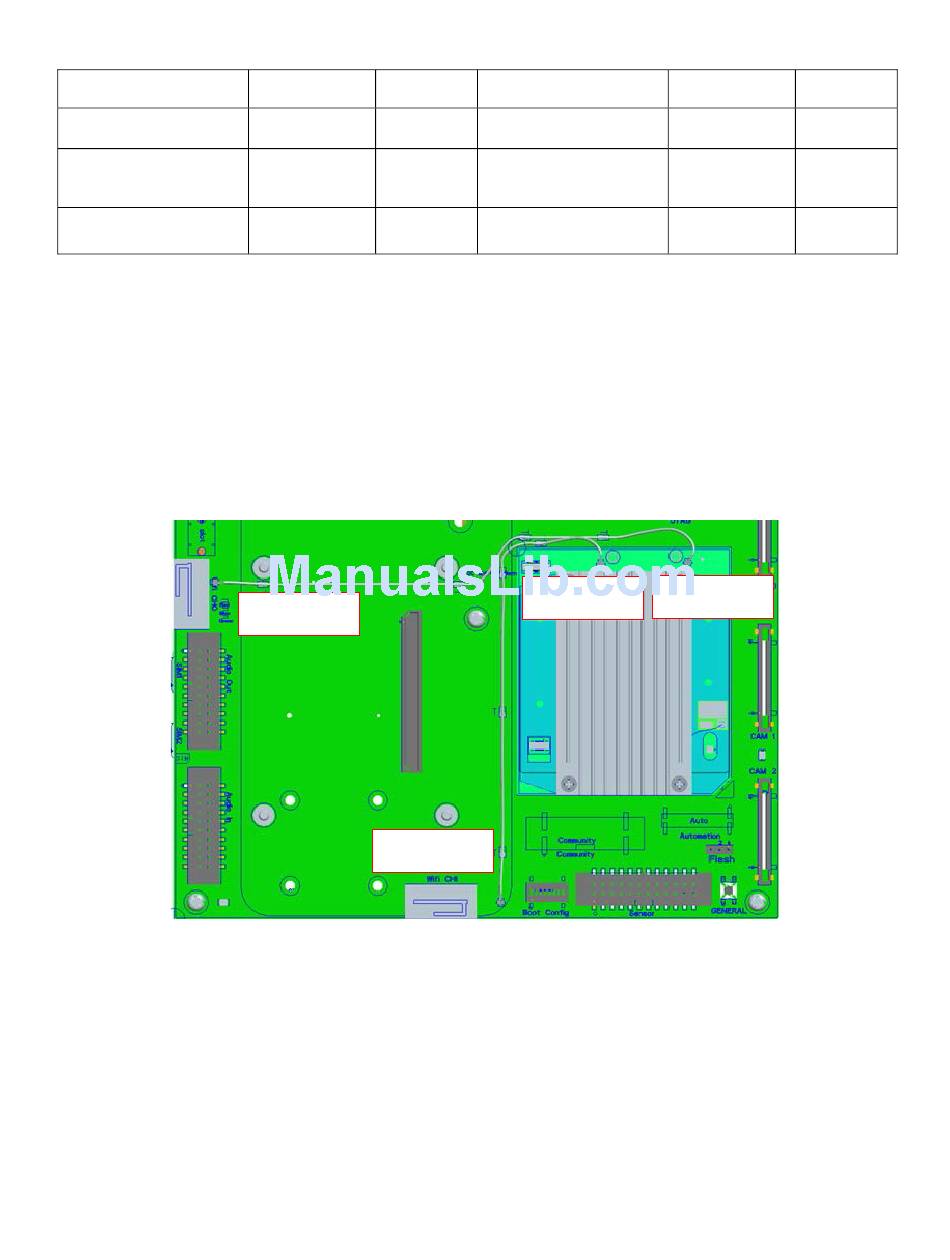

Figure 18 On Board PCB Antennas
Copyright Intrinsyc Technologies Corporation
Description
Speaker amplifier
enable 2
12V output power
supply
GND
WIFI CH1
32
Signal Pin NO
SPKR_AMP_ J1602[16]
EN2
DC_IN_12V J1602[18]
GND J1602[20]
WIFI CH0
