Page 1: Installation Guide
INSTALLATION GUIDE 1.6 Cu. Ft. Over-the-Range Microwave NS-OTR16SS8Q Before using your new product, please read these instructions to prevent any damage. -
Page 2: Table Of Contents
Contents Introduction ................3 BEFORE YOU BEGIN . -
Page 3: Introduction
1.6 Cu. Ft. Over-the-Range Microwave Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-OTR16SS8Q represents the state of the art in microwave design and is designed for reliable and trouble-free performance. This installation guide will show you how to install your new over-the-range microwave. -
Page 4: Package Contents
NS-OTR16SS8Q Package contents • 1.6 cu. ft. over-the-range microwave • Turntable (with ring) • Installation parts (see “Parts” on page • Installation hardware (see “Hardware” on page • Mounting templates (2) • Installation Guide • User Guide Parts Make sure that you have all the parts necessary to install your new microwave. -
Page 5: Before You Install
1.6 Cu. Ft. Over-the-Range Microwave Before you install Read these instructions completely before installing your microwave. Make sure that your space meets the mounting requirements and that you’ve gathered all needed tools and materials. Tools and materials needed Level Ducts (if venting outside) “Exhaust requirements”... -
Page 6: Mounting Requirements
NS-OTR16SS8Q Mounting requirements • The space between the cabinets must be 30 in. (76.2 cm) wide. If the space between the cabinets is more than 30 in. (76.2 cm), you’ll need filler material to fill the gap between the microwave and cabinets. -
Page 7: Exhaust Requirements
1.6 Cu. Ft. Over-the-Range Microwave Exhaust requirements Use this section if you plan to vent your microwave outside (top or back exhaust). If you plan to recirculate the air back into the room, skip to “Removing your microwave” on page When installing exhaust vents: •... - Page 8 NS-OTR16SS8Q Equivalent duct length table To calculate your equivalent duct length: 1 Write the number of sections used for each of the duct pieces. 2 Multiply the number used by the equivalent length for each duct piece. 3 Add the total equivalent lengths together. This number must be less than 140 ft.
-
Page 9: Removing Your Microwave
1.6 Cu. Ft. Over-the-Range Microwave Removing your microwave 1 Remove the upper styrofoam from the box. Keep all the accessories. 2 Pull the microwave out of the box. 3 Remove and throw away the plastic bags. Styrofoam Pastic bag Microwave www.insigniaproducts.com... -
Page 10: Installing Your Microwave
NS-OTR16SS8Q Installing your microwave Step 1: Find the wall studs Warning Your microwave must be connected to at least one wall stud. 1 Using an edge-to-edge stud finder, locate the edges of the wall stud(s) within the opening. Warning The center of any adjacent wall studs should be 16" or 24" from this mark. -
Page 11: Step 2: Align The Rear Wall Template
1.6 Cu. Ft. Over-the-Range Microwave Step 2: Align the rear wall template Notes If the rear wall template is damaged or unusable, measure and mark the wall with the dimemsions at the end of this step. 1 Use a level to make sure that the bottom of the cabinet is level. 2 Draw a vertical line down the center of the wall in the mounting space. - Page 12 NS-OTR16SS8Q 5 Tape the template in place so that it is centered on the vertical line and the top edge is aligned with the horizontal line. Top of the template aligned with the horizontal line Vertical line in the center 6 Mark points A and B on the wall with a pencil.
-
Page 13: Step 3: Select A Ventilation Type
1.6 Cu. Ft. Over-the-Range Microwave Step 3: Select a ventilation type This microwave is designed for three types of ventilation. Select the type of ventilation you want to use, then go to the corresponding page. Note This microwave is shipped assembled for top exhaust ventilation. Option A - Outside top exhaust (vertical duct): See page 14 Adapter... -
Page 14: Step 4: Option A - Attach The Mounting Plate To The Wall
NS-OTR16SS8Q Step 4: Option A - Attach the mounting plate to the wall Note: Depending on your stud locations, your installation may look different. You should insert toggle bolts into drywall and wood screws into studs. 1 Remove the rear wall template. - Page 15 1.6 Cu. Ft. Over-the-Range Microwave 5 Insert wood screw(s) through the mounting plate and into the hole(s) drilled in the stud(s), then tighten both the wood screw(s) and toggle bolt(s) with a Phillips screwdriver to mount the plate. Make sure that the plate is centered before tightening fully.
-
Page 16: Step 5: Option A - Preparing The Top Cabinet
NS-OTR16SS8Q Step 5: Option A - Preparing the top cabinet You need to drill holes for the top support screws, a hole large enough for the power cord to fit through, and a cutout large enough for the exhaust adapter. - Page 17 1.6 Cu. Ft. Over-the-Range Microwave 11 If you have recessed cabinets: • Make two filler blocks out of scrap wood pieces the size of shaded areas G and H. They must be as thick as the depth of the cabinet recess. •...
-
Page 18: Step 6: Option A - Insert The Exhaust Adapter
NS-OTR16SS8Q Step 6: Option A - Insert the exhaust adapter 1 Set the microwave in its upright position, with the top facing up. 2 Remove any tape securing the damper and make sure that the damper pivots easily. Damper Back of microwave 3 Insert the exhaust adapter into the slots next to the ventilation and secure with a sheet metal screw. -
Page 19: Step 8: Option A - Mount The Microwave
1.6 Cu. Ft. Over-the-Range Microwave Step 8: Option A - Mount the microwave CAUTION • For easier installation and personal safety, we recommend that two people install this microwave oven. • Do not grip or use the handle during installation. •... - Page 20 NS-OTR16SS8Q 4 While holding the microwave up against the wall and cabinet fully tighen the outer two screws. 5 Fit the two grease filters into the openings underneath your microwave. BOTTOM You’ll need: Nylon grommet Phillips screwdrivers Self-aligning machine (for metal cabinets)
-
Page 21: Step 9: Option A - Connecting Ductwork
1.6 Cu. Ft. Over-the-Range Microwave Step 9: Option A - Connecting ductwork 1 Open the cabinet and slide the exhaust adapter front-to-back or side-to-side to adjust. Blower plate Exhuast adapter Damper Back of microwave 2 Extend the house duct down to connect to the exhaust adapter. 3 Seal the exhaust duct joints with duct tape. -
Page 22: Step 4: Option B - Cutting A Vent Opening
NS-OTR16SS8Q Step 4: Option B - Cutting a vent opening 1 Use a saber or keyhole saw to cut out the shaded area K through the rear wall. Note If a wall stud is within 6 in. (15.2 cm) of the vertical center line, you cannot use this installation option. -
Page 23: Step 5: Option B - Attach The Mounting Plate To The Wall
1.6 Cu. Ft. Over-the-Range Microwave Step 5: Option B - Attach the mounting plate to the wall Note: Depending on your stud locations, your installation may look different. You should insert toggle bolts into drywall and wood screws into studs. 1 Remove the rear wall template. - Page 24 NS-OTR16SS8Q 5 Insert wood screw(s) through the mounting plate and into the hole(s) drilled in the stud(s), then tighten both the wood screw(s) and toggle bolt(s) with a Phillips screwdriver to mount the plate. Make sure that the plate is centered before tightening fully.
-
Page 25: Step 6: Option B - Preparing The Top Cabinet
1.6 Cu. Ft. Over-the-Range Microwave Step 6: Option B - Preparing the top cabinet You need to drill holes for the top support screws and a hole large enough for the power cord to fit through. 1 Turn off the power to the outlet in the cabinet. 2 Remove everything from the cabinet. - Page 26 NS-OTR16SS8Q 10 If you have recessed cabinets: • Make two filler blocks out of scrap wood pieces the size of shaded areas G and H. They must be as thick as the depth of the cabinet recess. • Drill 5/8" holes in the filler blocks to align with points D and E.
-
Page 27: Step 7: Option B - Adapt The Microwave Blower For Outside Back Exhaust
1.6 Cu. Ft. Over-the-Range Microwave Step 7: Option B - Adapt the microwave blower for outside back exhaust 1 Remove and save the five screws that hold the blower unit in the microwave. Blower unit Back of microwave Blower plate and adapter screws Blower motor screw Blower plate and adapter... - Page 28 NS-OTR16SS8Q 4 Turn the blower unit 180° so that the fan blade openings are facing out the back of the microwave. AFTER BEFORE 5 Place the blower unit back into the opening. The blower unit exhaust openings should match the exhaust openings on back of the microwave.
- Page 29 1.6 Cu. Ft. Over-the-Range Microwave 8 Secure the blower plate and exhaust adapter with the remaining screws you removed previously. Blower plate Blower plate and adapter screws Exhaust adapter You’ll need: Phillips screwdrivers Tin snips www.insigniaproducts.com...
-
Page 30: Step 8: Option B - Mount The Microwave
NS-OTR16SS8Q Step 8: Option B - Mount the microwave CAUTION • For easier installation and personal safety, we recommend that two people install this microwave oven. • Do not grip or use the handle during installation. • To keep the power cord tight while mounting the microwave oven, thread the power cord through the hole in the bottom of the top cabinet. - Page 31 1.6 Cu. Ft. Over-the-Range Microwave 4 While holding the microwave up against the wall and cabinet fully tighen the outer two screws. 5 Fit the two grease filters into the openings underneath your microwave. BOTTOM 6 You’re finished! See “Before using your microwave” on page 40 You’ll need: Nylon grommet Phillips screwdrivers...
-
Page 32: Step 4: Option C - Attach The Mounting Plate To The Wall
NS-OTR16SS8Q Step 4: Option C - Attach the mounting plate to the wall Note: Depending on your stud locations, your installation may look different. You should insert toggle bolts into drywall and wood screws into studs. 1 Remove the rear wall template. - Page 33 1.6 Cu. Ft. Over-the-Range Microwave 5 Insert wood screw(s) through the mounting plate and into the hole(s) drilled in the stud(s), then tighten both the wood screw(s) and toggle bolt(s) with a Phillips screwdriver to mount the plate. Make sure that the plate is centered before tightening fully.
-
Page 34: Step 5: Option C - Preparing The Top Cabinet
NS-OTR16SS8Q Step 5: Option C - Preparing the top cabinet You need to drill holes for the top support screws and a hole large enough for the power cord to fit through. 1 Turn off the power to the outlet in the cabinet. - Page 35 1.6 Cu. Ft. Over-the-Range Microwave 10 If you have recessed cabinets: • Make two filler blocks out of scrap wood pieces the size of shaded areas G and H. They must be as thick as the depth of the cabinet recess. •...
-
Page 36: Step 6: Option C - Adapting Blower For Recirculation
NS-OTR16SS8Q Step 6: Option C - Adapting blower for recirculation 1 Remove and save the five screws that hold the blower unit in the microwave. Blower unit Back of microwave Remove blower plate and adapter screws and save Remove blower motor screws... - Page 37 1.6 Cu. Ft. Over-the-Range Microwave 4 Place the blower unit back into the opening. The blower unit exhaust openings should match the exhaust openings toward the front of the microwave. Fan blade openings facing the front 5 Secure the blower unit in the microwave with the remaining screws you previously removed. Note Make sure that the damper hinge is at the top and that it can swing freely.
-
Page 38: Step 7: Option C - Mount The Microwave
NS-OTR16SS8Q Step 7: Option C - Mount the microwave CAUTION • For easier installation and personal safety, we recommend that two people install this microwave oven. • Do not grip or use the handle during installation. • To keep the power cord tight while mounting the microwave oven, thread the power cord through the hole in bottom of the top cabinet. - Page 39 1.6 Cu. Ft. Over-the-Range Microwave 4 While holding the microwave up against the wall and cabinet fully tighen the outer two screws. 5 Fit the two grease filters into the openings underneath your microwave. BOTTOM 6 You’re finished! Skip to “Before using your microwave”...
-
Page 40: Before Using Your Microwave
NS-OTR16SS8Q Before using your microwave Note Keep these installation instructions for the local inspector’s use. 1 Make sure that all packing material has been removed from the microwave. 2 Install the turntable and ring inside your microwave. See your User Guide for more information. -
Page 41: Template Dimensions
1.6 Cu. Ft. Over-the-Range Microwave Template dimensions Rear wall template dimensions If your rear wall template is unusable, drill using the dimensions below: 16.5 in. (41.9 cm) 30 in. (76.2 cm) www.insigniaproducts.com... -
Page 42: Top Cabinet Template Dimensions
NS-OTR16SS8Q Top cabinet template dimensions If your top cabinet template is unusable, drill using the dimensions below: 11 in. (27.9 cm) 30 in. (76.2 cm) www.insigniaproducts.com... -
Page 43: Obtaining Replacement Parts
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 44 LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO...
- Page 45 1.6 Cu. Ft. Over-the-Range Microwave www.insigniaproducts.com...
- Page 46 NS-OTR16SS8Q www.insigniaproducts.com...
- Page 47 1.6 Cu. Ft. Over-the-Range Microwave www.insigniaproducts.com...
- Page 48 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. V1 ENG ©2017 Best Buy. All rights reserved.
Need help?
Do you have a question about the NS-OTR16SS8Q and is the answer not in the manual?
Questions and answers

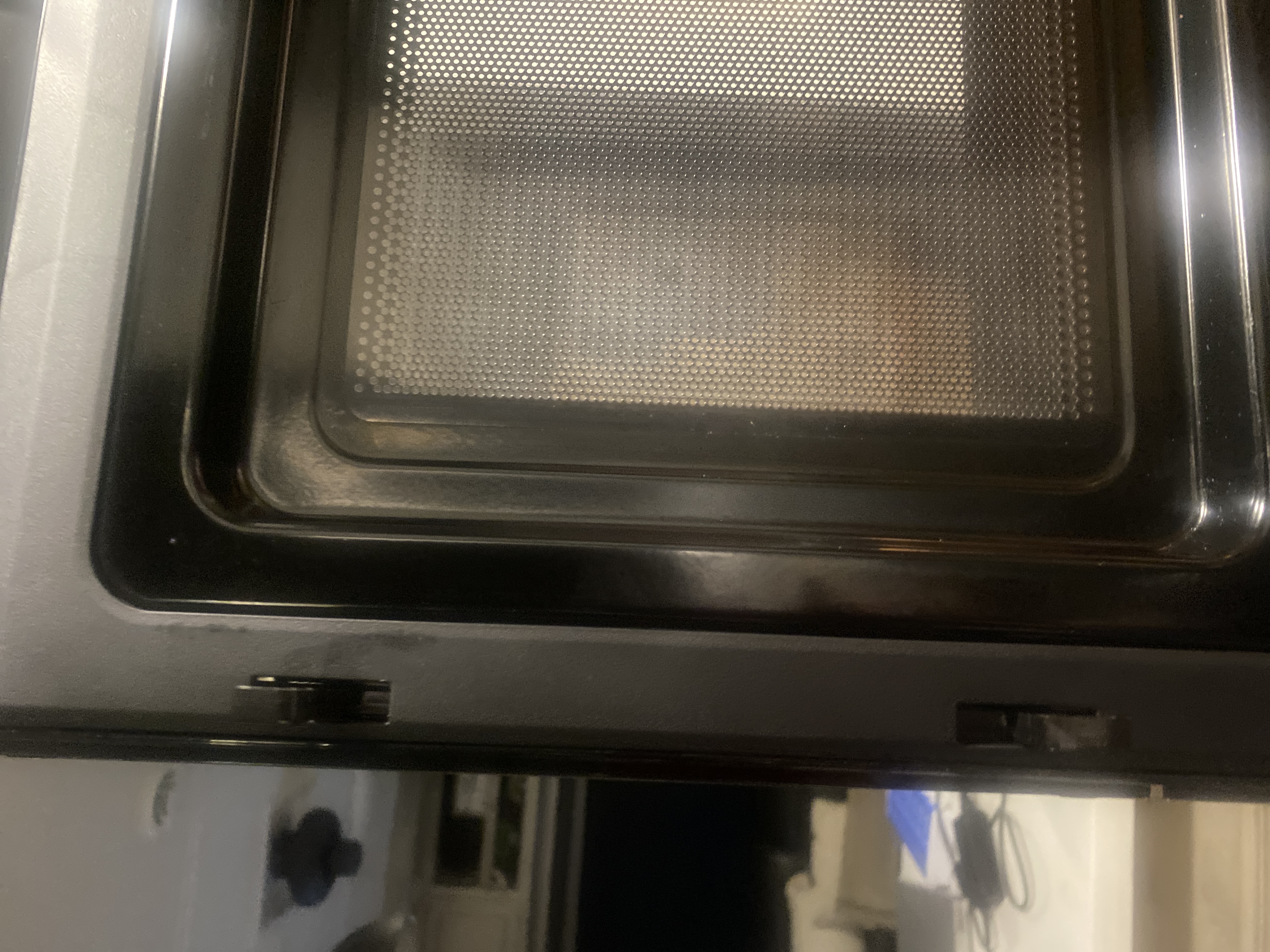

Door latch broken
