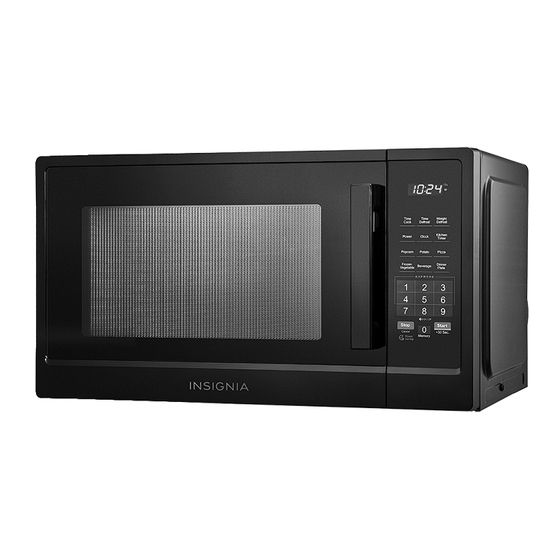

Insignia NS-MW11BK5 User Manual

Insignia NS-MW11BK5 User Manual

1.1 cu. ft. microwave

Advertisement

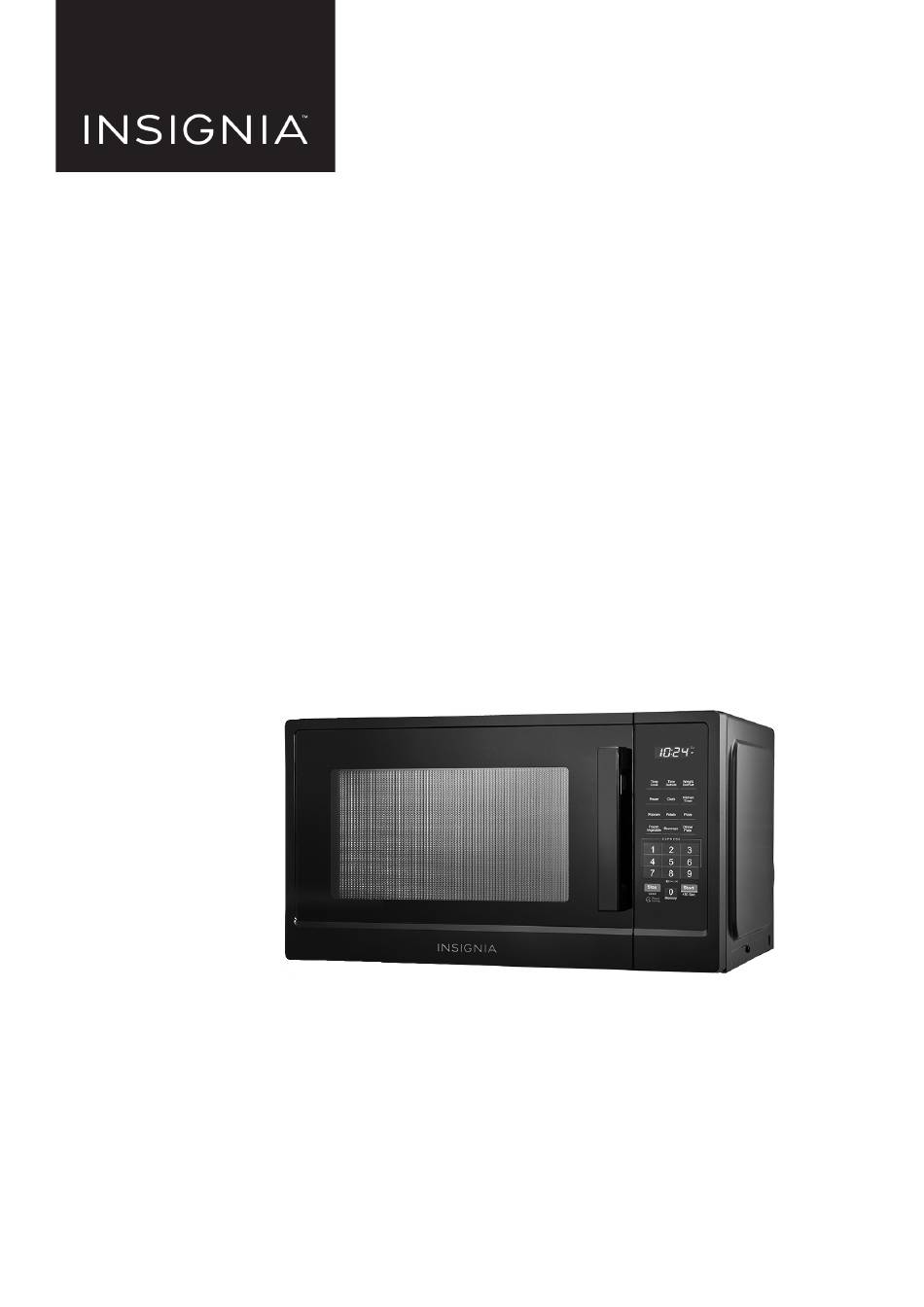

USER GUIDE
1.1 Cu. Ft. Microwave
NS-MW11BK5
Before using your new product, please read these instructions to prevent any damage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-MW11BK5 and is the answer not in the manual?

Questions and answers

Jose Palacios
April 1, 2025

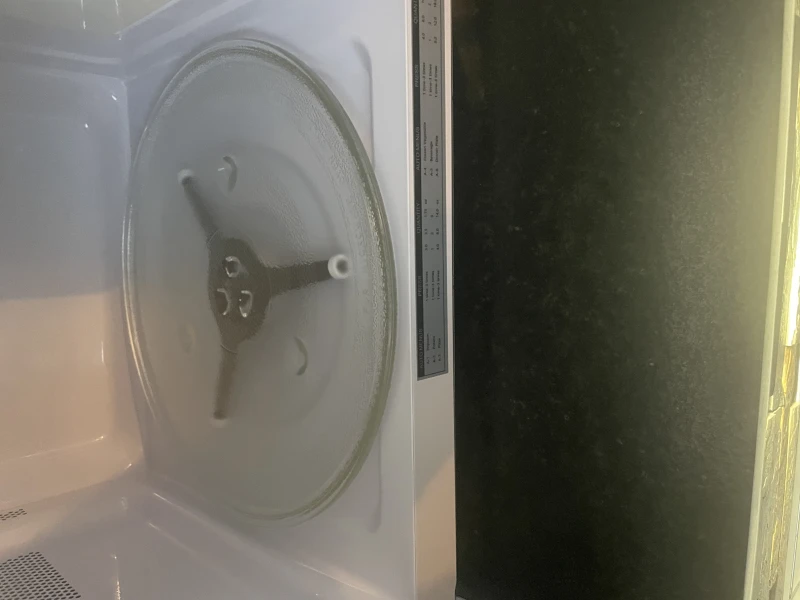

The turntable ring and turntable shaft connector is different then what is on the microwave.

User image 67ec7b038b05b
1 comments:
Mr. Anderson
April 1, 2025

The correct turntable ring and turntable shaft connector for the Insignia NS-MW11BK5 microwave are the turntable ring assembly that fits into the round depression at the bottom of the microwave and the turntable shaft that engages with the hub on the bottom of the glass turntable. The ring must turn freely, and the glass turntable should not turn freely when properly installed.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Insignia NS-MW11BK5

  • Page 1 USER GUIDE 1.1 Cu. Ft. Microwave NS-MW11BK5 Before using your new product, please read these instructions to prevent any damage.
  • Page 2: Table Of Contents

    Contents Introduction ..................3 SAFETY INFORMATION .
  • Page 3: Introduction

    NS-MW11BK5 1.1 Cu. Ft. Microwave Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-MW11BK5 represents the state of the art in microwave design and is designed for reliable and trouble-free performance. SAFETY INFORMATION PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY: Do not attempt to operate this microwave with the door open because this can result in harmful exposure to microwave energy.
  • Page 4: Cookware And Cooking Materials

    1.1 Cu. Ft. Microwave Liquids, such as water, coffee, or tea can be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.
  • Page 5: Materials You Can Use

    NS-MW11BK5 2 Cook on maximum power for one minute. Do not exceed one minute cooking time. 3 Carefully feel the cookware or material. If the empty cookware or material is warm, do not use it for microwave cooking. Materials you can use...
  • Page 6: Features

    1.1 Cu. Ft. Microwave Unpacking your microwave Remove your microwave and all materials from the box and microwave cavity. Your microwave comes with the following accessories: Turntable ring assembly Turntable shaft Glass tray User Guide Features • Spacious 1.1 cu. ft. design reheats all your favorite meals •...
  • Page 7: Control Panel

    NS-MW11BK5 Control panel ITEM DESCRIPTION Display In standby mode, shows the time. In cooking mode, shows cooking time, weight, and other information. Time Cook Press to set the amount of time you want to heat your food, then press the number buttons to enter the time you want (up to 99 minutes and 99 seconds).
  • Page 8: Setting Up Your Microwave

    1.1 Cu. Ft. Microwave Setting up your microwave 1 Remove all packing material, protective film, and accessories. Do not remove the cream-colored plastic cover that is attached to the microwave cavity to protect the magnetron. 2 Check for any damage such as dents or a broken door. Do not use the microwave if it is damaged. 3 Select a level surface that provide enough open space for the vents: CAUTION: Do not install the microwave over a range cooktop or other heat-producing appliance.
  • Page 9: Setting The Clock And The Timer

    NS-MW11BK5 Setting the clock and the timer Setting the clock 1 Press Clock once. Your display shows “12:00”. 2 Use the number keys to enter the current time, then press Clock to save the setting. The clock is set. Notes: •...
  • Page 10 1.1 Cu. Ft. Microwave BUTTON AMOUNT DISPLAY 1 cup (120 ml/cup) Beverage 2 cups 3 cups – 9 oz. – Dinner Plate 12 oz. – 18 oz. Popcorn 1 Press Popcorn repeatedly until the weight of your popcorn bag (3.0, 3.5, or 1.75 ounces) is shown on the display. 2 Press Start/+30 Sec.
  • Page 11: Using A Memorized Procedure

    NS-MW11BK5 Using a memorized procedure: Memorized procedures let you save heating operations (cook time and power level) that you use often. You must save a memorized procedure before using this feature. You can save three procedures. One of these procedures can be a multi-stage procedure.
  • Page 12: Changing Other Microwave Settings

    1.1 Cu. Ft. Microwave Changing other microwave settings Muting your microwave To mute or unmute your microwave, press and hold the 8 button for three seconds while in standby mode. The microwave beeps and mutes or unmutes. Note: No operations can make sound while the microwave is muted. Using power saving mode While in standby mode, press Stop/Cancel briefly to turn off the display.
  • Page 13: Troubleshooting

    Use only microwave-safe materials. See Materials you can use on page 5. Incorrect defrosting Use the correct cooking time and power level. Turn or stir the food intermittently to ensure even cooking. Obtaining replacement parts Call Insignia Customer Service at 1-877-467-4289. Specifications NS-MW11BK5 Model 120VAC, 60Hz...
  • Page 14: One-Year Limited Warranty

    During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
  • Page 15 For product inquiries, please contact us with the information below: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2024 Best Buy. All rights reserved.
