Summary of Contents for Insignia NS-MW12SS6

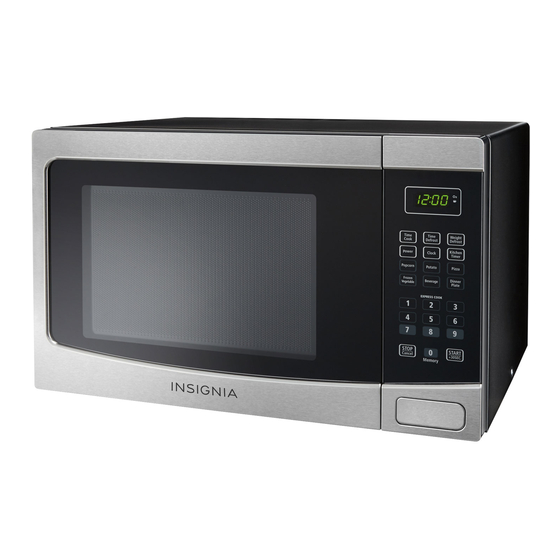

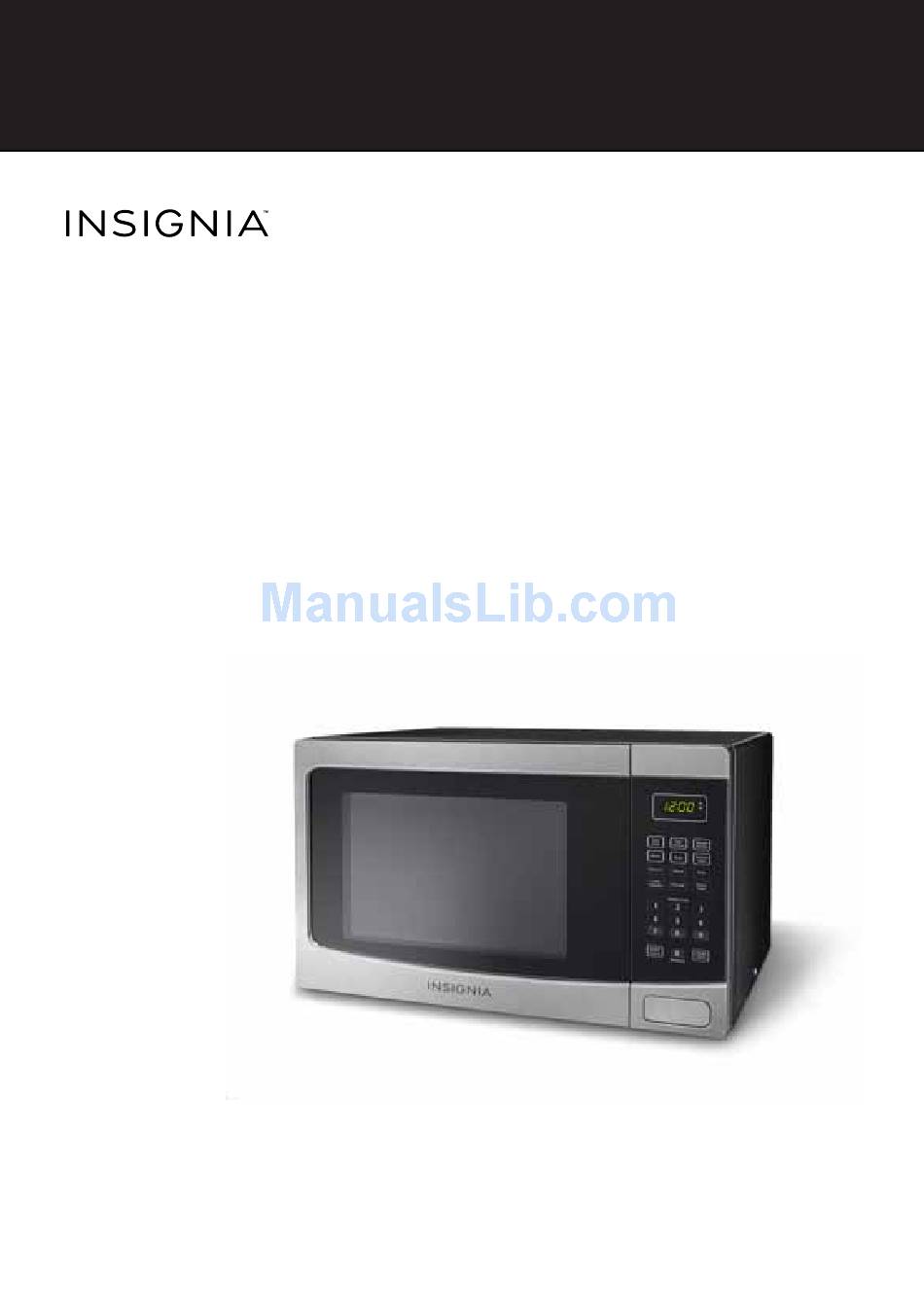

- Page 1 USER GUIDE 1.2 Cu. ft. Microwave Oven - Stainless Steel NS-MW12SS6/NS-MW12SS6-C Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Legal notices........19 ONE-YEAR LIMITED WARRANTY - INSIGNIA ... 21... -
Page 3: Important Safety Instructions
Microwave Oven - Stainless Steel (c) Do not operate the microwave if it is damaged. It is particularly important that the microwave door closes properly and that there is no damage to the the door, hinges and latches, or door seals and sealing surface. - Page 4 Microwave Oven - Stainless Steel 8 Use this microwave only for its intended uses as described in this manual. Do not use corrosive chemicals or vapors in this microwave. This microwave is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
-
Page 5: Save These Instructions
Microwave Oven - Stainless Steel SAVE THESE INSTRUCTIONS GROUNDING INSTRUCTIONS Warning - Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this microwave. Improper grounding can result in electric shock. Do not plug into an outlet until the microwave is properly installed and grounded. - Page 6 Microwave Oven - Stainless Steel • Relocate the microwave with respect to the receiver. • Move the microwave away from the receiver. • Plug the microwave into a different outlet so that the microwave and receiver are on different branch circuits. SAFETY 1 The microwave must be on a level surface.
- Page 7 Microwave Oven - Stainless Steel Refer to the “Materials you can use” and “Materials to be avoided” tables as a guide, then test before using. Cookware and MaterialsTest: 1 Insert the cookware or materials in question and a microwave-safe container filled with 1 cup (250 ml) of cold water into the microwave. 2 Cook on maximum power for one minute.
- Page 8 Microwave Oven - Stainless Steel Materials to be avoided Material Remarks Aluminum tray May cause arcing. Use a microwave-safe dish instead. Food carton with May cause arcing. Use a microwave-safe dish instead. metal handle Metal or metal Metal shields the food from microwave energy. The metal trim may cause trimmed utensils arcing.
-
Page 9: Features
Microwave Oven - Stainless Steel Package contents: • 1.2 Cu. ft. microwave oven • Removable glass turntable • Turntable ring • User Guide Features • Six Quick-Set Menu Buttons • Child Safety Lock • Electronic Controls with LED Display • 30-Second Express Cooking •... -
Page 10: Control Panel
Microwave Oven - Stainless Steel Control panel Item Description Standby mode: displays the time. Display Cooking mode: displays cooking time, weight, and other information. Press this button, then enter the time you want for an item to Time Defrost defrost. Press this button, then enter the time you want for an item to Time Cook cook. -
Page 11: Setting Up Your Microwave
Microwave Oven - Stainless Steel Item Description Press to set the clock, then press the number buttons to enter Clock the current time. Press to enter cook time, defrost time, clock time, and other Number buttons information. Press to stop the cooking process. Press again to cancel the STOP/Cancel cooking operation. -
Page 12: Installing The Turntable
Microwave Oven - Stainless Steel 5 Plug your microwave into a standard household outlet. Make sure that the voltage and the frequency is the same as the voltage and the frequency on the rating label. Caution Do not install your microwave over a range cooktop or other heat-producing appliance. -
Page 13: Using Your Microwave
Microwave Oven - Stainless Steel Using your microwave Understanding the power level 11 power levels are available. Level Power 100% 90% Display PL10 Setting the clock 1 Press CLOCK. 2 Press the number keys to enter the current time. 3 Press CLOCK to confirm the setting. Note If the numbers input are not within the range of 1:00--12:59, the setting is invalid until valid... -
Page 14: Cooking Quickly
Microwave Oven - Stainless Steel 5 Press START/+30SEC. to start cooking. Notes - During setting, if the STOP/CANCEL button is pressed or if there is no operation within one minute, the microwave goes back to the former setting automatically. - If “PL0” is selected, the microwave fan turns on with 0% power. -
Page 15: Cooking Popcorn
Microwave Oven - Stainless Steel Defrosting by time 1 Press TIME DEFROST. The display shows “dEF2. ” 2 Press the number buttons to input the defrosting time you want. The time range must be between 00:01 and 99:99. 3 The default microwave power for Time Defrost is power level 3. If you want to change the power level, press POWER once. -
Page 16: Cooking Frozen Vegetables
Microwave Oven - Stainless Steel Cooking frozen vegetables 1 Press FROZEN VEGETABLE repeatedly until the weight of the frozen vegetables you want to cook shows on the display. The display cycles through “4.0”>”8.0”>”16.0” (oz.). 2 Press START/+30 SEC.. When the food is cooked, the buzzer sounds five times and the microwave returns to standby mode. -
Page 17: Using Multi-Stage Cooking
Microwave Oven - Stainless Steel 4 Press START/+30 SEC. to save the setting in memory. The buzzer sounds once, then the microwave returns to standby mode. If you press START/+30SEC. again, the procedure is saved as memory #2 and cooking begins. The procedure remains in memory. -
Page 18: Using The Child-Lock
Microwave Oven - Stainless Steel Using the child-lock • To lock the microwave — Press and hold STOP/CANCEL for three seconds. The microwave sounds a long beep and the display shows , indicating that the lock is active. • To unlock the microwave — When the microwave is locked, press and hold STOP/CANCEL for three seconds. -
Page 19: Maintaining Your Microwave
12.8 H x 15.87 L x 20.5 D in. (32.6 x 40.3 x 52 cm) Net weight 32.19 lbs (14,6 kg) Legal notices Copyright INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC ©2015 Best Buy. All rights reserved. Made in China www.insigniaproducts.com... - Page 20 Microwave Oven - Stainless Steel www.insigniaproducts.com...
-
Page 21: One-Year Limited Warranty - Insignia
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 22 Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults” •...
- Page 23 Microwave Oven - Stainless Steel www.insigniaproducts.com...
- Page 24 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC V3 ENGLISH ©2015 Best Buy. All rights reserved. 15-0740 Made in China.
Need help?
Do you have a question about the NS-MW12SS6 and is the answer not in the manual?
Questions and answers
Can my microwave be fixed? Microwave turned itself off and tripped circuit breaker. I unplugged the unit, waited, and plugged it in. There was a spark at the outlet and the circuit breaker tripped.
If the Insignia NS-MW12SS6 microwave turned off, tripped the circuit breaker, and sparked at the outlet, it may have an electrical issue. The manual warns against disassembling the microwave due to the risk of electric shock. It is recommended to consult a qualified electrician or authorized service center for repair. Do not attempt to use or repair it yourself, as improper handling can cause serious injury or further damage.
This answer is automatically generated
