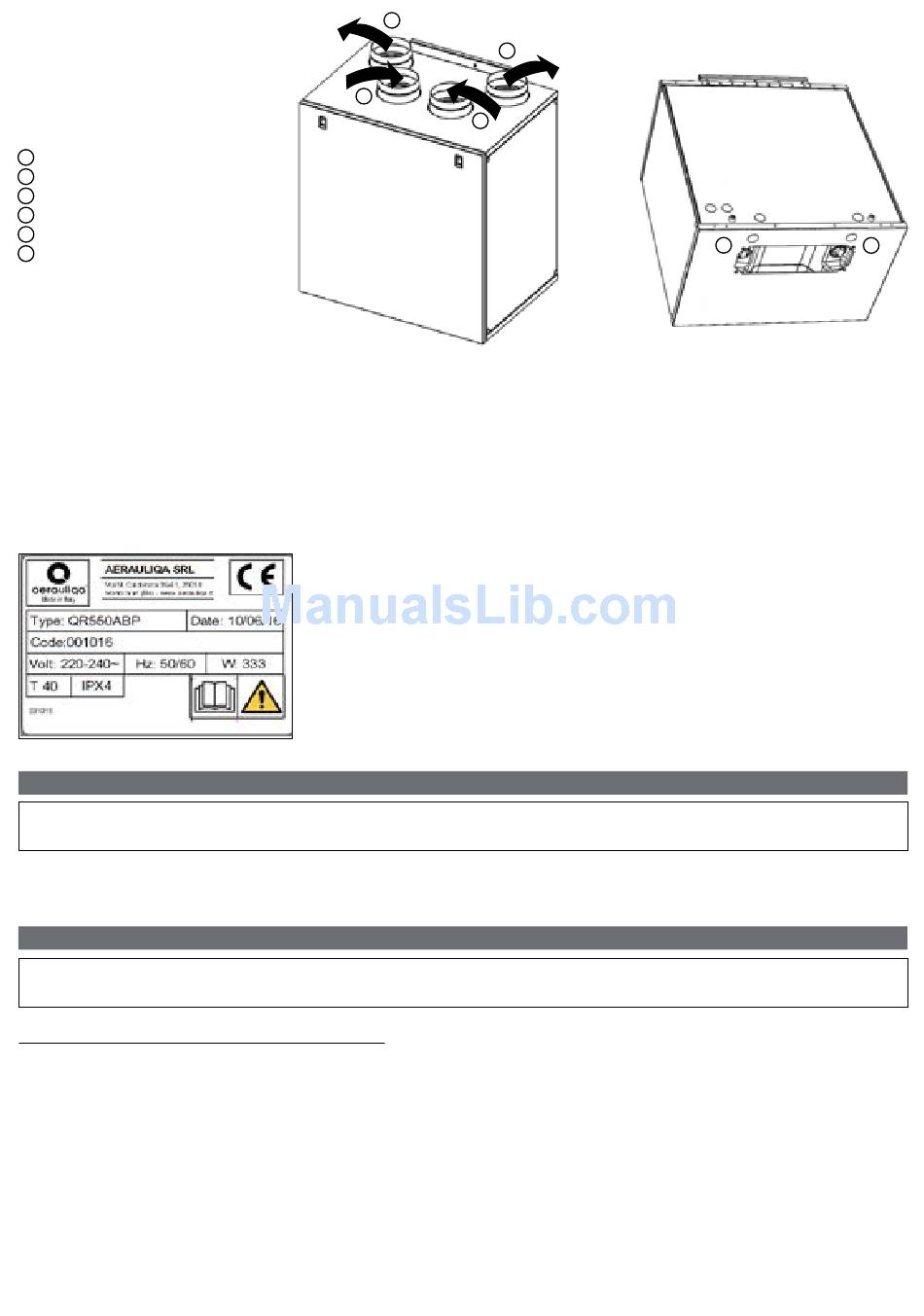

Fig. 3.b Connections in RIGHT orientation
Intake air from outside
A
B Exhaust air to outside
Supply air to inside
C
Extract air from inside
D
Winter condensation drainage
E
Summer condensation drainage
F
To set the RIGHT orientation of the machine:
• Modify the orientation on the CTRL-DSP (point 7.2 - Installer menu: 3 Machine Orientation).
• Move the F7 filter from the left to the right side.
• Replace the ducting connection label on the top of the casing and the water drainage label on the bottom of the casing with those supplied with this
installation manual.

3.4 Space required

Make sure that enough space is left around the unit to allow easy maintenance (access to filters, terminal box and removal of the side and front inspection panels).

3.5 Rating label

Fig.3.c Rating label

4 traNsPort aND storagE

Make sure that specific warnings and cautions in Chapter 2 "Precautions" are carefully read, understood and applied!
The appliance is delivered in one carton box.
The appliance should be stored and transported in such a way that it is protected against physical damage that can harm spigots, casing, display etc.
It should be covered so that dust, rain and snow cannot enter and damage the unit and its components.

5 INstallatIoN

Make sure that specific warnings and cautions in Chapter 2 "Precautions" are carefully read, understood and applied!
This section describes how to install the unit correctly.
The unit must be installed according to these instructions.

5.1 Unpacking

Verify that the unit (and eventual accessories) delivered is according to order before starting the installation. Any discrepancies from the ordered equipment
must be reported to the supplier.

5.2 Where/how to install

• All QR units are meant for indoor installation in a heated space.
• Mount the unit on flat surface (wall).
• The unit must always be installed vertically.
• It's important that the unit is completely leveled before it is put into operation.
• Place the unit preferably in a separate room (e.g. storage, laundry room or similar).
• When choosing the location it should be kept in mind that the unit requires maintenance regularly and that the inspection doors should be easily accessible.
4
C
B
D
A
WARNING
WARNING
E F
