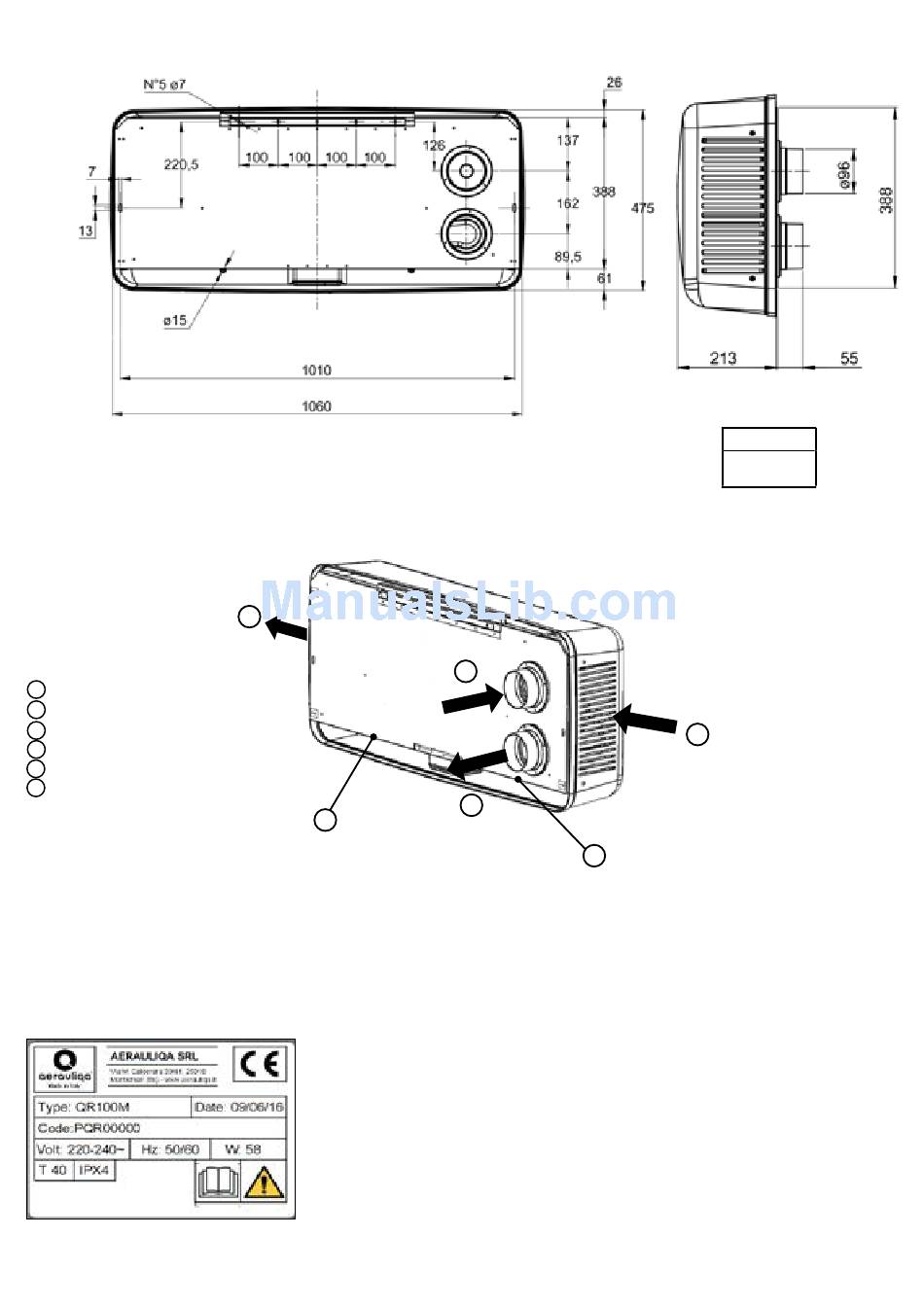

3.2 Dimensions (mm) and Weight
Fig. 3.a

3.3 Connections

Fig. 3.b Connections
A Intake air from outiside
Exhaust air to outside
B
Supply air to inside
C
Extract air from inside
D
Winter condensation drainage
E
Summer condensation drainage
F

3.4 Space required

Make sure that enough space is left around the unit to allow easy maintenance (removal of the front cover for access to filters and terminal box).
It is recommended to leave at least 1m distance between the side grilles (supply and extract) and the perpendicular walls.

3.5 Rating label

Fig.3.c Rating label
C
E
A
B
F
Weight Kg
12,5
D
3
