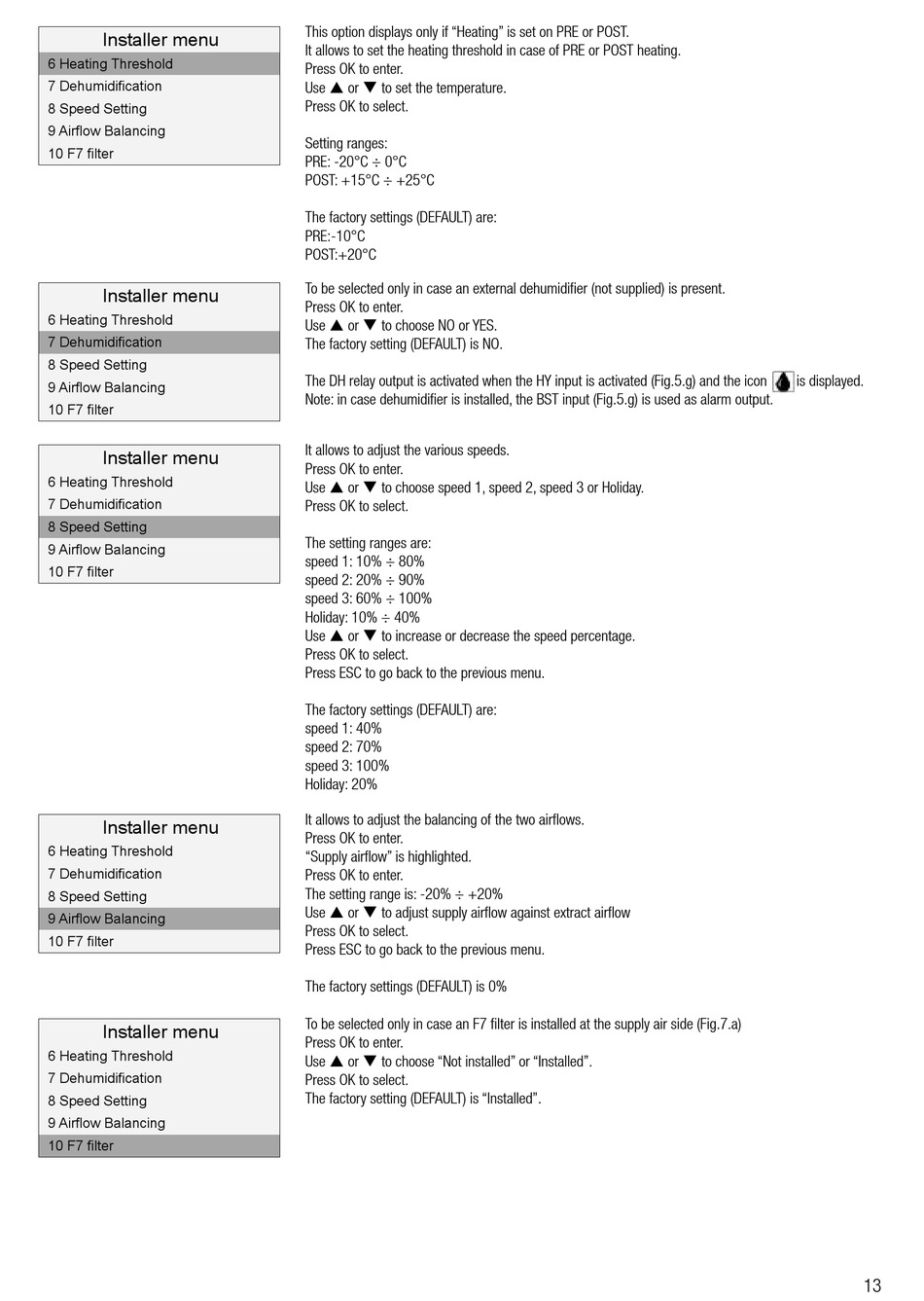

aerauliqa QR550ABP Installation Manual page 13

Installer menu
6 Heating Threshold
7 Dehumidification
8 Speed Setting
9 Airflow Balancing
10 F7 filter
Installer menu
6 Heating Threshold
7 Dehumidification
8 Speed Setting
9 Airflow Balancing
10 F7 filter
Installer menu
6 Heating Threshold
7 Dehumidification
8 Speed Setting
9 Airflow Balancing
10 F7 filter
Installer menu
6 Heating Threshold
7 Dehumidification
8 Speed Setting
9 Airflow Balancing
10 F7 filter
Installer menu
6 Heating Threshold
7 Dehumidification
8 Speed Setting
9 Airflow Balancing
10 F7 filter
This option displays only if "Heating" is set on PRE or POST.
It allows to set the heating threshold in case of PRE or POST heating.
Press OK to enter.
Use  or  to set the temperature.
Press OK to select.
Setting ranges:
PRE: -20°C ÷ 0°C
POST: +15°C ÷ +25°C
The factory settings (DEFAULT) are:
PRE:-10°C
POST:+20°C
To be selected only in case an external dehumidifier (not supplied) is present.
Press OK to enter.
Use  or  to choose NO or YES.
The factory setting (DEFAULT) is NO.
The DH relay output is activated when the HY input is activated (Fig.5.g) and the icon
Note: in case dehumidifier is installed, the BST input (Fig.5.g) is used as alarm output.
It allows to adjust the various speeds.
Press OK to enter.
Use  or  to choose speed 1, speed 2, speed 3 or Holiday.
Press OK to select.
The setting ranges are:
speed 1: 10% ÷ 80%
speed 2: 20% ÷ 90%
speed 3: 60% ÷ 100%
Holiday: 10% ÷ 40%
Use  or  to increase or decrease the speed percentage.
Press OK to select.
Press ESC to go back to the previous menu.
The factory settings (DEFAULT) are:
speed 1: 40%
speed 2: 70%
speed 3: 100%
Holiday: 20%
It allows to adjust the balancing of the two airflows.
Press OK to enter.
"Supply airflow" is highlighted.
Press OK to enter.
The setting range is: -20% ÷ +20%
Use  or  to adjust supply airflow against extract airflow
Press OK to select.
Press ESC to go back to the previous menu.
The factory settings (DEFAULT) is 0%
To be selected only in case an F7 filter is installed at the supply air side (Fig.7.a)
Press OK to enter.
Use  or  to choose "Not installed" or "Installed".
Press OK to select.
The factory setting (DEFAULT) is "Installed".
is displayed.
13
