Dimensions And Weight; Connections; Space Required - aerauliqa QR350MBP Installation Manual

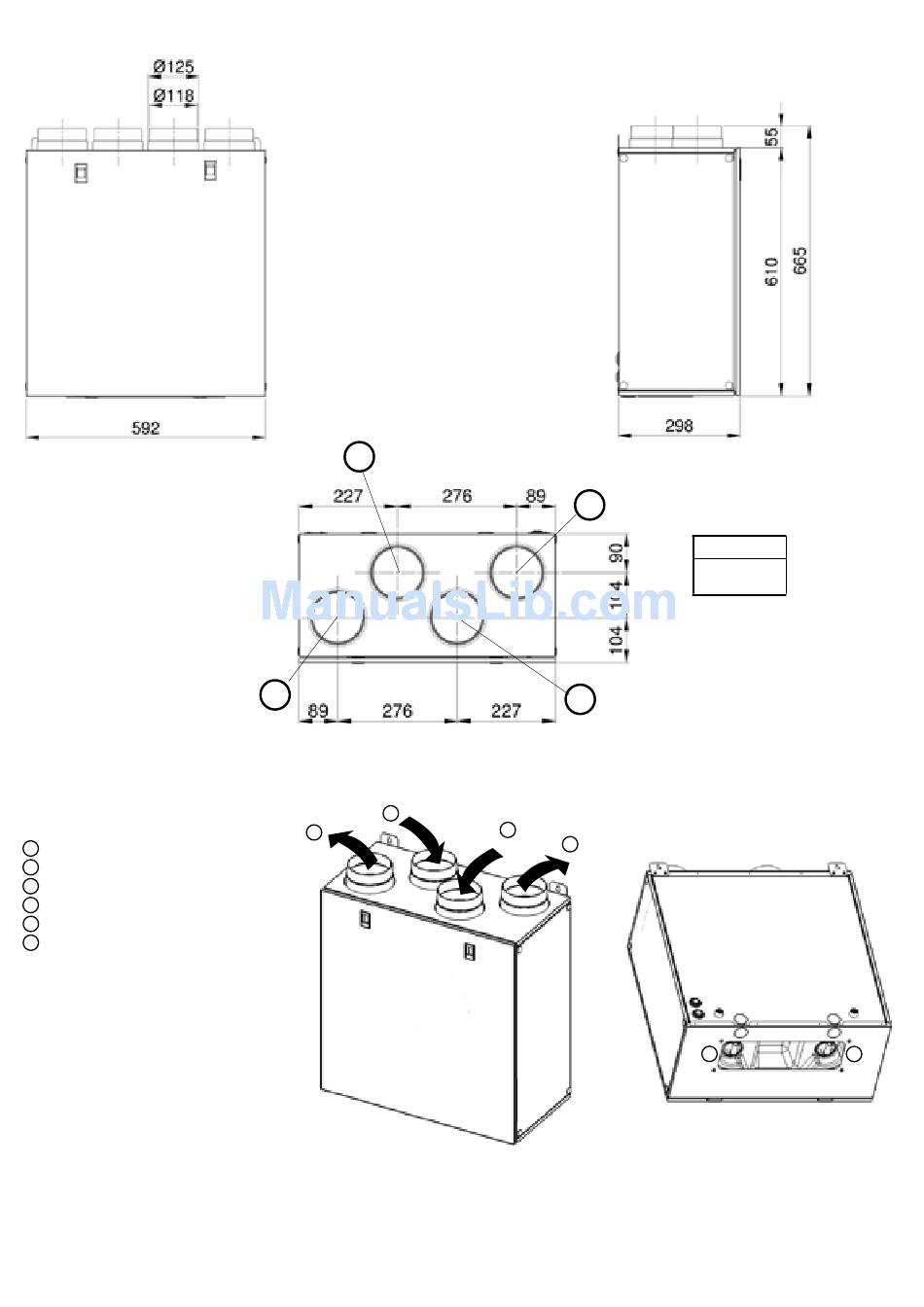

3.2 Dimensions (mm) and Weight

3.3 Connections

Fig. 3.a Connections
A Intake air from outside
Exhaust air to outside
B
Supply air to inside
C
Extract air from inside
D
Winter condensation drainage
E
Summer condensation drainage
F

3.4 Space required

Make sure that enough space is left around the unit to allow easy maintenance (access to filters, terminal box and removal of the side and front inspection panels).
A
B
A
B
C
D
D
C
Weight Kg
23
F E
