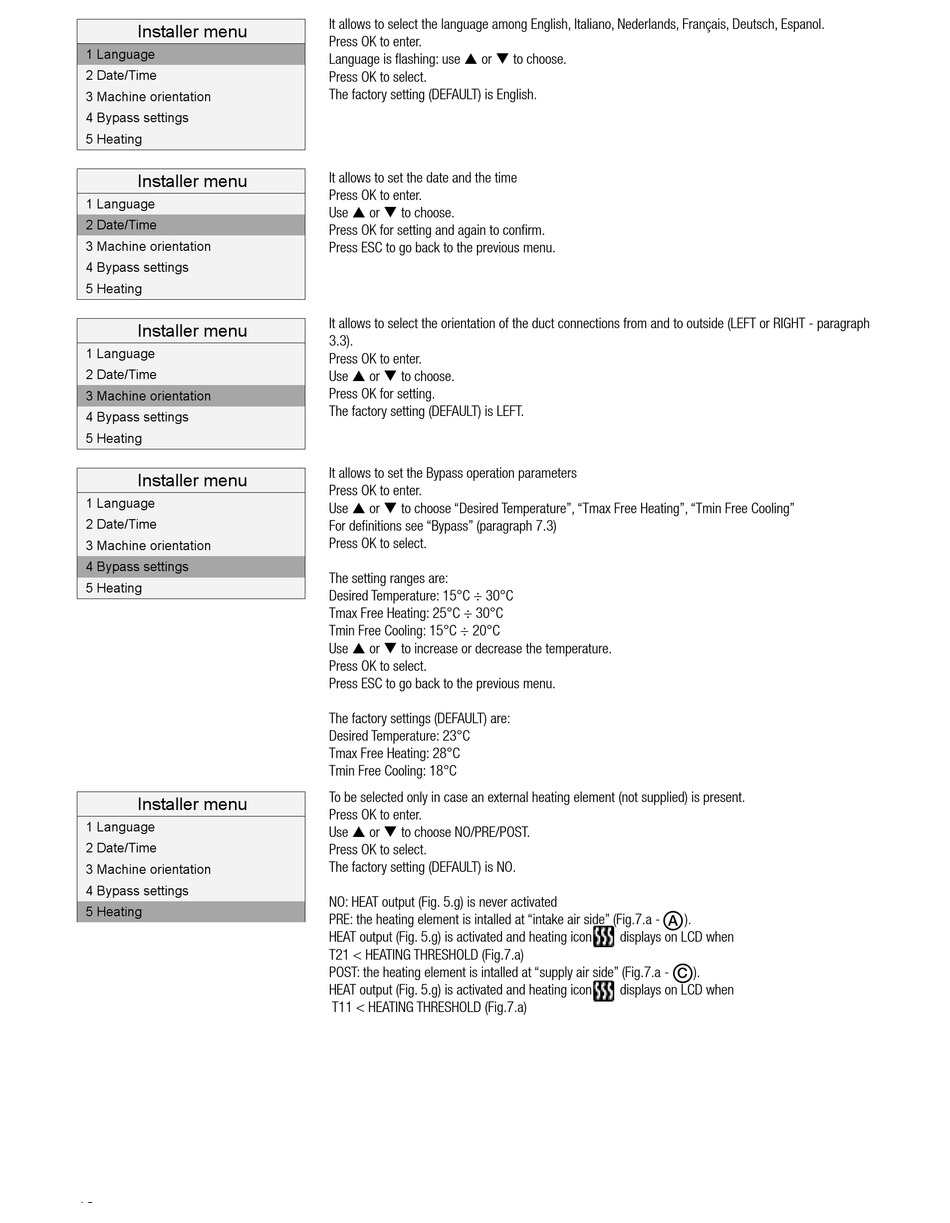

aerauliqa QR550ABP Installation Manual page 12

Installer menu
1 Language
2 Date/Time
3 Machine orientation
4 Bypass settings
5 Heating
Installer menu
1 Language
2 Date/Time
3 Machine orientation
4 Bypass settings
5 Heating
Installer menu
1 Language
2 Date/Time
3 Machine orientation
4 Bypass settings
5 Heating
Installer menu
1 Language
2 Date/Time
3 Machine orientation
4 Bypass settings
5 Heating
Installer menu
1 Language
2 Date/Time
3 Machine orientation
4 Bypass settings
5 Heating
12
It allows to select the language among English, Italiano, Nederlands, Français, Deutsch, Espanol.
Press OK to enter.
Language is flashing: use  or  to choose.
Press OK to select.
The factory setting (DEFAULT) is English.
It allows to set the date and the time
Press OK to enter.
Use  or  to choose.
Press OK for setting and again to confirm.
Press ESC to go back to the previous menu.
It allows to select the orientation of the duct connections from and to outside (LEFT or RIGHT - paragraph
3.3).
Press OK to enter.
Use  or  to choose.
Press OK for setting.
The factory setting (DEFAULT) is LEFT.
It allows to set the Bypass operation parameters
Press OK to enter.
Use  or  to choose "Desired Temperature", "Tmax Free Heating", "Tmin Free Cooling"
For definitions see "Bypass" (paragraph 7.3)
Press OK to select.
The setting ranges are:
Desired Temperature: 15°C ÷ 30°C
Tmax Free Heating: 25°C ÷ 30°C
Tmin Free Cooling: 15°C ÷ 20°C
Use  or  to increase or decrease the temperature.
Press OK to select.
Press ESC to go back to the previous menu.
The factory settings (DEFAULT) are:
Desired Temperature: 23°C
Tmax Free Heating: 28°C
Tmin Free Cooling: 18°C
To be selected only in case an external heating element (not supplied) is present.
Press OK to enter.
Use  or  to choose NO/PRE/POST.
Press OK to select.
The factory setting (DEFAULT) is NO.
NO: HEAT output (Fig. 5.g) is never activated
PRE: the heating element is intalled at "intake air side" (Fig.7.a -
HEAT output (Fig. 5.g) is activated and heating icon
T21 < HEATING THRESHOLD (Fig.7.a)
POST: the heating element is intalled at "supply air side" (Fig.7.a -
HEAT output (Fig. 5.g) is activated and heating icon
T11 < HEATING THRESHOLD (Fig.7.a)
A ).
displays on LCD when
).
C
displays on LCD when
