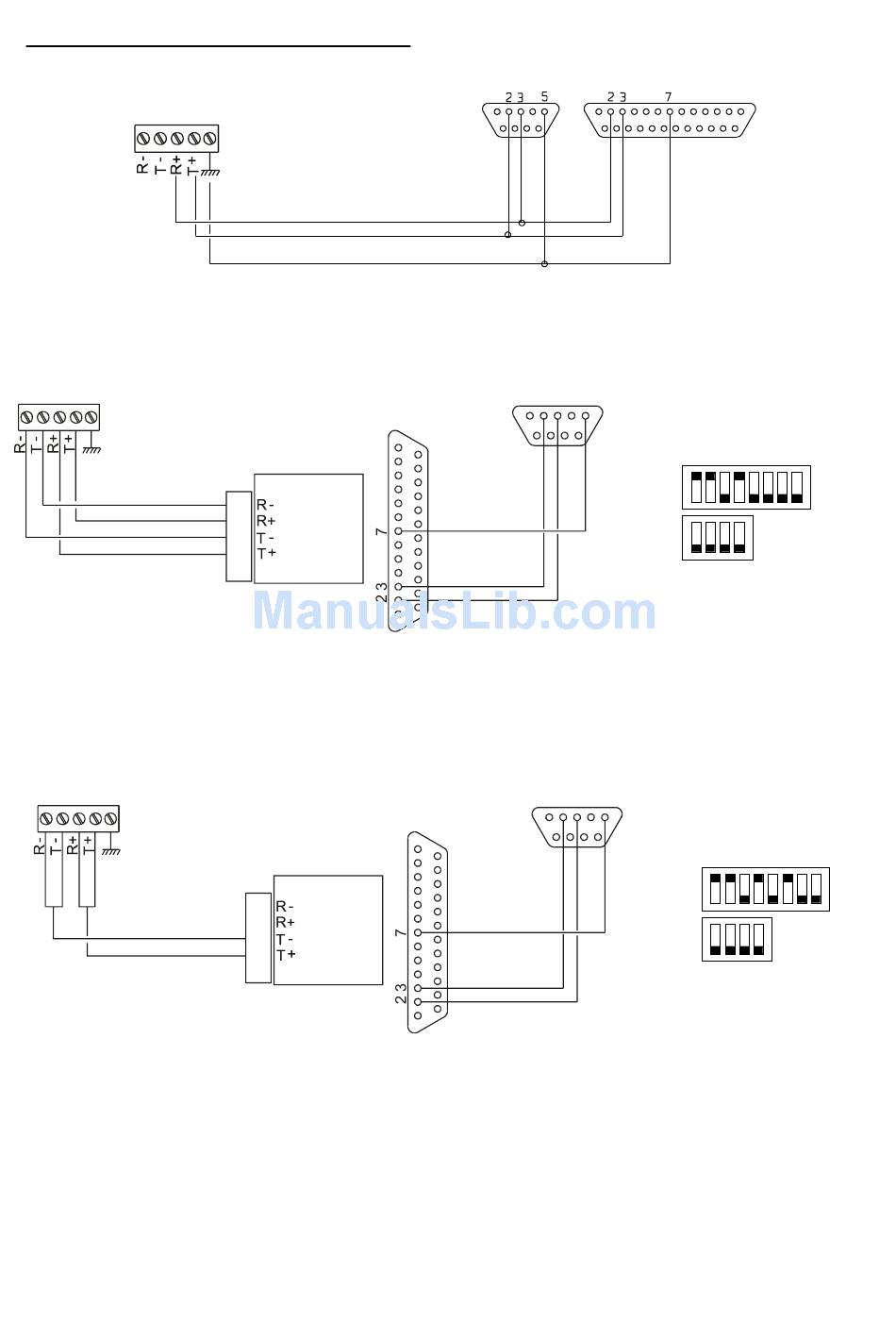

Connection to a PC in RS232 mode
Sigma board
Maximum length from Sigma to P.C. with RS232: 15 m
Synchronisation connection to a PC in RS422
Sigma board
Link in RS422
maximum length: 1200 m
Synchronisation connection to a PC in RS485
Sigma board
Link in RS485
maximum length: 1200m
Set the lines to "On" in the "Time outputs" technician menu (see page 36).
Remark: in this menu, "DEL" mode is used only to uninstall the option board
from the master clock.
TX
Interface
1
MA
2
45
3
4
5
Interface
1
MA
2
45
3
4
5
9 pins
RX
Ground
PC
2 3
2 3
PC
25 pins
Position of MA 45
5
interface DIP switches:
S2
S3
Link in RS232
maximum length : 15m
Position of MA 45
5
interface DIP switches:
S2
S3
Link in RS232
maximum length : 15m
PC
connector
ON
ON
ON
ON
