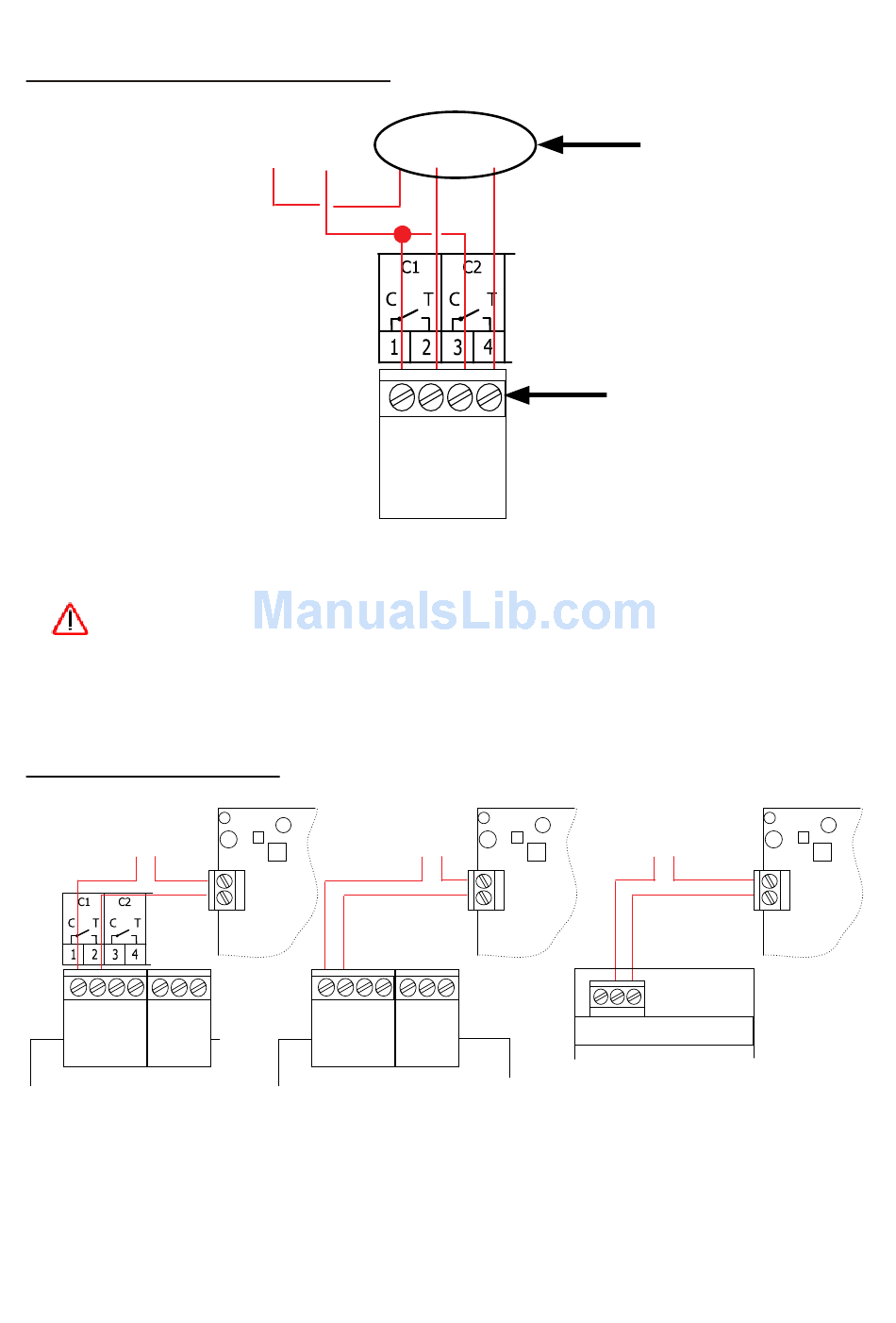

Connection for D1D2 distribution :
D1 D2 uses the relays of circuits 1 and 2
Circuits must be protected by fuse disconnector or circuit breaker 4A
maximum. Indicate on the label above the terminal block the location of
these protections.
Connecting a Melodys :
Power supply depending on
the model (24V or 240V))
Terminal of
the Melodys
Connection to the
electronic card of the
Sigma
The Melodys can be connected directly to a relay output of the Sigma, an
option card or a wireless relay.
See page 39 or 40 to assign the relay to the Melodys, and page 25 for
programming.
N L
N D1 D2
Power supply
depending on the
model (24V or 240V)
Connection to an
option card of the
Sigma
Terminal of
the Melodys
wireless relay controlled
To Bodet
D1D2
movement.
Make a shunt between
terminals 1 and 3, 0.75² <
cross section of wires <1.5².
Power supply
depending on the
model (24V or 240V)
Terminal of
the Melodys
Connection to a
by the Sigma
