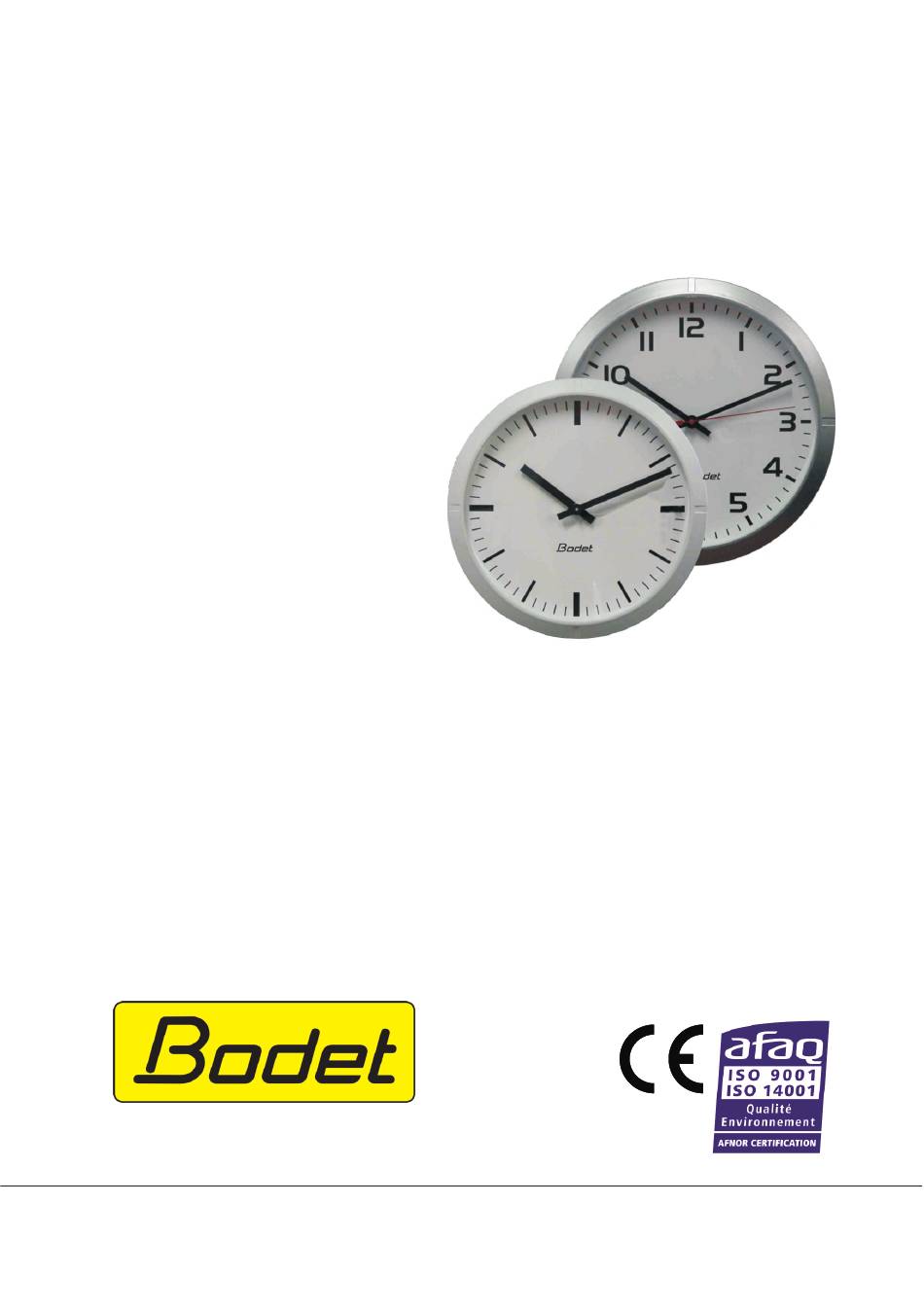

Profil 930-940
NTP slave clock
INSTALLATION AND OPERATING INSTRUCTIONS
B.P. 1
49340 TRÉMENTINES
FRANCE
Tél. : 02 41 71 72 00
Fax : 02 41 71 72 01
www.bodet.com
Réf.: 606548 I
