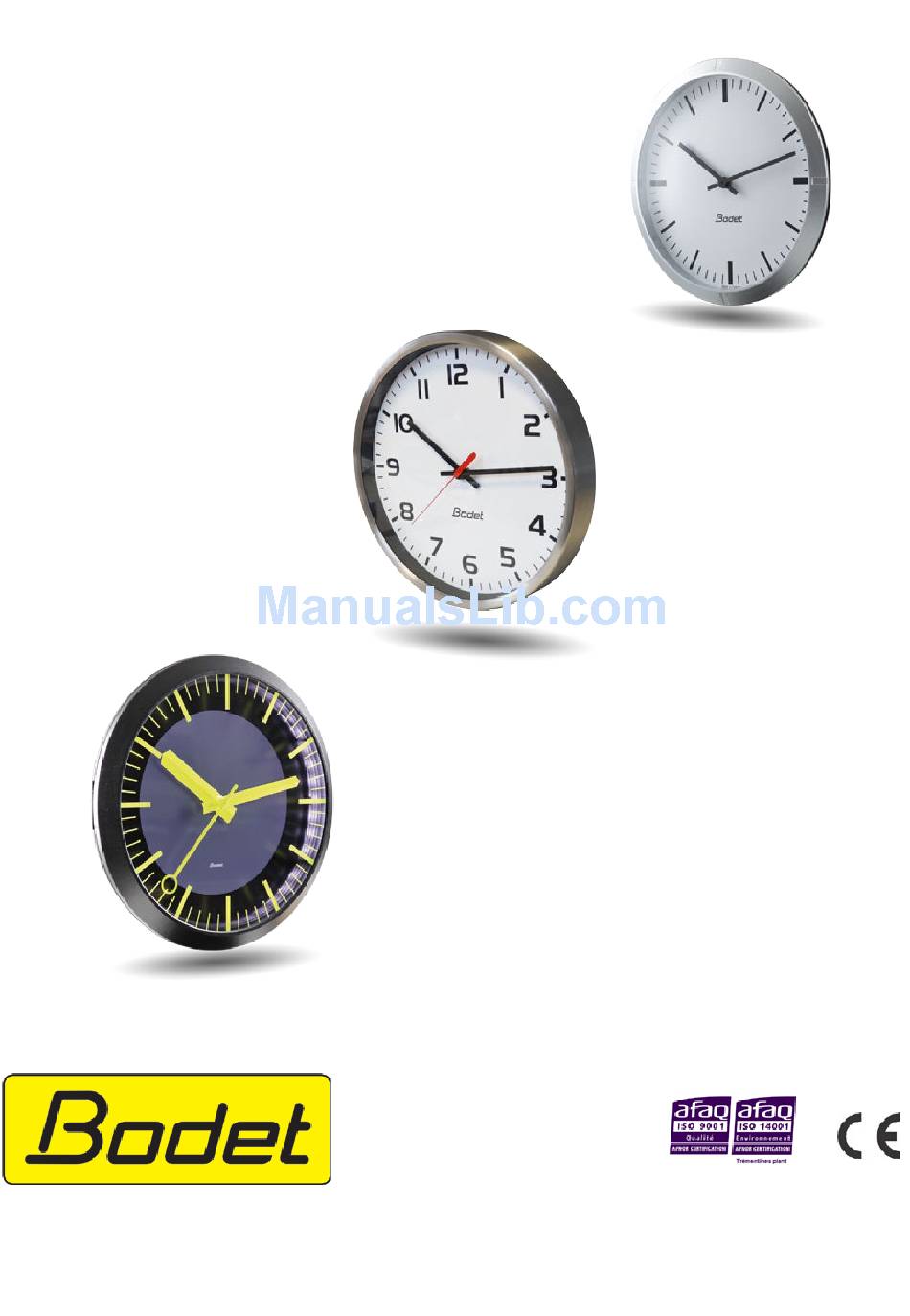

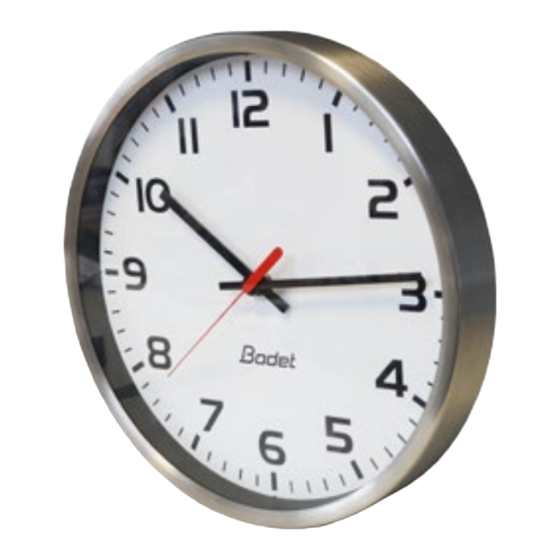

  • Page 1 Clocks Profil 930-940 Profil TGV 930-940 Profil 930 metal Independent QUARTZ on battery IRIG B/AFNOR - DHF time signal reception Receiver Minute, ½ minute, Second impulses Radio synchronisation on battery INSTALLATION AND OPERATING INSTRUCTIONS B.P. 30001 49340 TRÉMENTINES FRANCE Tél. : +33 241 71 72 00 Fax : +33 241 71 72 01 www.bodet-time.com...

  • Page 2: Table Of Contents

    Table of content I - INITIAL VERIFICATION 1.1 Unpacking the clock 1.2 Cleaning II - INSTALLATION 2.1 Single Face indoor clock 2.2 Single Face outdoor clock 2.3 Double Face clock III - POWER SUPPLY 3.1 Clock with batteries 3.2 Clock with 230V power supply DHF Slave clock (230V) : AFNOR/Irig-B clock 230V : 3.3 AFNOR Clocks with TBT power supply...

  • Page 3: I - Initial Verification

    I - INITIAL VERIFICATION Thank you for choosing a BODET clock. This product has been carefully designed for your satisfaction based on ISO9001 quality requirements. We advise you to read this manual thoroughly before attempting to manipulate the clock. Keep this booklet during all the life of your clock, so that you can refer to it each time it will be necessary.

  • Page 4: Cleaning

    240 VAC. Nota : all these versions are not available for all Profil or TGV 930/940 models. Contact your Bodet authorised dealer. 1.2 Cleaning Use an antistatic product of similar type to the one shipped in the original packaging. Never use alcohol, acetone or any other solvent liable to damage the casing and filter on your clock.

  • Page 5: Double Face Clock

    2.3 Double Face clock - Fit the bracket on the wall or on the ceiling with 2 screws Ø6. - If necessary, carry out the various connections (external supply see page 5 and connection to a time distribution network : see page 7). - Present both clock on the bracket, then turns it a quarter turn in the clockwise so that the clocks are in the correct position.

  • Page 6: Afnor Clocks With Tbt Power Supply

    Independent Quartz clock on mains : Single Face. • Connect mains supply to the terminal (11) of the power supply unit. • Connect the telephone cable of the fake battery (13) on terminal (12) of the power supply unit. • Set the fake battery (13) in its location with care for polarities. Double Face.

  • Page 7: Dhf Clocks With Tbt Power Supply

    When the power and the Afnor signal are back then the clock is set to the correct time. When the power is back but not the Afnor signal, the hands are driven to 12h00. It is compulsary, for a correct running, to respect the following parameters. These parameters are calculated considering 8/10 mm wire section with 1A (Microquartz Delta).

  • Page 8: ½ Minute And Minute Serial Receiver (Automatically Radio Synchronized By The Bt Radio)

    ½ minute and minute serial receiver (Automatically radio synchronized by the BT radio). - Connect the time distribution network to terminals 1 and 2 on the terminal strip (3). - The terminal 3 of the terminal strip (3) is available. You can use it to connect a double side clock following the diagram opposite.

  • Page 9: Afnor/Irig-B Time Signal Reception

    4.2. AFNOR/IRIG-B time signal reception 4.2.1 230V Slave clock - Connect the time signal network to terminals 1 and 2 (2). Before fixing the clock on its wall support, check that, on the PCB, the dip switch (D) is in the “Start” position. Lock the wires with collars (S).

  • Page 10: Tbt 6-24V Outdoor Slave Clock

    4.2.3 TBT 6-24V Outdoor Slave clock - Connect the afnor line on connectors 3 and 4. The terminals 1 and 2 are reserved for power supply (see page 6). - When receiving the power, the hands are driven to 12h00 until the clock receives a radio signal.

  • Page 11: Msf Radio Receiver Clock

    4.6. MSF radio receiver clock Set the 1,5 V LR6 battery in its location respectful of the polarities. The clock will start a test cycle (the hands will automatically stop at 4 o’clock). The radio synchronization process then starts. If the reception is possible, the exact time is set automatically in accelerated mode.

  • Page 12: Technical Features

    V - TECHNICAL FEATURES Dimensions : Indoor Profil and TGV 930 Profil and TGV 930 with anti-theft bracket Ø440 Indoor Profil and TGV 940 Outdoor Profil and TGV 940 : Ø440 Mounting on bracket 930 clocks 940 clocks Profil 930 Metal...
  • Page 13 Independent QUARTZ clock on battery: Power supply : 1,5V LR6 battery. Autonomy : > 12 months. Accuracy : ±1 second / day. DCF radio synchronisation clock on battery : Power supply : 1,5V LR6 battery. Autonomy : > 1 years. Accuracy : absolute with automatic summer/winter changeover.
  • Page 14 Receiver impulses Minute 24V // : Reversed polarised minutes impulses 9,6 mA. Accuracy of the master clock. Receiver impulses ½ minute serial : Reversed polarised ½ minutes impulses 0,9V/65 mA. Accuracy of the master clock. Receiver impulses minute serial (Automatically radio synchronized by the BT radio) : Reversed polarised minutes impulses 0,9V/65 mA.
  • Page 15 Operating Power supply Protection Lisibility Weight temperature Quartz 1.5 LR6 battery -5°C to +50°C IP401 0.7kg Radio DCF/MSF 1.5 LR6 battery -5°C to +55°C IP401 0.7kg Radio 2 x 1.5V LR6 -5°C to +50°C IP401 0.7kg batteries Minute / ½ minute -10°C to +50°C IP401 0.9kg...

  • Page 16: What To Do If

    VI - WHAT TO DO IF...? ...CHECK. What to do if...? … Check. • The clock (powered by • The battery has run out. Replace the battery. battery) had stopped. Resetting of the time and date is, automatic for radio synchronised clocks, manual for independent clocks.

This manual is also suitable for:

Profil 940Profil tgv 930Profil tgv 940Profil 930 metal
