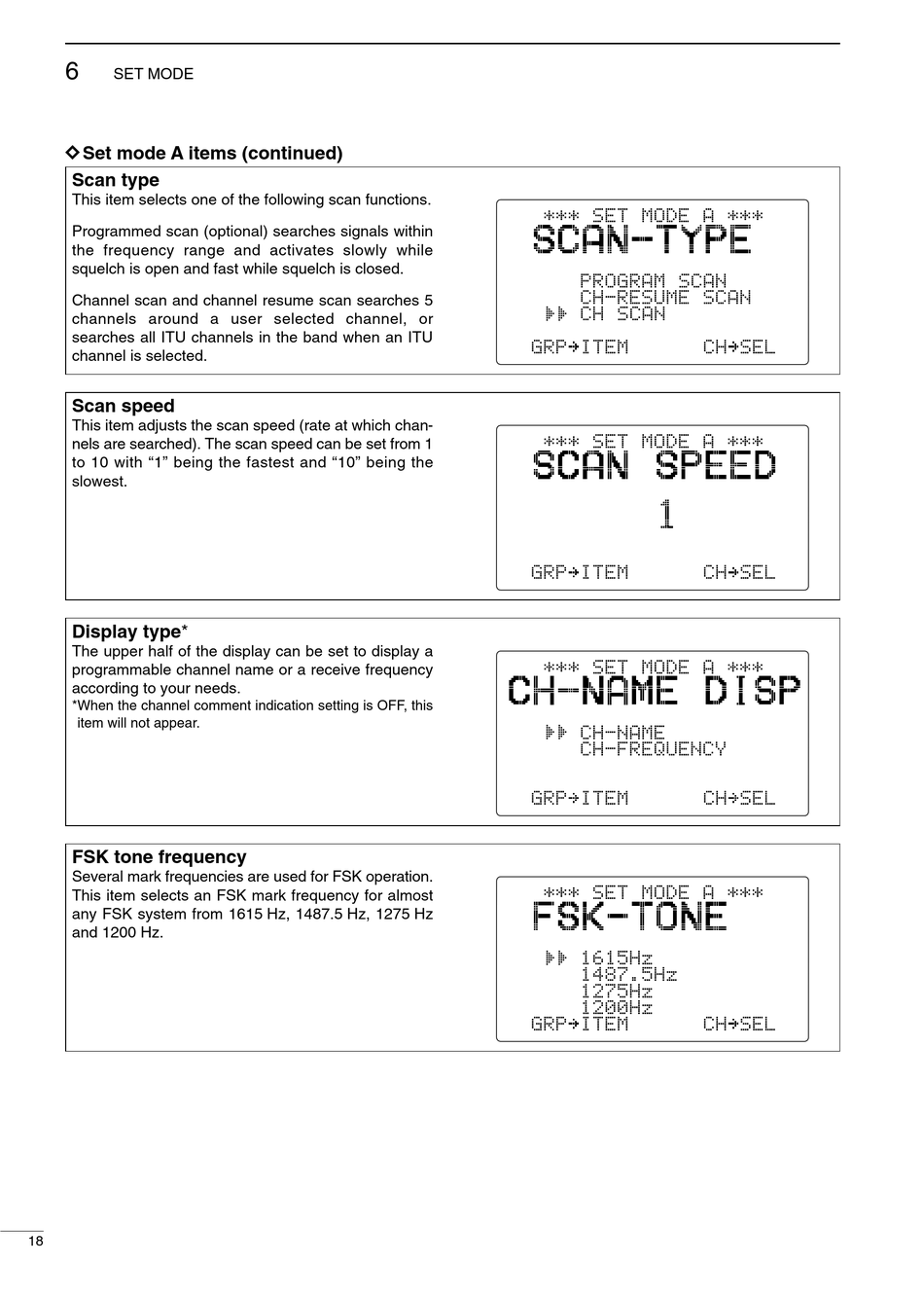

Scan Speed; Display Type - Icom IC-M802 Instruction Manual

6
SET MODE
D D Set mode A items (continued)
Scan type
This item selects one of the following scan functions.
Programmed scan (optional) searches signals within
the frequency range and activates slowly while
squelch is open and fast while squelch is closed.
Channel scan and channel resume scan searches 5
channels around a user selected channel, or
searches all ITU channels in the band when an ITU
channel is selected.

Scan speed

This item adjusts the scan speed (rate at which chan-
nels are searched). The scan speed can be set from 1
to 10 with "1" being the fastest and "10" being the
slowest.

Display type*

The upper half of the display can be set to display a
programmable channel name or a receive frequency
according to your needs.
*When the channel comment indication setting is OFF, this
item will not appear.
FSK tone frequency
Several mark frequencies are used for FSK operation.
This item selects an FSK mark frequency for almost
any FSK system from 1615 Hz, 1487.5 Hz, 1275 Hz
and 1200 Hz.
18
* * * S E T M O D E A * * *
P R O G R A M S C A N
C H - R E S U M E S C A N
ÇÇ C H S C A N
G R P I T E M C H S E L
* * * S E T M O D E A * * *
G R P I T E M C H S E L
* * * S E T M O D E A * * *
ÇÇ C H - N A M E
C H - F R E Q U E N C Y
G R P I T E M C H S E L
* * * S E T M O D E A * * *
ÇÇ 1 6 1 5 H z
1 4 8 7 . 5 H z
1 2 7 5 H z
1 2 0 0 H z
G R P I T E M C H S E L
