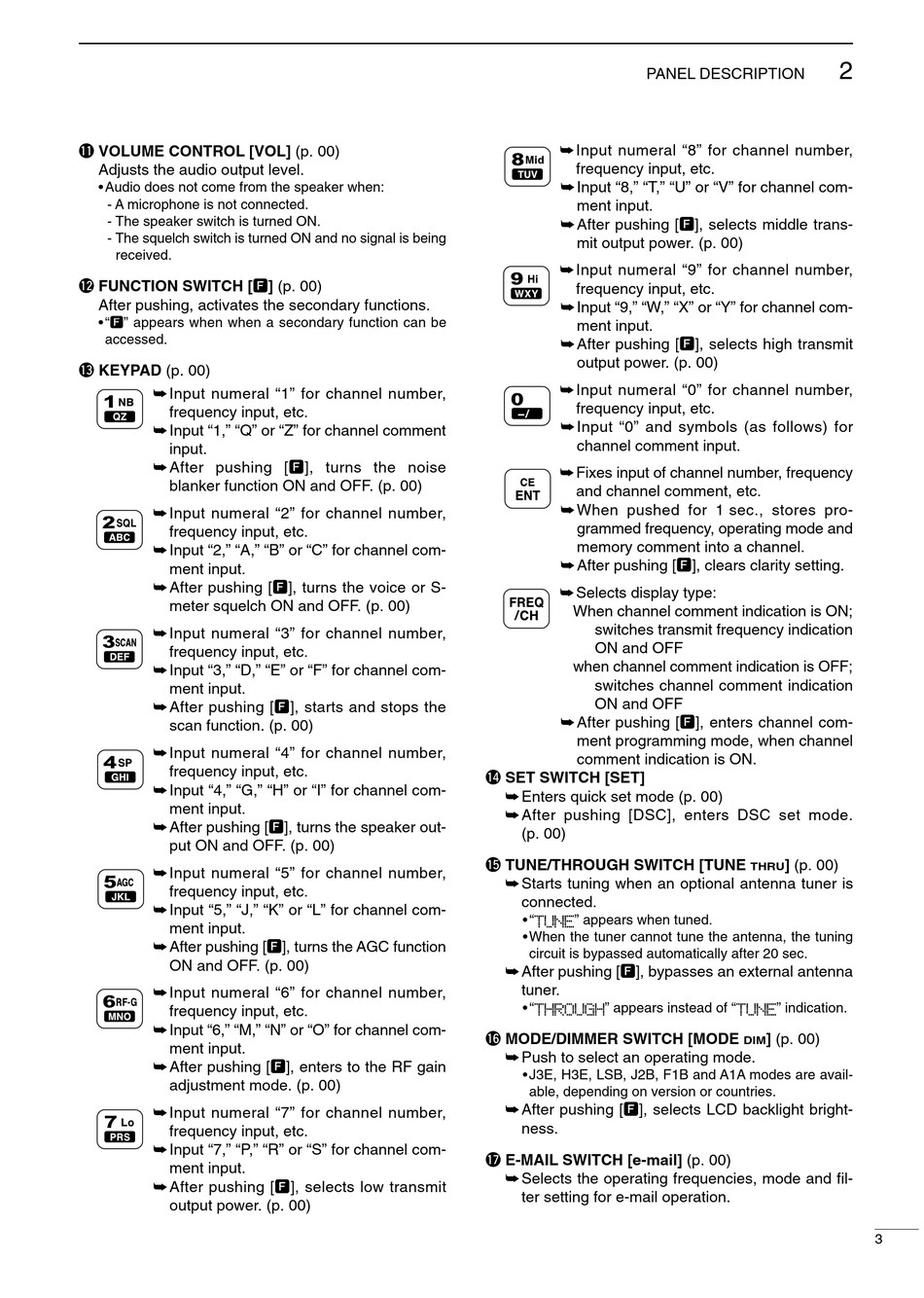

Icom IC-M802 Instruction Manual page 6

!1 VOLUME CONTROL [VOL] (p. 00)
Adjusts the audio output level.
• Audio does not come from the speaker when:
- A microphone is not connected.
- The speaker switch is turned ON.
- The squelch switch is turned ON and no signal is being
received.
!2 FUNCTION SWITCH [F] (p. 00)
After pushing, activates the secondary functions.
• "F" appears when when a secondary function can be
accessed.
!3 KEYPAD (p. 00)
➥ Input numeral "1" for channel number,
frequency input, etc.
➥ Input "1," "Q" or "Z" for channel comment
input.
➥ After pushing [F], turns the noise
blanker function ON and OFF. (p. 00)
➥ Input numeral "2" for channel number,
frequency input, etc.
➥ Input "2," "A," "B" or "C" for channel com-
ment input.
➥ After pushing [F], turns the voice or S-
meter squelch ON and OFF. (p. 00)
➥ Input numeral "3" for channel number,
frequency input, etc.
➥ Input "3," "D," "E" or "F" for channel com-
ment input.
➥ After pushing [F], starts and stops the
scan function. (p. 00)
➥ Input numeral "4" for channel number,
frequency input, etc.
➥ Input "4," "G," "H" or "I" for channel com-
ment input.
➥ After pushing [F], turns the speaker out-
put ON and OFF. (p. 00)
➥ Input numeral "5" for channel number,
frequency input, etc.
➥ Input "5," "J," "K" or "L" for channel com-
ment input.
➥ After pushing [F], turns the AGC function
ON and OFF. (p. 00)
➥ Input numeral "6" for channel number,
frequency input, etc.
➥ Input "6," "M," "N" or "O" for channel com-
ment input.
➥ After pushing [F], enters to the RF gain
adjustment mode. (p. 00)
➥ Input numeral "7" for channel number,
frequency input, etc.
➥ Input "7," "P," "R" or "S" for channel com-
ment input.
➥ After pushing [F], selects low transmit
output power. (p. 00)
PANEL DESCRIPTION
➥ Input numeral "8" for channel number,
frequency input, etc.
➥ Input "8," "T," "U" or "V" for channel com-
ment input.
➥ After pushing [F], selects middle trans-
mit output power. (p. 00)
➥ Input numeral "9" for channel number,
frequency input, etc.
➥ Input "9," "W," "X" or "Y" for channel com-
ment input.
➥ After pushing [F], selects high transmit
output power. (p. 00)
➥ Input numeral "0" for channel number,
frequency input, etc.
➥ Input "0" and symbols (as follows) for
channel comment input.
➥ Fixes input of channel number, frequency
and channel comment, etc.
➥ When pushed for 1 sec., stores pro-
grammed frequency, operating mode and
memory comment into a channel.
➥ After pushing [F], clears clarity setting.
➥ Selects display type:
When channel comment indication is ON;
switches transmit frequency indication
ON and OFF
when channel comment indication is OFF;
switches channel comment indication
ON and OFF
➥ After pushing [F], enters channel com-
ment programming mode, when channel
comment indication is ON.
!4 SET SWITCH [SET]
➥ Enters quick set mode (p. 00)
➥ After pushing [DSC], enters DSC set mode.
(p. 00)
!5 TUNE/THROUGH SWITCH [TUNE
➥ Starts tuning when an optional antenna tuner is
connected.
• "TUNE" appears when tuned.
• When the tuner cannot tune the antenna, the tuning
circuit is bypassed automatically after 20 sec.
➥ After pushing [F], bypasses an external antenna
tuner.
• "THROUGH" appears instead of "TUNE" indication.
!6 MODE/DIMMER SWITCH [MODE
➥ Push to select an operating mode.
• J3E, H3E, LSB, J2B, F1B and A1A modes are avail-
able, depending on version or countries.
➥ After pushing [F], selects LCD backlight bright-
ness.
!7 E-MAIL SWITCH [e-mail] (p. 00)
➥ Selects the operating frequencies, mode and fil-
ter setting for e-mail operation.
