5

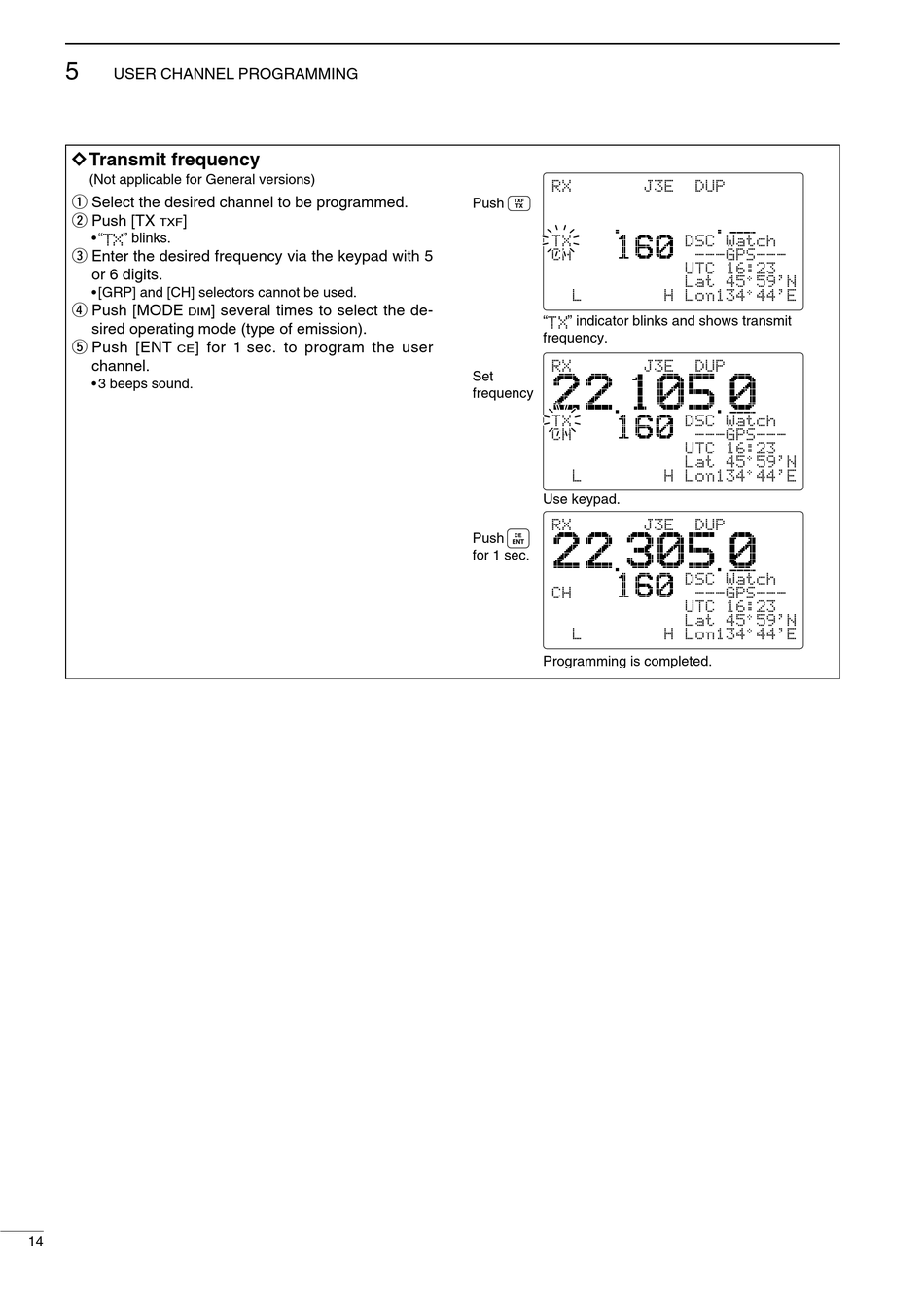

USER CHANNEL PROGRAMMING
D D Transmit frequency
(Not applicable for General versions)
q Select the desired channel to be programmed.
w Push [TX
]
TXF
• "TX" blinks.
e Enter the desired frequency via the keypad with 5
or 6 digits.
• [GRP] and [CH] selectors cannot be used.
r Push [MODE
DIM
sired operating mode (type of emission).
t Push [ENT
] for 1 sec. to program the user
CE
channel.
• 3 beeps sound.
14
] several times to select the de-
R X J 3 E
Push
T X
C H
L
"T X" indicator blinks and shows transmit
frequency.
R X J 3 E
Set
frequency
T X
C H
L
Use keypad.
R X J 3 E
Push
for 1 sec.
C H
L
Programming is completed.
D U P
D S C W a t c h
- - - G P S - - -
U T C 1 6 : 2 3
L a t 4 5 5 9 ' N
H L o n 1 3 4 4 4 ' E
D U P
D S C W a t c h
- - - G P S - - -
U T C 1 6 : 2 3
L a t 4 5 5 9 ' N
H L o n 1 3 4 4 4 ' E
D U P
D S C W a t c h
- - - G P S - - -
U T C 1 6 : 2 3
L a t 4 5 5 9 ' N
H L o n 1 3 4 4 4 ' E
