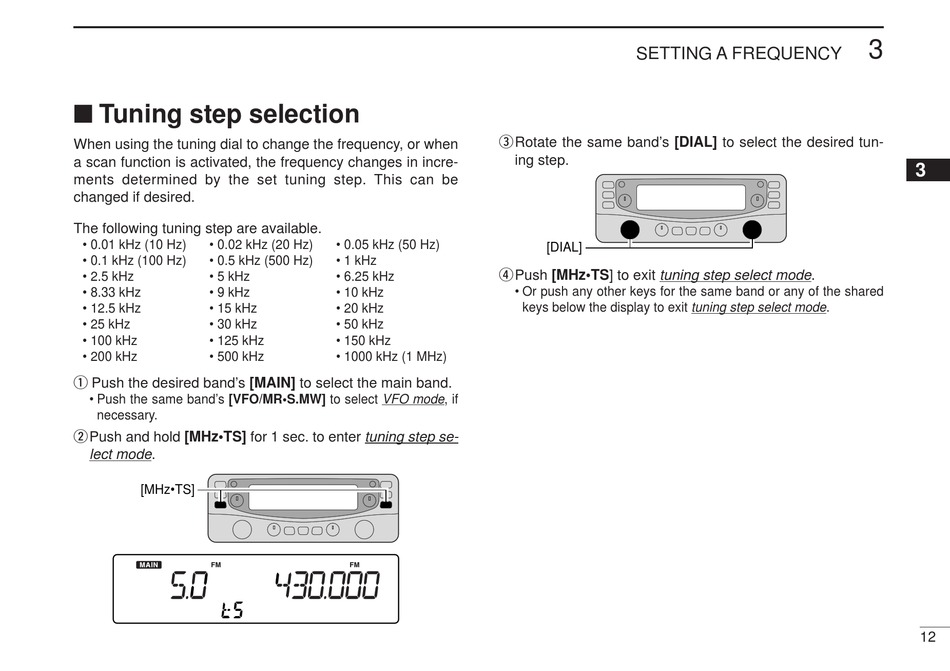

■ Tuning step selection

When using the tuning dial to change the frequency, or when
a scan function is activated, the frequency changes in incre-
ments determined by the set tuning step. This can be
changed if desired.
The following tuning step are available.
• 0.01 kHz (10 Hz) • 0.02 kHz (20 Hz)
• 0.1 kHz (100 Hz) • 0.5 kHz (500 Hz)
• 2.5 kHz • 5 kHz
• 8.33 kHz • 9 kHz
• 12.5 kHz • 15 kHz
• 25 kHz • 30 kHz
• 100 kHz • 125 kHz
• 200 kHz • 500 kHz
q Push the desired band's [MAIN] to select the main band.
• Push the same band's [VFO/MR•S.MW] to select VFO mode, if
necessary.
wPush and hold [MHz•TS] for 1 sec. to enter tuning step se-
lect mode.
[MHz•TS]
eRotate the same band's [DIAL] to select the desired tun-
ing step.
• 0.05 kHz (50 Hz)
• 1 kHz
rPush [MHz•TS] to exit tuning step select mode.
• 6.25 kHz
• Or push any other keys for the same band or any of the shared
• 10 kHz
• 20 kHz
• 50 kHz
• 150 kHz
• 1000 kHz (1 MHz)
SETTING A FREQUENCY
[DIAL]
keys below the display to exit tuning step select mode.
