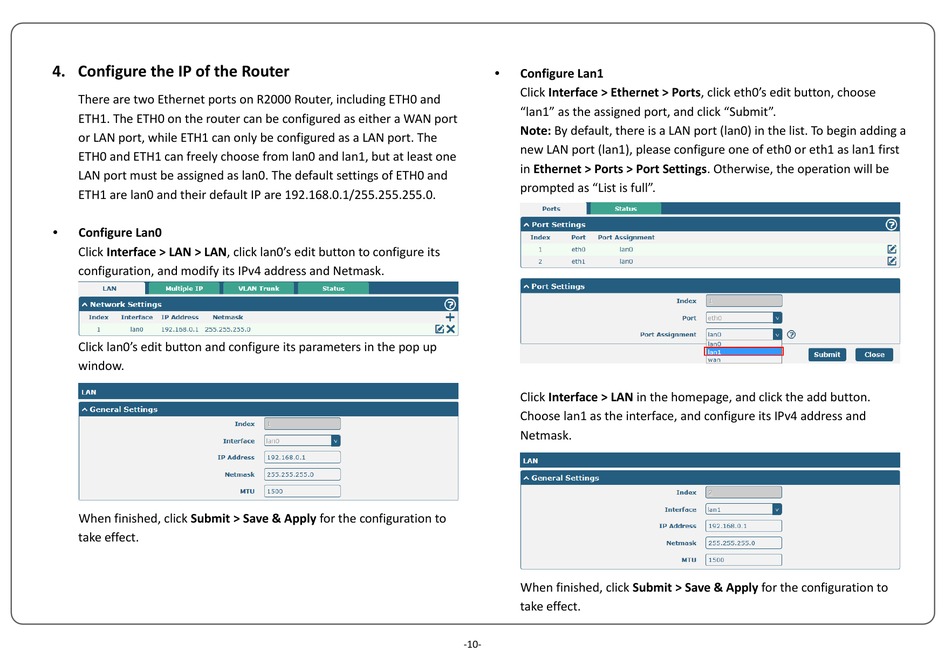

4. Configure the IP of the Router
There are two Ethernet ports on R2000 Router, including ETH0 and
ETH1. The ETH0 on the router can be configured as either a WAN port
or LAN port, while ETH1 can only be configured as a LAN port. The
ETH0 and ETH1 can freely choose from lan0 and lan1, but at least one
LAN port must be assigned as lan0. The default settings of ETH0 and
ETH1 are lan0 and their default IP are 192.168.0.1/255.255.255.0.

Configure Lan0
Click Interface > LAN > LAN, click lan0's edit button to configure its
configuration, and modify its IPv4 address and Netmask.
Click lan0's edit button and configure its parameters in the pop up
window.
When finished, click Submit > Save & Apply for the configuration to
take effect.

Configure Lan1
Click Interface > Ethernet > Ports, click eth0's edit button, choose
"lan1" as the assigned port, and click "Submit".
Note: By default, there is a LAN port (lan0) in the list. To begin adding a
new LAN port (lan1), please configure one of eth0 or eth1 as lan1 first
in Ethernet > Ports > Port Settings. Otherwise, the operation will be
prompted as "List is full".
Click Interface > LAN in the homepage, and click the add button.
Choose lan1 as the interface, and configure its IPv4 address and
Netmask.
When finished, click Submit > Save & Apply for the configuration to
take effect.
